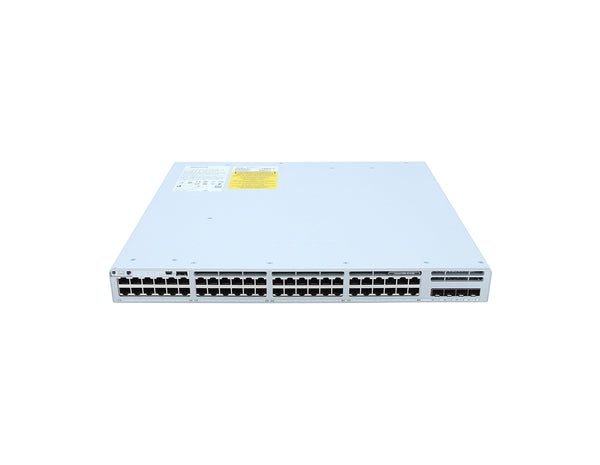

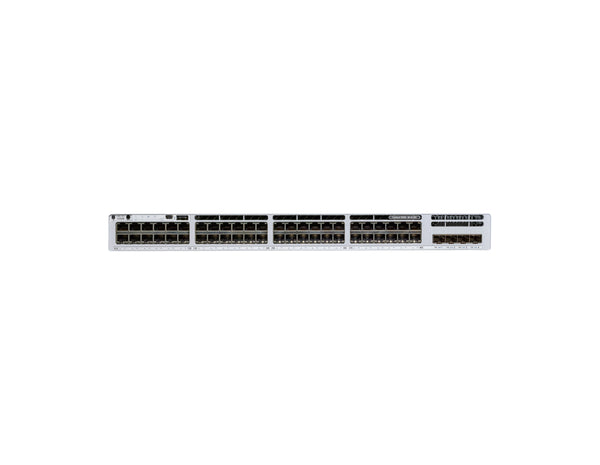

Front view of the Cisco C9300L-48T-4X-A switch, showing its 48 Gigabit Ethernet ports and four 10G SFP+ uplinks.

Cisco C9300L-48T-4X-A Switch – 48-Port Gigabit, 4× 10G Uplinks, Network Advantage

Name: Cisco C9300L-48T-4X-A Switch – 48-Port Gigabit, 4× 10G Uplinks, Network Advantage
Brand: Cisco
SKU: C9300L-48T-4X-A-NEW
Price: 6250.0 USD
Availability: InStock

Part Number: C9300L-48T-4X-A

Technical Details

Cisco C9300L-48T-4X-A is a 48× 1G non-PoE Layer 3 switch with 4× 10G SFP+ uplinks, StackWise-320 support, and a Network Advantage license.

$8,847.98

$6,250.00

29% OFF

You Save: $2,597.98

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

At a Glance

Ports: 48 × 1G Ethernet (non-PoE)
Uplinks: 4 × 10G SFP+ fixed uplinks
Stacking: StackWise-320 (up to 8 units, 320 Gbps bandwidth)
Software: Network Advantage license (advanced Layer 3, SD-Access ready)

Product Overview

The Cisco C9300L-48T-4X-A is an enterprise-grade Layer 3 switch for high-performance access in campus and branch environments. It provides 48 non-PoE Gigabit ports with four 10G SFP+ uplinks and supports StackWise-320 for simplified, resilient operations. With Network Advantage, it enables advanced routing, segmentation, and automation on Cisco IOS XE and UADP ASIC.

Technical Specifications

Hardware

Model: C9300L-48T-4X
Ports: 48 × 10/100/1000 Ethernet ports (non-PoE)
Uplinks: 4 × 10G SFP+ fixed uplink ports
Stacking Support: StackWise-320
Stacking Bandwidth: 320 Gbps
Power Supply: 1 × 350W AC (standard efficiency)
Fan Modules: 3 × field-replaceable fans
Physical Dimensions: 1.73 × 17.5 × 17.7 in (4.4 × 44.5 × 44.9 cm)
Weight: 15.41 lbs (7.0 kg)

Performance

Switching Capacity: 176 Gbps
Forwarding Rate: 130.95 Mpps
DRAM: 8 GB
Flash Memory: 16 GB
VLAN Support: 4094 VLANs
MAC Address Table Size: 32,000 entries
Jumbo Frame Support: Up to 9198 bytes

Software & Features

Operating System: Cisco IOS XE
License Tier: Network Advantage
Routing Protocols: OSPF, EIGRP, BGP, IS-IS, VRF
Security Features: MACsec (AES-128/256), 802.1X, ACLs

Frequently Asked Questions (FAQ)

Can the C9300L-48T-4X-A be stacked with other Catalyst 9300L switches?

Yes. This model supports StackWise-320 and can stack with other compatible Catalyst 9300L/C9300LM switches, up to 8 units.

Does this switch support Cisco StackPower?

No. StackPower is not supported on Catalyst 9300L models. Power redundancy is via optional dual PSUs.

How can I manage the switch?

Manage via CLI (console), Cisco DNA Center, and model-dependent monitor-only visibility in the Meraki dashboard. Full programmability is available through Cisco IOS XE.

Properties

Properties	C9300L-48T-4X-A
Description	Catalyst 9300L 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data-only, Network Advantage
Product Family	Catalyst 9300L
Product Type	Ethernet Switch
Number of Ports	48
Downlinks total 10/100/1000 or PoE+ copper ports	48 port Data (non-PoE)
Uplink configuration	4x 10G/1G fixed uplinks
Cisco IOS Software	Network Advantage
Default primary AC power supply	PWR-C1-350WAC-P
Available PoE power with additional secondary power supply	No PoE
Fans	Three field-replaceable fans
Chassis + FEP + Fan Dimensions (HxWxD) Inches	1.73 x 17.5 x 17.7

Specifications

Specifications	C9300L-48T-4X-A
Console Ports	RJ-45 console (RJ-45-to-DB9 cable); USB console supported on some revisions
DRAM	8 GB
Flash Memory	16 GB
Switching capacity	176 Gbps
Forwarding rate	130.95 Mpps
MAC addresses	32,000
Operating Temperature Up to 5,000 ft (1500 m)	-5°C to +45°C
Operating Temperature Up to 10,000 ft (3000 m)	-5°C to +40°C
Safety	UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3
Electromagnetic compatibility certifications	47 CFR Part 15 EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386 EN 55035 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 QCVN 118:2018/BTTTT VCCI-CISPR 32 Class A
EMC compliance	FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6
Environmental	Reduction of Hazardous Substances (ROHS) 5

Accessories

Stacking Support	StackWise-320
Stacking bandwidth support	320 Gbps
Stacking hardware	C9300L-STACK-KIT or C9300L-STACK-KIT2
Number of members	8
Supported stack members	Other C9300L and C9300LM models with the same license level
Stacking accessories
STACK-T3-50CM	Data stack 50cm cable (default cable with C9300L Stack Kit)
STACK-T3-1M	Data stack 1m cable (cable option with C9300L Stack Kit)
STACK T3-3M	Data stack 3m cable (cable option with C9300L Stack Kit)
