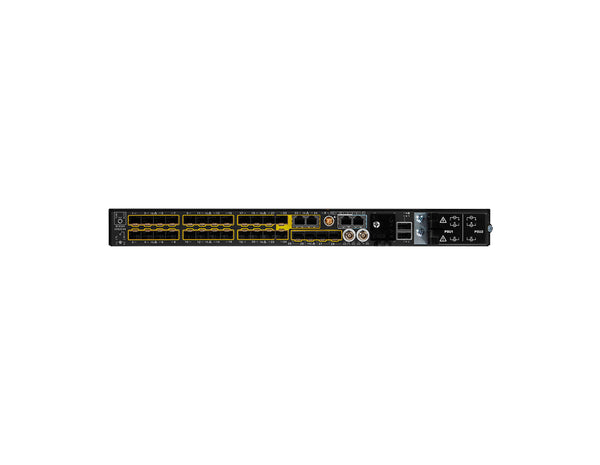

Cisco Catalyst IE-9320-22S2C4X-A Rugged Ethernet Switch

Name: Cisco Catalyst IE-9320-22S2C4X-A Rugged Ethernet Switch
Brand: Cisco
SKU: IE-9320-22S2C4X-A-NEW
Price: 11789.96 USD
Availability: InStock

Part Number: IE-9320-22S2C4X-A

Technical Details

28 ports, 22 SFP, 2 dual-media, 4x 1/10G uplinks, Network Advantage, rugged 1RU design

$27,418.50

$11,789.96

57% OFF

You Save: $15,628.54

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Industrial-Grade Performance with Advanced Security

The Cisco Catalyst IE-9320-22S2C4X-A delivers enterprise-class networking in a ruggedized 1RU form factor. Built for harsh environments, this 28-port switch combines 22 SFP downlinks, 2 dual-media ports, and 4 high-speed 1/10G SFP+ uplinks. With Network Advantage licensing, it provides advanced Layer 3 routing, segmentation, and zero-trust security to safeguard critical industrial operations.

Key Benefits & Features

Ruggedized Design: Operates reliably in extreme conditions (-40°C to 75°C) with fanless cooling and shock resistance.
High-Speed Uplinks: Four 1/10G SFP+ uplinks support scalable, low-latency connectivity for industrial automation and IoT.
Advanced Security: Includes Cisco TrustSec, MACsec-256 encryption, and Cisco Cyber Vision for asset visibility.
Flexible Management: Supports Cisco Catalyst Center, WebUI, and API-driven automation for simplified deployment.
Industrial Protocol Support: Native support for PROFINET, EtherNet/IP (CIP), and IEEE 1588 PTP precision timing.

Ideal Use Cases

Industrial automation networks in manufacturing and energy sectors
Transportation and smart city infrastructure requiring hardened switching
Oil, gas, and mining operations with harsh environmental demands
Secure OT/IT convergence with zero-trust remote access
Extended enterprise deployments needing long-distance fiber connectivity

Technical Specifications

Total Ports: 28 (22x 100/1000 SFP, 2x dual-media SFP/RJ-45, 4x 1/10G SFP+)
Software License: Network Advantage
Forwarding Bandwidth: 76 Gbps
Switching Capacity: 152 Gbps full-duplex
Performance: 113.09 Mpps forwarding rate
Memory: 8 GB DRAM, 8 GB flash
Operating Temperature: -40°C to 75°C
Form Factor: 1RU rack-mountable, fanless design
Weight: 12.7 lb (5.76 kg)
Compliance: IEC 61850-3, IEEE 1613, hazardous location certifications

Deploy Industrial Networks with Confidence

Empower your critical operations with secure, resilient, and scalable connectivity. Order the Cisco Catalyst IE-9320-22S2C4X-A today.

Properties

Model	Cisco Catalyst IE-9320-22S2C4X-A
Product Type	Industrial Ethernet Switch (Rugged Series)
Total Ports	28
Downlink Ports	22 × 100/1000M SFP + 2 × Dual-Media (100/1000M SFP or 10/100/1000M RJ45)
Uplink Ports	4 × 1/10G SFP+
Default Software License	Network Advantage
Switching Bandwidth	152 Gbps (full duplex)
Forwarding Rate	113.09 Mpps
MAC Address Table	24,000 entries
VLANs	4096 VLAN IDs, 1024 active VLANs
Operating System	Cisco IOS XE
Stacking Support	Up to 4 members
Management Options	Cisco Catalyst Center, WebUI, CLI, SNMP
Power Input	Dual AC/DC power inputs supported
Dimensions (H × W × D)	1.72 × 17.5 × 14.0 in. (with PWR-RGD-AC-DC-H)
Weight	12.7 lb (5.76 kg)
Typical Power Consumption	73 W
Operating Temperature	-40 °C to 75 °C (blower cabinet); -40 °C to 60 °C (sealed cabinet)
Ingress Protection	IP30
MTBF	323,733 hours

Specifications

DRAM / Flash	8 GB DRAM / 8 GB onboard flash (2.5 GB user accessible)
Storage Options	USB 2.0, SD card slot (16 GB optional)
Resiliency Features	REP, PRP, MRP, HSR, EtherChannel, redundant power, zero-touch replacement
Security	Secure Boot, Trust Anchor, MACsec-256, TrustSec segmentation, Cyber Vision, Zero-Trust Remote Access
Layer 2 Features	802.1Q VLAN, STP, RSTP, MSTP, EtherChannel, VLAN tunneling (Q-in-Q), L2 Protocol Tunneling
Layer 3 Features	Static Routing, RIP, OSPF, Policy-Based Routing, BGP, EIGRP, IS-IS, VRF-lite (Advantage license)
Multicast	IGMP v1/v2/v3, MLD snooping, PIM-SM, Auto-RP, MSDP
QoS	8 egress queues per port, Auto-QoS, DSCP mapping, LLQ, traffic shaping & policing
Industrial Protocols	PROFINET, EtherNet/IP (CIP), Modbus TCP, GOOSE, PTP (IEEE 1588v2)
Compliance	EN 61000-6-2/4, IEEE 1613, IEC 61850-3, UL/CSA 62368-1, ATEX & IECEx (Hazloc)
Operating Altitude	Up to 4572 m (no derating); up to 12,192 m with derating
Relative Humidity	5% to 95% non-condensing
Certifications	FIPS 140-2, Common Criteria, USGv6, ODVA EtherNet/IP, NEMA TS2

Accessories

Included	Rack-mount kit (19"), user documentation
Optional – Rack Kits	23" NEBS rack-mount kit (RM-RGD-23IN); ETSI rack-mount kit (RM-RGD-ETSI)
Optional – Power Supplies	PWR-RGD-LOW-DC-H (150W), PWR-RGD-AC-DC-H (150W), PWR-RGD-AC-DC-250 (250W), PWR-RGD-AC-DC-400 (400W)
Optional – Accessories	SD-IE-16GB (16GB SD card); Cisco stacking cables (CAB-STK-0.5M, CAB-STK-1M)
