[shortdesc]

Server
Rack-mountable
4U
4-way

[/shortdesc]

[properties]

Properties	UCS-C480-M5
Description	UCS-C480-M5 is a high-density rack server designed for enterprise-level computing, featuring the latest Intel Xeon Scalable processors, high-speed networking, and up to 6 terabytes of storage capacity.
Product Family	UCS Series Rack Server
Product Type	Servers
Form factor	4RU rack server
Processors	Intel^® Xeon^® Scalable CPUs and second-generation Intel^® Xeon^® Scalable CPUs (2 or 4)
Memory	48 DDR4 DIMM slots: 16, 32, 64, 128, and 256 GB; up to 2933 MHz
PCIe expansion	12 PCIe 3.0 slots plus 1 dedicated 12-Gbps RAID controller slot
RAID controllers	Internal controllers:
	● Cisco 12-Gbps Modular RAID Controller (PCIe 3.0) with 4-GB Flash-Backed Write Cache (FBWC), providing enterprise-class data protection for up to 24 SAS and SATA HDDs and SSDs
	● 12-Gbps 9460-8i RAID controller with 2-GB FBWC provides support for up to 8 SAS and SATA HDDs and SSDs in the auxiliary drive modules
	● PCIe NVMe switch card for up to 8 PCIe NVMe drives in the auxiliary drive module
Internal storage	Support for up to 32 hot-swappable 2.5-inch Small Form Factor (SFF) drives
	● Up to 24 front-loading 2.5-inch SAS/SATA HDDs and SSDs and PCIe NVMe drives
	● Up to 8 top loading 2.5-inch SAS/SATA/PCIe HDDs and SSDs or NVMe drives in the C480 M5 auxiliary drive module
	● DVD drive option
Embedded Network Interface Cards (NICs)	Dual 10GBASE-T Intel x550 Ethernet ports
Power supplies	Hot-pluggable, redundant 1600W AC
Rack options	Cisco ball-bearing rail kit with optional reversible cable management arm
Dimensions in.	6.9 x 19.0 x 32.7
Regulatory Compliance	Products should comply with CE Markings per directives 2014/30/EU and 2014/35/EU
Safety	UL 60950-1 Second Edition
	CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition
	IEC 60950-1 Second Edition
	AS/NZS 60950-1
	GB4943 2001
EMC - Emissions	47CFR Part 15 (CFR 47) Class A AS/NZS CISPR32 Class A CISPR32 Class A
	EN55032 Class A
	ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN32 Class A CNS13438 Class A
EMC - Immunity	EN55024 CISPR24 EN300386 KN35

[/properties] [specifications] [/specifications] [accesories] [/accesories]

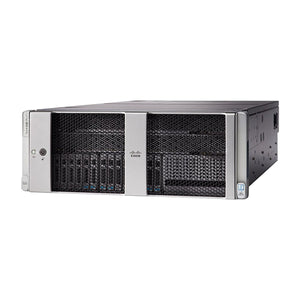

Cisco UCS-C480-M5 Standart Base Chassis - Rack Server

The Cisco UCS C480 M5 Rack Server is a storage- and I/O-optimized enterprise-class rack server that delivers industry-leading performance for in-memory databases, big data analytics, virtualization, Virtual Desktop Infrastructure (VDI), and bare-metal applications. The C480 M5 delivers outstanding levels of expandability and performance for standalone or Cisco Unified Computing System (Cisco UCS) managed environments in a 4RU form factor. And because of its modular design, you pay for only what you need.

Requires Following Components to Complete:

CPU(s)
Memory
Raid Configuration
PCle Option Card(s)
Power Supplies
AC Power Cord(s)
Operating System

Please email us at sales@networkdevicesinc.com

Optional Components:

Drive Modules and Drives
PCle Option Card Accessories
Optical Drive
Secure Digital Cards or M.2 Devices
Internal Micro-SD Card Module
GPU Cards and Accessories
Cable Management ARM
USB Drive
Security Devices
Bezel
Management Configuration
Server Boot Mode
Racks
Power Distribution Unit (PDU)
