Model: | MCX623436AN-CDAB |
Detail: |
ConnectX-6 Dx EN Adapter Card OCP3.0 100GbE with Host Management Dual-Port QSFP56 PCIe 4.0 x16 No Crypto Thumbscrew Pull Tab Brack |
Price: | $965.00 |
Condition: | Brand New Sealed |
Availability: | Out of Stock |
Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
Tax: | $0.00 Tax Outside NJ and TX |
Quantity: |
The MCX623436AN-CDAB is a small form factor SmartNIC card that excels in cybersecurity, virtualization, SDN/NFV, big data, machine learning, and storage infrastructures. It utilizes PAM4/NRZ technology and supports up to 100 Gbps Ethernet speed. It implements Hardware Root-of-Trust and secure firmware update capabilities. It also features a programmable pipeline for adapting to new network flows.
Protocol Support | PAM4/NRZ technology for high-speed Ethernet up to 100Gbps |
Key Features | Non-crypto, Hardware Root-of-Trust, Secure Firmware Update |
Message Rate | Up to 215 million packets per second (Mpps) |
Supported Architectures | x86, Power, and Arm |
Environmental Specifications | Operational Temperature: 0°C to 55°C, Storage Temperature: -40°C to 70°C |
Cooling | Passive |
Compliance Standards | CE, FCC, UL |
Management Features | Programmable pipeline for flexible network flow adaptation |
Supported Environments | Cybersecurity, SDN/NFV, big data, machine learning, and storage infrastructures |
Power Consumption | Typical: 18.5W |

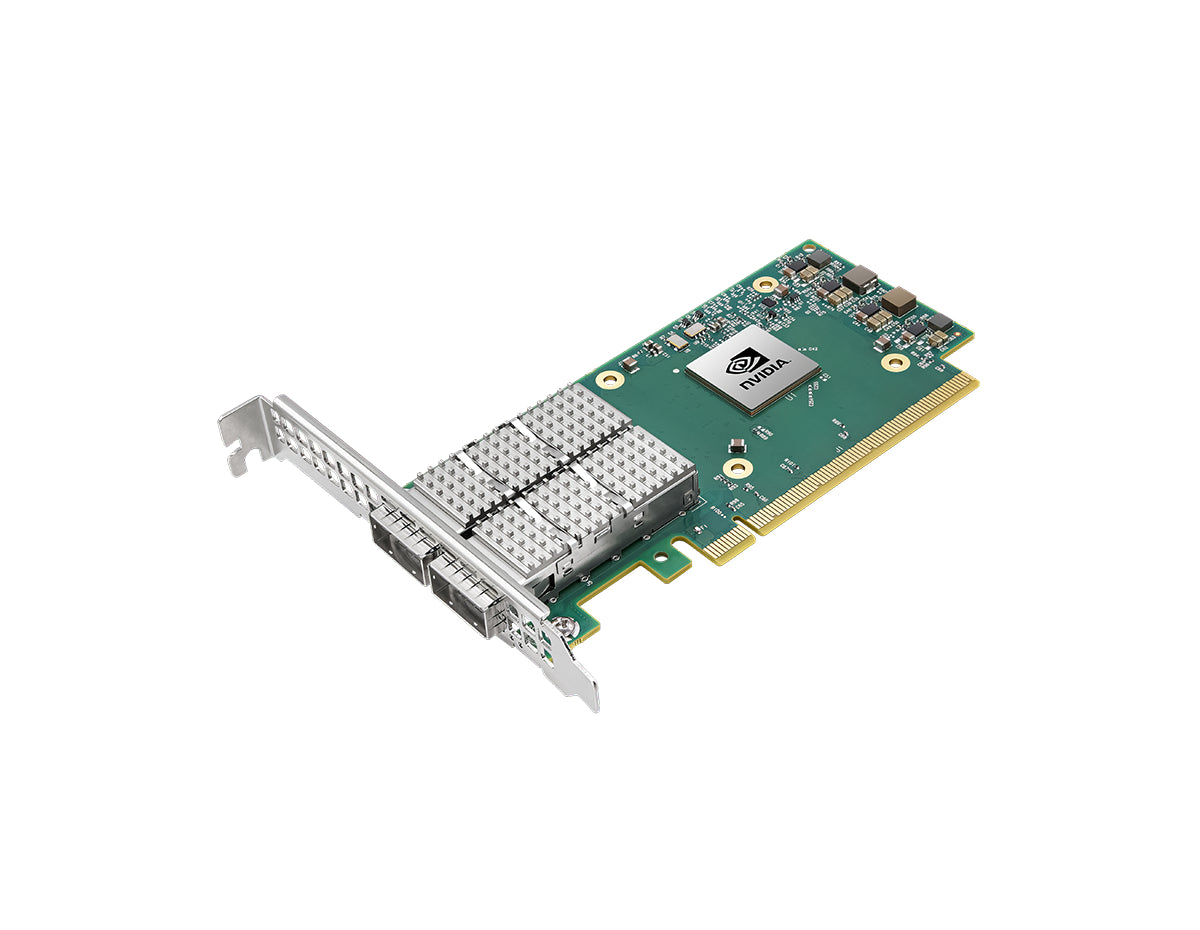

Product Name | Mellanox MCX623436AN-CDAB Adapter Card |
Description | Small form factor SmartNIC optimized for cybersecurity, virtualization, and data-intensive applications |
Product Family | ConnectX-6 Dx Ethernet Adapter Cards |
Product Type | Network Adapter Card |
Interface | PCIe Gen 3.0 / 4.0 x16 |
Network Connector Type | Dual-port QSFP56 |
Ethernet Data Rate | Supports 10/25/40/50/100 Gb/s |
Dimensions | Small Form Factor (SFF) OCP 3.0, 4.52 in. x 2.99 in (115.00mm x 76.00mm) |
Retention Mechanism | Thumbscrew (Pull Tab) Bracket |
Compliance | RoHS Compliant |
IC Part Number | MT28928A0-XCCFCE |
Host Management | Supported |
Device ID | PF: 4125, VF: 4126 |
Latency | Sub 0.8 µsec |
