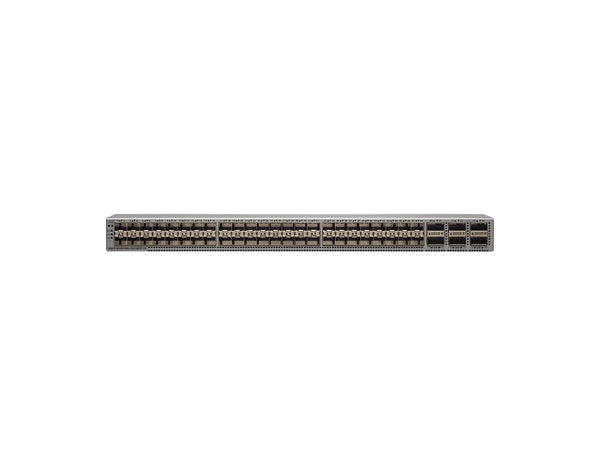

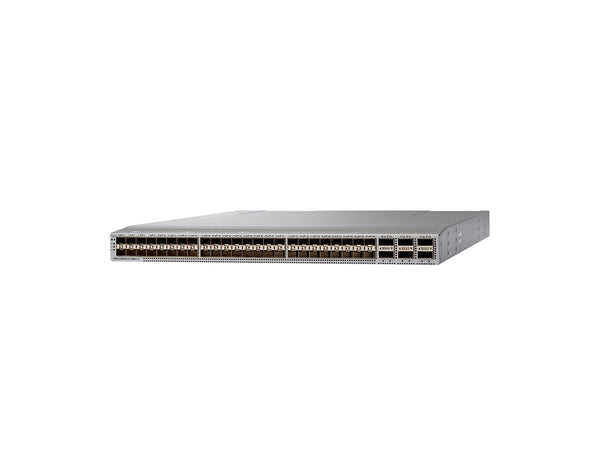

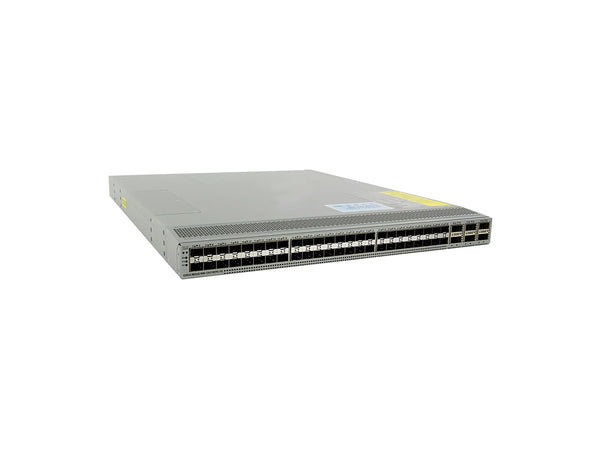

Cisco N9K-C93180YC-FX High-Performance 10/25/40/100 Gigabit Ethernet Switch

CISCO N9K-C93180YC-FX HIGH-PERFORMANCE 10/25/40/100 GIGABIT ETHERNET SWITCH

Part No:	N9K-C93180YC-FX
Detail:	Managed, Rack-mountable, 48 x 1/10/25G SFP+ ports, 6 x 40/100G QSFP28 Uplinks, No PoE (Data Only), Layer 3,
List Price:	~~US$35,175.00~~
Price:	$10,250.00
You Save:	$24,925.00 (71% OFF)
Condition:	Brand New Sealed
Availability:	IN STOCK
Shipping:	FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax:	$0.00 Tax Outside NJ, TX, FL and PA
Quantity:	+ -

Description
Properties
Specifications
Accessories
Shipping

Description

Cisco N9K-C93180YC-FX Switch

The Cisco N9K-C93180YC-FX is a versatile, high-performance data center switch designed for scalability and efficiency. With 48 ports supporting 1/10/25-Gbps and 6 uplink ports supporting 40/100-Gbps, it is ideal for cloud environments and large enterprise networks. Built on Cisco Cloud Scale technology, this switch offers wire-rate Layer 2 and Layer 3 features with advanced telemetry and security options. It delivers a total bandwidth of 3.6 Tbps and a forwarding rate of 1.2 bpps, providing fast, reliable network performance.

Key Features:

48 x 1/10/25-Gbps Ports: Provides flexible downlink speeds for a wide range of workloads and applications.
6 x 40/100-Gbps QSFP28 Uplinks: Ensures high-speed data transfers and scalable network expansion.
Cloud-Ready Design: Supports Cisco ACI and VXLAN for simplified management and automated network operations.
Advanced Security: Features MACsec encryption on all ports for enhanced data protection.
Low Latency: Delivers less than 1 microsecond latency for high-performance environments.

Technical Overview:

Recommended for: Data centers, cloud environments, and high-performance enterprise networks.
Ports: 48 x 1/10/25-Gbps, 6 x 40/100-Gbps QSFP28 uplinks.
Throughput: 3.6 Tbps.
Forwarding Rate: 1.2 billion packets per second (bpps).
Latency: Less than 1 microsecond.

You can check the related tab for the N9K-C93180YC-FX datasheet.

Accessories

NXA-PAC-500W-PI	Nexus 9000 500W AC PS, Port-side Intake
NXA-PAC-500W-PE	Nexus 9000 500W AC PS, Port-side Exhaust
NXA-PDC-930W-PI	Nexus 9000 930W DC PS, Port-side Intake
NXA-PDC-930W-PE	Nexus 9000 930W DC PS, Port-side Exhaust
N9K-PUV-1200W	Nexus 9300 1200W Universal Power Supply, Bi-directional air flow and Supports HVAC/HVDC
NXA-FAN-30CFM-F	Nexus Single Fan, 30CFM, port side exhaust airflow
NXA-FAN-30CFM-B	Nexus Single Fan, 30CFM, port side intake airflow
CAB-9K12A-NA	Power Cord, 125VAC 13A NEMA 5-15 Plug, North America (2.5 meter)
CAB-AC-L620-C13	North America, NEMA L6-20-C13 (2.0 meter)
CAB-C13-C14-2M	Power Cord Jumper, C13-C14 Connectors, 2 Meter Length (2 meter)
CAB-C13-CBN	Cabinet Jumper Power Cord, 250 VAC 10A, C14-C13 Connectors (0.7 meter)
CAB-N5K6A-NA	Power Cord, 200/240V 6A North America (2.5 meter)
CAB-HVAC-RT-0.6M	HVAC Power cable with right angle connector for RF-LS-25
NXK-ACC-KIT-1RU	Nexus Fixed Accessory Kit with 4-post rack mount kit

Specifications

CPU	6 cores
System memory	Up to 32 GB
SSD drive	128 GB
System buffer	40 MB
Minimum ACI image	ACI-N9KDK9-12.2A
Minimum NX-OS image	NXOS-703I7.1
MTBF	238,470 hours
RoHS compliance	Yes
Regulatory Standards Compliance	● UL 60950-1 Second Edition
	● CAN/CSA-C22.2 No. 60950-1 Second Edition
	● EN 60950-1 Second Edition
	● IEC 60950-1 Second Edition
	● AS/NZS 60950-1
	● GB4943
	● 47CFR Part 15 (CFR 47) Class A
	● AS/NZS CISPR22 Class A
	● CISPR22 Class A
	● EN55022 Class A
	● ICES003 Class A
	● VCCI Class A
	● EN61000-3-2
	● EN61000-3-3
	● KN22 Class A
	● CNS13438 Class A
	● EN55024
	● CISPR24
	● EN300386
	● KN 61000-4 series
Operating temperature	32 to 104°F (0 to 40°C)

Properties

Properties	93180YC-FX
Description	Nexus 9300 with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28, MACsec, and Unified Ports capable
Product Family	Cisco Nexus 9300-FX Series
Product Type	Ethernet Switch
Ports	48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports
Downlink supported speeds	1/10/25-Gbps Ethernet 16/32-Gbps Fibre Channel
Management ports	1 RJ-45 port L1 and L2 ports are unused
USB ports	1
RS-232 serial ports	1
Power supplies (up to 2)	500W AC, 930W DC, or 1200W HVAC/HVDC
Power Max/Avg (AC/DC)	260W - 425 W
Input voltage (AC)	100 to 240V
Input voltage (DC)	–48 to –60V
Frequency (AC)	50 to 60 Hz
Fans	4
Airflow	Port-side intake and exhaust
Physical dimensions	1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)
