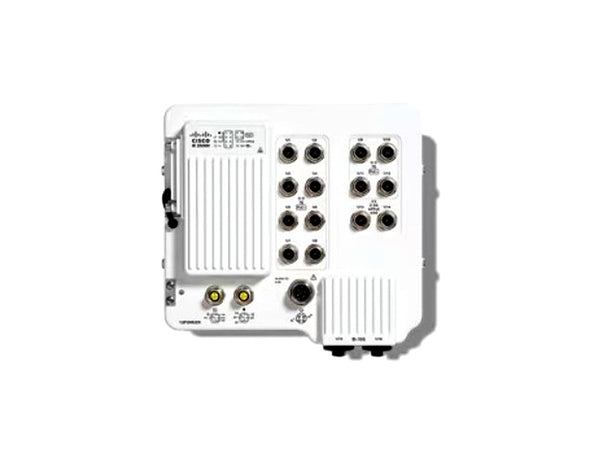

Cisco Catalyst IE-3500H-12P2MU2XE Switch

Name: Cisco Catalyst IE-3500H-12P2MU2XE Switch
Brand: Cisco
SKU: IE-3500H-12P2MU2XE-NEW
Price: 9313.3 USD
Availability: InStock

Part Number: IE-3500H-12P2MU2XE

Technical Details

Switch, L3, Managed, 12 × 10/100/1000 (PoE/PoE+) + 2 × mGig UPoE (M12 X-Code), 2 × 10G SFP+ uplinks, 240 W PoE, IP66/IP67 rugged, fanless, wall-mount

$16,933.28

$9,313.30

45% OFF

You Save: $7,619.98

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Cisco Catalyst IE-3500H-12P2MU2XE Switch

The Cisco Catalyst IE-3500H-12P2MU2XE Switch is a rugged, heavy-duty industrial Ethernet solution engineered for harsh OT edge environments. Combining 12 PoE/PoE+ M12 X-Code downlinks, 2 multigigabit (mGig) UPoE/4PPoE M12 X-Code downlinks, and 2 fixed 10G SFP+ uplinks (backward-compatible with 1G SFP), it delivers reliable, line-rate performance across all ports. Housed in an IP66/IP67-rated, fanless enclosure and powered by Cisco IOS XE, it brings Layer 2 and Layer 3 capabilities with simple management via WebUI/CLI or optional Cisco Catalyst Center—ideal for transportation, manufacturing, and outdoor cabinet deployments.

Key Features:

12 × PoE/PoE+ + 2 × mGig UPoE: Power cameras, APs, and industrial endpoints with a 240 W PoE budget over robust M12 X-Code connectors.
Dual 10G SFP+ Uplinks: High-speed fiber uplinks (1G fallback supported) for aggregation and backbone connectivity.
Ruggedized IP66/IP67 Design: Sealed, fanless hardware engineered for harsh, vibration-prone, and outdoor installations.
Layer 2 & Layer 3 Capabilities: Efficient segmentation and inter-VLAN routing on Cisco IOS XE.
Easy Management: Operate via Cisco IOS XE WebUI and CLI, with optional Cisco Catalyst Center for centralized operations.
High Reliability: MTBF of approximately 352,809 hours helps minimize downtime.

Technical Overview:

Recommended for: Industrial / harsh environments (IP66/IP67), OT edge, transportation, and manufacturing deployments.
Ports: 12 × 10/100/1000 Mbps M12 X-Code (PoE/PoE+) + 2 × mGig M12 X-Code (UPoE/4PPoE) downlinks; 2 × 10G SFP+ uplinks (backward-compatible 1G SFP).
PoE Budget: 240 W.
Switching Capacity: —
Forwarding Rate: Line-rate on all ports (all packet sizes).
Management: Cisco IOS XE WebUI, CLI, and optional Cisco Catalyst Center.
Security: Supports VLAN segmentation and ACLs; features vary by software license (Network Essentials).
Energy Efficiency: Fanless operation with typical system draw ~45 W (excluding PoE).

Properties

Property	Details
Product Line	Cisco Catalyst IE3500 Heavy Duty Series
Use Case	Industrial / harsh environments (IP66/IP67; OT edge)
Management	Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center)
PoE Support	12 × PoE/PoE+ + 2 × UPoE (mGig) ports
Layer Support	Layer 2 & Layer 3
Scalability	—
Operating System	Cisco IOS XE
Software Licence	Network Essentials
Form Factor	Ruggedized IP66/IP67, wall-mount, fanless
Default Power Supply	DC power input (12–54 VDC), Mini-Change single power source

Specifications

Specification	Details
Model Number	IE-3500H-12P2MU2XE
Port Count	16 (12 × 10/100/1000 PoE/PoE+ + 2 × mGig UPoE + 2 × 10G SFP+)
Downlink Ports & Speeds	12 × 10/100/1000 Mbps M12 X-Code (PoE/PoE+) + 2 × mGig (UPoE/4PPoE) M12 X-Code
Uplink Ports & Speeds	2 × 10G SFP+ (backward-compatible 1G SFP)
PoE Power Budget	240 W
Switching Capacity	—
Forwarding Rate	Line-rate on all ports (all packet sizes)
Stacking Bandwidth	—
DRAM	8 GB
Flash Memory	5.1 GB
MAC Address Table Size	24,000 entries
VLAN Support	4096 VLAN IDs (up to 1024 active)
Power Requirements	DC input 12–54 VDC; power consumption ~45 W (excl. PoE)
Dimensions (H × W × D)	10.46 × 10.90 × 3.36 in (26.57 × 27.69 × 8.53 cm)
Weight	11.40 lb (5.17 kg)
MTBF	352,809 hours

Accessories

Management & storage

SKU / Part Number	Description
SD-IE-16GB	IE 16GB SD memory card for configs/logs/firmware
CAB-CONSOLE-M12=	Console cable 1.8 m, M12 A-coded ↔ DB9F

Licenses & subscriptions

SKU / Part Number	Description
IE3500-NW-A=	Network Advantage perpetual license (feature upgrade)
IE3500-DNA-E-3Y	Cisco DNA Essentials 3-Year term
IE3500-DNA-E-5Y	Cisco DNA Essentials 5-Year term
IE3500-DNA-E-7Y	Cisco DNA Essentials 7-Year term
IE3500-DNA-A-3Y	Cisco DNA Advantage 3-Year term
IE3500-DNA-A-5Y	Cisco DNA Advantage 5-Year term
IE3500-DNA-A-7Y	Cisco DNA Advantage 7-Year term

Cabling & connectors

Item	Details
M12 X-coded industrial Ethernet cable	Data cable for GE/mGig ports (8-pin, Cat6A, IP67, PoE/UPoE)
Alarm cable (field)	M12 A-coded 5-pin connector
Console connector	M12 A-coded 5-pin (use CAB-CONSOLE-M12=)
M25 SFP/SFP+ port adapter	IP67 sealing adapter for populated SFP/SFP+ cages

SFP/SFP+ transceivers & DAC

SKU / Part Number	Description
GLC-SX-MM / GLC-LH-SM / GLC-EX-SMD / GLC-ZX-SM	1G SFP optics (SX/LX/EX/ZX classes)
GLC-TE	1G copper SFP (may reduce PTP performance)
SFP-10G-SR / SFP-10G-LR / SFP-10G-LRM / SFP-10G-ER / SFP-10G-ZR	10G SFP+ optics
SFP-H10G-CU1M / SFP-H10G-CU3M / SFP-H10G-CU5M	Passive 10G DAC cables
SFP-10G-T-X	10GBASE-T SFP+ (may reduce PTP performance)

Power cables (IP67 Mini-Change A-size)

SKU / Part Number	Description
130006-0737	4-pin female → pigtail, 16 AWG, PVC (switch DC power input)
130010-0863	4-pin male ↔ female, 16 AWG, TPE (PSU output ↔ switch input)
130006-0223	3-pin female → pigtail, 16 AWG, PVC (AC power supply input)
130006-0091	2-pin female → open end (DC power supply input)
