APC SMX2200RMLVUS - Smart-UPS X 2200VA Rack/Tower Convertible Line-Interactive UPS

Overview

The APC Smart-UPS X SMX2200RMLVUS is a high-performance 2U rack/tower convertible UPS delivering 2200VA / 1980W of reliable protection for IT systems. Designed with line-interactive topology, sine wave output, and extended runtime capability, it ensures business continuity in demanding environments. Featuring SmartSlot support, LCD control panel, and robust surge protection, this UPS is built for enterprise-level power security.

Key Features & Benefits

• 2200VA / 1980W Capacity: Provides dependable power backup for enterprise IT environments.
• Pure Sine Wave Output: Maintains clean and stable power delivery for sensitive hardware.
• Extended Runtime Support: Expandable battery options enable longer protection during outages.

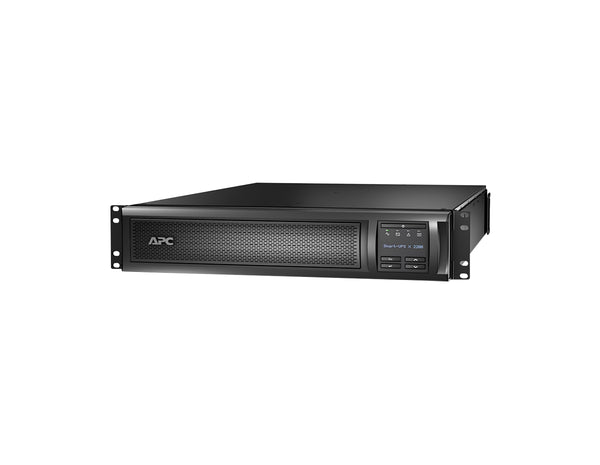

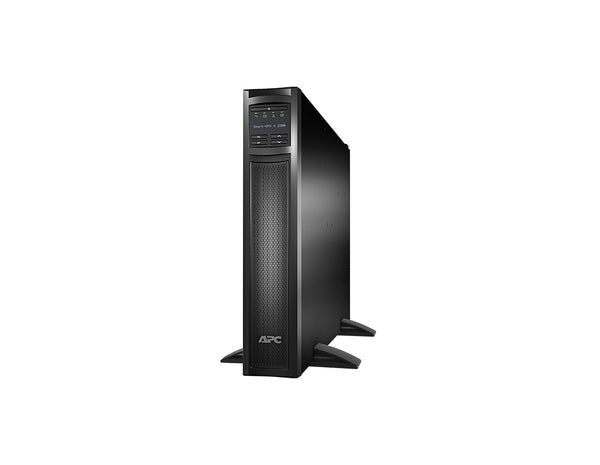

• Rack/Tower Convertible Design: Flexible deployment for rack-mounted or tower-based setups.
• SmartSlot Expansion: Supports optional management cards for advanced monitoring.
• Multi-function LCD Panel: Real-time system status and easy control interface.

Technical Deep Dive

The SMX2200RMLVUS leverages line-interactive architecture with AVR to stabilize fluctuating voltages before they affect connected devices. This minimizes battery usage during common power events, ensuring longer operational life and greater system reliability.

Its pure sine wave output guarantees compatibility with critical IT equipment, including active PFC power supplies, delivering consistent performance during switchover events. The UPS also integrates a SmartSlot, enabling installation of optional network management cards for remote monitoring and secure system integration.

Extended runtime capability is a defining feature of this unit. With external battery pack compatibility, businesses can scale power availability based on operational needs, making it suitable for applications where uptime is paramount.

Ideal Applications

• Enterprise servers and storage systems
• Data center racks and network infrastructure
• Healthcare IT and mission-critical systems
• Finance and retail operations requiring extended backup time

Frequently Asked Questions (FAQs)

Q1: How is the SMX2200RMLVUS installed?
A: This UPS is a 2U rack/tower convertible system with included mounting hardware and support feet for flexible installation.

Q2: What performance can I expect?
A: The unit delivers 2200VA / 1980W of sine wave output with AVR. Runtime depends on connected load and can be extended with external battery packs. Consult APC runtime charts for specific details.

Q3: How can the UPS be managed?
A: The UPS features an intuitive LCD panel for local management and includes a SmartSlot for optional network management cards, enabling remote monitoring and control.

Brand	APC by Schneider Electric
Model	SMX2200RMLVUS
Product Type	Smart-UPS X, Line-Interactive (Extended runtime)
Form Factor	Rack/Tower Convertible 2U
Dimensions (H x W x D)	3.3" x 17.0" x 26.3" (8.5 x 43.18 x 66.7 cm)
Weight	84.77 lb (38.45 kg)
Color	Black
Number of Rack Units	2U
Cable Length	8 ft (2.4 m)
Mounting	Rack-mounted

Capacity	2200 VA / 1980 W (Max configurable: 2200 VA / 1980 W)
Input Voltage	120 V (other: 100 V, 110 V, 127 V) • Operating range: 70–153 V
Input Connection Type	NEMA L5-30P
Input Frequency	50/60 Hz ±3 Hz, auto-sensing
Output Voltage	120 V (other: 100 V, 110 V, 127 V)

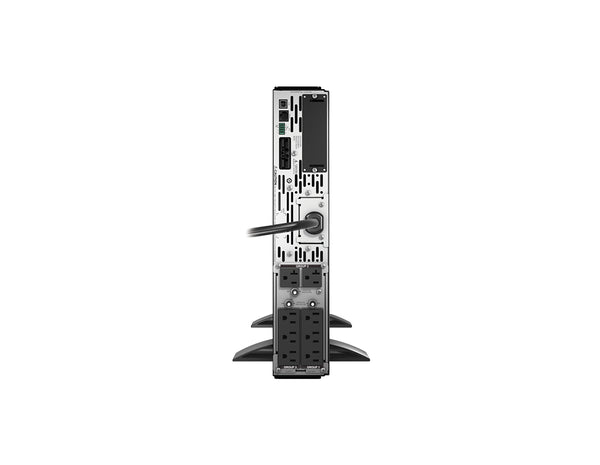

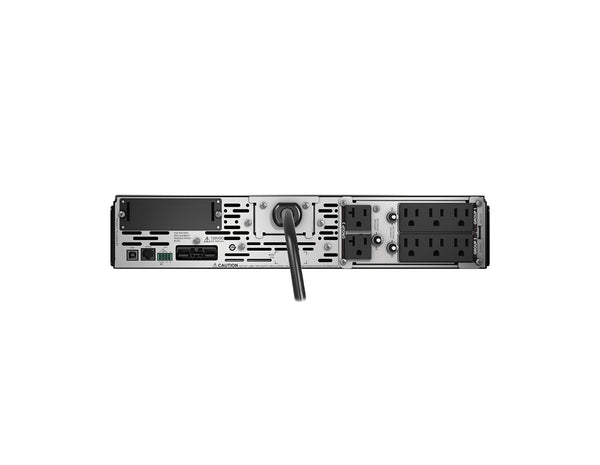

Output Connections	6 × NEMA 5-15R, 2 × NEMA 5-20R
Topology / Waveform	Line-Interactive • Sine wave • <5% THD
Transfer Time	2–4 ms (typ. 4 ms, max 8 ms)
Output Frequency	50/60 Hz ±3 Hz (sync to mains)
Battery Type	Lead-Acid • Typical recharge 3 h • Life 3–5 years • Extendable runtime: Yes
Replacement Battery	APCRBC117US • RBC qty: 1 • Charge power: 233 W (rated)
Surge Energy Rating	540 J
Acoustic Noise	55 dBA
Thermal Dissipation	268 BTU/h (online)
Operating Environment	0–40 °C (32–104 °F) • 0–95% RH (non-cond.) • Altitude 0–10,000 ft
Communications	Multi-function LCD, LED indicators, USB, RS-232, EPO, 1× SmartSlot
Certifications	BSMI, CSA, NOM, TÜV, VCCI Class A, TAA compliant
Warranty	3 years repair or replace (excluding battery) and 2 years for battery

Rack Mounting Hardware & Brackets	Included in the box
Rack Mounting Support Rails	Included in the box
Removable Support Feet	Included in the box
Smart-UPS Signalling RS-232 Cable	Included in the box
USB Cable	Included in the box
Documentation	Installation guide, Documentation CD, CD with software
