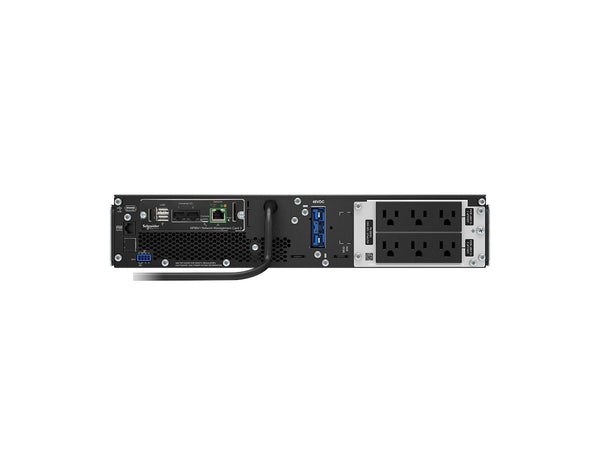

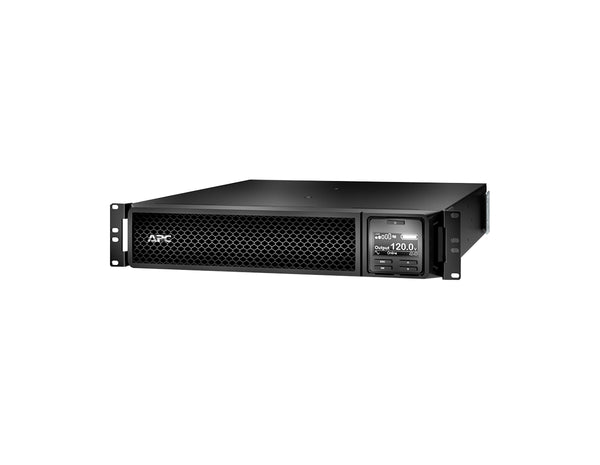

APC SRT1000RMXLA-NC - Smart-UPS On-Line 1000VA 2U Rackmount

[accessories]

Rack Mounting Hardware	Included in the box
Rack Mounting Brackets	Included in the box
Rack Mounting Support Rails	Included in the box
USB Cable	Included in the box
Temperature Probe	Included in the box
Documentation	CD with software, Documentation CD, Installation guide, Warranty card

[/accessories]

Overview

The APC Smart-UPS On-Line SRT1000RMXLA-NC delivers continuous double-conversion protection in a 2U rackmount form factor. Offering 1000VA / 900W of clean sine wave power, it is built for high-availability environments such as enterprise servers, storage systems, and networking hardware. With a pre-installed Network Management Card 3 and environmental monitoring, this UPS provides dependable operation and scalable runtime options.

Key Features & Benefits

• Double Conversion Online: Consistent, clean 120V output regardless of input disturbances.
• Extended Runtime: Supports external battery packs for longer backup.
• Integrated Network Card: Enables secure remote monitoring and environmental sensing.
• 2U Rackmount Design: Space-efficient installation for racks and edge IT.
• Energy Efficient: ENERGY STAR® V2.0 certified to help reduce operating costs.
• Robust Protection: Built-in static bypass and 432 J surge rating help maintain continuity.

Technical Deep Dive

Continuous AC–DC–AC conversion isolates connected equipment from voltage sags, surges, and line noise, delivering a low-distortion sine wave. The wide input window (80–150 V at full load, 50–150 V at ≤40% load) and built-in automatic static bypass enhance availability. Intelligent battery management supports a typical 3-hour recharge and long service life.

The pre-installed Network Management Card 3 enables remote visibility and control, while audible/visible alarms with severity prioritization provide prompt notification of state changes.

Ideal Applications

• Rack-mounted servers and enterprise storage
• Mission-critical network and communications gear
• Healthcare and financial environments requiring high uptime
• Edge computing and branch office deployments

Frequently Asked Questions (FAQs)

Q1: How is the SRT1000RMXLA-NC installed?
A: It’s a 2U rackmount UPS supplied with brackets, support rails, and mounting hardware.

Q2: What performance can I expect?
A: 1000VA / 900W online power. Runtime depends on load and any added battery packs.

Q3: How can I manage the UPS?
A: Via the pre-installed Network Management Card 3 for remote access, plus local USB and alarms.

Brand	APC by Schneider Electric
Model	SRT1000RMXLA-NC
Product Type	Smart-UPS On-Line, Double Conversion
Form Factor	Rackmount 2U
Dimensions (H x W x D)	3.3" x 17.008" x 20.0" (85 x 432 x 508 mm)
Weight	48.5 lb (22 kg)
Color	Black
Number of Rack Units	2U
Cable Length	6 ft (1.8 m)
Cooling	Active (Fan-cooled)

Capacity	1000 VA / 900 W
Input Voltage	120 V • Input window: 80–150 V (full load), 50–150 V (≤40% load)
Input Connection Type	NEMA 5-15P
Input Frequency	40–70 Hz auto-sensing
Output Voltage	120 V
Output Connections	6 × NEMA 5-15R
Waveform Type	Sine wave
Topology	Double Conversion On-Line
Transfer Time	0 ms (on-line)
Bypass Type	Built-in Static Bypass
Crest Factor	3:1
Harmonic Distortion	<2%
Battery Type	Lead-Acid • Voltage: 48 V • Recharge: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC155 • Charge power: 102 W rated
Extendable Runtime	Yes
Surge Energy Rating	432 J
Acoustic Noise	50 dBA
Thermal Dissipation	317 BTU/h
Operating Temperature	0–40 °C (32–104 °F)
Operating Humidity	0–95% non-condensing
Altitude	0–10,000 ft operating
Communications	USB, EPO, Audible/visible alarms, 1 free SmartSlot, Pre-installed Network Management Card 3 with environmental monitoring
Certifications	ENERGY STAR V2.0 (USA)
Warranty	3 years repair or replace (excluding battery) and 2 years for battery
Output Frequency	50/60 Hz ±3 Hz, synchronized to mains
