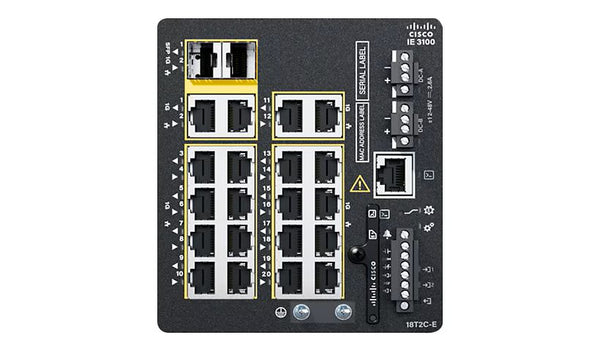

Cisco Catalyst IE-3100-18T2C-CC-E Industrial Gigabit Switch

Name: Cisco Catalyst IE-3100-18T2C-CC-E Industrial Gigabit Switch
Brand: Cisco
SKU: IE-3100-18T2C-CC-E-NEW
Price: 3175.00 USD
Availability: InStock

Part Number: IE-3100-18T2C-CC-E

Technical Details

18× 10/100/1000 RJ-45, 2× combo GE uplinks, fanless IP30, −40 to 75°C, DIN-rail mount, IOS XE Network Essentials

$5,770.07

$3,175.00

45% OFF

You Save: $2,595.07

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Rugged Gigabit Switching Engineered for Harsh Conditions

The Cisco Catalyst IE-3100-18T2C-CC-E delivers 20 Gigabit interfaces in a compact, fanless, DIN-rail form factor with conformal coating for harsh environments. Running Cisco IOS XE, it brings secure, API-driven operations and simple setup via WebUI—ideal for manufacturing lines, utilities, transportation, and outdoor enclosures.

Key Benefits & Features

Compact 20-port design: 18 copper downlinks plus 2 combo uplinks (RJ-45/SFP) give flexible aggregation and backhaul in tight cabinets.
Rugged, fanless build: IP30 enclosure with conformal coating and wide −40 to 75°C operating range ensures reliable service in dusty, hot, or vibrating sites.
Deterministic performance: 20 Gbps switching bandwidth and up to 29.76 Mpps forwarding sustain full-rate Gigabit traffic on busy lines.
Industrial protocol fit: Native support for EtherNet/IP (CIP), Modbus, PROFINET, and IEEE 1588v2 PTP aids PLC and SCADA interoperability.
Simplified management & security: IOS XE with WebUI, NETCONF/RESTCONF, and optional Cisco Catalyst Center visibility streamlines deployment and lifecycle operations.

Ideal Use Cases

Factory cells, conveyors, and packaging lines needing compact, vibration-tolerant switching
Electric substations and roadside cabinets with extreme temperatures
Warehouses and distribution centers requiring high-density copper access
Smart city, transportation, and outdoor surveillance aggregation over fiber/copper
OT segments standardizing on Cisco IOS XE and industrial automation protocols

Technical Specifications

Ports: 18× 10/100/1000 RJ-45 downlinks, 2× Gigabit combo uplinks (RJ-45/SFP)
Switching capacity / forwarding: 20 Gbps, up to 29.76 Mpps
Operating temperature: −40 to 75°C (cabinet dependent); fanless cooling
Power input: 12–48 VDC nominal (9.6–60 VDC absolute)
Typical power consumption: ~36.7 W (device only; non-PoE model)
Form factor / mounting: DIN rail; IP30 enclosure; conformal coating
Dimensions / weight: 5.00 × 4.30 × 5.08 in; ~2.8 lb
Software image: Network Essentials (IOS XE); L2 switching + static routing
Industrial protocols: EtherNet/IP (CIP), Modbus, PROFINET, IEEE 1588v2 PTP
MTBF: ~777,450 hours (Telcordia Issue 4)

Ready to deploy rugged Gigabit access?

Engineer your next cabinet with a compact, resilient Cisco platform built for OT. Order today.

Properties

Model	IE-3100-18T2C-CC-E (Cisco Catalyst IE3100 Rugged Series)
Product Type	Managed Industrial Ethernet Switch (Network Essentials)
Total Ports	20
Downlink Ports	18 × 10/100/1000 RJ-45
Uplink Ports	2 × 1GE combo (RJ-45/SFP)
Conformal Coating	Yes
Switching Bandwidth / Forwarding	20 Gbps / 29.76 Mpps
MAC Address Table	8,000 entries
VLANs / IGMP Groups	256 VLANs / 512 IGMP groups
Memory / Storage	4 GB DRAM; optional SD card (1/4/16 GB)
Power Input	Dual DC inputs; 12–48 V nominal (9.6–60 V absolute)
Power Consumption (no PoE)	36.7 W
Mounting	DIN rail
Dimensions (H × W × D)	5.00 × 4.30 × 5.08 in (12.70 × 10.92 × 12.90 cm)
Weight	2.8 lb (1.27 kg)
Operating Temperature	−40 to 75 °C (blower cabinet); −40 to 70 °C (vented); −40 to 60 °C (sealed)
Operating Humidity	5%–95% non-condensing
IP / Enclosure Rating	IP30
MTBF	777,450 hours

Specifications

Layer 2 Features	802.1Q VLANs, PVST+/RPVST, MST, EtherChannel, STP, RSPAN/SPAN/FSPAN, Storm Control, QinQ, 802.3ad LACP
Layer 3 Features	Inter-VLAN routing, static routing
Automation / Management	WebUI, SNMP, syslog, NETCONF/RESTCONF, EEM, Cisco PnP; YANG models
Security	802.1X, DHCP Snooping, DAI, IP Source Guard, RA Guard, HTTPS/SSH, RADIUS/TACACS+, AAA
Industrial Protocols	EtherNet/IP (CIP), Modbus, PROFINET MRP; PTP (IEEE 1588v2)
Resiliency	Media Redundancy Protocol (MRP), Resilient Ethernet Protocol (REP)
Performance Caps	Queues: 8 egress; IPv4 indirect routes: 2000; STP instances: 128
Compliance (examples)	EN 61131-2, IEC 61850-3 / IEEE 1613 (substation), EN 50121-3-2/-4 (rail), NEMA TS-2; UL/CSA 62368-1; Class I, Div 2/Zone 2 (with appropriate enclosure)
Environmental (Storage)	−40 to 85 °C; up to 40,000 ft altitude
Interfaces (Mgmt/Alarm)	1 × RS-232 (RJ-45) console; 1 × micro-USB console; 2 × dry-contact alarm inputs

Accessories

Optional – Power Supplies	PWR-IE65W-PC-AC= (65W AC/DC); PWR-IE65W-PC-DC= (65W DC/DC); PWR-IE170W-PC-AC= (170W AC/DC); PWR-IE240W-PCAC-L= (240W AC/DC); PWR-IE480W-PCAC-L= (480W AC/DC)
Optional – Mounting	STK-RACK-DINRAIL= 19" DIN rail mount kit
Optional – SFP Modules (Examples)	GLC-T-RGD= (1000BASE-T); GLC-SX-MM-RGD= (1000BASE-SX); GLC-LH-SM-RGD= (1000BASE-LX/LH); GLC-ZX-SM-RGD= (1000BASE-ZX)
