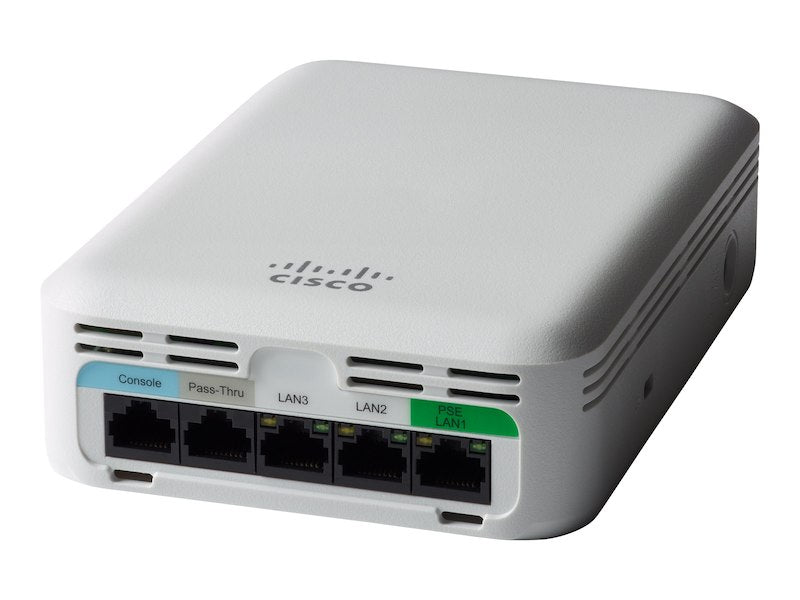

CISCO AIR-AP1810W-B-K9 ACCESS POINT

Specifications

Specifications		AIR-AP1800S-B-K9
Description		The Cisco AIR-AP1810W-B-K9 is a compact wireless access point designed for small to medium-sized businesses, with support for the latest Wi-Fi standards, Power over Ethernet (PoE), and a range of management options.
Product Type		Access Points
Authentication and security		● Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2) ● 802.1X, RADIUS authentication, authorization and accounting (AAA) ● 802.11i
Software		● Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.2.111.0 or later
Maximum clients		● Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point
802.11ac		● 2x2 single-user/multiuser MIMO with two spatial streams ● Maximal ratio combining (MRC) ● 20-, 40- and 80-MHz channels ● PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic shift diversity (CSD) support
Ethernet ports		● Authentication with 802.1X or MAC filtered ● Dynamic VLAN or per port ● Traffic locally switched or tunneled back to wireless LAN controller
Bluetooth (future availability)		● Integrated Bluetooth 4.1 (including BLE) radio ● Maximum transmit power: 5 dBm ● Antenna gain: 2 dBi
Data rates supported		802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
		802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
		802.11n data rates on 2.4 GHz:
		MCS Index1				GI2 = 800 ns							GI = 400 ns
						20-MHz Rate (Mbps)							20-MHz Rate (Mbps)
		0				6,5							7,2
		1				13							14,4
		2				19,5							21,7
		3				26							28,9
		4				39							43,3
		5				52							57,8
		6				58,5							65
		7				65							72,2
		8				13							14,4
		9				26							28,9
		10				39							43,3
		11				52							57,8
		12				78							86,7
		13				104							115,6
		14				117							130
		15				130							144,4
		802.11ac data rates on 5 GHz:
		MCS Index		Spatial Streams		GI = 800 ns							GI = 400 ns
						20-MHz Rate (Mbps)		40-MHz Rate (Mbps)		80-MHz Rate (Mbps)			20-MHz Rate (Mbps)		40-MHz Rate (Mbps)		80-MHz Rate (Mbps)
		0		1		6,5		13,5		29,3			7,2		15		32,5
		1		1		13		27		58,5			14,4		30		65
		2		1		19,5		40,5		87,8			21,7		45		97,5
		3		1		26		54		117			28,9		60		130
		4		1		39		81		175,5			43,3		90		195
		5		1		52		108		234			57,8		120		260
		6		1		58,5		121,5		263,3			65		135		292,5
		7		1		65		135		292,5			72,2		150		325
		8		1		78		162		351			86,7		180		390
		9		1		–		180		390			–		200		433,3
		0		2		13		27		58,5			14,4		30		65
		1		2		26		54		117			28,9		60		130
		2		2		39		81		175,5			43,3		90		195
		3		2		52		108		234			57,8		120		260
		4		2		78		162		351			86,7		180		390
		5		2		104		216		468			115,6		240		520
		6		2		117		243		526,5			130		270		585
		7		2		130		270		585			144,4		300		650
		8		2		156		324		702			173,3		360		780
		9		2		–		360		780			–		400		866,7
Maximum number of non-overlapping channels		B (B regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.720 GHz; 12 channels ● 5.745 to 5.825 GHz; 5 channels
Receive sensitivity (combined sensitivity)		802.11b -99 dBm @ 1 Mbps -96 dBm @ 2 Mbps -93 dBm @ 5.5 Mbps -86 dBm @ 11 Mbps					802.11g -94 dBm @ 6 Mbps -93 dBm @ 9 Mbps -92 dBm @ 12 Mbps -90 dBm @ 18 Mbps -86 dBm @ 24 Mbps -83 dBm @ 36 Mbps -78 dBm @ 48 Mbps -77 dBm @ 54 Mbps							802.11a -94 dBm @ 6 Mbps -93 dBm @ 9 Mbps -91 dBm @ 12 Mbps -89 dBm @ 18 Mbps -86 dBm @ 24 Mbps -83 dBm @ 36 Mbps -78 dBm @ 48 Mbps -76 dBm @ 54 Mbps
		2.4 GHz 802.11n (HT20) -93 dBm @ MCS0 -90 dBm @ MCS1 -88 dBm @ MCS2 -84 dBm @ MCS3 -81 dBm @ MCS4 -76 dBm @ MCS5 -75 dBm @ MCS6 -74 dBm @ MCS7 -92 dBm @ MCS8 -89 dBm @ MCS9 -87 dBm @ MCS10 -83 dBm @ MCS11 -79 dBm @ MCS12 -76 dBm @ MCS13 -74 dBm @ MCS14 -73 dBm @ MCS15					5 GHz 802.11n (HT20) -93 dBm @ MCS0 -90 dBm @ MCS1 -88 dBm @ MCS2 -84 dBm @ MCS3 -81 dBm @ MCS4 -76 dBm @ MCS5 -75 dBm @ MCS6 -73 dBm @ MCS7 -92 dBm @ MCS8 -89 dBm @ MCS9 -86 dBm @ MCS10 -83 dBm @ MCS11 -80 dBm @ MCS12 -75 dBm @ MCS13 -74 dBm @ MCS14 -73 dBm @ MCS15							5 GHz 802.11n (HT40) -90 dBm @ MCS0 -87 dBm @ MCS1 -85 dBm @ MCS2 -81 dBm @ MCS3 -78 dBm @ MCS4 -74 dBm @ MCS5 -72 dBm @ MCS6 -71 dBm @ MCS7 -90 dBm @ MCS8 -86 dBm @ MCS9 -84 dBm @ MCS10 -81 dBm @ MCS11 -78 dBm @ MCS12 -73 dBm @ MCS13 -72 dBm @ MCS14 -70 dBm @ MCS15
		802.11ac (non HT80) -88 dBm @ 6 Mbps -70 dBm @ 54 Mbps
		MCS Index		Spatial Streams
							VHT20		VHT40		VHT80			VHT20- STBC		VHT40- STBC	VHT80- STBC
		0		1			-93 dBm		-90 dBm		-87 dBm			-95 dBm		-93 dBm	-90 dBm
		8		1			-69 dBm							-72 dBm		-68 dBm	-65 dBm
		9		1					-64 dBm		-61 dBm
		0		2			-92 dBm		-89 dBm		-86 dBm
		8		2			-68 dBm
		9		2					-63 dBm		-60 dBm
Maximum transmit power		2.4 GHz ● 802.11b ◦ 17 dBm with 1 antenna ● 802.11g ◦ 20 dBm with 2 antennas ● 802.11n (HT20) ◦ 20 dBm with 2 antennas									5 GHz ● 802.11a ◦ 17 dBm with 1 antenna ● 802.11n non-HT duplicate mode ◦ 20 dBm with 2 antennas ● 802.11n (HT20) ◦ 20 dBm with 2 antennas ● 802.11n (HT40) ◦ 20 dBm with 2 antennas ● 802.11ac ◦ Non-HT80: 20 dBm with 2 antennas ◦ VHT20: 20 dBm with 2 antennas ◦ VHT40: 20 dBm with 2 antennas ◦ VHT80: 20 dBm, 2 antennas ◦ VHT20-STBC: 20 dBm with 2 antennas ◦ VHT40-STBC: 20 dBm with 2 antennas ◦ VHT80-STBC: 20 dBm with 2 antennas
Available transmit power settings		2.4 GHz 20 dBm (100 mW) 17 dBm (50 mW) 14 dBm (25 mW) 11 dBm (12.5 mW) 8 dBm (6.25 mW) 5 dBm (3.13 mW) 2 dBm (1.56 mW) -1 dBm (0.78 mW)										5 GHz 20 dBm (100 mW) 17 dBm (50 mW) 14 dBm (25 mW) 11 dBm (12.5 mW) 8 dBm (6.25 mW) 5 dBm (3.13 mW) 2 dBm (1.56 mW) -1 dBm (0.78mW)
Integrated antennas		● 2.4 GHz, gain 2 dBi ● 5 GHz, gain 4 dBi
Interfaces		● One 10/100/1000BASE-T PoE uplink port ● Management console port (RJ-45) ● Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port: ◦ PoE out provides 802.3af when access point is powered by Cisco local power supply (AIR-PWR-C=, AIR-PWR- D=), or ~6.5W when powered by 802.3at, or no output when powered by 802.3af ● One passive pass-through port RJ-45 (back to bottom) ● DC power connector
Indicators		● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors ● Per-port status for local Ethernet ports ● For privacy, LEDs are automatically turned off when the access point joins a controller. LEDs may be enabled to be administratively - see configuration guide.
Dimensions (W x L x H)		● Access point (without mounting bracket): 6.5 x 4.5 x 1.6 in. (165 x 114 x 41 mm)
Weight		● Access point without mounting bracket or any other accessories: 1.2 lb (560 g)
Environmental		● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) maximum altitude: 25°C, 15,000 ft (4,500m) ● Operating temperature: 32° to 104°F (0° to 40°C) ● Operating humidity: 10% to 90% percent (noncondensing) ● Operating maximum altitude: 40°C, 9843 ft (3,000m)
System		● 512 MB DRAM ● 256 MB flash ● 1.4 GHz system dual-core CPU
Input power requirements		● 44 to 57V DC ● Optional power supply and power injector: 100 to 240V AC; 49 to 60 Hz
Powering options		● 802.3af/at Ethernet switch ● Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=) ● Optional Cisco local power supply (AIR-PWR-C= or AIR-PWR-D=)
Power draw		● Maximum values: 12.95W (15.4W with 100m of cable) with no PoE out, 20.7W (22W with 100m of cable) with 6.49W PoE out and 27.65W with 12.95W PoE out (when powered using AIR-PWR-C or AIR-PWR-D) Note: When deployed using PoE, the power draw numbers listed above include the power loss in 100m of cabling on the uplink port and 100m of cabling on the PoE out port.
Physical security		● Torx security screw, included with the access point ● Kensington security slot
Mounting		● Included with the access point: mounting bracket AIR-AP-BRACKET-W2, compatible to install to single gang junction box or multiple international standards ● Optional: ◦ AIR-AP1810W-KIT=, spacer kit to mount the access point directly on a wall where standard junction boxes are not available ◦ AIR-OEAP1810-CRD=, cradle kit to mount the access point on a desk
Accessories		● Mounting bracket: AIR-AP-BRACKET-W2= (available as spare) ● Spacer kit: AIR-AP1810W-KIT= (sold separately), includes spacer and RJ-45 jumper cable ● Cradle kit: AIR-OEAP1810-CRD= (sold separately), includes back cover and RJ-45 jumper cable ● Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 20 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports ● Cisco local power supply: AIR-PWR-D= (sold separately)
Warranty		Limited Lifetime Hardware Warranty
Compliance		● Safety: ◦ UL 60950-1 ◦ CAN/CSA-C22.2 No. 60950-1 ◦ UL 2043 ◦ IEC 60950-1 ◦ EN 60950-1 ● Radio approvals: ◦ FCC Part 15.247, 15.407 ◦ RSS-247 (Canada) ◦ EN 300.328, EN 301.893 (Europe) ◦ ARIB-STD 66 (Japan) ◦ ARIB-STD T71 (Japan) ◦ EMI and susceptibility (Class B) ◦ FCC Part 15.107 and 15.109 ◦ ICES-003 (Canada) ◦ VCCI (Japan) ◦ EN 301.489-1 and -17 (Europe) ● IEEE standards: ◦ IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d ◦ IEEE 802.11ac Draft 5 ● Security: ◦ 802.11i, WPA2, WPA ◦ 802.1X ◦ AES ● Extensible Authentication Protocol (EAP) types: ◦ EAP-Transport Layer Security (TLS) ◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) ◦ Protected EAP (PEAP) v0 or EAP-MSCHAPv2 ◦ EAP-Flexible Authentication via Secure Tunneling (FAST) ◦ PEAP v1 or EAP-Generic Token Card (GTC) ◦ EAP-Subscriber Identity Module (SIM) ● Multimedia: ◦ Wi-Fi Multimedia (WMM) ● Other: ◦ FCC Bulletin OET-65C ◦ RSS-102
