HONEYWELL VOYAGER 1602G 1D/PDF/2D BARCODE SCANNER (1602G2D-2USB-OS)

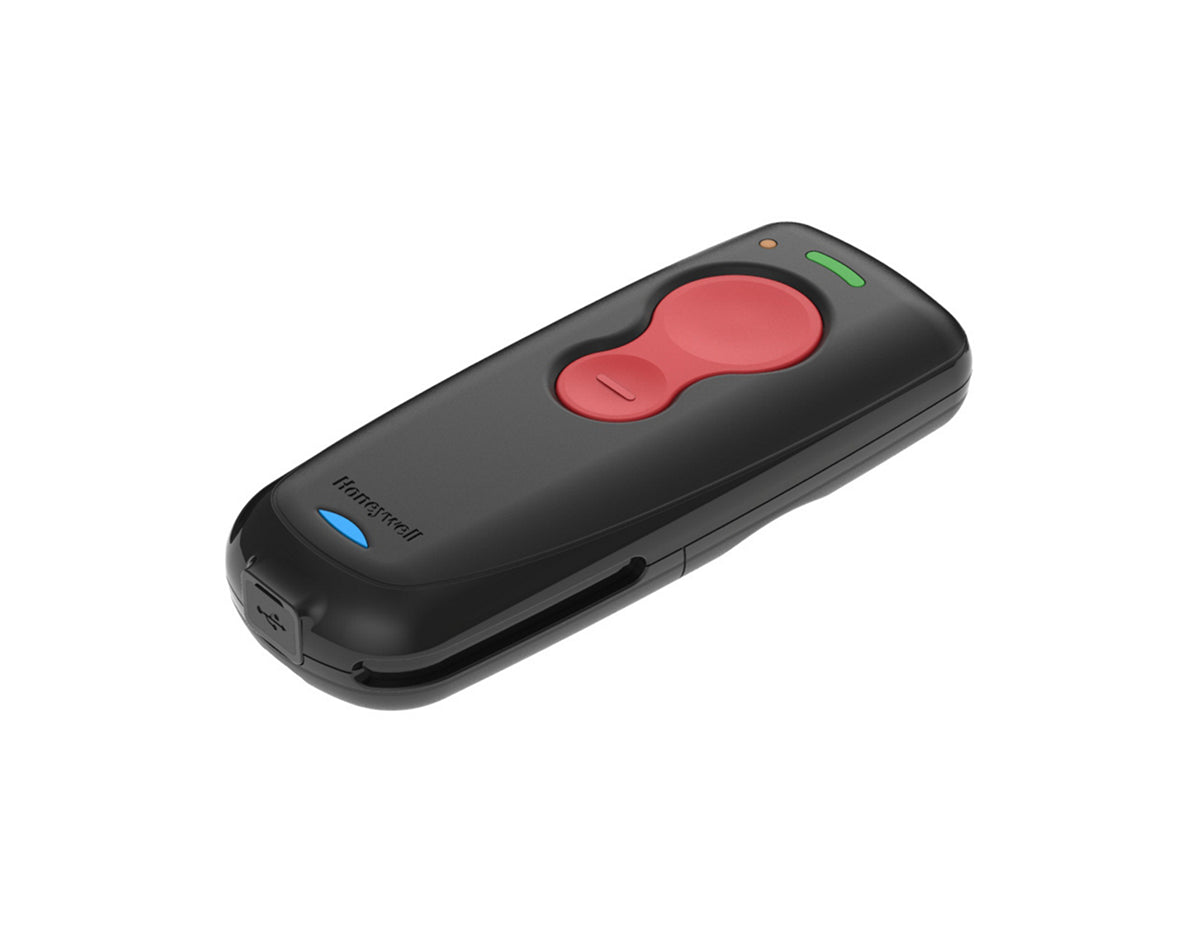

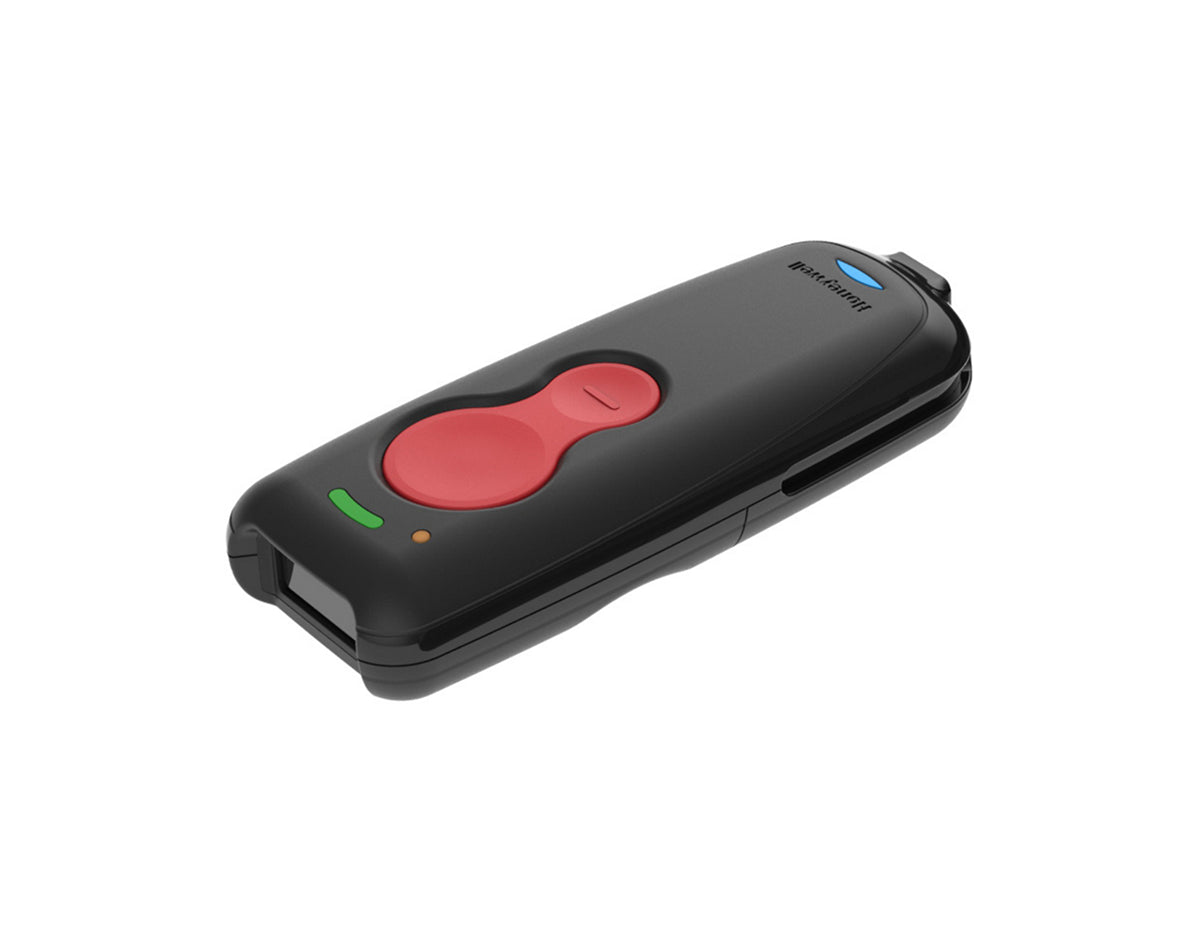

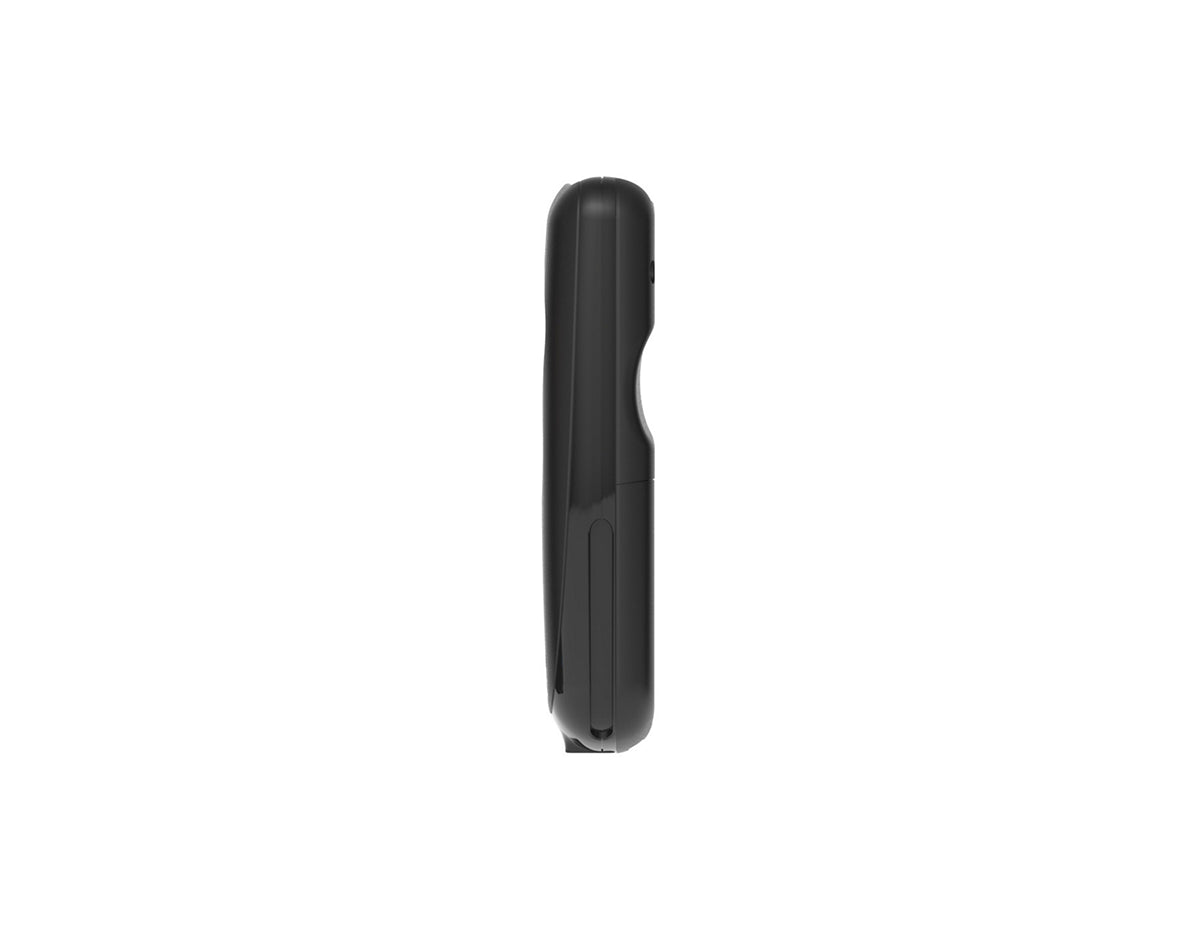

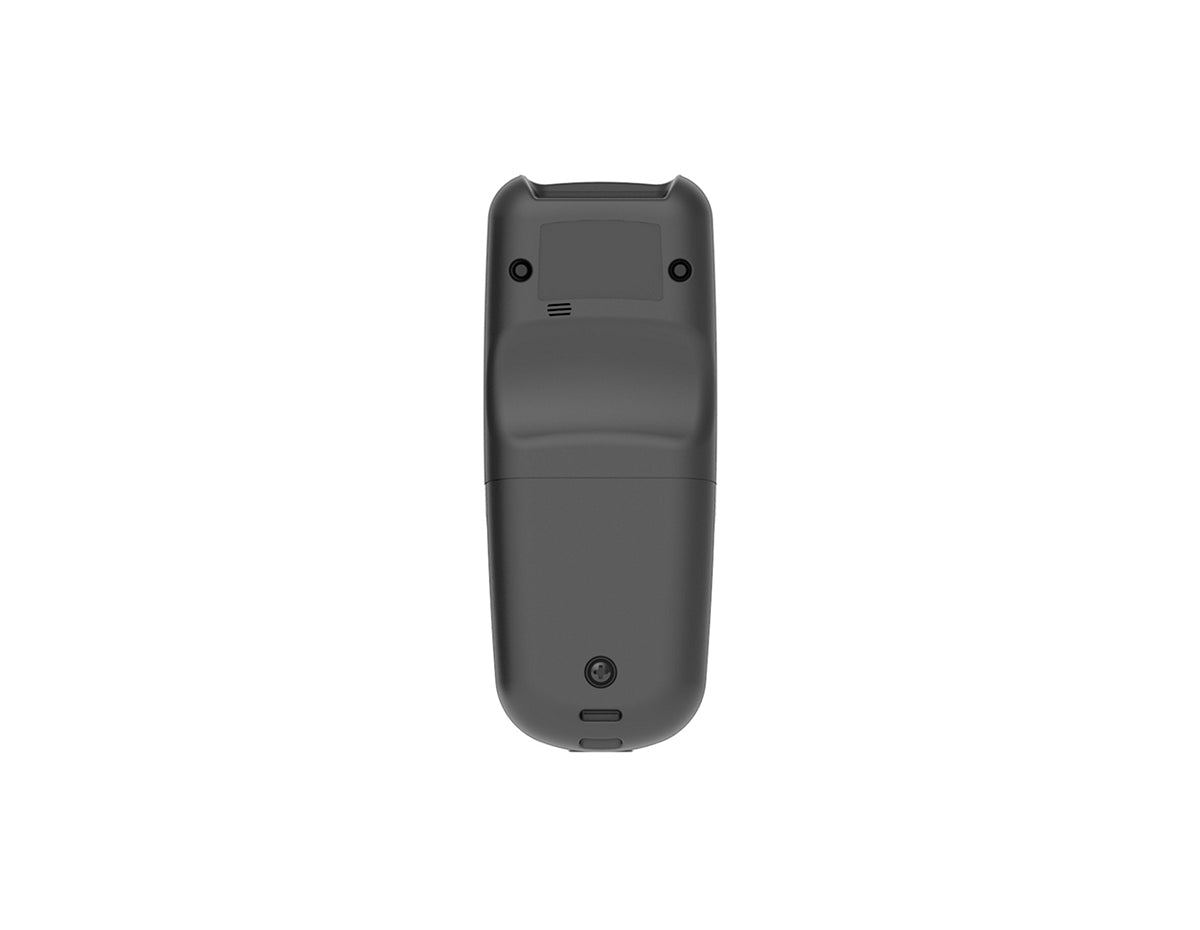

Honeywell Voyager 1602g Pocket Scanner

The Honeywell Voyager 1602g packs high-performance scanning into the palm of your hand. This compact and stylish scanner is perfect for mobile and fixed point-of-sale applications.

Features and Benefits:

• High-performance area-imaging engine for aggressive, omnidirectional 1D and 2D barcode scanning.
• Capable of reading barcodes off smartphone screens—mobile coupons, digital wallets, and digital loyalty cards.
• Upgradeable from 1D to 2D scanning.
• Bluetooth wireless technology provides freedom of movement up to 10 meters (33 feet) from the host device.
• Battery rated for up to 2,250 scans over 12 hours, rechargeable via standard microUSB.

Technical Specifications:

• Wireless Connectivity:
  • Radio/Range: 2.4 to 2.5 GHz (ISM Band), Adaptive Frequency Hopping Bluetooth v2.1; Class 2; 10 m (33 ft) line of sight
  • Battery: 750 mAh Li-ion minimum
  • Number of Scans: Up to 2,250 scans per full charge
  • Expected Hours of Operation: 12 hours
  • Expected Charge Time: 3 hours
• Mechanical/Electrical:
  • Dimensions (LxWxH): 120 x 48 x 22 mm (4.7 x 1.9 x 0.9 in)
  • Weight: < 100 g (3.5oz)
• Environmental:
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Charging Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 0 to 95% relative humidity, non-condensing
  • Drop: Designed to withstand 30 1.4 m (4’) drops to concrete
  • Environmental Sealing: IP52
  • Light Levels: 0 to 100,000 lux (9,290 foot-candles)
• Scan Performance:
  • Scan Pattern: Area Image (1040*720 pixel array)
  • Motion Tolerance: Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus
  • Scan Angle: Horizontal 41.4°; Vertical 32.2°
  • Symbol Contrast: 35% minimum reflectance difference
  • Warranty: 3 year factory warranty
• Typical Performance:
  • 5mil Code 39: 24mm - 202mm (1’’ - 7.9’’)
  • 13mil UPC: 39mm - 324mm (1.6’’ - 12.7’’)
  • 20mil Code 39: 42mm - 511mm (1.7’’ - 20.1’’)
  • 6.7mil PDF417: 23mm - 177mm (0.9’’ - 6.9’’)
  • 10mil DM: 12mm - 168mm (0.5’’ - 6.6’’)
  • 20mil QR: 24mm - 262mm (1’’ - 10.3’’)
