[specifications]

Product Description	ASA 5508-X with Firepower Threat Defense. 8GE. AC
Throughput: Application Control (AVC)	450 Mbps
Throughput: Application Control (AVC) and IPS	250 Mbps
Maximum concurrent sessions	100,000
Maximum New Connections per second	10,000
Supported applications	More than 3,000
URL categories	80+
Number of URLs categorized	More than 280 million
Centralized configuration, logging, monitoring, and reporting	Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center
On-Device Management	ASDM (version 7.3 or higher required)
Feature	Cisco ASA 5508-X w/ FirePOWER Services
Stateful inspection throughput (maximum)	1 Gbps
Stateful inspection throughput (multiprotocol)	500 Mbps
Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput3	175 Mbps
IPsec site-to-site VPN peers	100
Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5	100
Virtual interfaces (VLANs)	50
Security contexts5(included; maximum)	2; 5
High availability	Active/ Active and Active/ Standby
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details)	n/a
Expansion slot	n/a
User-accessible Flash slot	no
USB 2.0 ports	USB port type 'A', High Speed 2.0
Integrated I/O	8 x 1GE
Expansion I/O	n/a
Dedicated management port	Yes (To be shared with FirePOWER Services), 10/100/1000
Serial ports	1 RJ-45 and Mini USB console
Solid-state drive	80 GB mSata
Memory	8 GB
System flash	8 GB
System bus	Multibus architecture
Temperature	32 to 104F (0 to 40 C)
Relative humidity	10 to 90 percent noncondensing
Altitude	Designed and tested for 0 to 10,000 ft (3048 m)
AC range line voltage	External, 90 to 240 volts alternating current (VAC)
AC normal line voltage	91 to 240 VAC
AC current	0.25AC amps
AC frequency	50/60 Hz
Dual-power supplies	none
DC domestic line voltage	n/a
DC international line voltage	n/a
DC current	n/a
Steady state	12V @3.0A
Maximum peak	12V @ 5A
Maximum heat dissipation	123 Btu/hr
Form factor	1 rack unit (RU), 19-in. rack-mountable
Dimensions(H x W x D)	1.72 x 17.2 x 11.288 in.(4.369 x 43.688 x 28.672 cm)
Weight (with AC power supply)	8 lb (3 kg)







[/specifications]

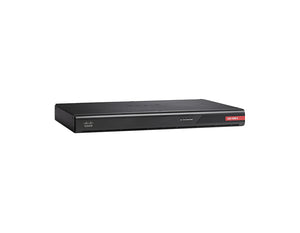

Cisco Asa5508-Ftd-K9 Firepower Threat Defense Security Appliance with Superior Multilayered Protection

Cisco Asa5508-Ftd-K9 Firepower Threat Defense Security Appliance delivers integrate threat defense for the entire attach continuum – before, during, and after an attack. This solution offers excellent threat-focused next-generation security solution to all advanced firewalls.

Key Benefits of Cisco Asa5508-Ftd-K9 Firepower Threat Defense Security Appliance

Cisco Asa5508-Ftd-K9 Firepower Threat Defense Security Appliance is world’s most widely deployed enterprise-class firewall. It provides highly secure, high-performance access and high availability to help ensure business continuity. This device is ideal for a small or midsized business, a distributed enterprise, or a single data center.



Product Description	ASA 5508-X with Firepower Threat Defense. 8GE. AC
Throughput: Application Control (AVC)	450 Mbps
Throughput: Application Control (AVC) and IPS	250 Mbps
Stateful inspection throughput (maximum)	1 Gbps
Stateful inspection throughput (multiprotocol)	500 Mbps
Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput3	100 Mbps
Users/nodes	Unlimited
Dimensions(H x W x D)	1.72 x 17.2 x 11.288 in.(4.369 x 43.688 x 28.672 cm)
Weight (with AC power supply)	8 lb (3 kg)

• Security appliance
• 8 ports
• GigE
• 1U
• Rack-mountable

[specifications] [/specifications]

Next-Generation Cisco ASA5545-FTD-K9 Firewall - Firepower Threat Defense System

Cisco ASA5545-FTD-K9 Firewall - Firepower Threat Defense is industry's first adaptive, threat-focused next-generation firewall (NGFW). It is designed for a new era of threat and advanced malware protection.

Key Benefits of Cisco ASA5545-FTD-K9 Firewall - Firepower Threat Defense

Cisco ASA5545-FTD-K9 Firewall - Firepower Threat Defense delivers integrated threat defense for the entire attack continuum - before, during, and after an attack. Combination of the proven security capabilities of the Cisco ASA firewall with the industry-leading Sourcefire threat and Advanced Malware Protection (AMP) makes it possible.

Cisco ASA5545-FTD-K9 Firewall - Firepower Threat Defense has the capabilities of the Cisco ASA 5500-X Series Next-Generation Firewalls beyond what today's NGFW solutions are capable of. This solution is perfect for providing the needed scale and context in a NGFW solution.

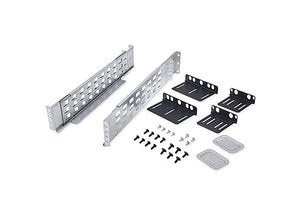

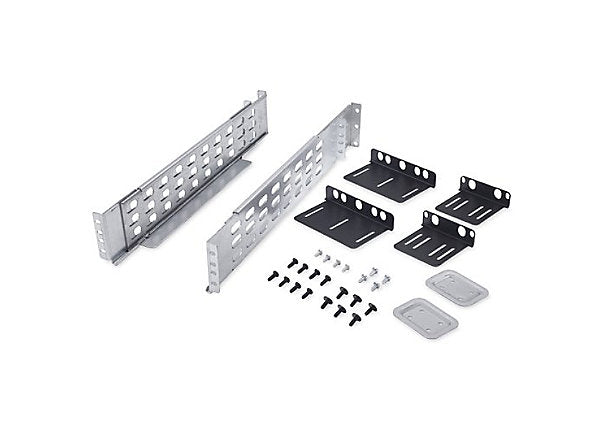

[specifications] [/specifications]Securely mount your ASA firewall network routers to walls and other surfaces with the Cisco Wall Mount Kit. This network wall mount is designed for use with the Cisco ASA 5506-X network security device. It allows mounting on surfaces like wood or metal sheets apart from dry walls. With the Cisco-provided screws and anchors, this wall mount kit ensures efficient mounting.

• Security appliance
• 8 ports
• GigEdesktop
• with Cisco Security Plus License

[specifications]

Maximum application control (AVC) throughput	250 Mbps
Maximum application control (AVC) and NGIPS throughput	125 Mbps
Maximum concurrent sessions	50000
Maximum New Connections per second	5000
Application control (AVC) or IPS sizing throughput [440 byte HTTP]	90 Mbps
Supported applications	More than 3,000
URL categories	80+
Number of URLs categorized	More than 280 million
Centralized configuration, logging, monitoring, and reporting	Multi-device Cisco Security Manager (CSM) and Cisco FireSIGHT Management Center
On-Device Management	ASDM 7.3.x
Stateful inspection throughput	750 Mbps
Stateful inspection throughput	300 Mbps
Users/nodes	Unlimited
IPsec VPN peers	50
Cisco Cloud Web Security users	275
Cisco AnyConnect Premium/Apex VPN peers	2; 50
Concurrent connections	50000
New connections per second	5000
VLANs	Without Security Plus: With Security Plus: 5; 30
High availability	Active/Standby
Expansion slot	N/A
USB 2.0 ports	1
Integrated I/O	8 x 1GE
Dedicated management port	Yes (1 GE)
Memory	4 GB
Solid-state drive	64 GB mSata
Minimum system flash	8 GB
Cisco ASA5506 FirePOWER IPS and Apps	L-ASA5506-TA
Cisco ASA5506 FirePOWER IPS, Apps and URL	L-ASA5506-TAC
Cisco ASA5506 FirePOWER IPS, Apps and AMP	L-ASA5506-TAM
Cisco ASA5506 FirePOWER IPS, Apps, AMP and URL	L-ASA5506-TAMC
Cisco ASA5506 FirePOWER URL Filtering	L-ASA5506-URL









[/specifications] Meet the industry's first adaptive, threat-focused next-generation firewall (NGFW) designed for a new era of threat and advanced malware protection. Cisco ASA with FirePOWER Services delivers integrated threat defense for the entire attack continuum - before, during, and after an attack. How? By combining the proven security capabilities of the Cisco ASA firewall with the industry-leading Sourcefire threat and Advanced Malware Protection (AMP) features together in a single device. The solution uniquely extends the capabilities of the Cisco ASA 5500-X Series Next-Generation Firewalls beyond what today's NGFW solutions are capable of. Whether you need protection for a small or midsized business, a distributed enterprise, or a single data center, Cisco ASA with FirePOWER Services provides the needed scale and context in a NGFW solution.

Cisco ASA with FirePOWER Services brings distinctive threat-focused next-generation security services to the Cisco ASA 5500-X Series Next-Generation Firewalls and Cisco ASA 5585-X Adaptive Security Appliance firewall products. It provides comprehensive protection from known and advanced threats, including protection against targeted and persistent malware attacks. Cisco ASA is the world's most widely deployed, enterprise-class stateful firewall.

Cisco ASA with FirePOWER Services is centrally managed by the Cisco FireSIGHT Management Center, which provides security teams with comprehensive visibility into and control over activity within the network. Such visibility includes users, devices, communication between virtual machines, vulnerabilities, threats, client-side applications, files, and web sites. Holistic, actionable indications of compromise (IoCs) correlate detailed network and endpoint event information and provide further visibility into malware infections. Cisco's enterprise-class management tools help administrators reduce complexity with unmatched visibility and control across NGFW deployments. Cisco FireSIGHT Management Center also provides content awareness with malware file trajectory that aids infection scoping and root cause determination to speed time to remediation.

[specifications] [/specifications]Midsize businesses protecting the Internet edge require the same level of protection as large, enterprise networks. You require enterprise-strength security, but purchasing a firewall that was built to handle the performance needs and budget of a large enterprise would be unnecessary and a waste of company resources. You need a firewall that provides the performance you need at a price you can afford, without compromising security. Cisco ASA 5500 series adaptive security appliance fits your network and budget while offering the same proven level of security that protects some of the largest networks at some of the most security-conscious companies in the world. The ASA 5500 series scales to meet the performance and security requirements of a wide range of network applications, to correspond with your changing needs. The Cisco ASA 5545-X is midrange security appliance that uses the Cisco SecureX framework for a context-aware approach to security that delivers multiple security services, multigigabit performance, flexible interface options, and redundant power supplies. It is built on the same proven security platform as the rest of the ASA family of security appliances, and has been designed to deliver superior performance for exceptional operational efficiency.

[specifications] [/specifications]Midsize businesses protecting the Internet edge require the same level of protection as large, enterprise networks. You require enterprise-strength security, but purchasing a firewall that was built to handle the performance needs and budget of a large enterprise would be unnecessary and a waste of company resources. You need a firewall that provides the performance you need at a price you can afford, without compromising security. Cisco ASA 5500 series adaptive security appliance fits your network and budget while offering the same proven level of security that protects some of the largest networks at some of the most security-conscious companies in the world. The ASA 5500 series scales to meet the performance and security requirements of a wide range of network applications, to correspond with your changing needs. The Cisco ASA 5555-X is midrange security appliance that uses the Cisco SecureX framework for a context-aware approach to security that delivers multiple security services, multigigabit performance, flexible interface options, and redundant power supplies. It is built on the same proven security platform as the rest of the ASA family of security appliances, and has been designed to deliver superior performance for exceptional operational efficiency.

[specifications]

Product Description	ASA 5516-X with Firepower Threat Defense. 8GE. AC
Throughput: Application Control (AVC)	850 Mbps
Throughput: Application Control (AVC) and IPS	450 Mbps
Maximum concurrent sessions	250,000
Maximum New Connections per second	20,000
Supported applications	More than 3,000
URL categories	80+
Number of URLs categorized	More than 280 million
Centralized configuration, logging, monitoring, and reporting	Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center
On-Device Management	ASDM (version 7.3 or higher required)
Feature	Cisco ASA 5516-X w/ FirePOWER Services
Stateful inspection throughput (maximum)	1.8 Gbps
Stateful inspection throughput (multiprotocol)	900 Mbps
Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput	250 Mbps
Users/nodes	Unlimited
IPsec site-to-site VPN peers	300
Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections	300
Virtual interfaces (VLANs)	100
Security contexts(included; maximum)	2; 5
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details)	n/a
Expansion slot	n/a
User-accessible Flash slot	no
USB 2.0 ports	USB port type 'A', High Speed 2.0
Integrated I/O	8 x 1 Gigabit Ethernet (GE)
Expansion I/O	n/a
Dedicated management port	Yes (To be shared with FirePOWER Services), 10/100/1000
Serial ports	1 RJ-45 and Mini USB console
Solid-state drive	100 GB mSata
Memory	8 GB
System flash	8 GB
System bus	Multibus architecture
Temperature	32 to 104F (0 to 40 C)
Relative humidity	10 to 90 percent noncondensing
Altitude	Designed and tested for 0 to 10,000 ft (3048 m)
Acoustic noise	41.6 dBA type
Temperature	-13 to 158F (-25 to 70C)
Relative humidity	10 to 90 percent noncondensing
Altitude	Designed and tested for 0 to 15,000 ft (4572 m)
AC range line voltage	External, 90 to 240 volts alternating current (VAC)
AC normal line voltage	90 to 240 VAC
AC current	0.25AC amps
AC frequency	50/60 Hz
Dual-power supplies	none
DC domestic line voltage	N/A
DC international line voltage	N/A
DC current	N/A
Steady-state	12V @ 3.0A
Maximum peak	12V @ 5.0A
Maximum heat dissipation	205 Btu/hr
Form factor	1 rack unit (RU), 19-in. rack-mountable
Dimensions(H x W x D)	1.72 x 17.2 x 11.288 in.
Weight (with AC power supply)	8 lb (3 kg)









[/specifications]



Cisco Asa5516-Ftd-K9 Firepower Threat Defense Security Appliance for Ultimate Protection

Cisco Asa5516-Ftd-K9 Firepower Threat Defense Security Appliance is built to eliminate all types of malware threats with Content Security Management (CSM), Firewall protection, Intrusion Prevention System (IPS), VLAN support and VPN support.

Key Benefits of Cisco Asa5516-Ftd-K9 Firepower Threat Defense Security Appliance

Cisco Asa5516-Ftd-K9 Firepower Threat Defense Security Appliance is a network security appliance. It provides advanced reliability and manageability and eight 1000 Base-T RJ-45 ports for connectivity and a Mini-USB port for easy management. This security system supports 8 GB of installed memory for seamless and lag-free performance. It is an enterprise-class management system with dashboards and drill-down reports. Get a throughput application control of 850 Mb/s for efficient network performance.



Product Description	ASA 5516-X with Firepower Threat Defense. 8GE. AC
Throughput: Application Control (AVC)	850 Mbps
Throughput: Application Control (AVC) and IPS	450 Mbps
Stateful inspection throughput (maximum)	1.8 Gbps
Stateful inspection throughput (multiprotocol)	900 Mbps
Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput	250 Mbps
Users/nodes	Unlimited
Dimensions(H x W x D)	1.72 x 17.2 x 11.288 in.
Weight (with AC power supply)	8 lb (3 kg)

[specifications]

Stateful Inspection Throughput (Maximum)	2 Gbps
Stateful Inspection Throughput (Multiprotocol)	1 Gbps
IPS Throughput	600 Mpbs
Next-Generation Throughput(Multiprotocol)	650 Mbps
3DES/AES VPN Throughput	300 Mbps
Users/Nodes	Unlimited
IPsec VPN Peers	750
Cisco Cloud Web Security Users	4,000
Premium AnyConnect VPN Peers(Included/Maximum)	2/750
Concurrent Connections	500,000
New Connections/Second	20,000
Virtual Interfaces (VLANs)	200
Security Contexts (Included/Maximum)6	2; 20
High Availability	Active/Active and Active/Standby
Expansion Slot	1 interface card
User-Accessible Flash Slot	0
USB 2.0 Ports	2
Integrated I/O	8 GE Copper
Expansion I/O	6 GE Copper or 6 GE SFP
Serial Ports	1 RJ-45 console
Solid State Drive	1 slot, 120 GB MLC SED
Memory	8 GB
Minimum System Flash	8 GB
System Bus	Multibus architecture
Temperature	23 to 104 F (-5 to 40 C)
Relative Humidity	90 percent noncondensing
Altitude	Designed and tested for 0 to 10,000 ft (3050m)
Shock	50G, 2 m/sec
Vibration	0.41 Grms2 (3 to 500 Hz) random input
Acoustic Noise	64.2 dBa max
Temperature	-13 to 158 F (-25 to 70 C)
Relative Humidity	10 to 90 percent noncondensing
Altitude	Designed and tested for 0 to 15,000 ft (4570m)
Shock	70G, 4.22 m/sec
Vibration	1.12 Grms2 (3 to 500 Hz) random input
AC Range Line Voltage	100 to 240 VAC
AC Normal Line Voltage	100 to 240 VAC
AC Current	4.85A
AC Frequency	50/60 Hz
Dual-Power Supplies	None
DC Domestic Line Voltage	-40.5 to 56 VDC (-48 VDC nominal)
DC International Line Voltage	-55 to -72 VDC (-60 VDC nominal)
DC Current	15A (maximum input)
Steady State	75W
Maximum Peak	108W
Maximum Heat Dissipation	369 BTU/hr
Form Factor	1 RU, 19-in. rack-mountable
Dimensions (H x W x D)	1.75 x 17.5 x 14.25 In (4.45 x 20.04 x 36.2 cm)
Weight (with AC Power Supply)	22.0 lb (10 kg)
Safety	IEC 60950-1: 2005, 2nd Edition EN 60950-1:2006+A11: 2009 UL 60950-1:2007, 2nd Edition; CSA C22.2 No. 60950-1-07, 2nd Edition
Electromagnetic Compatibility (EMC)	CE: EN55022 2006+A1: 2007 Class A; EN55024 1998+A1:2001+A2:2003; EN61000-3-2 2009; EN61000-3-3 2008; FCC: CFR 47, Part 15 Subpart B Class A 2010, ANSI C63.4 2009; ICES-003 ISSUE 4 FEBRUARY.2004; VCCI: V-3/2011.04; C-TICK: AS/NZS CISPR 22,2009 KC: KN22 & KN24
Industry Certifications	In process









[/specifications]Midsize businesses protecting the Internet edge require the same level of protection as large, enterprise networks. You require enterprise-strength security, but purchasing a firewall that was built to handle the performance needs and budget of a large enterprise would be unnecessary and a waste of company resources. You need a firewall that provides the performance you need at a price you can afford, without compromising security. Cisco ASA 5500 series adaptive security appliance fits your network and budget while offering the same proven level of security that protects some of the largest networks at some of the most security-conscious companies in the world. The ASA 5500 series scales to meet the performance and security requirements of a wide range of network applications, to correspond with your changing needs. The Cisco ASA 5525-X is a midrange security appliance that uses the Cisco SecureX framework for a context-aware approach to security that delivers multiple security services, multigigabit performance, flexible interface options, and redundant power supplies. It is built on the same proven security platform as the rest of the ASA family of security appliances and has been designed to deliver superior performance for exceptional operational efficiency.



Cisco ASA5525-K9 Firewall Overview



Interfaces	8 copper GE ports, 1 copper GE management port, 1 expansion slot
Stateful inspection throughput (maximum)	2 Gbps
3DES/AES VPN throughput	300 Mbps
IPsec VPN peers	750
Virtual interfaces (VLANs)	200
Memory	8 GB
Flash	8 GB
Height (rack units)	1 RU
Dimensions (D x H x W)	4.45 x 20.04 x 36.2 cm
Package Weight	13.1 Kg

[specifications] [/specifications]Cisco AC Power Supply for ASA 5545-X, 5555-X

• Security appliance
• 8 ports
• GigE
• Desktop

[specifications]

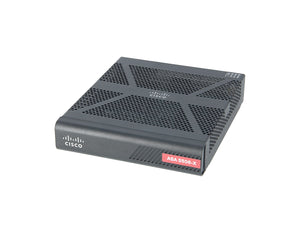

Product Description	ASA 5506-X with Firepower Threat Defense. 8GE. AC
Throughput: Application Control (AVC)	250 Mbps
Throughput: Application Control (AVC) and IPS	125 Mbps
Maximum concurrent sessions	20,000; 50000
Maximum New Connections per second	5,000
Supported applications	More than 3,000
URL categories	80+
Number of URLs categorized	More than 280 million
Centralized configuration, logging, monitoring, and reporting	Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center
On-Device Management	ASDM (version 7.3 or higher required)
Feature	Cisco ASA 5506-X w/ FirePOWER Services
Stateful inspection throughput (maximum1)	750 Mbps
Stateful inspection throughput (multiprotocol2)	300 Mbps
Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput3	100 Mbps
Users/nodes	Unlimited
IPsec site-to-site VPN peers	10; 50
Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5	50
Virtual interfaces (VLANs)	5; 30
Security contexts5(included; maximum)	N/A
High availability	Requires Security Plus License; Active/ Standby
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details)	N/A
Expansion slot	N/A
User-accessible Flash slot	No
USB 2.0 ports	USB port type 'A', High Speed 2.0
Integrated I/O	8 x 1 Gigabit Ethernet (GE)
Expansion I/O	N/A
Dedicated management port	Yes (To be shared with FirePOWER Services), 10/100/1000
Serial ports	1 RJ-45 and Mini USB console
Solid-state drive	50 GB mSata
Memory	4 GB
System flash	8 GB
System bus	Multibus architecture
Temperature	32 to 104 F (0 to 40  C)
Relative humidity	90 percent noncondensing
Altitude	Designed and tested for 0 to 10,000 ft (3048 m)
Acoustic noise	Fanless 0 dBA
Temperature	-13 to 158 F (-25 to 70 C)
Relative humidity	10 to 90 percent noncondensing
Altitude	Designed and tested for 0 to 15,000 ft (4572 m)
AC range line voltage	External, 90 to 240 volts alternating current (VAC)
AC normal line voltage	90 to 240 VAC
AC current	N/A
AC frequency	50/60 Hz
Dual-power supplies	None
DC domestic line voltage	N/A
DC international line voltage	N/A
DC current	N/A
Steady-state	12V @2.5A
Maximum peak	12V @ 5A
Maximum heat dissipation	103 British thermal units (Btu)/hr
Form factor	Desktop, rack-mountable
Dimensions(H x W x D)	1.72 x 7.871 x 9.23 in.(4.369 x 19.992 x 23.444 cm)
Weight (with AC power supply)	4 lb (1.82 kg)







[/specifications] Meet the industry's first adaptive, threat-focused next-generation firewall (NGFW) designed for a new era of threat and advanced malware protection. Cisco ASA with FirePOWER Services delivers integrated threat defense for the entire attack continuum - before, during, and after an attack. How? By combining the proven security capabilities of the Cisco ASA firewall with the industry-leading Sourcefire threat and Advanced Malware Protection (AMP) features together in a single device. The solution uniquely extends the capabilities of the Cisco ASA 5500-X Series Next-Generation Firewalls beyond what today's NGFW solutions are capable of. Whether you need protection for a small or midsized business, a distributed enterprise, or a single data center, Cisco ASA with FirePOWER Services provides the needed scale and context in a NGFW solution.
