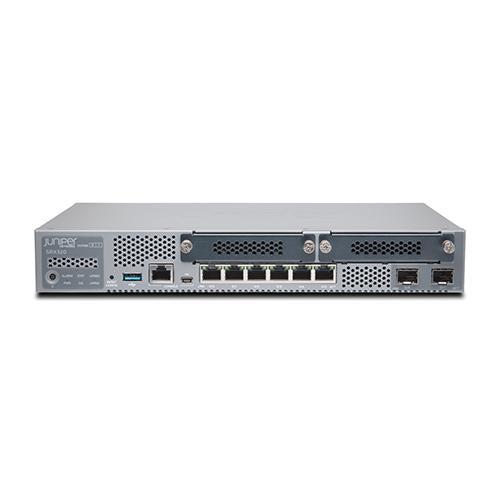

JUNIPER SRX320-SYS-JE-P FIREWALL

Specifications

Specifications	SRX320-SYS-JE-P
System memory (RAM)	4 GB
Storage	8 GB
SSD slots	0
Firewall performance (max)	1 Gbps
IPS performance	100 Mbps
AES256+SHA-1 / 3DES+SHA-1 VPN performance	250 Mbps
New sessions/second (sustained, TCP, 3-way)	5000
Routing with packet mode (64 B packet size) in Kpps	300
Routing with packet mode (IMIX packet size) in Mbps	800
Routing with packet mode (1,518 B packet size in Mbps	1,500
Stateful firewall (64 B packet size) in Kpps	200
Stateful firewall (IMIX packet size) in Mbps	600
Stateful firewall (1,518 B packet size) in Mbps	1,900
IPsec VPN (IMIX packet size) in Mbps	116
IPsec VPN (1,400 B packet size) in Mbps	336
Application visibility and control in Mbps	500
Recommended IPS in Mbps	200
Next-generation firewall in Mbps	226
Secure Web Access firewall in Mbps	171
Route table size (RIB/FIB) (IPv4 or IPv6)	256,000/256,000
Maximum concurrent sessions (IPv4 or IPv6)	64,000
Maximum security policies	1,000
Connections per second	5,000
NAT rules	1,000
MAC table size	15,000
IPsec VPN tunnels	256
Number of remote access/SSL VPN (concurrent) users	50
GRE tunnels	256
Maximum number of security zones	16
Maximum number of virtual routers	32
Maximum number of VLANs	1,000
AppID sessions	16,000
IPS sessions	16,000
URLF sessions	16,000
WAN and Wi-Fi Interface Support
1 port T1/E1 MPIM (SRX-MP-1T1E1-R)	Yes
1 port VDSL2 Annex A/M MPIM (SRX-MP-1VDSL2-R)	Yes
4G / LTE MPIM (SRX-MP-LTE-AA and SRX-MP-LTE-AE)	Yes
802.11ac Wave 2 Wi-Fi MPIM	Yes
WAN and Wi-Fi Interface Module Performance Data
4G/LTE: Dual SIM 4G/LTE-A CAT 6	Up to 300 Mbps download and 50 Mbps upload
Wi-Fi MPIM: Dual band 802.11 a/b/g/n/ac Wave 2 (2x2 MIMO)	Up to 866 Mbps at 5GHz / 300 Mbps at 2.4GHz
Software Specifications
Routing Protocols	IPv4, IPv6, ISO, Connectionless Network Service (CLNS) Static routes RIP v1/v2 OSPF/OSPF v3 BGP with Route Reflector IS-IS Multicast: Internet Group Management Protocol (IGMP) v1/v2, Protocol Independent Multicast (PIM) sparse mode (SM)/dense mode (DM)/source-specific multicast (SSM), Session Description Protocol (SDP), Distance Vector Multicast Routing Protocol (DVMRP), Multicast Source Discovery Protocol (MSDP), Reverse Path Forwarding (RPF) Encapsulation: VLAN, Point-to-Point Protocol (PPP), Frame Relay, High-Level Data Link Control (HDLC), serial, Multilink Point-to-Point Protocol (MLPPP), Multilink Frame Relay (MLFR), and Point-to-Point Protocol over Ethernet (PPPoE) Virtual routers Policy-based routing, source-based routing Equal-cost multipath (ECMP)
QoS Features	Support for 802.1p, DiffServ code point (DSCP), EXP Classification based on VLAN, data-link connection identifier (DLCI), interface, bundles, or multifield filters Marking, policing, and shaping Classification and scheduling Weighted random early detection (WRED) Guaranteed and maximum bandwidth Ingress traffic policing Virtual channels Hierarchical shaping and policing
Switching Features	ASIC-based Layer 2 Forwarding MAC address learning VLAN addressing and integrated routing and bridging (IRB) support Link aggregation and LACP LLDP and LLDP-MED STP, RSTP, MSTP MVRP 802.1X authentication
Firewall Services	Stateful and stateless firewall Zone-based firewall Screens and distributed denial of service (DDoS) protection Protection from protocol and traffic anomaly Integration with Pulse Unified Access Control (UAC) Integration with Aruba Clear Pass Policy Manager User role-based firewall SSL Inspection (Forward-proxy)
Network Address Translation (NAT)	Source NAT with Port Address Translation (PAT) Bidirectional 1:1 static NAT Destination NAT with PAT Persistent NAT IPv6 address translation
VPN Features	Tunnels: Site-to-Site, Hub and Spoke, Dynamic Endpoint, AutoVPN, ADVPN, Group VPN (IPv4/ IPv6/ Dual Stack) Juniper Secure Connect: Remote access / SSL VPN Configuration payload: Yes IKE Encryption algorithms: Prime, DES-CBC, 3DES-CBC, AEC-CBC, AES-GCM, SuiteB IKE authentication algorithms: MD5, SHA-1, SHA-128, SHA-256, SHA-384 Authentication: Pre-shared key and public key infrastructure (PKI) (X.509) IPsec (Internet Protocol Security): Authentication Header (AH) / Encapsulating Security Payload (ESP) protocol IPsec Authentication Algorithms: hmac-md5, hmac-sha-196, hmac-sha-256 IPsec Encryption Algorithms: Prime, DES-CBC, 3DES-CBC, AEC-CBC, AES-GCM, SuiteB Perfect forward secrecy, anti-reply Internet Key Exchange: IKEv1, IKEv2 Monitoring: Standard-based dead peer detection (DPD) support, VPN monitoring VPNs GRE, IP-in-IP, and MPLS
Network Services	Dynamic Host Configuration Protocol (DHCP) client/server/relay Domain Name System (DNS) proxy, dynamic DNS (DDNS) Juniper real-time performance monitoring (RPM) and IP-monitoring Juniper flow monitoring (J-Flow)1 Bidirectional Forwarding Detection (BFD) Two-Way Active Measurement Protocol (TWAMP) IEEE 802.3ah Link Fault Management (LFM) IEEE 802.1ag Connectivity Fault Management (CFM)
High Availability Features	Virtual Router Redundancy Protocol (VRRP) Stateful high availability Dual box clustering Active/passive Active/active Configuration synchronization Firewall session synchronization Device/link detection In-Band Cluster Upgrade (ICU) Dial on-demand backup interfaces IP monitoring with route and interface failover
Management, Automation, Logging, and Reporting

Properties

Properties	Juniper SRX320-SYS-JE-P
Description	SRX320 Firewalls includes hardware (8GbE, 6-port POE+, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security). RMK not included.
Product Family	SRX300 Series
Product Type	Security Firewall
Connectivity Specification
Total onboard ports	8x1GbE
Onboard RJ-45 ports	6x1GbE
Onboard small form-factor pluggable (SFP) transceiver ports	2x1GbE
MACsec-capable ports	2x1GbE
Out-of-band (OOB) management ports	0
Mini PIM (WAN) slots	2
Console (RJ-45 + miniUSB)	1
USB 3.0 ports (type A)	1
PoE+ ports	6
Includes	Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security)
Form factor	Desktop
Dimensions (WxHxD)	11.81 x 1.73 x 7.52 in. (29.99 x 4.39 x 19.10 cm)
Weight (device and PSU)	3.4 lb (1.55 kb)
Power
Power supply	AC (external)
Redundant PSU	No
Rated DC voltage range	N/A
Rated DC operating voltage range	N/A
Maximum PoE power	180 W
Average power consumption	221 W
Average heat dissipation	755 BTU/h
Maximum current consumption	2.755 A
Airflow/cooling	Front to back
Acoustic noise level	40 Dba
