CISCO C9300X-24HX-E SWITCH
| Model: | C9300X-24HX-E |
| Detail: | Cisco Catalyst C9300X-24HX-E Switch The Cisco Catalyst C9300X-24HX-E Switch is a robust and high-performance solution engineered for enterprise networks that require advanced security, high-speed connectivity, and scalability. With 24 Multigigabit |
| List Price: | |
| Price: | $9,750.00 |
| You Save: | $5,588.81 (36% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

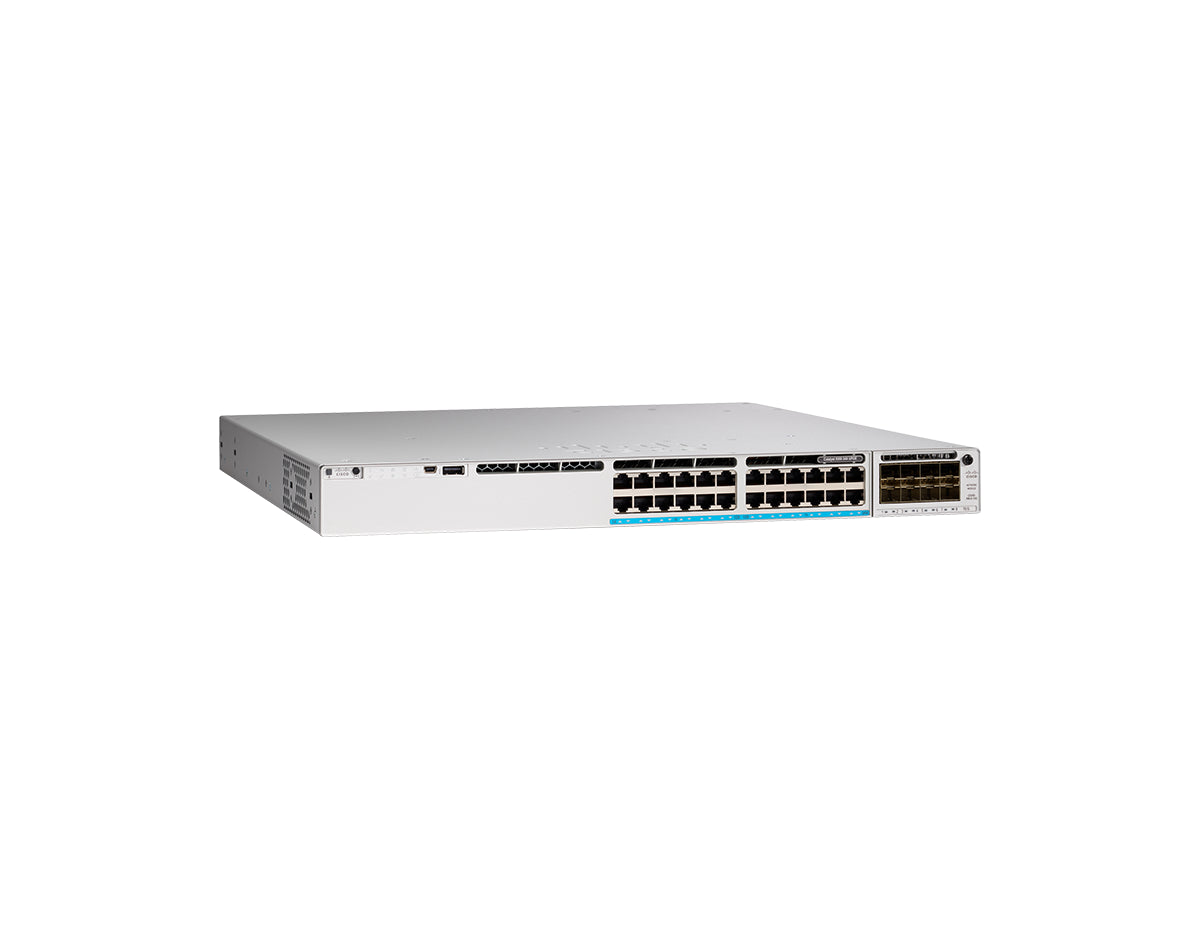

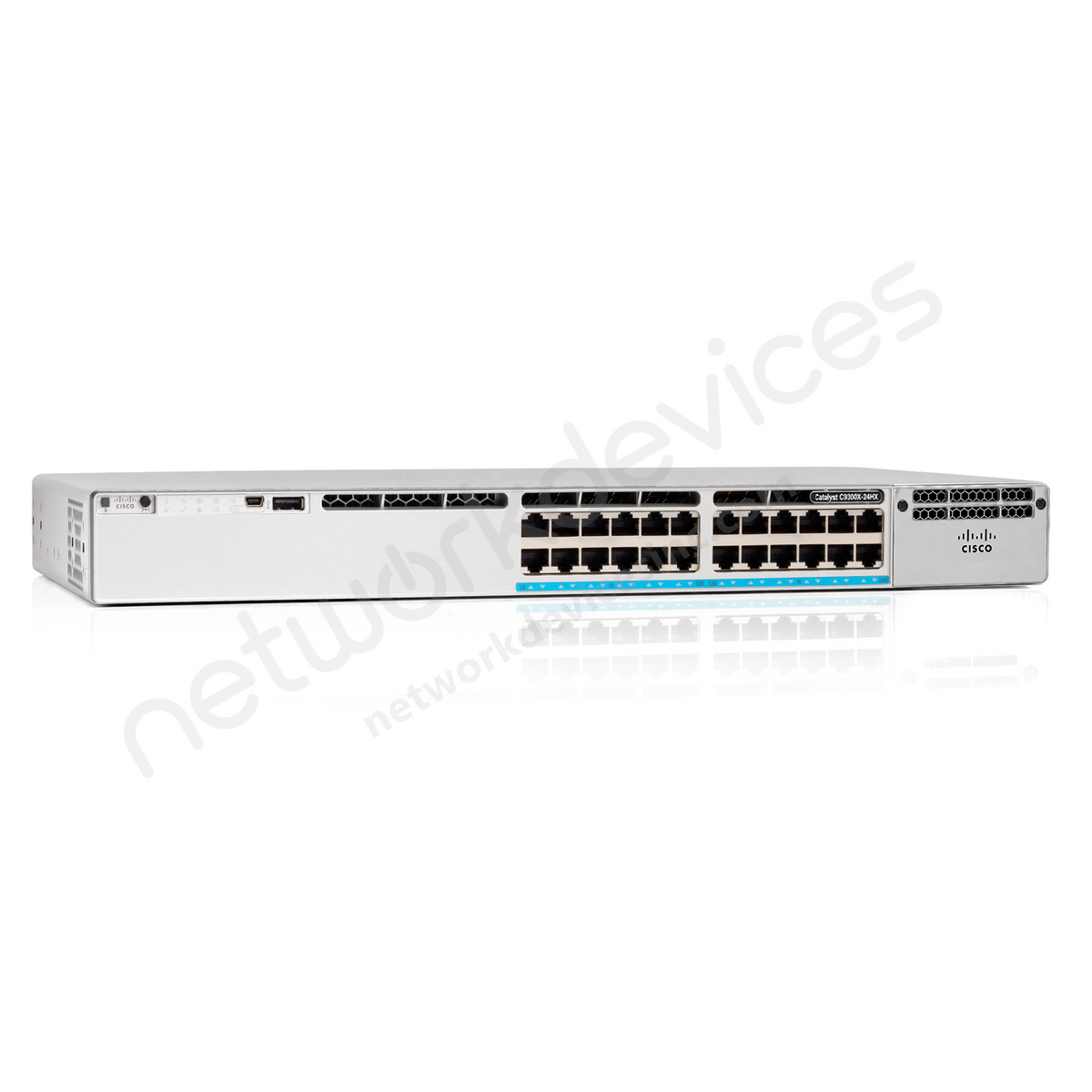

Cisco Catalyst C9300X-24HX-E Switch
The Cisco Catalyst C9300X-24HX-E Switch is a robust and high-performance solution engineered for enterprise networks that require advanced security, high-speed connectivity, and scalability. With 24 Multigigabit Ethernet ports and support for 10G/25G uplinks, this Layer 3 switch is ideal for modern organizations demanding reliable data transfer and efficient network management. The C9300X-24HX-E is equipped with cutting-edge security features and flexible uplink options, making it a future-ready choice for growing network environments.
Key Features:
- 24 x Multigigabit Ethernet Ports: Supports speeds of 100M, 1G, 2.5G, 5G, and 10G per port, ensuring high-speed and adaptable network performance.
- Modular Uplinks: Offers 10G/25G uplink options, providing flexibility and scalability for expanding network needs.
- Advanced Layer 3 Routing: Includes support for OSPF, EIGRP, and BGP, facilitating sophisticated routing, traffic management, and segmentation.
- StackWise-480 Technology: Provides up to 480 Gbps of stacking bandwidth, ensuring high availability and simplified management across multiple switches.
- Energy-Efficient Design: Compliant with IEEE 802.3az standards, reducing power consumption while maintaining high network performance.
- Comprehensive Security: Features MACsec encryption and advanced access control lists (ACLs) to protect against unauthorized access.
Technical Overview:
- Recommended for: Enterprise environments, large campuses, and data centers requiring scalable network infrastructure.
- Ports: 24 x Multigigabit Ethernet ports (100M, 1G, 2.5G, 5G, 10G) with modular uplinks supporting 10G/25G.
- Switching Capacity: 480 Gbps.
- Forwarding Rate: 357.14 Mpps.
- Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
- Management: Web-based GUI, CLI, SNMP, and Cisco DNA Center for comprehensive network automation and monitoring.
- Licensing: Network Essentials.
- Security: MACsec encryption and advanced ACLs for enhanced security.
- Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.
You can check the related tab for the C9300X-24HX-E datasheet.
Accessories
Specifications
| Specifications | C9300X-24HX-E |
| Product Family Configurations (Catalyst 9300X) | |
| Modular Uplinks and Speeds | 10G, 25G, 40G, mGig and 100G |
| Stacking Bandwidth Support | Stackwise-1T (480G when stacking with Catalyst 9300 model) |
| mGig Density | 48x 10G |
| Cisco StackPower | 48x 10G |
| Cisco StackPower | ✓ (Larger Power Budget) |
| HW-Based Ipsec | Up to 100G Ipsec (Need to order HSEC Key for IPsec Feature.) |
| App hosting Capacity | ✓ (2x hosting resources over Catalyst 9300 models) |
| Cisco C9300X-24HX Switch Configurations | |
| Total 10/100/1000, Multigigabit copper or SFP Fiber | 24 port Cisco UPOE+, 24x 10G Multigigabit (10G/5G/2.5G/1G/100M) |
| Uplink Configuration | Modular Uplinks |
| Default AC power supply | 1100W AC |
| Primary Power Supply (PWR-C1-1900WAC-P) | |
| Default or Upgrade | Upgrade |
| Available PoE | 1535W |
| With 350W Secondary PS | 1885W |
| With 715W secondary PS | 2160W* |
| With 1100W Secondary PS | 2160W* |
| With 1900W Secondary PS | 2160W* |
| Primary Power Supply (PWR-C1-1100WAC-P) | |
| Default or Upgrade | Default |
| Available PoE | 735W |
| With 350W Secondary PS | 1085W |
| With 715W secondary PS | 1450W |
| With 1100W Secondary PS | 1835W |
| With 1900W Secondary PS | 2160W* |
| *Limited by port number and port rating (e.g. 24 PoE+ 30W ports = 720W) | |
| Bandwidth specifications - C9300X-24HX | |
| Switching capacity | 880 Gbps |
| Switching capacity with stacking | 1,880 Gbps |
| Forwarding rate | 327.38 Mpps |
| Forwarding rate with stacking | 1398.80 Mpps |
| General Specifications - C9300X-24HX | |
| Dimensions (H x W x D) inches | Chassis only: 1.73 x 17.5 x 17.57 W/ Default Power Supply: 1.73 x 17.5 x 20.63 W/ 1100W Power Supply: 1.73 x 17.5 x 20.63 |
| Dimensions (H x W x D) Cms | Chassis only: 4.4 x 44.5 x 44.6 W/ Default Power Supply: 4.4 x 44.5 x 52.4 W/ 1100W Power Supply: 4.4 x 44.5 x 52.4 |
| Weight (with default power supply) | Pounds: 13.8 Kilograms: 6.25 |
| Mean Time Between Failures – MTBF (hours) | 220,250 |
Properties
| Properties | C9300X-24HX-E |
| Description | Catalyst 9300 24-port 10G/mGig copper with modular uplink, UPOE+, Network Essentials |
| Product Family | Cisco Catalyst 9300 Series Switches |
| Product Type | Switch |
