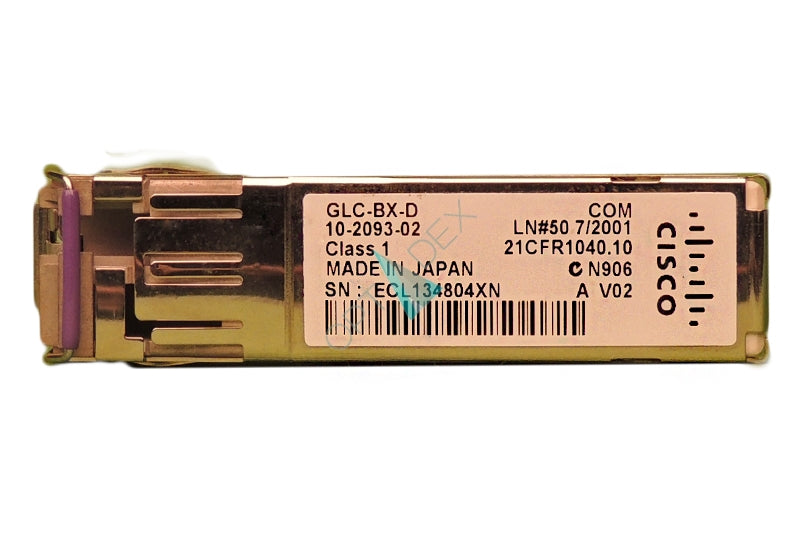

Cisco GLC-BX-D Transceiver Module

Name: Cisco GLC-BX-D Transceiver Module
Brand: Cisco
SKU: GLC-BX-D-NEW
Price: 615.10 USD
Availability: InStock

Part Number: GLC-BX-D

Technical Details

SFP (mini-GBIC) transceiver module GigE 1000Base-BX up to 6.2 miles 1490 (TX) / 1310 (RX) nm

$1,537.75

$615.10

60% OFF

You Save: $922.65

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Cisco GLC-BX-D Transceiver Module

The Cisco SFPs for GE applications are durable, industry-standard devices designed to connect switches and routers efficiently to a network. GLC-BX-D= is a 1000BASE-BX10-D downstream bidirectional single fiber device. A 1000BASE-BX10-D device is always connected to a 1000BASE-BX10-U device incorporating Wavelength-Division Multiplexing technology for efficient bidirectional communication.

Key Features:

Digital Optical Monitoring (DOM)
Compatible with the IEEE 802.3ah
Bidirectional

The tabs contain the Cisco GLC-BX-D= datasheet with all the specifics you need.

Specifications

Specifications	GLC-BX-D
Description	1000BASE-BX10-D downstream bidirectional single fiber; with DOM
Product Type	Transceiver
Connector	Single LC/PC connector
Operating range	up to 10 km (32,821 ft)
Form Factor	SFP
Transmit Power Range (dBm)	-3 to -9
Receive Power Range (dBm)	-3 to -19.5
Maximum Channel insertion loss in dB (by fiber type)	5.5 (G.652 SMF)
Wavelength Range (nm)	Transmit: 1490
Wavelength Range (nm)	Receive: 1310
DOM	Yes
Temperature Range	0 to 70°C (32 to 158°F)
