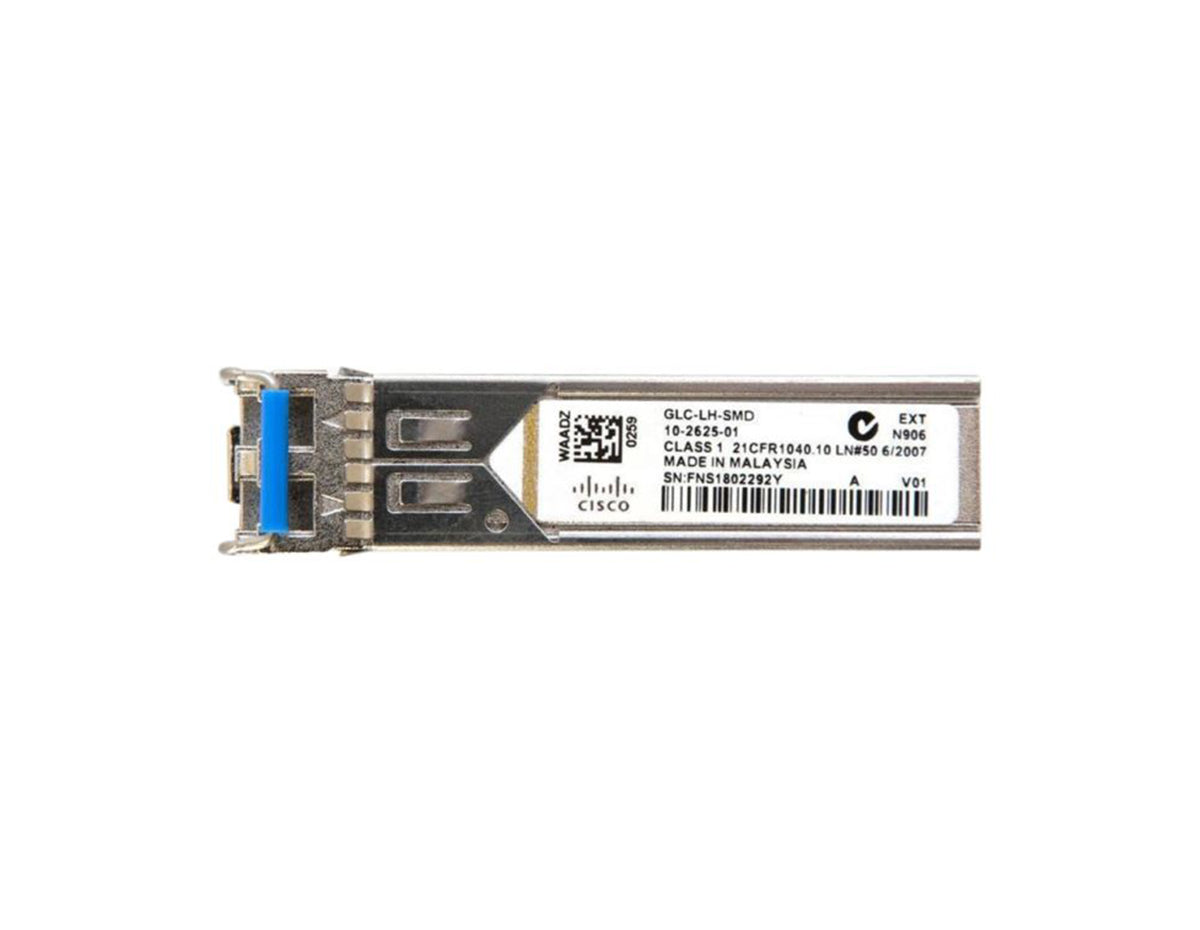

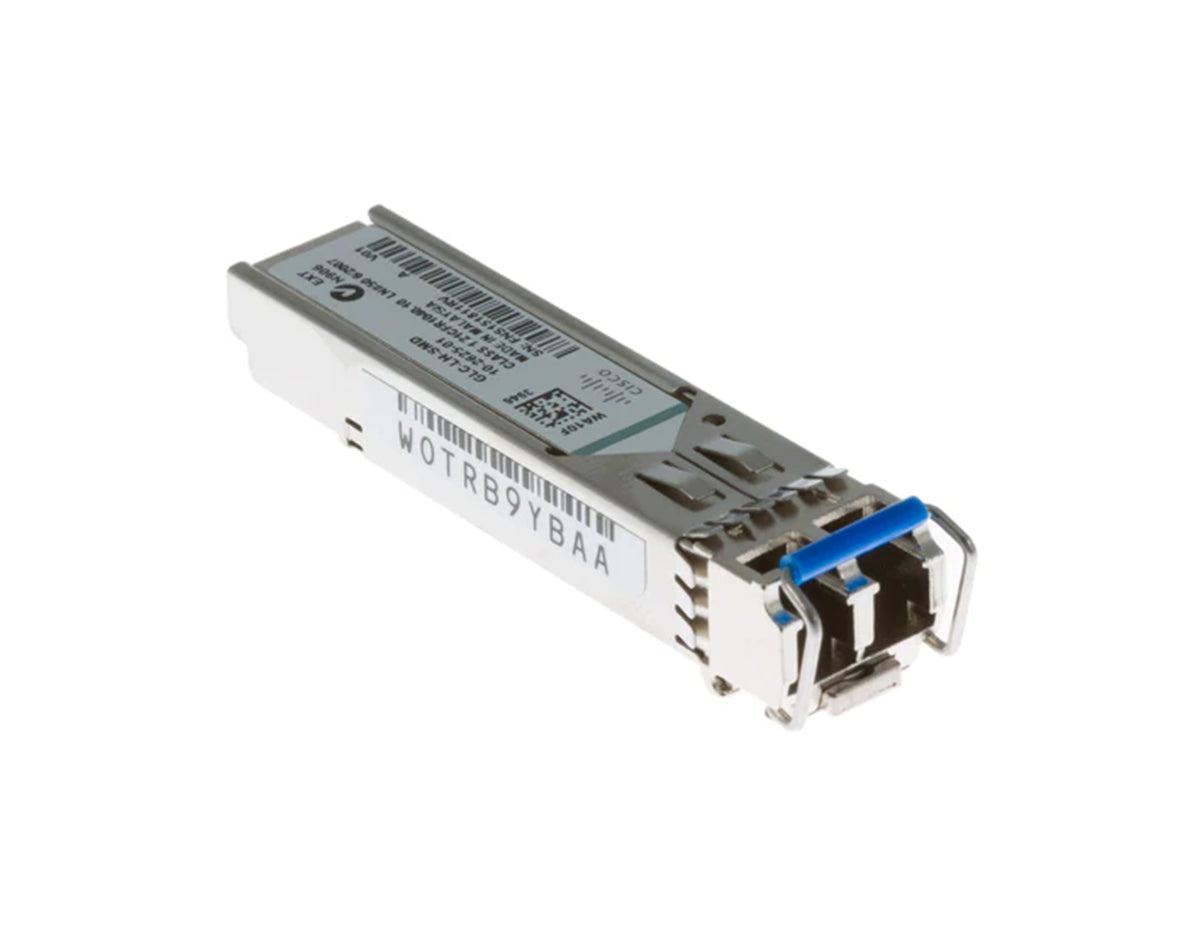

CISCO GLC-LH-SMD TRANSCEIVER MODULE - 10 KM SMF, DOM
| Part No: | GLC-LH-SMD |
| Detail: | SFP (mini-GBIC) transceiver module GigE 1000Base-LX 1000Base-LH LC single-mode 1310 n |
| List Price: |
|
| Price: |
$420.00
|
| You Save: | $793.00 (65% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description
Cisco GLC-LX-SM-RGD Transceiver Module
The genuine Cisco GLC-LX-SM-RGD 1000BASE-LX/LH SFP brings standards-based Gigabit Ethernet to harsh and outdoor networks. Operating at 1310 nm, it delivers 10 km over single-mode fiber (≈ 550 m over multimode with a mode-conditioning patch cord) while enduring -40 °C to 85 °C ambient temperatures. DOM reports real-time optical power, temperature, and voltage, and the hot-swappable form factor lets technicians service links without shutdown. Fully IEEE 802.3z compliant, it slots into Cisco Industrial Ethernet, Catalyst, Nexus, and ISR platforms—ideal for traffic systems, substations, and factory floors that require rugged long-distance 1 Gb connectivity.
Technical Features
- Speed: 1 Gbps (1000BASE-LX/LH)
- Reach: 10 km SMF | ≈ 550 m MMF + MCC
- Optics: 1310 nm laser, LC duplex
- Diagnostics: DOM (Tx/Rx power, temperature, voltage)
- Hot-Swappable: Yes
- Operating Temp: -40 °C → 85 °C (rugged)
- Compliance: IEEE 802.3z, SFP-MSA, NEBS/IND rated
- Ideal For: Industrial plants, traffic cabinets, substations, outdoor campus links
For complete technical details, check the Specifications tab above.
Specifications
| Specifications | GLC-LX-SM-RGD |
| Description | 1000BASE-LX/LH SFP for singlemode fiber and multimode fiber compatible with the IEEE 802.3z 1000BASE-LX standard, rugged |
| Product Type | Transceiver |
| Connector | Dual LC |
| Data Links | 1.25Gb/s |
| Form Factor | SFP |
| Transmit Power Range (dBm) | -3 to -9.5 |
| Receive Power Range (dBm) | -3 to -20 |
| Maximum Channel insertion loss in dB (by fiber type) | 2.4 (any MMF) 6 (G.652 SMF) |
| Transmit and Receive Wavelength Range (nm) | 1270 to 1355 (1310nm) |
| DOM | No |
| Temperature Range | -40 to 85°C (-40 to 185°F) |
| Wavelength (nm) | Fiber Type | Core Size (μm) | Modal Bandwidth (MHz* Km) |
Operating Distance (m) |
|---|---|---|---|---|
| 1310 | MMF* | 62.5 | 500 | 550 (1,804 ft) |
| 400 | 550 (1,804 ft) | |||
| 500 | 550 (1,804 ft) | |||
| SMF | - | - | 10,000 (32,821 ft) |
