CISCO SFP-10G-LR-S TRANSCEIVER MODULE

Model: SFP-10G-LR-S
Detail: SFP+ transceiver module, 10 GigE, 10GBase-LR, LC/PC single-mode, Up to 6.2 miles, 1310 nm
List Price: US$2,365.77
Price:
$275.00
You Save: $2,090.77 (88% OFF)
Condition: Brand New Sealed
Availability: IN STOCK
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

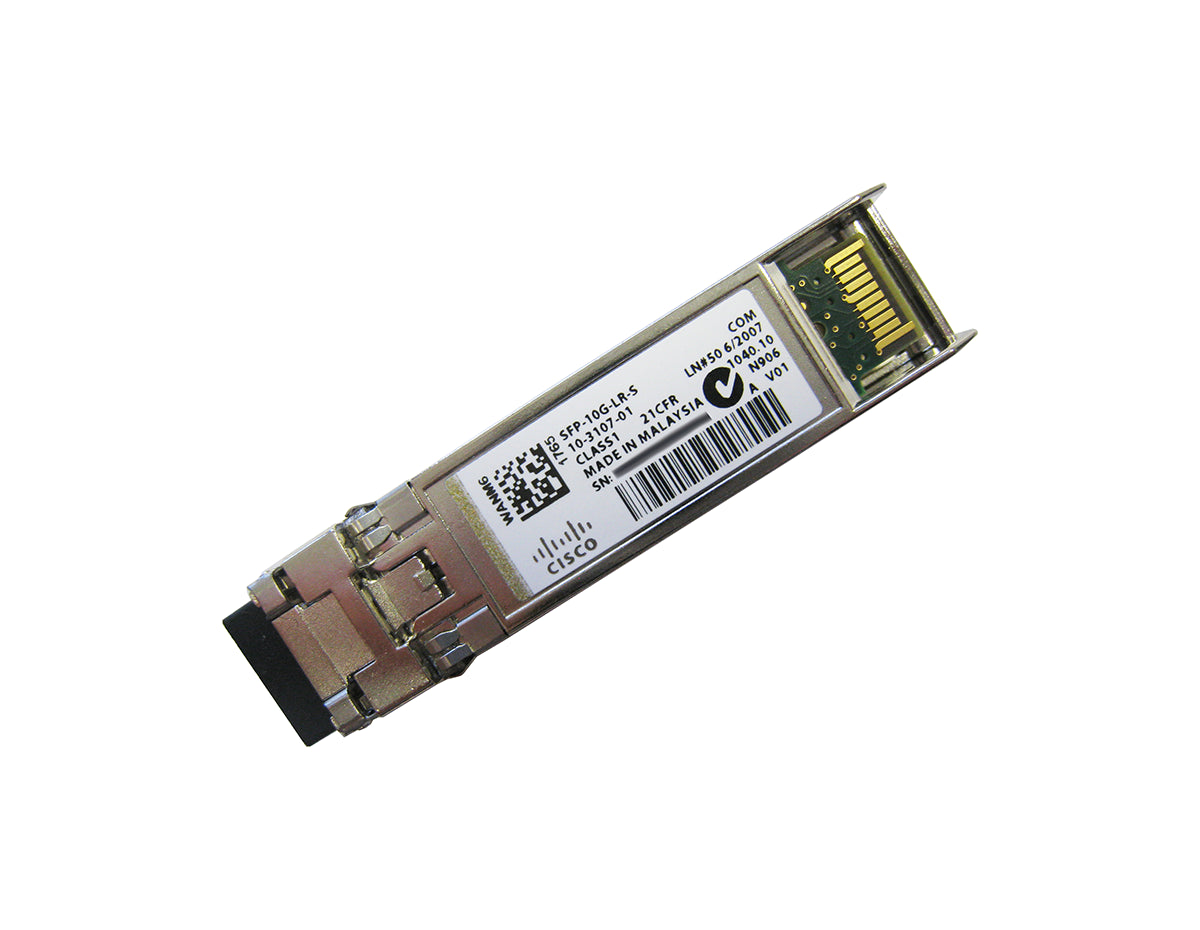

Cisco SFP-10G-LR-S Transceiver Module

Cisco offers 10GBASE SFP+ modules that provide compliant solutions for 10 Gigabit Ethernet setups in different networking environments, such as data centers, enterprise wiring closets, and service provider transport applications. They are the industry's most minor 10G form factor Hot-swappable input/output device that plugs into an Ethernet SFP+ Cisco switch port. The Cisco SFP-10G-LR-S is a 10GBASE-LR SFP+ Module for SMF S-Class, which supports a link length of 10 kilometers on standard Single-Mode Fiber.

Key Features:

  • S-Class
  • SMF - G.652
  • Pay-as-you-populate model

The tabs contain the Cisco SFP-10G-LR-S datasheet with all the specifics you need.

Specifications

Specifications SFP-10G-LR-S
Description The Cisco 10GBASE-LR SFP+ Module for SMF S-Class supports a link length of 10 kilometers on standard Single-Mode Fiber (SMF) (G.652).
Product Family Cisco SFP+ Modules
Product Type Transceiver Module
Connectors Dual LC connector
Wavelength (nm) 1310
Fiber Type SMF
Core Size (Microns) G.652
Modal Bandwidth (MHz*km)  -
Cable Distance 10 km
 Fiber-loss budgets: Transmit (dBm) (Min-Max)   -8.2 to 0.5
 Fiber-loss budgets: Receive (dBm) (Min-Max)   -14.4 to 0.5
Transmit and Receive Wavelength (nm) 1260 to 1355
Power consumption 1W
Dimensions  8.5 x 13.4 x 56.5mm
Temperature Range 0 to 70°C (32 to 158°F)
Warranty 5 years
