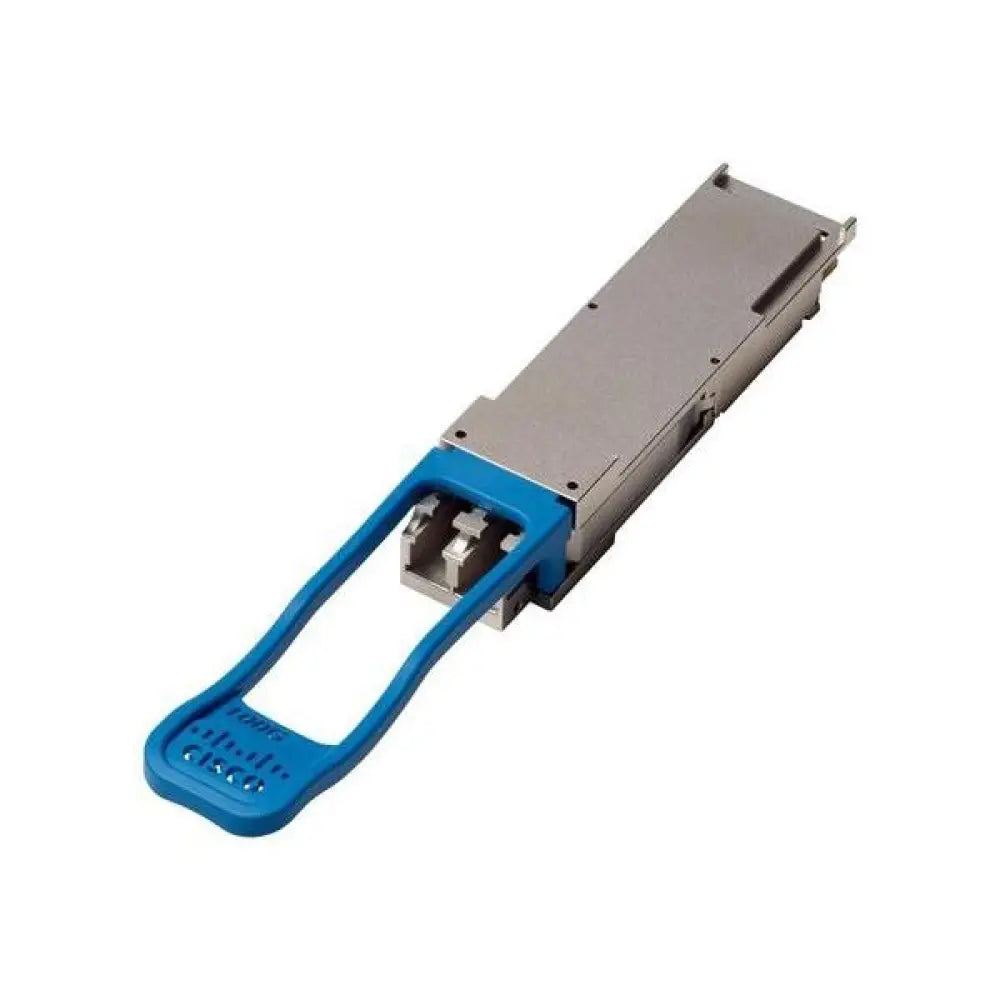

Cisco 100GBASE LR4 QSFP28 10km Optical Transceiver Module (QSFP-100G-LR4-S)

The Cisco QSFP-100G-LR4-S is a 100GBASE-LR4 compliant optical transceiver module engineered for high-speed data transmission over single-mode fiber (SMF). This hot-pluggable QSFP28 module supports up to 10km link distances and operates within a wavelength range of 1295.56 nm to 1309.14 nm. Equipped with a cooled LAN WDM EA-DFB transmitter and a high-sensitivity PIN receiver, it ensures low-latency, high-reliability performance for data centers, enterprise networks, and telecom applications.

Key Features:

• High-Speed Connectivity: Supports 100GBASE-LR4 Ethernet for up to 10km transmission over SMF.
• Hot-Pluggable Design: Enables easy deployment with QSFP28 MSA form factor.
• Reliable Performance: Utilizes LAN WDM EA-DFB transmitters and PIN receivers for superior optical signal quality.
• Efficient Power Consumption: Operates with a maximum power consumption of 4W.
• Wide Compatibility: Fully compliant with IEEE 802.3ba standards and MSA specifications.
• Secure and Durable: Designed to withstand harsh environmental conditions with an operating temperature range of 0°C to 70°C.

Technical Specifications:

• Form Factor: QSFP28
• Data Rate: 100Gbps
• Wavelengths: 1295.56 nm, 1300.05 nm, 1304.58 nm, 1309.14 nm
• Transmission Distance: Up to 10km
• Connector Type: Duplex LC
• Power Consumption: 4W
• Operating Temperature: 0°C to 70°C
• Fiber Type: Single-Mode Fiber (G.652)
• Standards Compliance: IEEE 802.3ba 100GBASE-LR4
