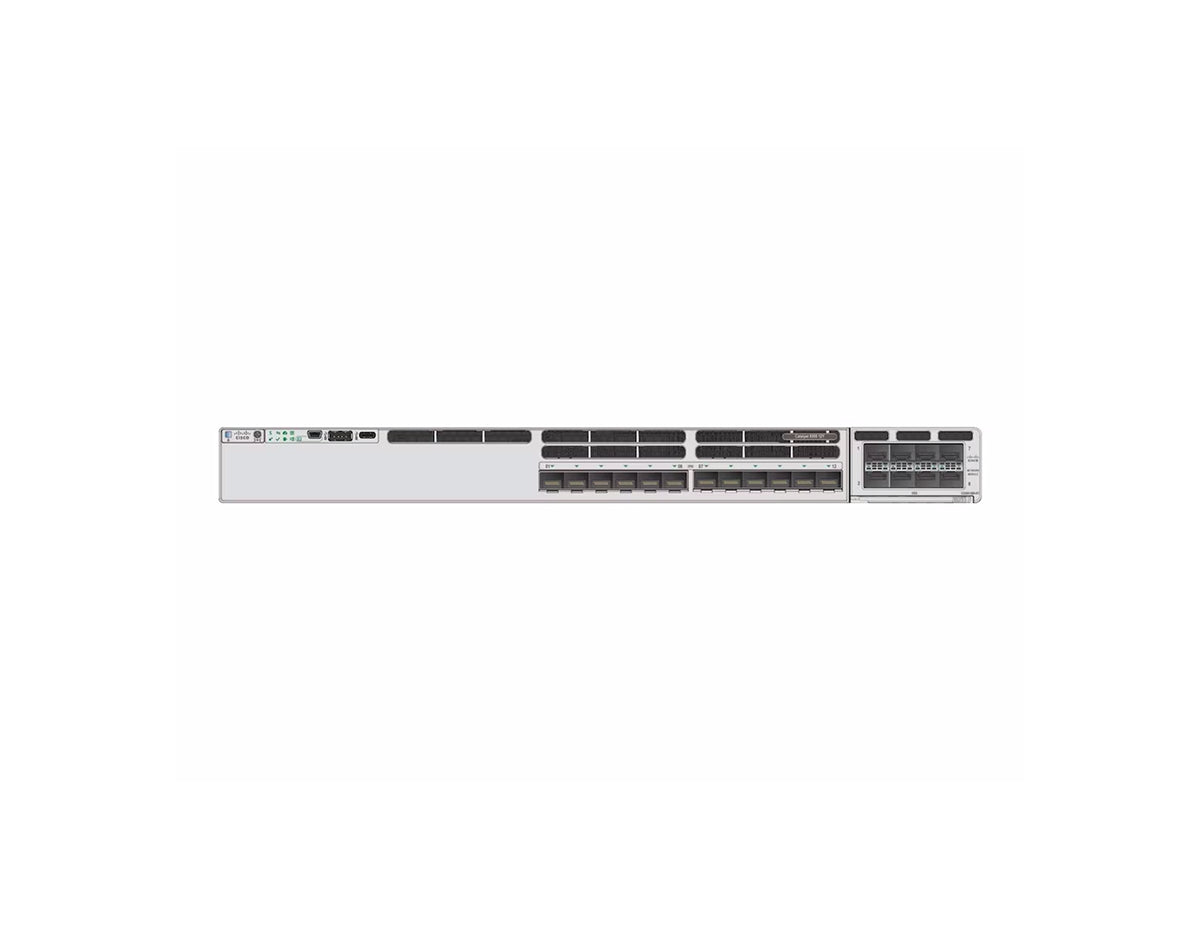

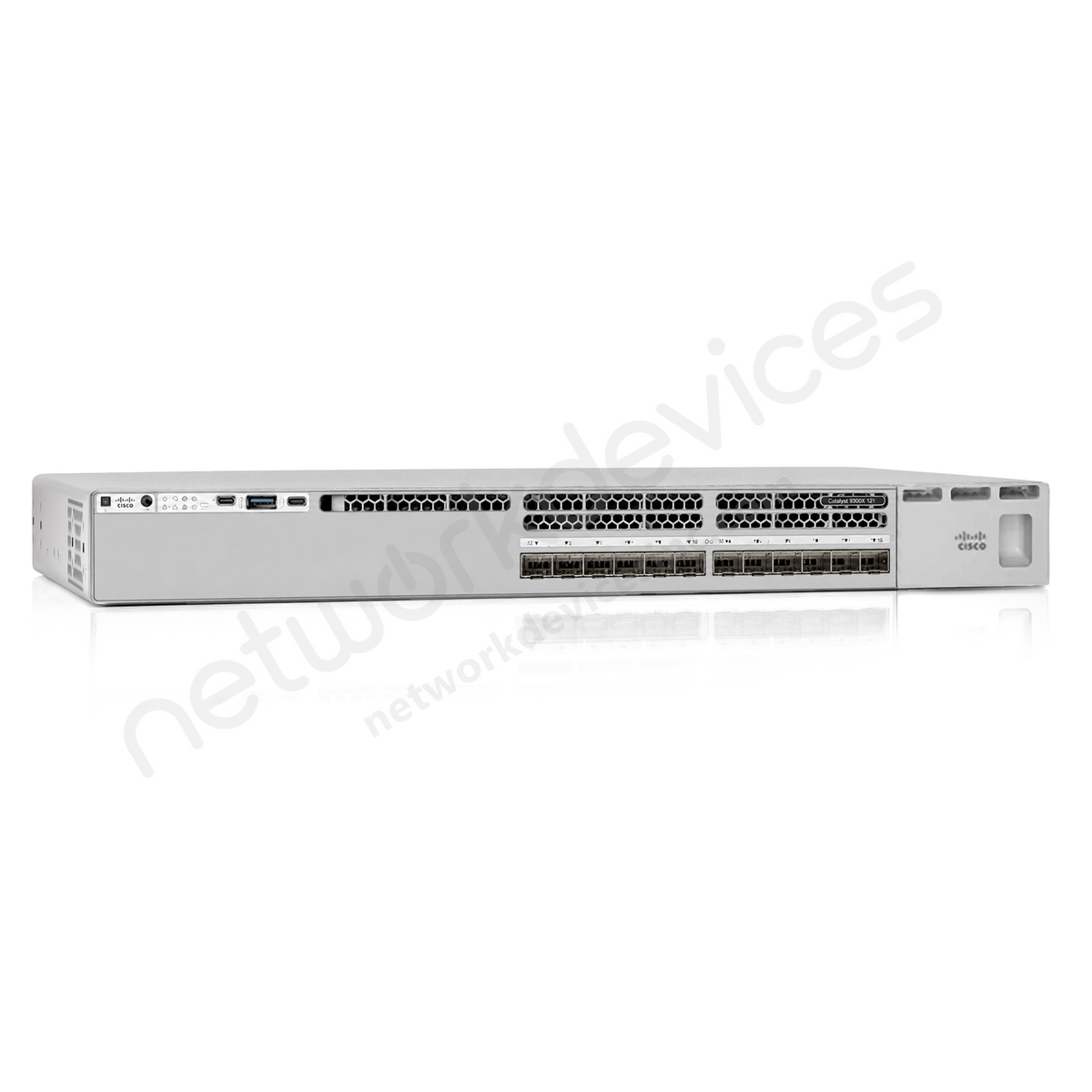

CISCO C9300X-12Y-E SWITCH
| Model: | C9300X-12Y-E |
| Detail: |
|
| List Price: | |
| Price: | $10,100.00 |
| You Save: | $10,009.05 (50% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
The Cisco Catalyst 9300 Series switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch
Accessories
| Stacking Support | Stackwise-1T |
| Stacking bandwidth support | 480 Gbps |
| Optional Stacking hardware | StackWise Cable |
| Number of members |
8 |
| Supported stack members | Stacks with other Catalyst 9300X models at StackWise-1T speeds with same license level Stacks with C9300 SKUs at StackWise-480 speeds with same license level |
| Stacking accessories | |
| STACK-T1-50CM |
Data stack 50 cm (cable option with C9300 and C9300X SKUs)
|
| STACK-T1-1M |
Data stack 1m (cable option with C9300 and C9300X SKUs)
|
| STACK-T1-3M |
Data stack 3m (cable option with C9300 and C9300X SKUs)
|
Specifications
| Specifications | C9300X-12Y-E |
| DRAM | 16 GB |
| Flash Memory | 16 GB |
| Switching capacity | 1,000 Gbps |
| Forwarding rate | 744.04 Mpps |
| MAC addresses | 32000 |
| MTBF Hours | 265,65 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic compatibility certifications |
47 CFR Part 15 EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386 EN 55035 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 |
| EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A
EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6 |
| Environmental |
Reduction of Hazardous Substances (ROHS) 5
|
Properties
| Properties | C9300X-12Y-E |
| Description | Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network Essentials |
| Product Family | Catalyst 9300 |
| Product Type | Ethernet Switch |
| Number of Ports | 12 |

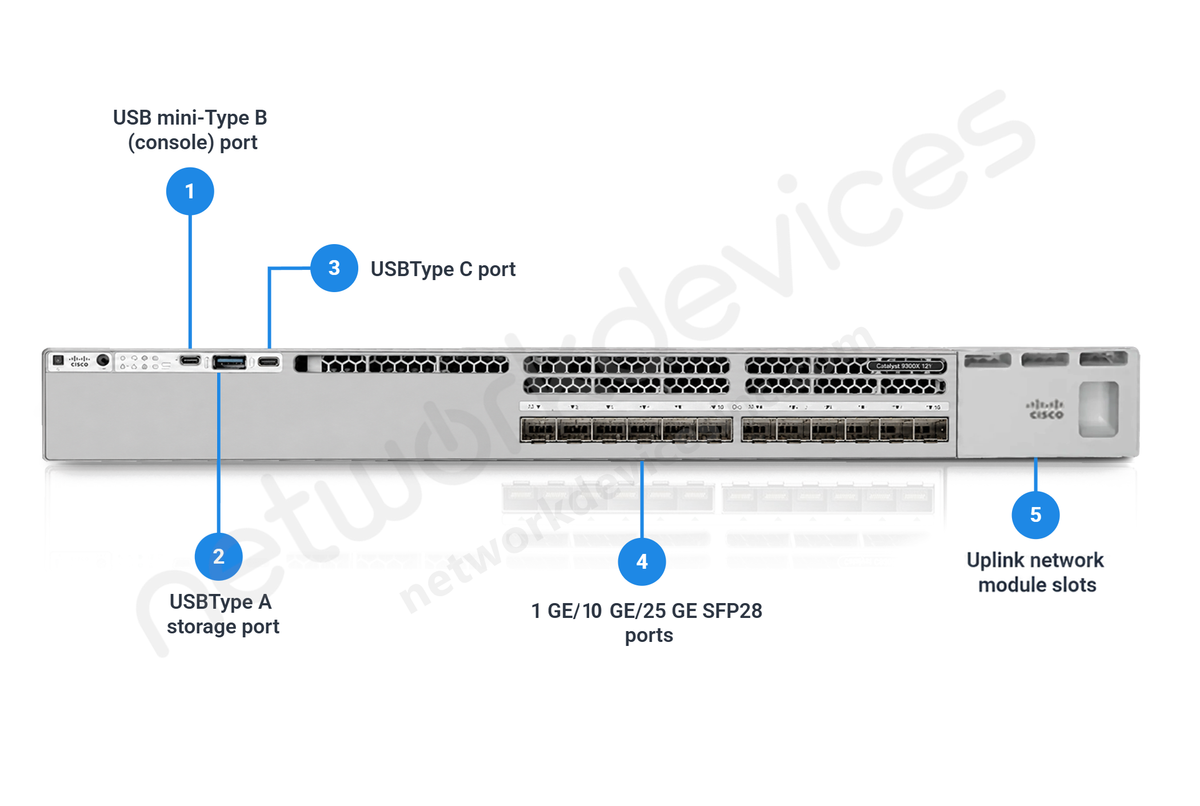

| Total 10/100/1000, Multigigabit copper or SFP Fiber | 12 port 25G/10G/1G SFP28 |
| Uplink configuration | Modular Uplinks |
| Cisco IOS Software | Network Essentials |
| Default primary AC power supply |
715W AC |
| Available PoE power with additional secondary power supply |
No PoE |
| Fans | Three field-replaceable fans |
| Dimensions W/ Default Power Supply | 1.73 x 17.5 x 16.1 |
