CISCO CATALYST C9200-24P-A SWITCH
| Part No: | C9200-24P-A |
| Detail: | Switch, L3, smart, 24 x 10/100/1000 (PoE+), Rack-mountable, PoE+ |
| List Price: |
|
| Price: |
$1,390.00
|
| You Save: | $2,750.00 (66% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description

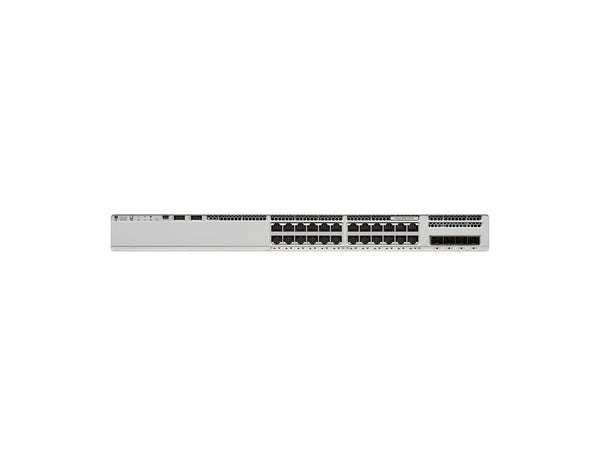

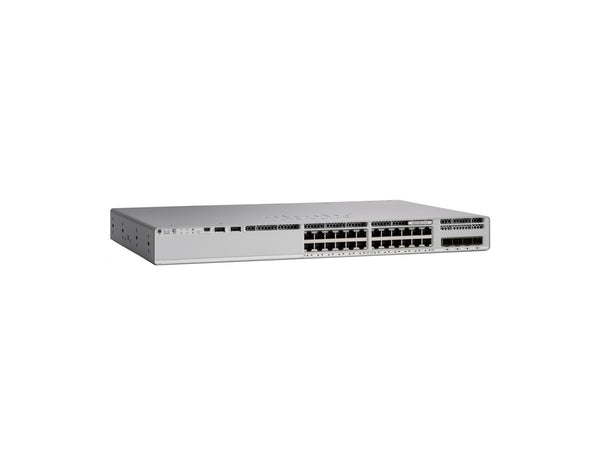

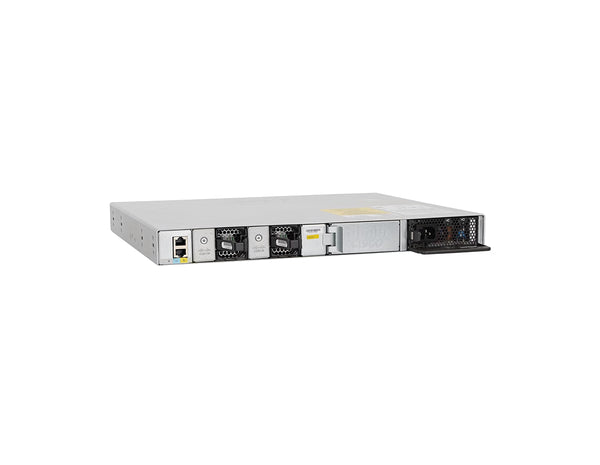

Cisco Catalyst C9200-24P-A Switch
The Cisco Catalyst C9200-24P-A Switch delivers enterprise-class networking capabilities, providing high performance, security, and scalability for small to medium-sized businesses and branch offices. Featuring 24 Gigabit Ethernet PoE+ ports and modular uplinks, this switch supports a robust 740W PoE budget, making it ideal for powering devices such as IP phones, cameras, and wireless access points. The C9200-24P-A ensures network resilience and efficiency with advanced Layer 3 routing capabilities, comprehensive security features, and simplified management through Cisco DNA Center.
Key Features:
- 24 x Gigabit Ethernet PoE+ Ports: Delivers power and data connectivity for PoE-enabled devices, supporting a total PoE budget of 740W.
- Modular Uplinks: Offers flexibility with uplink options, including 1G, 10G, and 40G, ensuring network scalability and future-proofing your infrastructure.
- Advanced Security: Features such as MACsec encryption, segmentation, and TrustSec for enhanced network protection.
- Layer 3 Routing: Supports static routing, OSPF, EIGRP stub, and BGP for efficient traffic management and network segmentation.
- Easy Management: Managed through Cisco DNA Center, CLI, and a web-based UI, simplifying network operations and administration.
Technical Overview:
- Recommended for: Small to medium-sized businesses, branch offices, and enterprise networks requiring robust PoE and advanced routing capabilities.
- Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports with modular uplink options.
- PoE Budget: 740W.
- Switching Capacity: 128 Gbps (depending on uplink modules).
- Forwarding Rate: 95.23 Mpps.
- Management: Cisco DNA Center, CLI, and web-based GUI for comprehensive network management.
- Security: MACsec encryption, TrustSec, and advanced segmentation for enhanced network security.
- Energy Efficiency: Compliant with IEEE 802.3az Energy Efficient Ethernet standards.
You can check the related tab for the C9200-24P-A datasheet.
Accessories
| Stacking Support | StackWise-160 |
| Stacking bandwidth support | 160 Gbps |
| Stacking hardware‚ | C9200-STACK-KIT |
| Number of members |
8 |
| Supported stack members | Other C9200 models with same license level |
| Stacking accessories | |
| C9200-STACK-KIT | Stack kit for C9200 SKUs only: Two data stack adapters and one data stack cable |
| STACK-T4-50CM | Data stack 50 cm cable (default cable with Stack Kit) |
| STACK-T4-1M | Data stack 1 m cable |
| STACK T4-3M | Data stack 3 m cable |
| Mounting Accessories | |
| ACC-KIT-T1= | Accessory kit with 19 inch Type 1 rack mount |
| RACK-KIT-T1= | 19, 23, 24 inch and ETSI Type 1 rack mount kit |
| 4PT-KIT-T2= | 4 Point rack mount kit New |
| C9K-MGNT-TRAY | Magnet and Mounting Tray for compact switches |
| C9K-CMPCT-DIN-MNT | DIN Rail Mount for compact switches |
| RACKMNT-19-CMPACT | 19-Inch Rack Mounting Brackets for compact switches |
| C9K-CMPCT-CBLE-GRD | Cable guard for compact switches (for C9K-WALL-TRAY) |
| C9K-WALL-TRAY | Wall mount bracket for compact switches |
| C9K-CMPCT-DESK-MNT | Under desk mount for compact switches |
Specifications
‚| Specifications | C9200-24P-A |
| Console Ports | RJ-45-to-DB9 cable for PC connections, USB-C adaptor, USB adaptor |
| DRAM | 4 GB |
| Flash Memory | 4 GB |
| Switching capacity | 128 Gbps |
| Forwarding rate‚ | 95.23 Mbps |
| MAC addresses | 32000 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety | IEC 60950-1 UL 60950-1 CAN/CSA C22.2 No. 60950-1 EN 60950-1 AS/NZS 60950.1 Class I Equipment |
| Electromagnetic compatibility certifications |
47 CFR Part 15 CISPR 32 Class A CNS 13438 EN 300 386* EN 55032 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A KN 32 TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386* EN 55035 KN 35 TCVN 7317 |
| EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A VCCI Class A CISPR 35 EN 55035, EN300 386* EN 61000-3-2, EN 61000-3-3 |
| Safety compliance |
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
Properties
| Properties | C9200-24P-A |
| Description | Catalyst 9200 24-port PoE+ Switch, Network Advantage |
| Product Family | Catalyst 9200 |
| Product Type | Ethernet Switch |
| Number of Ports | 24 |
| Downlinks total 10/100/1000 or PoE+ copper ports |
24 ports full PoE+ |
| Uplink configuration | Modular uplink options |
| Cisco IOS Software | Advantage |
| Default primary AC power supply |
PWR-C6-600WAC |
| Available PoE power with additional secondary power supply |
740W |
| Fans | FRU redundant |
| Chassis + FEP + ‚ Fan Dimensions (HxWxD) Inches |
1.73x17.5x15.4 |
