As data traffic accelerates across enterprise networks, campuses, and data centers, selecting the right optical transceivers and fiber optic cabling is no longer optional—it’s foundational. While software-defined networking often garners attention, the physical layer is where network performance, low latency, and scalability begin.

This expert guide helps you choose the best optical transceivers and fiber optic cable types based on your use case, including bandwidth needs, transmission distances, and interoperability requirements.

Whether you're designing structured cabling for a new facility or upgrading legacy infrastructure, this article equips you to build a faster, smarter network.

Quick Answer:

For short-range deployments under 100 meters, use OM4 multimode fiber with SFP-10G-SR or QSFP modules to achieve cost-effective 10G/40G/100G connectivity. For long-distance links, such as inter-building or metro connections, choose single-mode fiber (SMF) with SFP-10G-LR, CWDM, or DWDM transceivers.

Always match your transceiver type, wavelength (850nm, 1310nm, 1550nm), and fiber cabling to the required distance, bandwidth, and network architecture to ensure reliable performance and future scalability.

Cisco SFP-10G-LR 10GBASE-LR SFP+ Transceiver — 10 km

$275.00 ~~$4,882.00~~

[shortdesc] SFP+ transceiver module 10 GigE 10GBase-LR LC/PC single-mode up to 6.2 miles 1310 nm [/shortdesc] [specifications] Specifications SFP-10G-LR Description The Cisco 10GBASE-LR Module supports a link length of 10 kilometers on standard Single-Mode Fiber (SMF, G.652). Product Type Transceiver Connector… read more

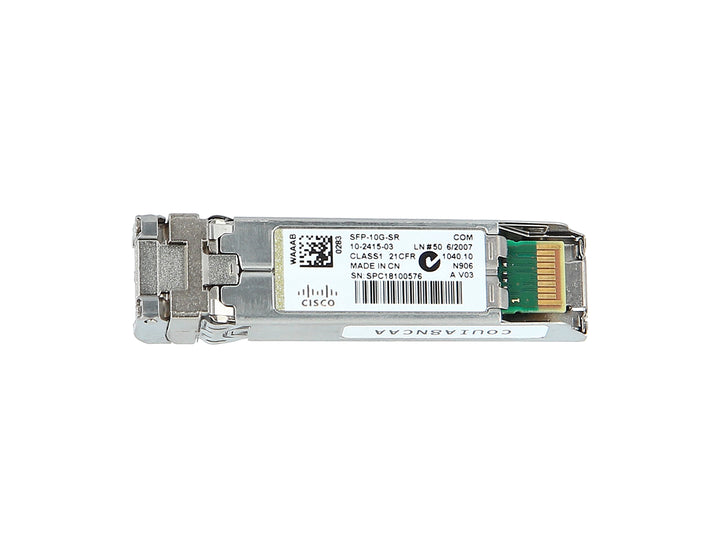

Cisco SFP-10G-SR SFP+ Transceiver Module (10GBASE-SR)

$240.00 ~~$860.98~~

[shortdesc] SFP+ transceiver module 10 GigE 10GBase-SR LC/PC multi-mode Up to 1310 ft 850 nm [/shortdesc] [specifications] [/specifications] Overview of the Cisco SFP-10G-SR (Short Reach) Transceiver The Cisco SFP-10G-SR is the industry-standard SR (Short Reach) transceiver, delivering reliable and cost-effective… read more

Understanding the Physical Layer in Modern Networks

The physical layer (Layer 1 of the OSI model) refers to the underlying electrical or optical medium that carries network data. It governs everything from cable types and connectors to transmission signals and signal attenuation.

In fiber-based systems, the physical layer includes fiber optic cabling, transceivers, connectors, and interface modules. A reliable physical layer minimizes link loss, ensures stable connections, and lays the groundwork for future scalability.

What Is Wavelength Division Multiplexing (WDM)?

Wavelength Division Multiplexing (WDM) is a technique for transmitting multiple optical signals simultaneously over a single fiber using different light wavelengths.

CWDM (Coarse WDM)

Supports up to 18 channels with 20 nm spacing.
Ideal for distances up to 80 km.
Common in metro networks and cost-sensitive deployments.

DWDM (Dense WDM)

Supports 96+ tightly spaced channels.
Enables high-capacity, long-distance links.
Ideal for telecom backbones and data center interconnects.

For example, DWDM SFP+ transceivers allow multiple high-speed links over existing SMF, maximizing capacity without laying new cable.

Fiber Optic Cabling Types: MMF vs SMF

Fiber optic cables transmit data via light, delivering far higher bandwidth and longer distances than copper cabling. There are two primary types:

Multimode Fiber (MMF)

MMF supports multiple light paths and is optimized for short-range, high-bandwidth applications using VCSEL or LED light sources.

Common MMF types:

OM1: 62.5 micrometer core, 1 Gbps up to 300 m.
OM2: 50 micrometer core, 10 Gbps up to 82 m.
OM3: Optimized for 850 nm; 10 Gbps up to 300 m (uses a 50-micrometer core).
OM4: 10 Gbps up to 550 m; 100 Gbps up to 150 m (uses a 50-micrometer core).
OM5: Wideband MMF, supports SWDM and future >100 Gbps scalability (uses a 50-micrometer core).

Single-Mode Fiber (SMF)

SMF uses a single light path and laser sources, making it ideal for long-distance and high-performance environments like WANs, 5G backhaul, and submarine cables.

Common SMF types:

G.652: Standard SMF, 1310 nm, used in metro/long-haul networks.
G.655: NZDSF, optimized for DWDM.
G.657: Bend-insensitive, ideal for FTTH and tight-routing environments.

How to Choose Between Single-Mode and Multimode Fiber

The decision between single-mode vs. multi-mode cabling depends on your:

Distance requirements
Budget
Speed objectives

Fiber Type	Core Size	Best Use	Notes
MMF	50–62.5 µm	Short-range (data centers)	Lower transceiver cost
SMF	8–10 µm	Long-haul, inter-building	Higher cost, greater range

Tip: For links under 100 m inside a data center, use OM4 MMF with QSFP modules (e.g., 40G/100G). Use SMF with SFP-10G-LR or CWDM SFP+ modules for metro or campus links.

What Is an Optical Transceiver?

An optical transceiver is a device that sends and receives optical signals over fiber. It combines a laser transmitter and a photodiode receiver in one module and is protocol-agnostic (supports Ethernet, Fibre Channel, InfiniBand, etc.).

Common form factors:

SFP: Up to 1 Gbps
SFP+: Up to 10 Gbps
QSFP+/QSFP28: 40 Gbps / 100 Gbps
QSFP-DD/OSFP: 400 Gbps+

CFP series: 100 Gbps and beyond

“SFP” = Small Form-Factor Pluggable; “QSFP” = Quad SFP.

How to Choose the Right Optical Transceiver

Selecting the correct transceiver involves more than matching ports. Here's what to evaluate:

1. Data Rate Compatibility

Match transceiver speed to your device port. E.g., use SFP+ for 10 Gbps ports. Mismatches can cause link failure even if the form factor fits.

2. Distance Requirements

Choose a transceiver based on fiber type and range:

SFP-10G-SR: MMF, up to 300 m
SFP-10G-LR: SMF, up to 10 km
CWDM/DWDM modules: SMF, 40–80 km+

3. Wavelength and Optics

Each transceiver operates at a specific wavelength:

850 nm: MMF (short range)
1310 nm: SMF (intermediate)
1550 nm: SMF (long-haul)

WDM transceivers combine multiple wavelengths on one fiber, maximizing bandwidth without new infrastructure.

4. Calculating Optical Power Budget

Account for all losses:

Attenuation (fiber loss)
Connector loss
Splice loss

Ensure the transceiver’s TX–RX power margin accommodates total link loss, with headroom for future degradation.

Fiber Infrastructure Essentials

Fiber Cable Types

Simplex: One fiber strand (Tx or Rx)
Duplex: Two strands (Tx + Rx)
MTP/MPO: High-density fiber for 40G/100G parallel optics

Connector Types

LC: Most common for duplex
SC, ST: Older legacy types
MPO/MTP: Required for 40G/100G deployments

Common Application Scenarios

Use Case	Fiber Type	Transceiver	Distance	Notes
Small campus	SMF	SFP-10G-LR	Up to 10 km	Cost-effective long-range
Data center 10G	MMF	SFP-10G-SR	Up to 300 m	Use OM3/OM4
Data center 40G	MMF	QSFP-40G-SR4	Up to 150 m	Requires MPO
Metro network	SMF	CWDM/DWDM SFP+	40–80 km	High capacity, low fiber use
High-density rack	MMF	MPO/LC Patch Panel	N/A	Simplifies structured cabling

Swipe left to see more →

OEM vs Third-Party Transceivers: What to Know

OEM brands like Cisco, Juniper, and Arista ensure compatibility but are expensive. Third-party transceivers offer savings, but verify:

OS compatibility
DOM (Digital Optical Monitoring) support
Warranty and return policy

Emerging Trends in Optical Networking

As cloud computing, AI workloads, and 400 G+ networks grow, optical infrastructure is evolving. Expect:

Wider adoption of QSFP-DD and OSFP
Increased use of co-packaged optics
Silicon photonics for energy-efficient scaling

Best Practices for Fiber Optic Deployments

Document cable routes for fast troubleshooting
Use loopback modules and testers for diagnostics
Clean connectors regularly to prevent degradation
Label both ends of every fiber clearly
Choose the correct cable rating (plenum, indoor/outdoor)
Standardized equipment and connector types across the network
Verify optical budget margins in every design
Plan for future expansion with OM4 or SMF, even if current needs are low

How Network Devices Inc. Can Help

At Network Devices Inc., we provide only OEM optical transceivers and cabling from trusted brands like Cisco, Juniper, and Arista. We do not offer third-party alternatives because reliability, compatibility, and performance matter.

Our experts guide you from cable selection to transceiver configuration, helping you build a scalable, efficient, and fully supported network. Whether you’re upgrading a data center or deploying metro fiber, we deliver trusted solutions that protect your investment and ensure long-term success.

Summary

Choosing the right optical transceivers and fiber cabling is a strategic decision with long-term impact. By considering data rates, transmission distance, wavelengths, and compatibility, you can build a resilient physical layer that supports today’s demands and tomorrow’s growth.
