CISCO C9300L-48P-4X-A SWITCH
| Part No: | C9300L-48P-4X-A |
| Detail: |
|
| List Price: |
|
| Price: |
$4,250.00
|
| You Save: | $6,254.02 (60% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description

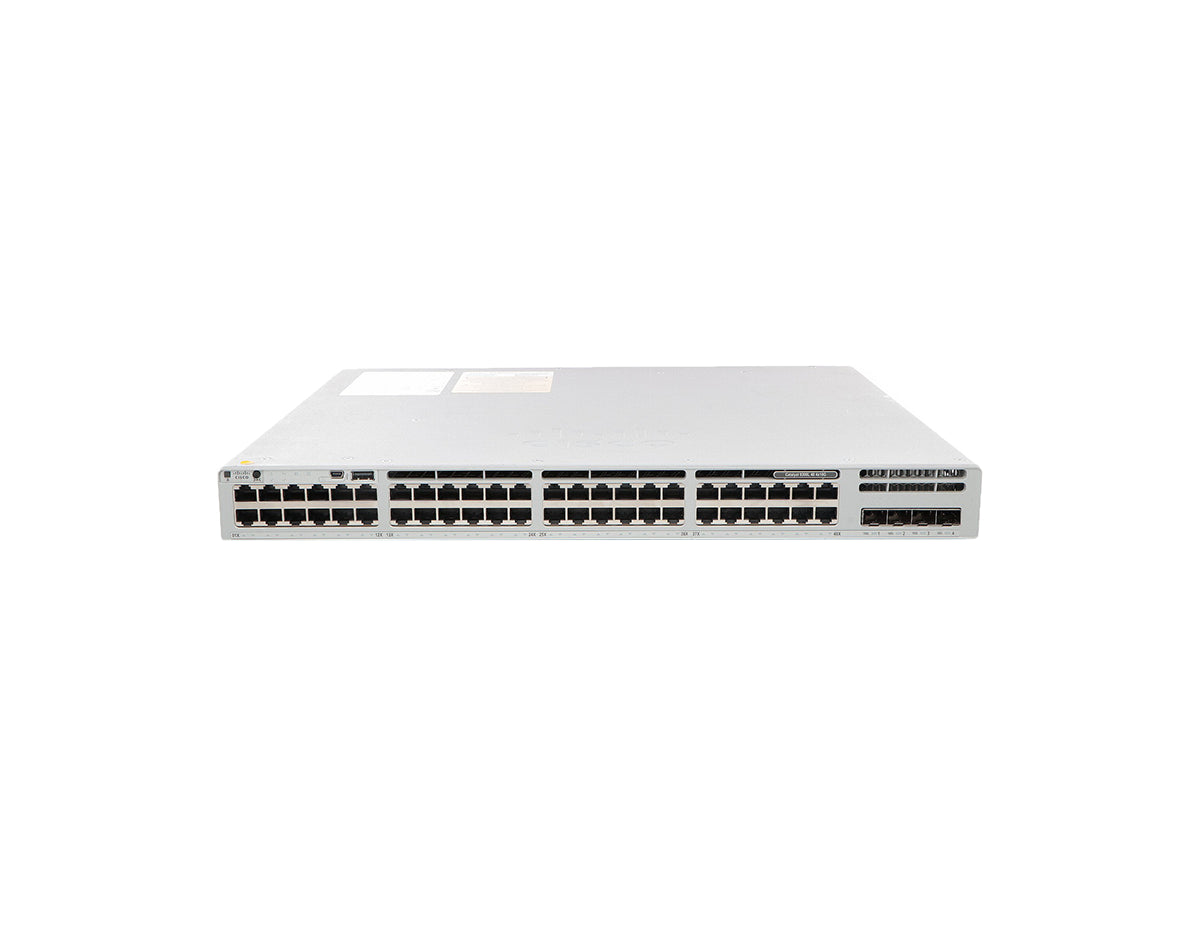

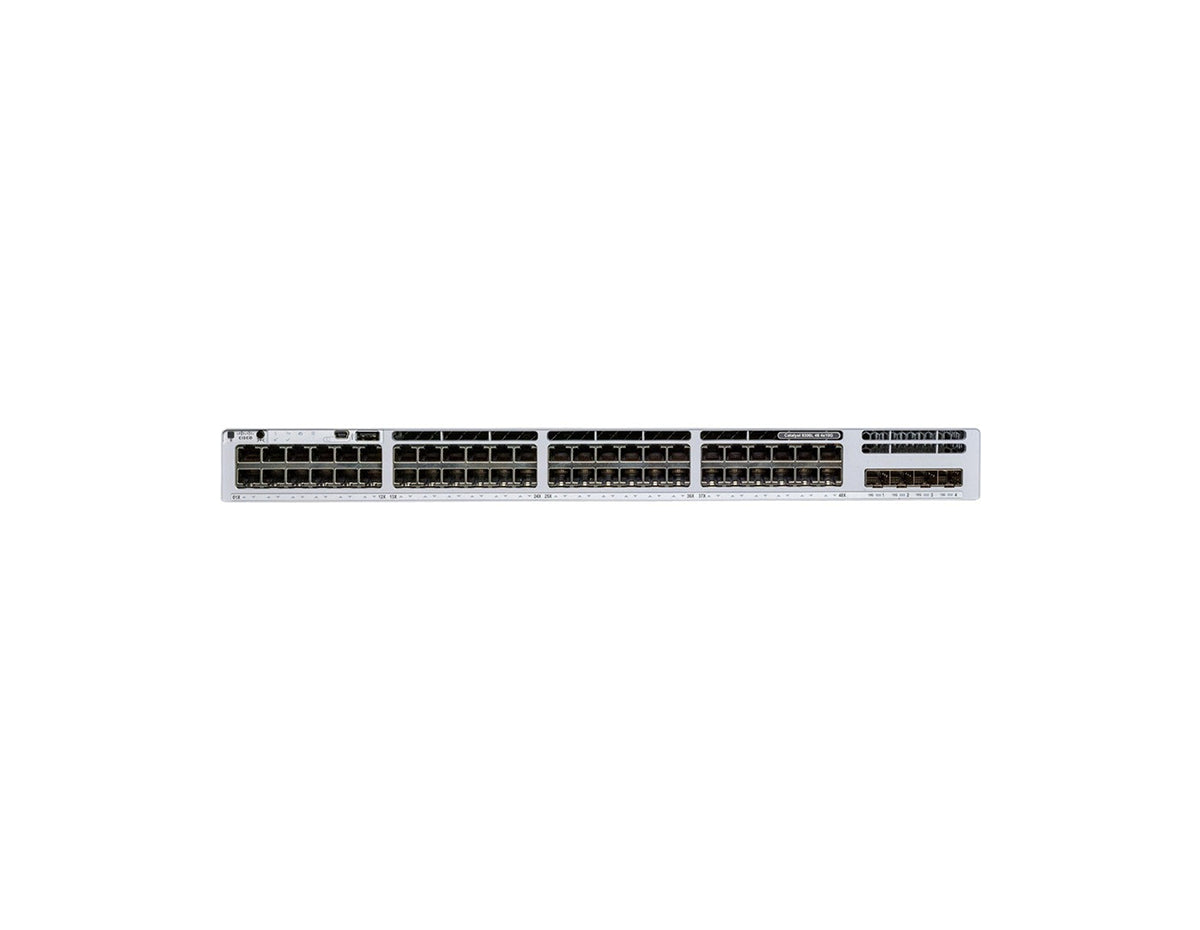

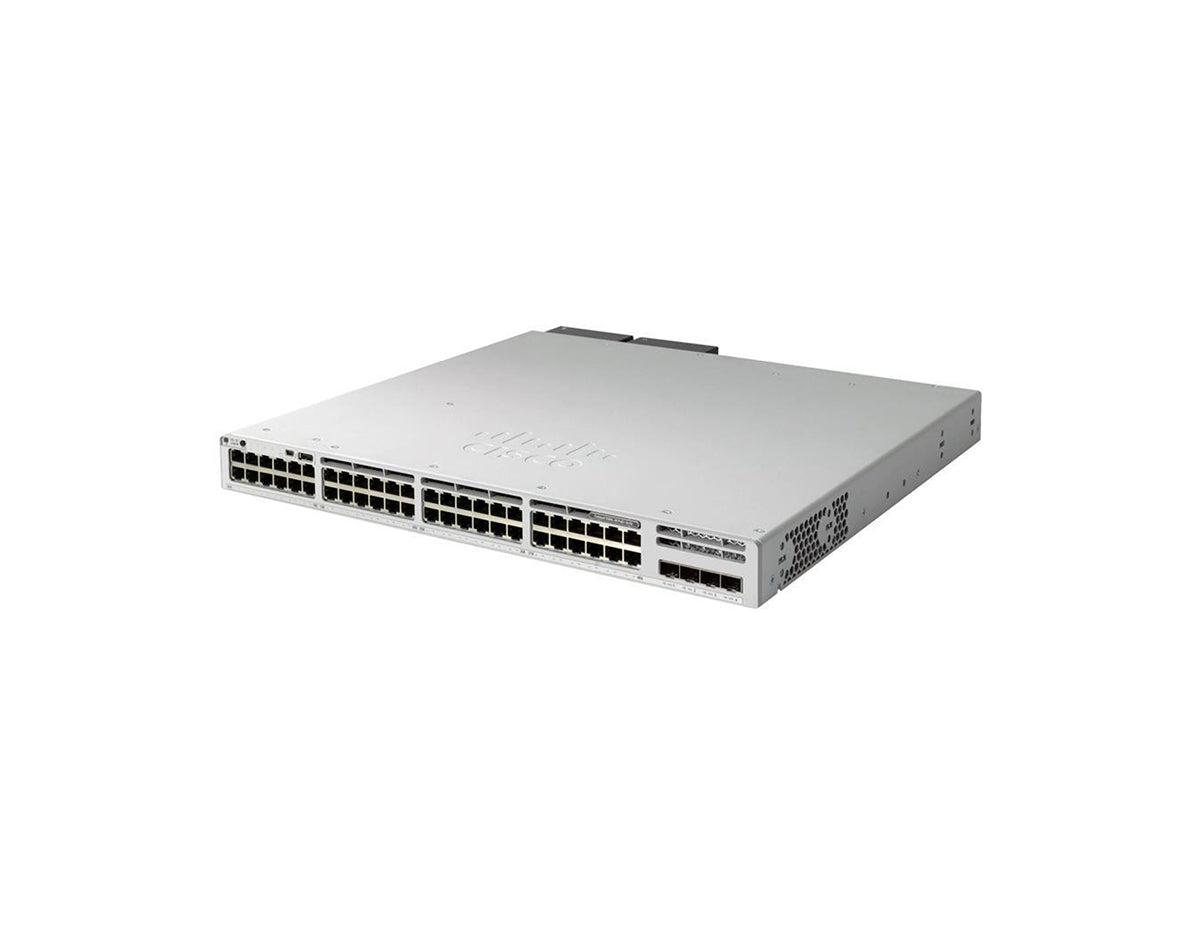

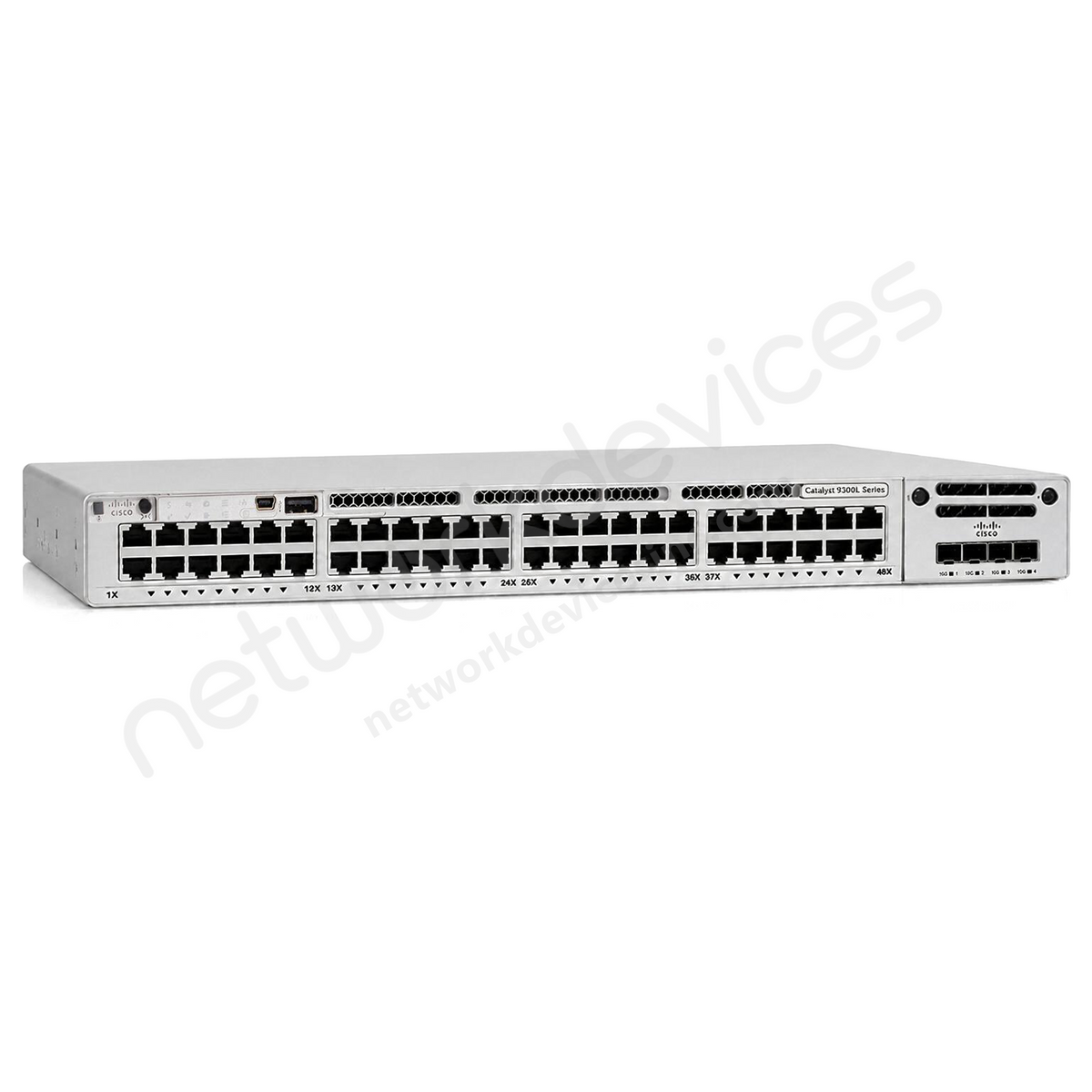

Cisco Catalyst C9300L-48P-4X-A Switch
The Cisco Catalyst C9300L-48P-4X-A Switch is a high-performance, enterprise-class networking solution designed to meet the needs of modern organizations. Featuring 48 PoE+ Gigabit Ethernet ports and 4 fixed 10G SFP+ uplink ports, this switch provides robust connectivity and efficient power delivery across your network. Ideal for powering devices like IP phones, cameras, and wireless access points, the C9300L-48P-4X-A ensures high-speed, reliable connections while offering advanced Layer 3 routing capabilities to support sophisticated network management and scalability.
Key Features:
- 48 x PoE+ Gigabit Ethernet Ports: Delivers up to 30W per port, providing both power and data to connected devices efficiently.
- 4 x Fixed 10G SFP+ Uplink Ports: Offers high-speed uplink options, ensuring fast data transfer between network segments and core infrastructure.
- Advanced Layer 3 Routing: Supports protocols such as OSPF, EIGRP, and BGP, enabling sophisticated routing and traffic management.
- Energy-Efficient Design: Compliant with IEEE 802.3az standards, optimizing power consumption while maintaining superior network performance.
- Enhanced Security: Includes MACsec encryption, ACLs, and advanced security protocols to safeguard your network from unauthorized access.
Technical Overview:
- Recommended for: Medium to large enterprises, corporate campuses, and data-driven environments.

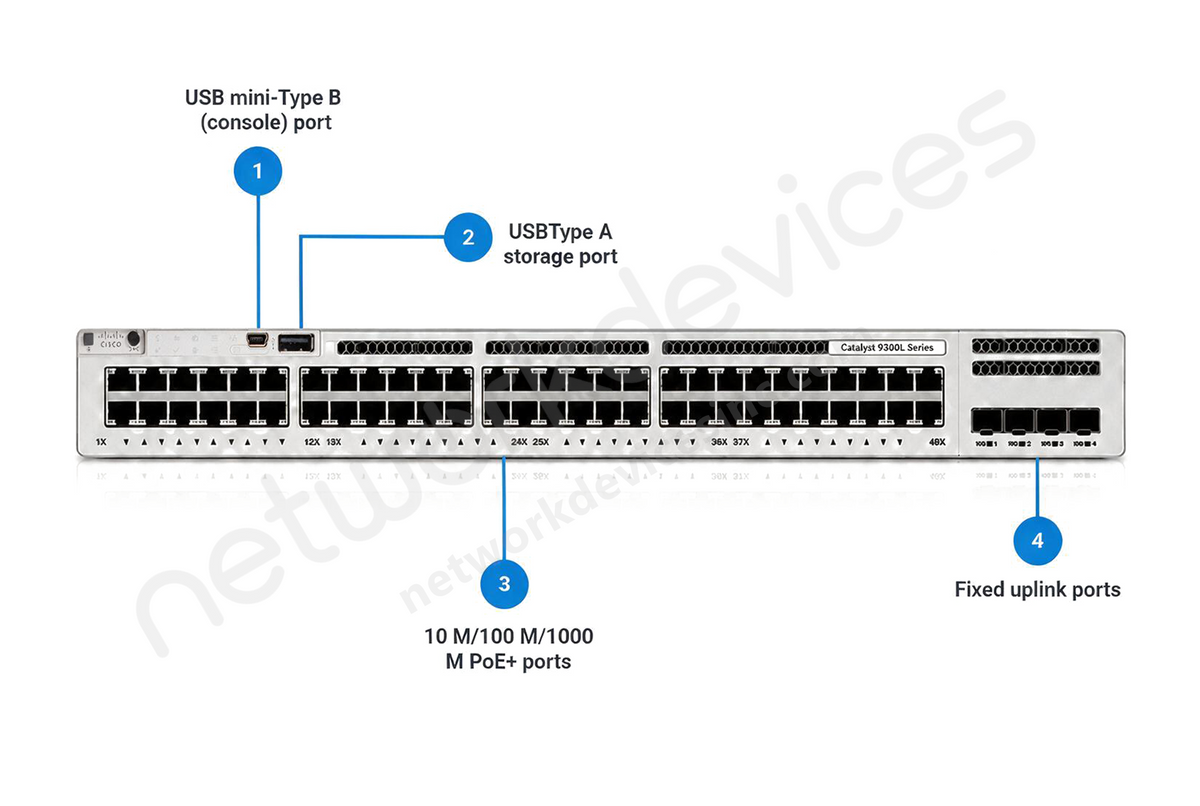

- Ports: 48 x 10/100/1000 Mbps PoE+ Gigabit Ethernet ports (up to 30W per port) and 4 x 10G SFP+ uplink ports.
- Switching Capacity: 176 Gbps.
- Forwarding Rate: 130.95 Mpps.
- Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
- Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
- Licensing: Network Advantage.
- Security: MACsec encryption and advanced access control features.
- Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.
You can check the related tab for the C9300L-48P-4X-A datasheet.
Accessories
| Stacking Support | Stackwise-320 |
| Stacking bandwidth support | 320 Gbps |
| Stacking hardware | C9300L-STACK-KIT |
| Number of members |
8 |
| Supported stack members | Other C9300 SKUs with the same license level |
| Stacking accessories | |
| STACK-T3-50CM | Data stack 50cm cable (default cable with C9300L Stack Kit) |
| STACK-T3-1M | Data stack 1m cable (cable option with C9300L Stack Kit) |
| STACK T3-3M | Data stack 3m cable (cable option with C9300L Stack Kit) |
| C9300L-STACK-KIT | Stack kit for C9300L SKUs only: Two data stack adapters and one |
| C9300L-STACK-KIT2 | Stack kit for C9300LM and C9300L SKUs: Two data stack adapters and one data stack cable |
| STACK-T3A-50CM | Data stack 50cm cable (cable option with C9300L Stack Kit2) |
| STACK-T3A-1M | Data stack 1m cable (cable option with C9300L Stack Kit2) |
| STACK-T3A-3M | Data stack 3m cable (cable option with C9300L Stack Kit2) |
Specifications
| Specifications | C9300L-48P-4X-A |
| Console Ports | RJ-45-to-DB9 cable for PC connections |
| DRAM | 8 GB‚ |
| Flash Memory | 16 GB‚ |
| Switching capacity | 176 Gbps‚ |
| Forwarding rate‚ | 130.95 Mpps‚ |
| MAC addresses | 32000 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic compatibility certifications |
47 CFR Part 15 EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386 EN 55035 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 QCVN 118:2018/BTTTT VCCI-CISPR 32 Class A‚ |
| EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
Properties
| Properties | C9300L-48P-4X-A |
| Description | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+ Network Advantage |
| Product Family | Catalyst 9300 |
| Product Type | Ethernet Switch |
| Number of Ports | 48 |
| Downlinks total 10/100/1000 or PoE+ copper ports |
48 port PoE+ |
| Uplink configuration | 4x 10G/1G fixed uplinks |
| Cisco IOS Software | Network Essentials |
| Default primary AC power supply |
PWR-C1-715WAC-P |
| Available PoE power with additional secondary power supply |
1220W (With 715W Secondary PS) |
| Fans | - |
| Chassis + FEP + ‚ Fan Dimensions (HxWxD) Inches |
1.73 X 17.5 X 17.7 |
