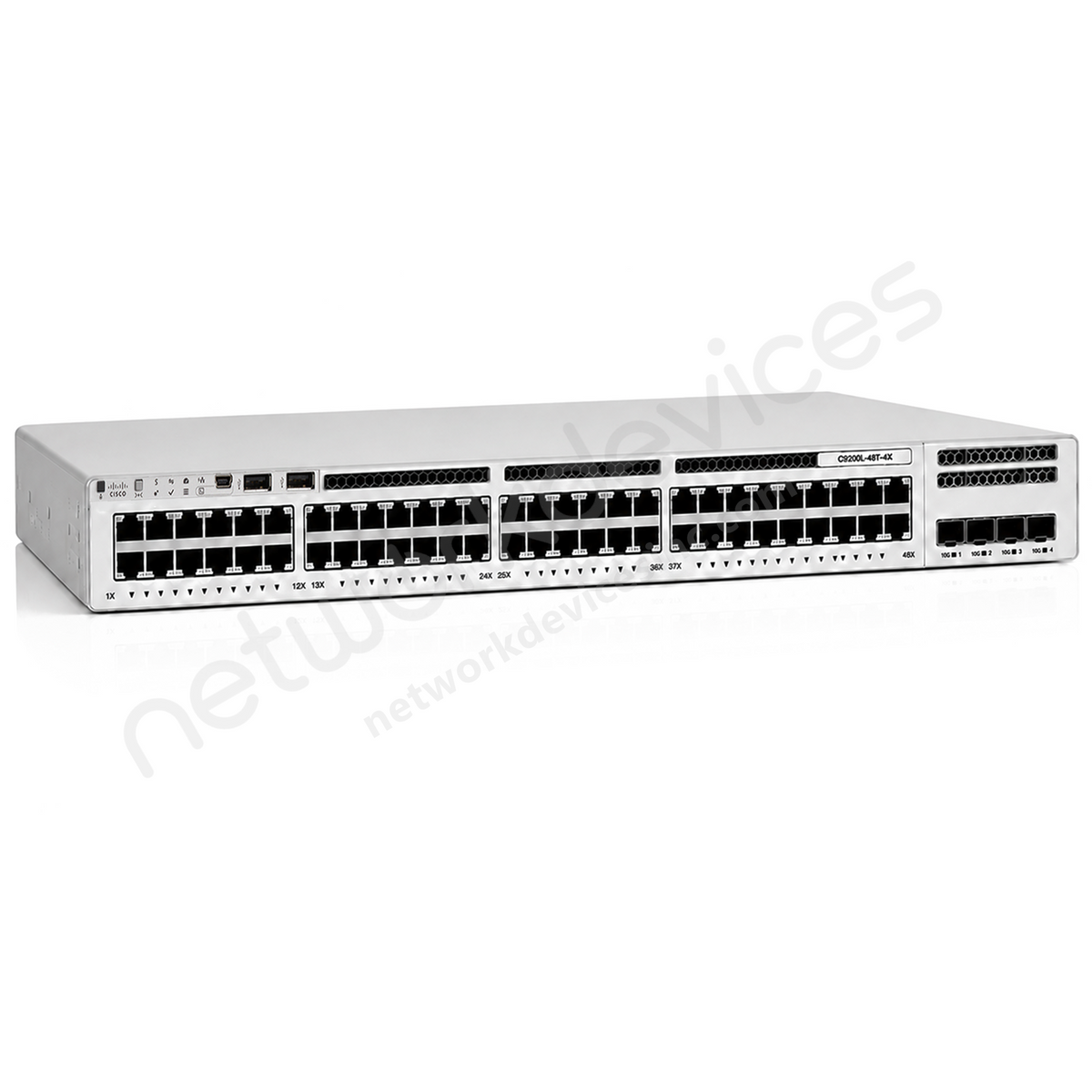

Cisco Catalyst C9200L-48T-4X-A 48-Port Data 4x10G SFP+ Switch, Network Advantage
- Switch
- L3
- 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink)
- Rack-mountable
Overview
The Cisco Catalyst C9200L-48T-4X-A Switch is an enterprise-class networking solution that delivers high performance, security, and scalability, making it ideal for small to medium-sized businesses and branch offices. This switch features 48 Gigabit Ethernet ports and 4 fixed 10G SFP+ uplinks, ensuring reliable and high-speed connectivity for various network devices. The C9200L-48T-4X-A is equipped with advanced security features, Layer 3 routing capabilities, and easy management through Cisco DNA Center, providing a robust and efficient network infrastructure.
Technical Details
The Cisco Catalyst C9200L-48T-4X-A is a Layer 3 managed 1U rackmount access switch with 48 Gigabit Ethernet (10/100/1000) data ports and four fixed 1G/10G SFP+ uplinks, running Cisco IOS XE with the perpetual Network Advantage license. Switching capacity is 176 Gbps and forwarding rate is 130.95 Mpps. It carries no Power over Ethernet, so all 48 access ports are data-only. It supports Cisco StackWise-80 stacking of up to eight members at 80 Gbps. It is used for wired access-layer connectivity of non-powered endpoints such as desktops, printers, and wired IoT devices in branch and campus networks.
Enterprise Network
Corporate Campus
Best For
The C9200L-48T-4X-A suits higher-density campus and branch wiring closets that connect non-powered endpoints such as desktops, printers, and wired IoT devices across 48 ports and need routed access at the access layer. The Network Advantage license fits sites that run advanced routing or SGT-based segmentation, and the four 1G/10G SFP+ uplinks provide 10-Gigabit fiber aggregation back to the distribution layer.
Not suitable if:
- you need 25G uplinks, since this model has fixed 1G/10G SFP+ uplinks
- you need to power devices such as wireless access points, IP phones, or IP cameras, since this is a data-only switch with no Power over Ethernet
- you need multigigabit (mGig) access ports
- you only need basic Layer 2 switching, since the base Network Essentials tier would be sufficient
C9200L-48T-4X-A Specifications
| Class & Licensing | |
|---|---|
| License Tier | Network Advantage |
| License Detail / MTBF | Network Advantage; MTBF 503,400 hours |
| Ports & Uplinks | |
| Port Speed | Gigabit |
| Uplink Configuration | 4x 1G/10G SFP+ (fixed) |
| Performance & Scale | |
| Stacking | StackWise-80 |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps |
| MAC Table | 16,000 entries |
| Stacking Bandwidth | 80 Gbps |
| Max Stack Members | 8 |
| IPv4 Routes | 11,000 (8,000 direct, 3,000 indirect) |
| Hardware & Memory | |
| DRAM | 2 GB |
| ASIC | UADP 2.0 Mini |
| Flash | 4 GB |
| Power & Thermal | |
| Power Input / PSU | PWR-C5-125WAC (125 W AC, 100-240 V) |
| Redundant PSU | Yes (optional secondary, 1+1) |
| Cooling | Dual fixed fans (redundant) |
| Physical & Environmental | |
| Dimensions (H x W x D) | 1.73 x 17.5 x 11.3 in (4.4 x 44.5 x 28.8 cm) |
| Weight | 9.97 lbs (4.53 kg) |
| Operating Temperature | 23 to 113 °F (-5 to 45 °C), up to 5000 ft (1500 m) |
| Operating System | Cisco IOS XE |
| Software | |
| Routing Protocols | OSPF, EIGRP, IS-IS, RIP, static routing, PBR, HSRP, VRRP, MSDP (no BGP) |
Part Number Decode
- C9200L — C9200L is the platform prefix, identifying the Cisco Catalyst 9200 Series with fixed uplinks.
- 48 — 48 is the port count, indicating 48 access ports.
- T — T is the port-type marker, indicating data-only Gigabit ports with no Power over Ethernet.
- 4X — 4X is the uplink code, indicating four fixed 1G/10G SFP+ uplinks.
- A — A is the license suffix for the perpetual Network Advantage tier.
FAQ
Does the Cisco Catalyst C9200L-48T-4X-A support PoE?
No. The Cisco Catalyst C9200L-48T-4X-A is a data-only switch, and all 48 Gigabit Ethernet access ports carry no Power over Ethernet. It cannot power devices such as wireless access points, IP phones, or IP cameras. If you need PoE+ on the access ports, the Cisco Catalyst C9200L-48P-4X-A is the equivalent PoE+ model with the same four 1G/10G SFP+ uplinks and Network Advantage license.
What transceivers do the uplinks on the C9200L-48T-4X-A use?
The Cisco Catalyst C9200L-48T-4X-A has four fixed 1G/10G SFP+ uplink ports that accept 1G SFP and 10G SFP+ optics. These SFP+ slots do not support 25G optics. Specific transceiver compatibility should be verified against the manufacturer's transceiver compatibility matrix at tmgmatrix.cisco.com. Transceivers are sold separately.
How many C9200L-48T-4X-A switches can you stack?
The Cisco Catalyst C9200L-48T-4X-A supports Cisco StackWise-80 stacking of up to eight members at 80 Gbps of stack bandwidth. It stacks only with other C9200L switches running the same Network Advantage license level. It does not stack with C9200 modular-uplink switches, C9200CX compact switches, or any other Catalyst series.
What is the difference between the C9200L-48T-4X-A and the C9200L-48T-4X-E?
The two switches share identical hardware (48 Gigabit Ethernet data-only ports, four fixed 1G/10G SFP+ uplinks, and Cisco StackWise-80 stacking) and differ only in license tier. The -E model ships with perpetual Network Essentials, which covers Layer 2 plus basic routed access such as static routing, RIP, and OSPF for up to 1,000 routes. The -A model ships with perpetual Network Advantage, which adds full OSPF, EIGRP, IS-IS, HSRP, VRF, VXLAN, LISP, and SGT segmentation.
Does the C9200L-48T-4X-A require a subscription to operate?
No. The switch runs on its included perpetual base license indefinitely. Under Cisco's ordering model, new switch orders include a term-based Cisco DNA or Cisco Catalyst software subscription of the same tier as the network license; that subscription unlocks Cisco Catalyst Center and cloud-managed features. When the subscription term ends, the switch continues operating on the perpetual base license capabilities after a reload.
Does the Cisco Catalyst 9200L replace an older switch?
Yes. Cisco positions the Catalyst 9200L as the successor to the end-of-sale Catalyst 2960-X and 2960-XR access switches. Organizations migrating from the 2960-X or 2960-XR to the C9200L-48T-4X-A move to Cisco IOS XE and gain StackWise-80 stacking, 10-Gigabit uplinks, and the Network Advantage routed-access feature set.
Is the Cisco Catalyst C9200L-48T-4X-A end of life?
No. Cisco has not published an End-of-Sale or End-of-Life hardware notice for the Cisco Catalyst C9200L-48T-4X-A. Cisco's published end-of-life notices for the Catalyst 9200 Series to date cover specific IOS XE software releases and license offers, not the switch hardware, so the C9200L-48T-4X-A remains an actively available product.
What condition is the C9200L-48T-4X-A sold in, and what warranty applies?
The Cisco Catalyst C9200L-48T-4X-A is sold new and factory-sealed. It is covered by a Network Devices Inc. one-year warranty and a 30-day return policy.
