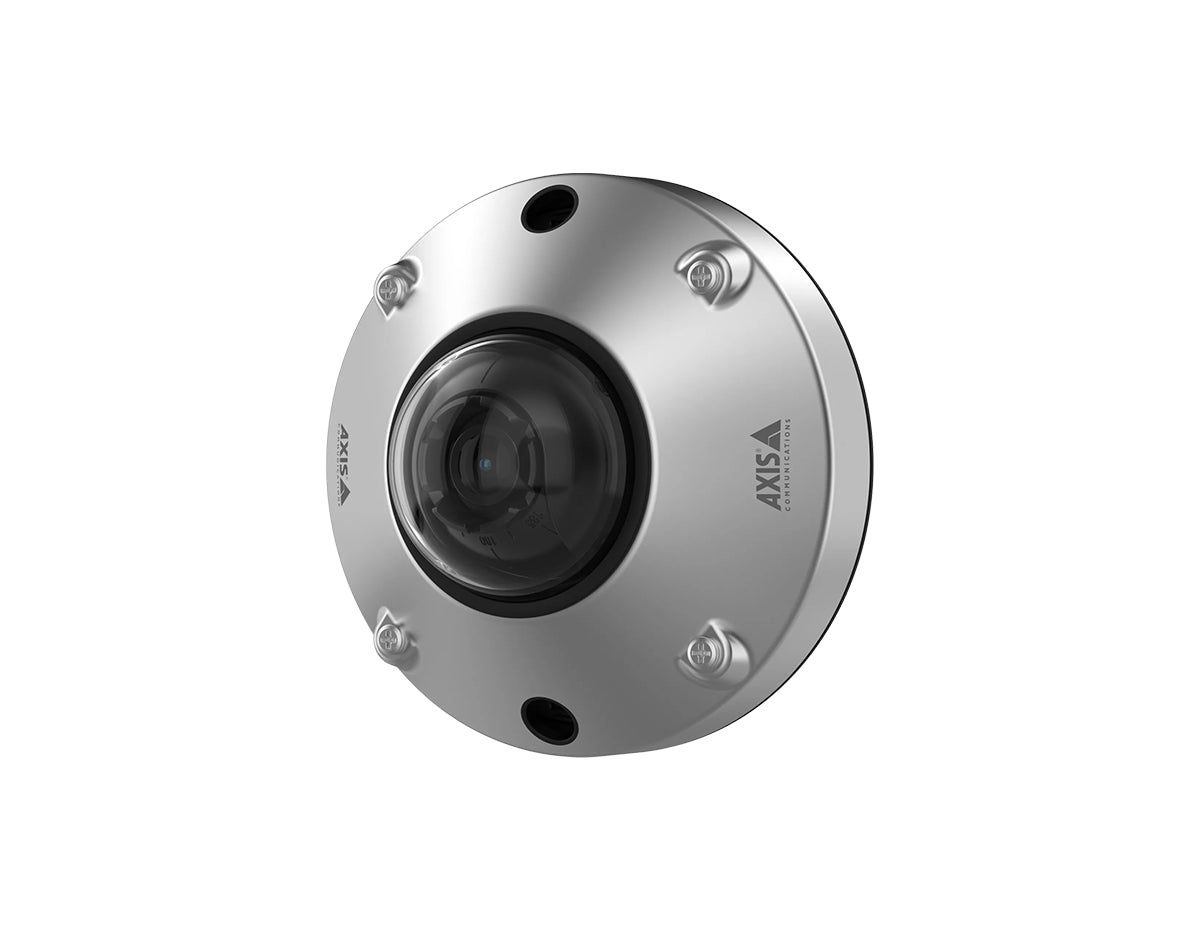

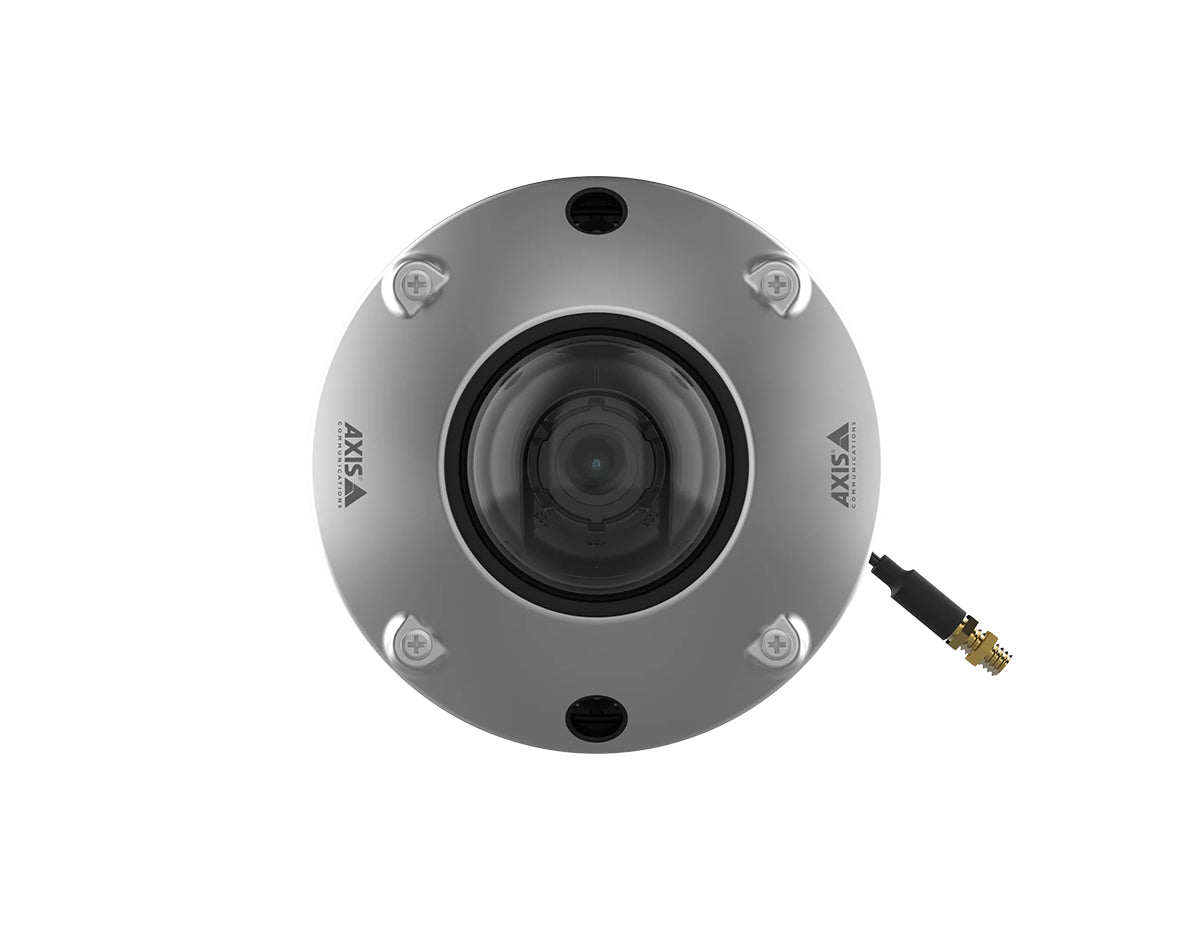

The AXIS F4105-SLRE Dome Sensor is a highly resilient stainless-steel imaging head designed for harsh indoor/outdoor and hygienic environments, including food-processing and industrial use. Resistant to hot high-pressure washdowns and corrosive cleaning chemicals, it ensures reliable operation and consistent forensic-grade image quality. With IR illumination and Forensic WDR, it enables accurate visual monitoring in both high-contrast lighting conditions and complete darkness. Using Axis modular F-series architecture, it connects to AXIS F91 main units and allows up to four sensors for distributed surveillance installations.
With advanced environmental certifications, wide field of view, and durable electropolished SS 316L build, this sensor is optimized for reliability and long-term deployment in vibration-prone, sanitation-intensive, or extreme-temperature locations where conventional cameras fail.
Rugged stainless-steel dome sensor engineered for extreme environments
- Electropolished SS316L stainless steel body providing corrosion-resistant endurance in aggressive environments.
- IR LED illumination supports 0-lux nighttime imaging for reliable detection in total darkness.
- Forensic WDR ensures clarity in scenes involving bright and dark areas simultaneously.
- Flexible lens replacement enables dynamic FOV adaptation from detail-focused to wide-area coverage.
- Rated IP66/IP67/IP69 and IK10 for dust-tight, submersion-resistant, and impact-resistant deployment.
- Up to 60 fps at full 1080p delivers smooth and accurate motion video capture.
Ideal Use Cases
- Food production and sanitation facilities requiring NFS Standard 169 compliant gear.
- Industrial machinery areas with vibrations and particulate matter.
- Vehicle or onboard system installations requiring compact rugged imaging.
- High-humidity or steam-exposure environments including washdown areas.
- Dark environments requiring IR-based sight where no visible lighting is allowed.
Technical Specifications Summary
- Image sensor: 1/2.8” CMOS progressive scan
- Video: 1080p60, 720p180
- Lens: 2.8 mm exchangeable M12
- IR: 940 nm dual LED, 10 m (33 ft) or more
- Casing: SS316L IP66/IP67/IP69, IK10
- Operating temp: -30°C to 55°C (-22°F to 131°F)
- Startup temp: -40°C (-40°F)
- Weight: 452 g (1 lb)
Upgrade Your Operations
Deploy a compact stainless-steel imaging solution designed for harsh environments and demanding industrial installations.
