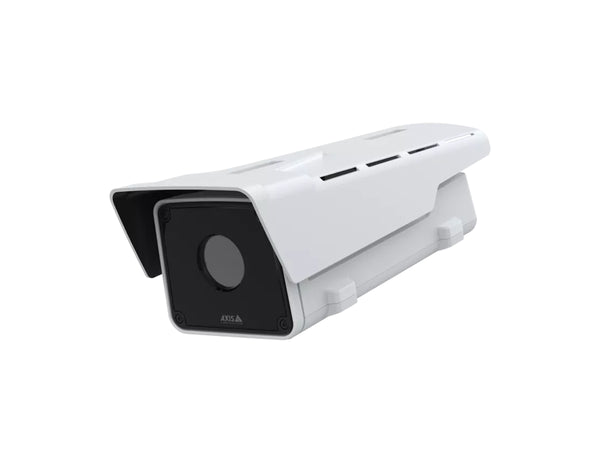

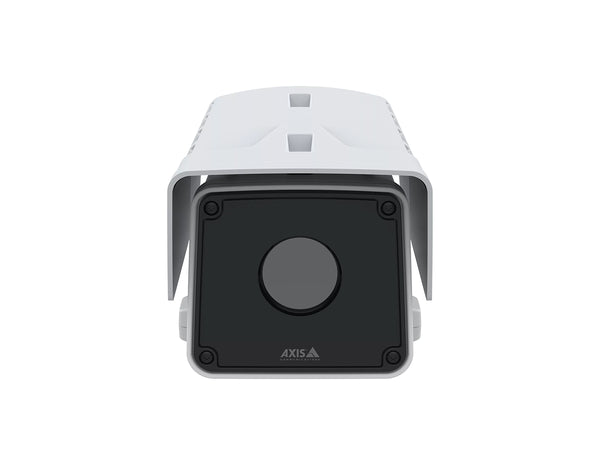

AXIS Q2112-E 19 mm 8.3 fps Thermal Camera (02605-001)

AXIS Q2112-E 19 mm 8.3 fps Thermal Camera (02605-001)

Name: AXIS Q2112-E 19 mm 8.3 fps Thermal Camera (02605-001)
Brand: Axis
Price: 6779.0 USD
Availability: InStock

Part Number: 02605-001

Technical Details

Outdoor-ready 19 mm thermal camera with a 640×480 uncooled microbolometer sensor, <20 mK @25 °C sensitivity (F1.0), 8.3 fps thermal imaging, and ARTPEC-8 SoC with deep-learning acceleration for wide-area perimeter protection.

$6,779.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

The AXIS Q2112-E 19 mm 8.3 fps Thermal Camera delivers highly detailed thermal imaging optimized for wide-area perimeter surveillance. Its 640×480 thermal sensor paired with a 19 mm F1.0 athermalized lens provides wide coverage, strong contrast, and reliable detection accuracy across large open areas. With extremely high thermal sensitivity of <20 mK, the camera performs reliably even through rain, fog, smoke, and total darkness.

Powered by the ARTPEC-8 SoC with an integrated deep learning processing unit, it supports advanced on-edge analytics such as AXIS Perimeter Defender and third-party ACAP applications. Its rugged design—with IP66/IP67, IK10, and NEMA 4X ratings—ensures reliable operation in harsh climates, industrial locations, and demanding outdoor environments. Comprehensive cybersecurity protections and wide protocol support make integration secure and efficient.

High-Sensitivity Thermal Imaging for Reliable Wide-Area Perimeter Protection

19 mm athermalized lens delivers wide-area coverage and reliable detection for large security zones.
High-resolution 640×480 thermal sensor enhances object detail and contrast.
<20 mK NETD ensures exceptional clarity in adverse or low-contrast thermal environments.
ARTPEC-8 with DLPU delivers advanced on-edge analytics processing.
Rugged IP66/IP67, IK10, and NEMA 4X housing ensures reliable outdoor operation year-round.
Comprehensive cybersecurity with TPM 2.0, secure boot, and encrypted storage.
ONVIF support and Axis VAPIX integration enable seamless deployment across modern VMS platforms.

Ideal Use Cases

Wide-area perimeter protection for utility sites, industrial zones, solar farms, and logistics facilities.
Security areas requiring broad coverage with reliable thermal contrast.
Border, airport, and transportation hubs where dependable 24/7 detection is required.
Critical infrastructure needing privacy-safe thermal surveillance.
Sites requiring analytics-driven event responses with automated deterrence workflows.

Technical Specifications Summary

Image sensor: 640×480 uncooled microbolometer, 17 μm
Lens: Athermalized 19 mm F1.0; HFOV 31°; VFOV 24°; near focus 8.5 m
Sensitivity: NETD <20 mK @25 °C
Video: Up to 8.3 fps; H.264/H.265/MJPEG; scalable to 800×600
Audio: Two-way audio; LPCM, AAC-LC, G.711, G.726, Opus
Power: PoE Type 2 Class 4; 10–28 V DC
Operating conditions: -40 °C to 60 °C; up to 74 °C NEMA TS 2
Durability: IP66/IP67, IK10, NEMA 4X, MIL-STD-810H
Cybersecurity: TPM 2.0, secure boot, encrypted storage, MACsec, 802.1X

Upgrade Your Operations

Improve perimeter protection with high-sensitivity thermal imaging optimized for wide-area coverage and reliable 24/7 detection.

Properties

Model	AXIS Q2112-E 19 mm 8.3 fps Thermal Camera (02605-001)
Product Type	Thermal Camera
Image Sensor	Uncooled microbolometer, 640×480 pixels, 17 μm; spectral range 8–14 μm
Lens	Athermalized 19 mm, F1.0; horizontal FOV 31°; vertical FOV 24°; near focus distance 8.5 m (28 ft)
Sensitivity	NETD <20 mK @25 °C, F1.0
System on Chip	ARTPEC-8 with deep learning processing unit (DLPU)
Memory	2048 MB RAM, 8192 MB Flash
Power	PoE IEEE 802.3af/802.3at Type 2 Class 4; typical 5.2 W, max 25.5 W; 10–28 V DC (typical 4.6 W, max 25.5 W)
Connectors	RJ45 10/100/1000 PoE; terminal block with 2 supervised and 2 unsupervised I/O (12 V DC out, 50 mA); 3.5 mm mic/line in; 3.5 mm line out; 2× RS485/RS422 full duplex; DC input
Operating Conditions	-40 °C to 60 °C; up to 74 °C per NEMA TS 2; humidity 10–100% RH (condensing)
Storage Conditions	-40 °C to 65 °C; humidity 5–95% RH (non-condensing)
Casing	IP66/IP67, IK10, and NEMA 4X-rated aluminum housing; color white NCS S 1002-B
Dimensions	See datasheet dimension drawing; EPA 0.05 m² (0.48 ft²)
Weight	3.3 kg (7.3 lb)
Storage	microSD/microSDHC/microSDXC card support; encrypted SD card support; NAS recording
Certifications	CE, CSA, UL/cUL, KC, RCM, VCCI; CISPR 32/35; EN 50121-4; IEC 62236-4; FCC Part 15 Class A
Safety	CAN/CSA/IEC/EN/UL 62368-1 ed.3; IS 13252
Environmental Ratings	IEC 60068-2-1/-2/-6/-14/-27/-78; IP66/IP67; IK10; ISO 21207 Method B; MIL-STD-810H (Methods 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 512.6, 521.4); NEMA 4X; NEMA TS 2
Cybersecurity	Axis Edge Vault with TPM 2.0, secure boot, encrypted filesystem, secure keystore, signed firmware, Axis device ID, OAuth 2.0, brute force delay protection

Specifications

Video	H.264, H.265, Motion JPEG; 640×480 scalable to 800×600; up to 8.3 fps; up to 20 streams; controllable frame rate; Zipstream; VBR/ABR/MBR
Image Settings	Contrast, brightness, sharpness, exposure zones, local contrast, compression; rotation 0°/90°/180°/270°; corridor mode; mirroring; overlays; polygon privacy masks; EIS; thermal color palettes
Audio	Two-way audio; AGC; EQ; external mic input (optional 5 V); line in/out; network speaker pairing; LPCM, AAC-LC, G.711, G.726, Opus
Networking Protocols	IPv4/IPv6, HTTP/HTTPS/HTTP2, TLS, RTP/SRTP/RTSP, FTP/SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP v1/v2c/v3, DNS, NTP, PTP, TCP/UDP, IGMP, MQTT, SSH, LLDP, CDP, secure syslog
System Integration	ONVIF Profiles G/M/S/T; VAPIX; ACAP; one-click cloud; AXIS Camera Station support
Event Conditions	Audio detection; IP changes; device status events; I/O events; storage conditions; MQTT subscribe; tampering; bitrate degradation; scheduling
Event Actions	Audio clip play/stop; toggle I/O; MQTT publish; HTTP/HTTPS/TCP/email notifications; text overlay; pre/post-alarm buffering; SD/NAS recording; FTP/SFTP/HTTP uploads; SNMP traps; LED flash
Analytics	Included: Motion Detection, Motion Guard, Fence Guard, Loitering Guard, tampering alarm, audio detection; Supported: AXIS Perimeter Defender; third-party ACAP apps
Pan/Tilt Support	Guard tours with up to 256 presets (positioning unit sold separately)
Environmental	IP66/IP67, IK10, NEMA 4X; IEC 60068; MIL-STD-810H (Methods 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 512.6, 521.4)
Security	TPM 2.0, secure boot, signed firmware, TEE, MACsec, 802.1X, encrypted storage, password protection, brute force delay protection

Accessories

Included	Camera, installation guide, terminal block connectors, connector guard, cable gaskets, owner authentication key
Optional Accessories	AXIS TQ1818-E Positioning Unit; AXIS TQ1003-E Wall Mount
