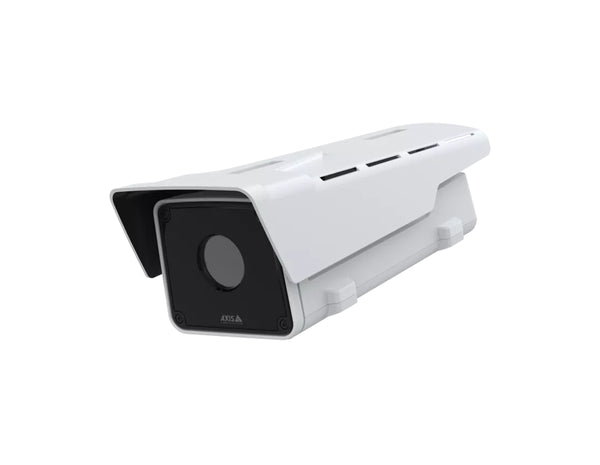

AXIS Q2112-E 10 mm 30 fps Thermal Camera (02604-001)

AXIS Q2112-E 10 mm 30 fps Thermal Camera (02604-001)

Name: AXIS Q2112-E 10 mm 30 fps Thermal Camera (02604-001)
Brand: Axis
Price: 6370.0 USD
Availability: InStock

Part Number: 02604-001

Technical Details

Outdoor-ready thermal camera with a 10 mm F1.2 lens, 63° wide field of view, 640×480 thermal sensor, <20 mK sensitivity, and up to 30 fps thermal imaging powered by the ARTPEC-8 SoC with deep learning processing unit.

$6,370.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

The AXIS Q2112-E 10 mm 30 fps Thermal Camera delivers smooth, high-frame-rate thermal imaging for monitoring wide outdoor areas with improved tracking and motion clarity. With its wide 63° horizontal field of view, it is ideal for covering open perimeters, facility boundaries, and broad surveillance zones with fewer devices. The 640×480 thermal sensor, combined with exceptional <20 mK sensitivity, ensures high-quality contrast in complete darkness and challenging environmental conditions.

Powered by the ARTPEC-8 SoC with a deep learning processing unit, the camera supports advanced edge analytics such as AXIS Motion Guard, Fence Guard, Loitering Guard, and AXIS Perimeter Defender. Its rugged IP66/IP67, IK10, NEMA 4X, and MIL-STD-810H ratings ensure long-term reliability. Strong cybersecurity protections and broad protocol support make it easy to integrate into secure, enterprise-grade thermal monitoring systems.

High-Frame-Rate Thermal Imaging for Wide-Area Surveillance

Up to 30 fps thermal imaging improves clarity when tracking movement across wide scenes.
63° wide horizontal field of view reduces camera count for large-area coverage.
640×480 resolution with <20 mK sensitivity delivers strong contrast and consistent detection performance.
ARTPEC-8 with DLPU supports advanced on-edge analytics and accurate event detection.
IP66/IP67, IK10, NEMA 4X, and MIL-STD-810H durability ensure reliable outdoor operation.
Robust cybersecurity stack including TPM 2.0, secure boot, MACsec, and encrypted storage.
Comprehensive ONVIF and VAPIX support ensures seamless integration with leading VMS platforms.

Ideal Use Cases

Wide-area perimeter protection requiring smoother motion capture.
Logistics yards, open industrial sites, and large outdoor campuses.
Thermal monitoring in fog, smoke, haze, or low-light environments.
Border zones and open landscapes requiring broad thermal situational awareness.
Analytics-driven detection where high-frame-rate thermal data improves event clarity.

Technical Specifications Summary

Image sensor: 640×480 uncooled microbolometer, 17 μm
Lens: Athermalized 10 mm F1.2; HFOV 63°; VFOV 46°; near focus 2.8 m
Sensitivity: NETD <20 mK @25 °C
Video: Up to 30 fps; H.264/H.265/MJPEG; Zipstream
Analytics: Motion Guard, Fence Guard, Loitering Guard; Perimeter Defender support
Power: PoE Type 2 Class 4; 10–28 V DC
Durability: IP66/IP67, IK10, NEMA 4X, MIL-STD-810H
Cybersecurity: TPM 2.0, secure boot, encrypted storage, MACsec

Upgrade Your Operations

Enhance wide-area thermal monitoring with smooth, high-frame-rate imaging and powerful edge analytics.

Properties

Model	AXIS Q2112-E 10 mm 30 fps Thermal Camera (02604-001)
Product Type	Thermal Camera
Image Sensor	Uncooled microbolometer, 640×480 pixels, 17 μm; spectral range 8–14 μm
Lens	Athermalized 10 mm, F1.2; horizontal FOV 63°; vertical FOV 46°; near focus distance 2.8 m (9.2 ft)
Sensitivity	NETD <20 mK @25 °C, F1.0
Frame Rate	Up to 30 fps thermal imaging
System on Chip	ARTPEC-8 with deep learning processing unit (DLPU)
Memory	2048 MB RAM, 8192 MB Flash
Power	PoE IEEE 802.3af/802.3at Type 2 Class 4; typical 5.2 W, max 25.5 W; 10–28 V DC (typical 4.6 W, max 25.5 W)
Connectors	RJ45 10/100/1000 PoE; terminal block for 2 supervised and 2 unsupervised I/O (12 V DC out, 50 mA); 3.5 mm mic/line in; 3.5 mm line out; 2× RS485/RS422; DC input
Operating Conditions	-40 °C to 60 °C; maximum 74 °C per NEMA TS 2; humidity 10–100% RH (condensing)
Storage Conditions	-40 °C to 65 °C; humidity 5–95% RH (non-condensing)
Casing	IP66/IP67, IK10, and NEMA 4X-rated aluminum housing; white NCS S 1002-B
Dimensions	See datasheet dimension drawing; EPA 0.05 m² (0.48 ft²)
Weight	3.3 kg (7.3 lb)
Storage	microSD/microSDHC/microSDXC support; AES-XTS-Plain64 256-bit SD encryption; NAS recording
Certifications	CSA, UL/cUL, CE, KC, VCCI, RCM; CISPR 32/35; EN 50121-4; FCC Part 15 Class A; IEC 62236-4
Safety	CAN/CSA/IEC/EN/UL 62368-1 ed.3; IS 13252
Environmental Ratings	IEC 60068-2-1/-2/-6/-14/-27/-78; ISO 21207 Method B; IP66/IP67; IK10; NEMA 4X; NEMA TS 2; MIL-STD-810H (505.7, 506.6, 507.6, 509.7, 510.7, 512.6, 521.4)
Cybersecurity	Axis Edge Vault (TPM 2.0), secure boot, signed firmware, encrypted filesystem, secure keystore, Axis device ID, OAuth 2.0, brute force delay protection

Specifications

Video	H.264, H.265, Motion JPEG; 640×480 scalable to 800×600; up to 30 fps; up to 20 streams; Zipstream; VBR/ABR/MBR; controllable frame rate
Image Settings	Contrast, brightness, sharpness, exposure zones, local contrast, compression; rotation 0°/90°/180°/270°; corridor format; mirroring; overlays; polygon privacy masks; EIS; thermal color palettes
Audio	Two-way audio; AGC; EQ; external mic input; line in/out; network speaker pairing; LPCM, AAC-LC, G.711, G.726, Opus
Networking Protocols	IPv4/IPv6, HTTP/HTTPS/HTTP2, TLS, FTP/SFTP, CIFS/SMB, SMTP, mDNS/Bonjour, UPnP, SNMP v1/v2c/v3, DNS, NTP, PTP, RTSP/RTP/SRTP, TCP/UDP, IGMP, MQTT, SSH, LLDP, CDP, secure syslog
System Integration	VAPIX, ACAP, ONVIF Profiles G/M/S/T; one-click cloud; AXIS Camera Station & third-party VMS support
Event Conditions	Audio detection; device status changes; IP address changes; storage conditions; I/O events; tampering; MQTT subscribe; bitrate degradation; scheduling
Event Actions	Audio clip play/stop; toggle I/O; MQTT publish; HTTP/HTTPS/TCP/email notifications; text overlay; pre/post-alarm buffering; SD/NAS recording; FTP/SFTP/HTTP uploads; SNMP traps; LED flash
Analytics	Included: Motion Detection, Motion Guard, Fence Guard, Loitering Guard, tampering alarm, audio detection; Supported: AXIS Perimeter Defender; ACAP applications
Pan/Tilt Support	Supports guard tours when used with an external positioning unit (up to 256 presets)
Security	TPM 2.0, secure boot, encrypted storage, MACsec, TEE, TLS v1.2/v1.3, 802.1X, password protection, brute force delay protection

Accessories

Included	Camera, installation guide, terminal block connectors, connector guard, cable gaskets, owner authentication key
Optional Accessories	AXIS TQ1818-E Positioning Unit; AXIS TQ1003-E Wall Mount; additional accessories available on the Axis support page
