CISCO C9300-48UN-A SWITCH
| Model: | C9300-48UN-A |
| Detail: |
|
| List Price: | |
| Price: | $6,999.00 |
| You Save: | $8,874.26 (56% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

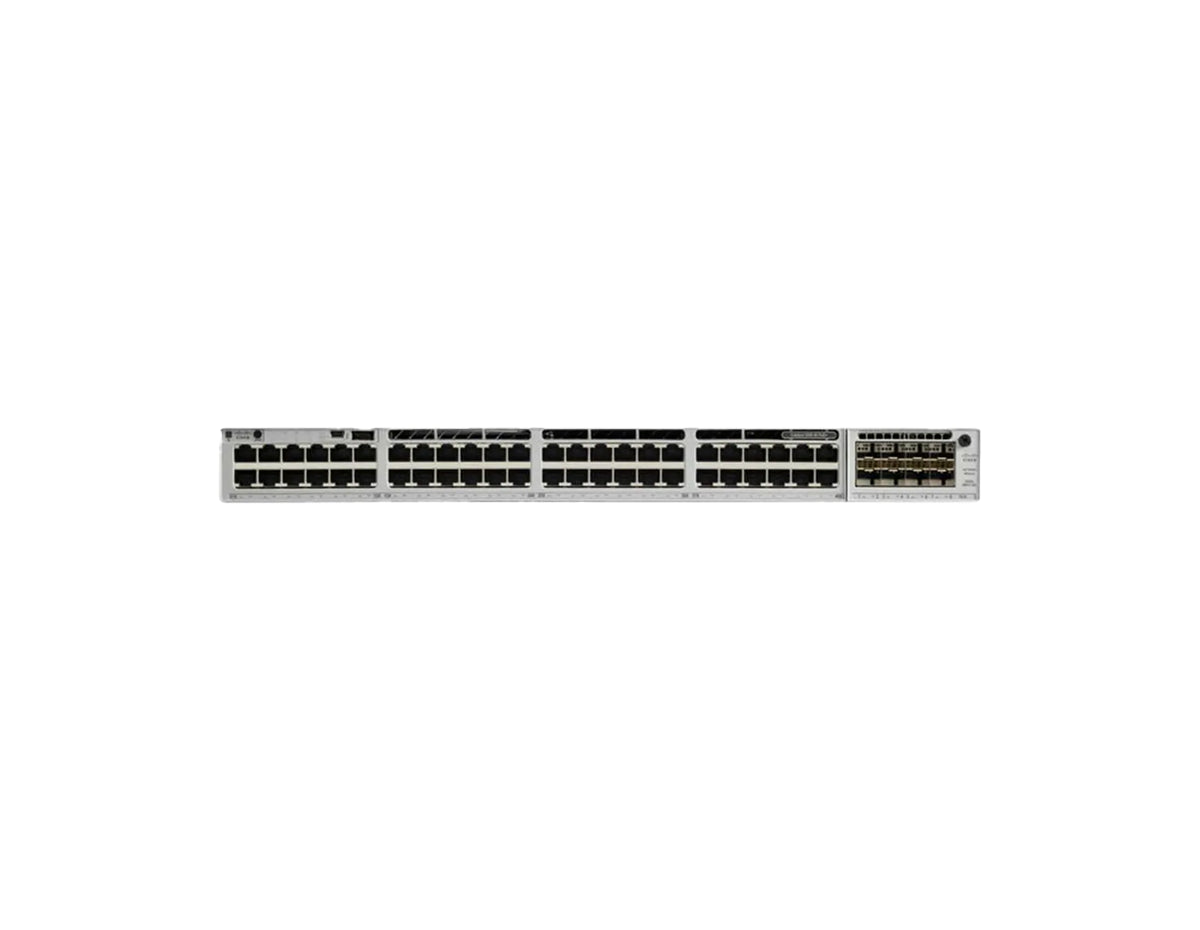

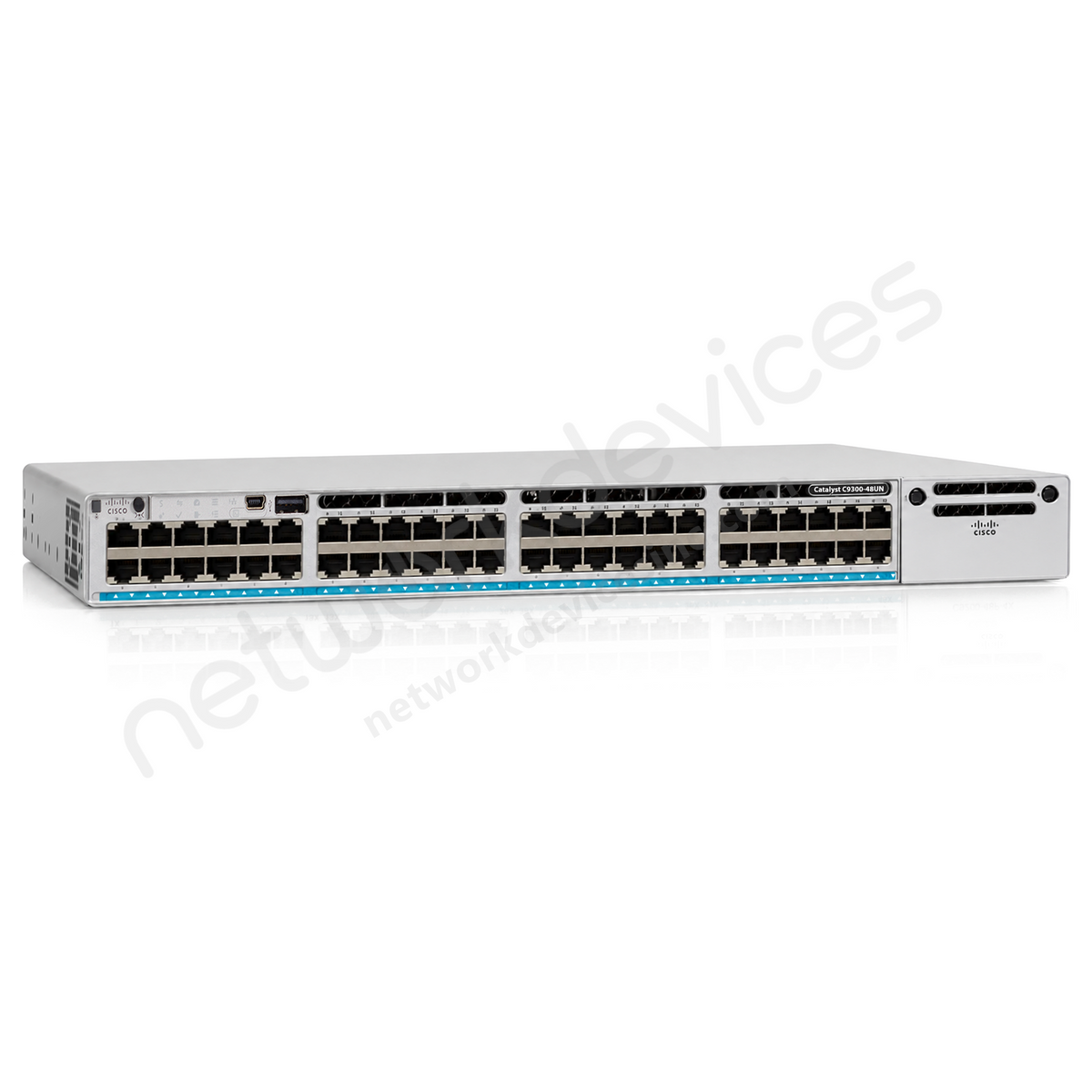

Cisco Catalyst C9300-48UN-A Switch
The Cisco Catalyst C9300-48UN-A Switch is an advanced, high-performance networking solution designed for enterprise environments that require scalable, secure, and efficient connectivity. With 48 Multigigabit Ethernet UPOE (Universal Power Over Ethernet) ports, this switch provides enhanced power delivery and high-speed connectivity for demanding devices such as IP phones, cameras, and wireless access points. The C9300-48UN-A is equipped with advanced Layer 3 routing features, modular uplinks, and StackWise-480 technology, making it an ideal solution for businesses looking to build a scalable, future-proof network infrastructure.
Key Features:
- 48 x Multigigabit UPOE Ports: Supports speeds up to 10 Gbps and delivers up to 60W per port, ensuring reliable power and high-speed connectivity for demanding devices.
- Modular Uplinks: Offers flexible uplink options supporting 1G, 10G, and 40G, allowing for easy network expansion and scalability.
- Advanced Layer 3 Routing: Supports protocols such as OSPF, EIGRP, and BGP, enabling sophisticated routing and efficient traffic management.
- StackWise-480 Technology: Provides up to 480 Gbps of stacking bandwidth, ensuring high availability and simplified management across multiple switches.
- Energy-Efficient Design: Compliant with IEEE 802.3az standards, optimizing power consumption while maintaining superior network performance.
- Enhanced Security: Integrates MACsec encryption, ACLs, and advanced security protocols to safeguard your network from unauthorized access.
Technical Overview:
- Recommended for: Large enterprises, corporate campuses, and data-heavy environments.

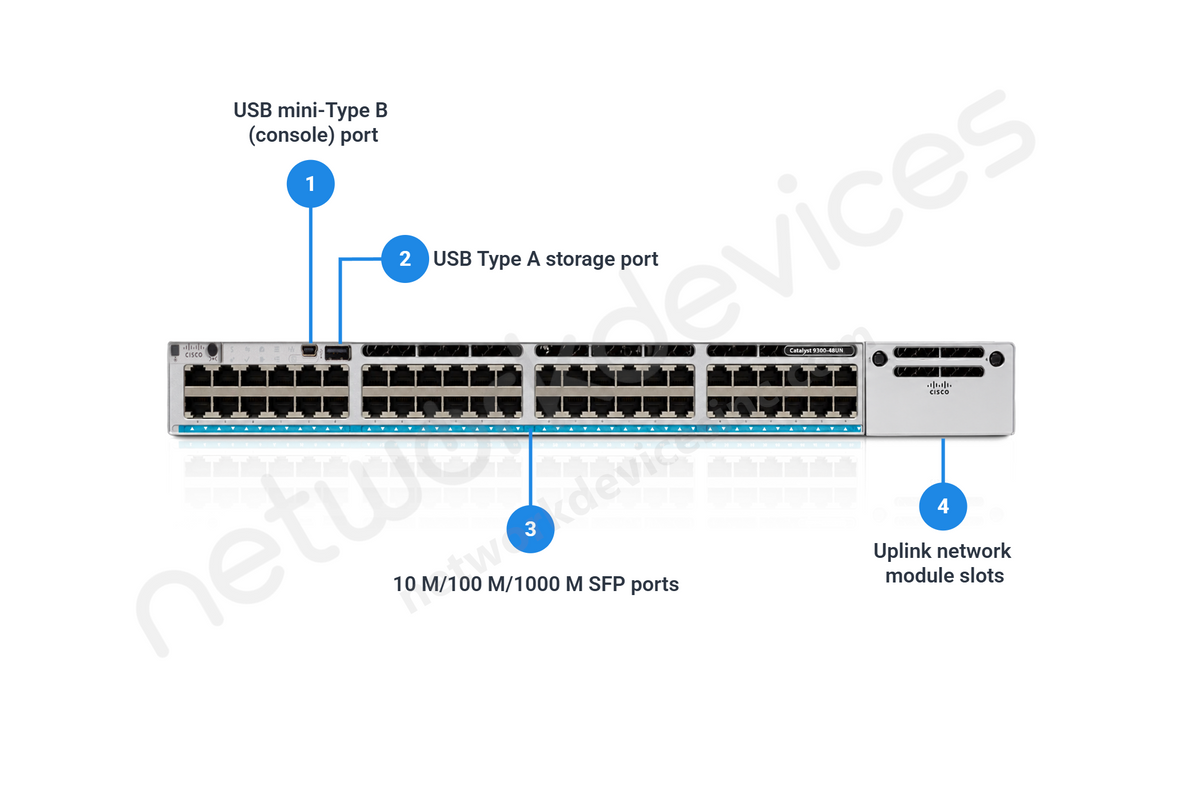

- Ports: 48 x Multigigabit UPOE ports (100M/1G/2.5G/5G/10G) with up to 60W per port.
- Uplink Modules: Modular uplinks supporting 1G, 10G, and 40G for flexible network expansion.
- Switching Capacity: 208 Gbps.
- Forwarding Rate: 154.76 Mpps.
- Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
- Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
- Licensing: Network Advantage.
- Security: MACsec encryption and advanced access control features.
- Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.
You can check the related tab for the C9300-48UN-A datasheet.
Accessories
| Stacking Support | Stackwise-480‚ |
| Stacking bandwidth support | 480 Gbps‚ |
| Stacking hardware‚ | StackWise Cable‚ |
| Number of members |
8 |
| Supported stack members | Other C9300 SKUs with same license level C9300 higher scale SKUs only stack with other like higher scale models |
| Stacking accessories | |
| STACK-T1-50CM | Data stack 50 cm (cable option with C9300 and C9300X SKUs) |
| STACK-T1-1M | Data stack 1m (cable option with C9300 and C9300X SKUs) |
| STACK-T1-3M | Data stack 3m (cable option with C9300 and C9300X SKUs) |
Specifications
| Specifications | C9300-48UN-A |
| Console Ports | RJ-45-to-DB9 cable for PC connections‚ |
| DRAM | 8 GB‚ |
| Flash Memory | 16 GB‚ |
| Switching capacity | 640 Gbps |
| Forwarding rate‚ | 476.19 Mpps |
| MAC addresses | 32000 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic compatibility certifications |
47 CFR Part 15 EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386 EN 55035 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 |
| EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
Properties
| Properties | C9300-48U-A |
| Description | Catalyst 9300 48-port 5G copper with modular uplinks, UPOE, Network Advantage |
| Product Family | Catalyst 9300 |
| Product Type | Ethernet Switch |
| Number of Ports | 48 |
| Downlinks total 10/100/1000 or PoE+ copper ports |
48 port 5Gbps Multigigabit UPOE ports (5G/2.5G/1G/100M) |
| Uplink configuration | Modular uplink options |
| Cisco IOS Software | Network Advantage‚ |
| Default primary AC power supply |
PWR-C1-1100WAC-P |
| Available PoE power with additional secondary power supply |
2880W** (With 1100W Secondary PS) |
| Fans | Three field-replaceable fans |
| Chassis + FEP + Fan Dimensions (HxWxD) Inches | 1.73 x 17.5 x 19.1 |
