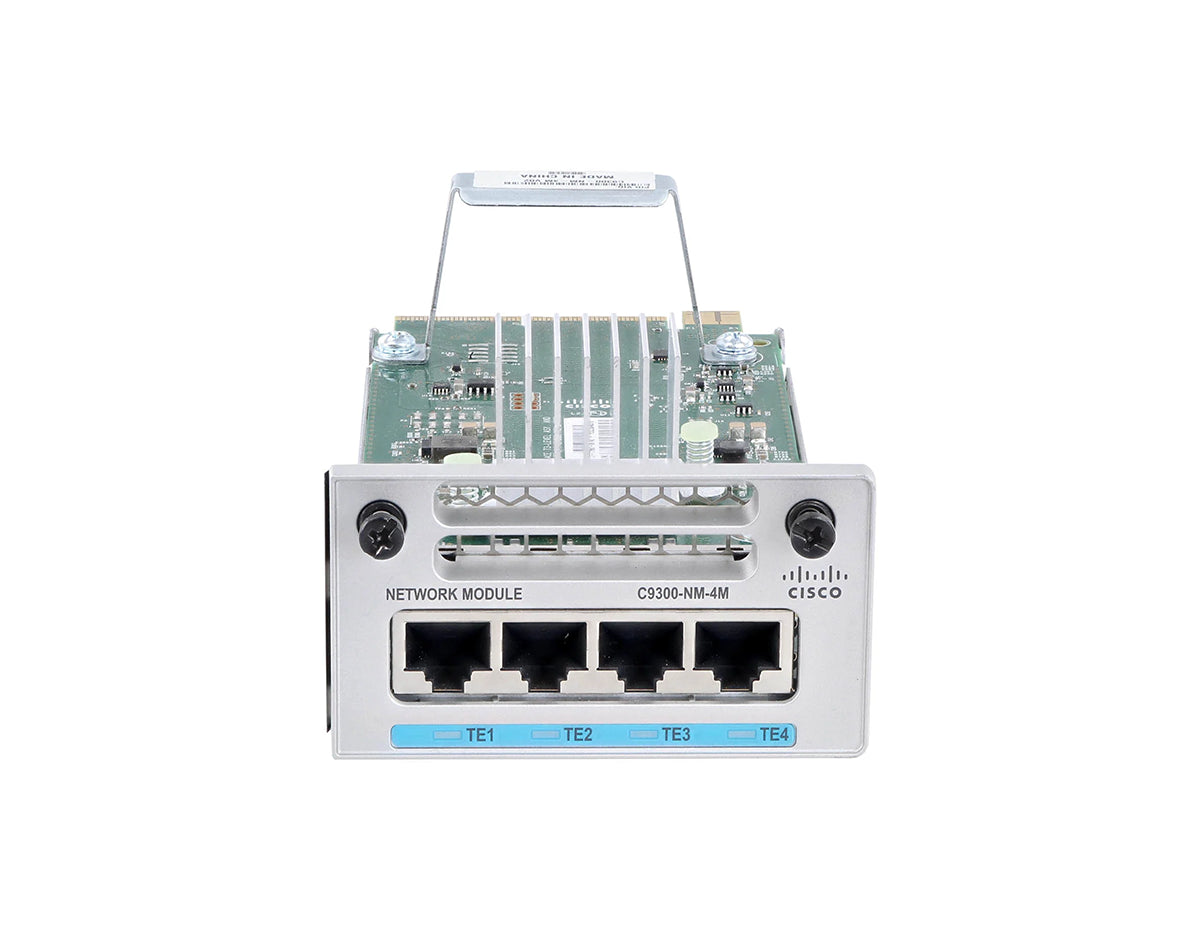

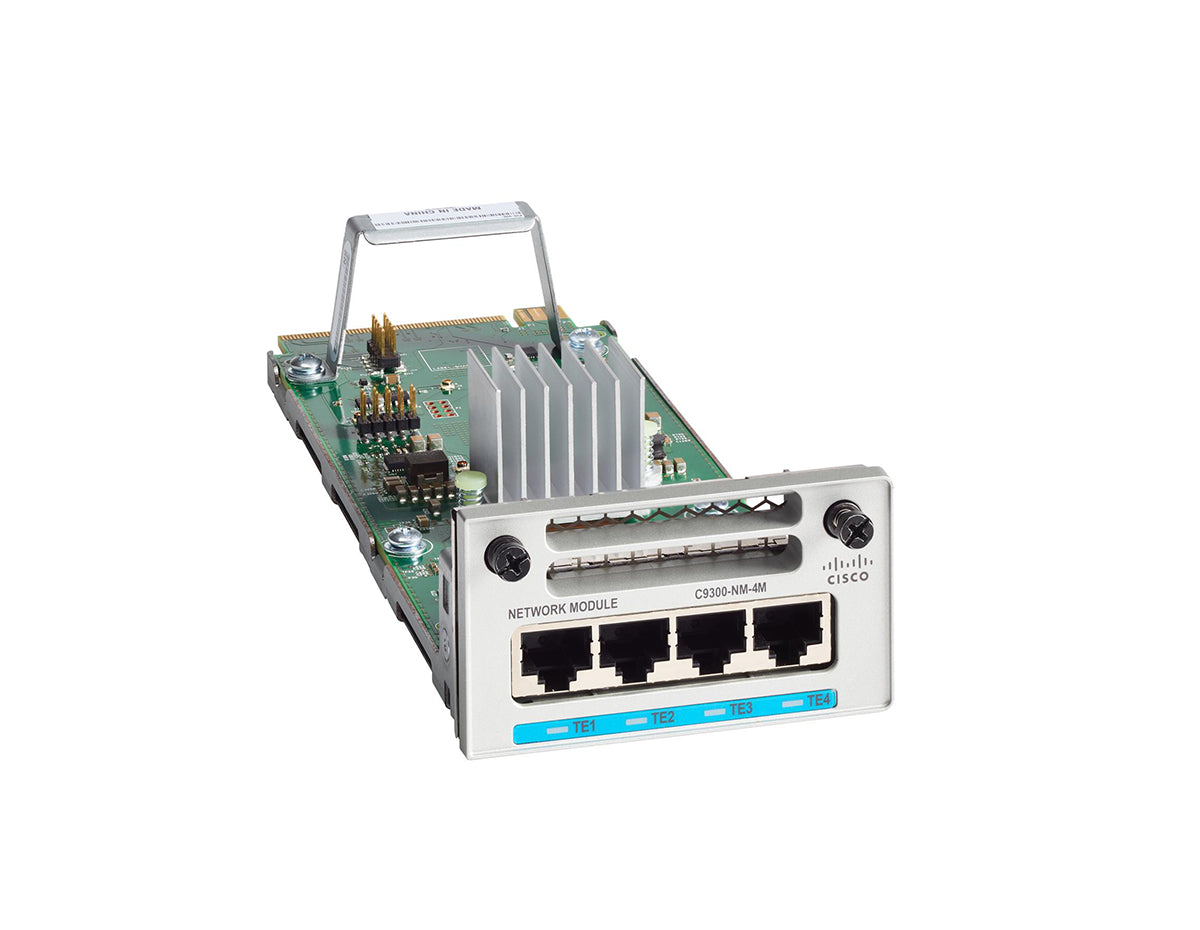

CISCO C9300-NM-4M EXPANSION MODULE

Model: C9300-NM-4M
Detail: Expansion module, 4 x 100M/1G/2.5G/5G/10 mGigabit RJ45 Ethernet ports, for Catalyst 9300
List Price: US$1,868.49
Price:
$545.00
You Save: $1,323.49 (71% OFF)
Condition: Brand New Sealed
Availability: IN STOCK
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

Description

Cisco Catalyst C9300-NM-4M Network Module

The Cisco Catalyst C9300-NM-4M Network Module is a versatile and high-performance expansion option designed to enhance the connectivity of Cisco Catalyst 9300 Series Switches. This module features four 10G/25G Multigigabit Ethernet ports, providing additional uplink capacity and enabling your network to handle more data traffic with ease. The C9300-NM-4M is ideal for enterprises that demand scalable, high-speed network solutions, ensuring your infrastructure is ready for the future.

Key Features:

  • Four 10G/25G Multigigabit Ethernet Ports: Offers high-speed uplink options, boosting network capacity and supporting demanding data applications.
  • Seamless Integration: Fully compatible with Cisco Catalyst 9300 Series Switches, ensuring smooth integration and enhanced network performance.
  • Scalable Design: Supports network growth and adaptation, making it an excellent choice for evolving business needs.
  • Easy Installation: Designed for straightforward installation, allowing for quick and efficient upgrades to your network infrastructure.

Technical Overview:

  • Recommended for: Enhancing the uplink capabilities of Cisco Catalyst 9300 Series Switches.
  • Ports: 4 x 10G/25G Multigigabit Ethernet ports.
  • Compatibility: Specifically designed for Cisco Catalyst 9300 Series Switches.
  • Application: Ideal for enterprises requiring high-speed data transfer and expanded network capacity.

You can check the related tab for the C9300-NM-4M datasheet.

Accessories

Stacking accessories
STACK-T1-50CM‚ Data stack 50 cm (cable option with C9300 SKUs)
STACK-T1-1M Data stack 1m (cable option with C9300 SKUs)
STACK-T1-3M Data stack 3m (cable option with C9300 SKUs)
C9300L-STACK-KIT Stack kit for C9300L SKUs only: Two data stack adapters and one data stack cable
STACK-T3-50CM Data stack 50cm cable (default cable with C9300L Stack Kit)
STACK-T3-1M Data stack 1m cable (cable option with C9300L Stack Kit)
STACK T3-3M Data stack 3m cable (cable option with C9300L Stack Kit)

Specifications

Specifications C9300-NM-4M
Connectors and cabling 1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
Multigigabit-T ports: RJ-45 connectors, 4-pair Cat 5E, Cat 6, Cat 6A UTP cabling
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
SFP transceivers: LC fiber connectors (single-mode or multimode fiber)
SFP+ transceivers: LC fiber connectors (single-mode or multimode fiber)
QSFP+ transceivers: MPO and LC fiber connectors (single-mode or multimode fiber)
QSFP+ connector
SFP+ connector
Cisco StackWise stacking ports: copper-based Cisco StackWise cabling
Cisco StackPower: Cisco proprietary power stacking cables
Ethernet management port: RJ-45 connectors, 4-pair Cat 5 UTP cabling
Management console port: RJ-45-to-DB9 cable for PC connections
Safety certifications UL 60950-1
CAN/CSA-C222.2 No. 60950-1
EN 60950-1
IEC 60950-1
AS/NZS 60950.1
IEEE 802.3
Electromagnetic emissions certifications 47 CFR Part 15
CISPR22 Class A
EN 300 386 V1.6.1
EN 55022 Class A
EN 55032 Class A
CISPR 32 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
TCVN 7189 Class A
V-3 Class A
CISPR24
EN 300 386
EN55024
TCVN 7317
V-2/2015.04
V-3/2015.04
CNS13438
KN32
KN35
IEC 61000-6-1
EN 61000-6-1
Additional Certifications for C9300L SKUs:
QCVN 118:2018/BTTTT
CISPR24/25
CISPR 32 Class A
VCCI-CISPR 32 Class A
EN55035
Environmental Reduction of Hazardous Substances (ROHS) 5

Properties

Properties Cisco Catalyst C9300-NM-4M
Description Catalyst 9300 4 x 10G/mGig Network Module
Product Family Catalyst 9300
Product Type Expansion Module
Supported Devices Cisco Catalyst 9300 Series Switches
Ports 4 x 100M/1G/2.5G/5G/10G (mGig)
Form Factor Plug-in module
Connectivity Technology Wired
Mean Time Between Failures
MTBF (hours)
10,549,060
