CISCO C9300-48U-A SWITCH
| Model: | C9300-48U-A |
| Detail: |
|
| List Price: | |
| Price: | $3,300.00 |
| You Save: | $9,892.04 (75% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

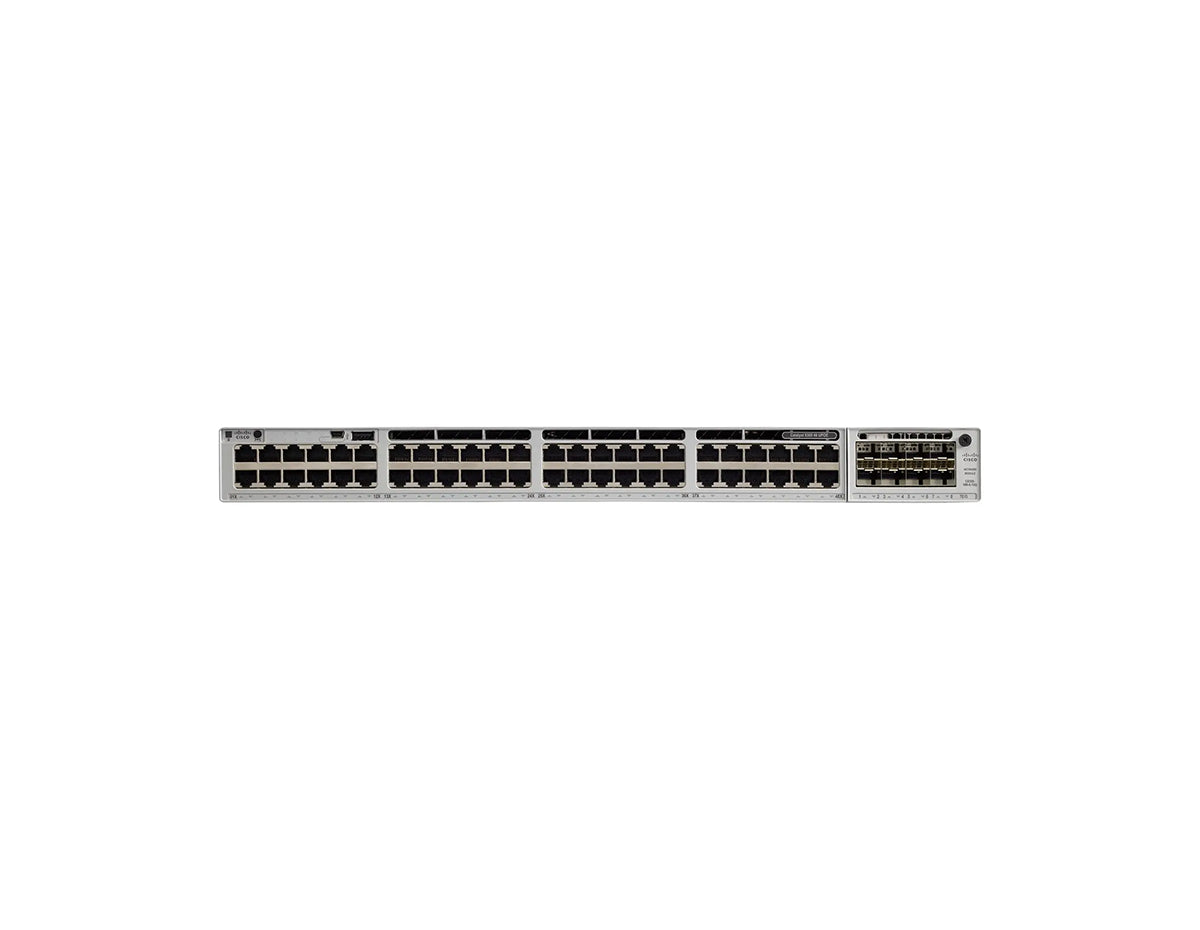

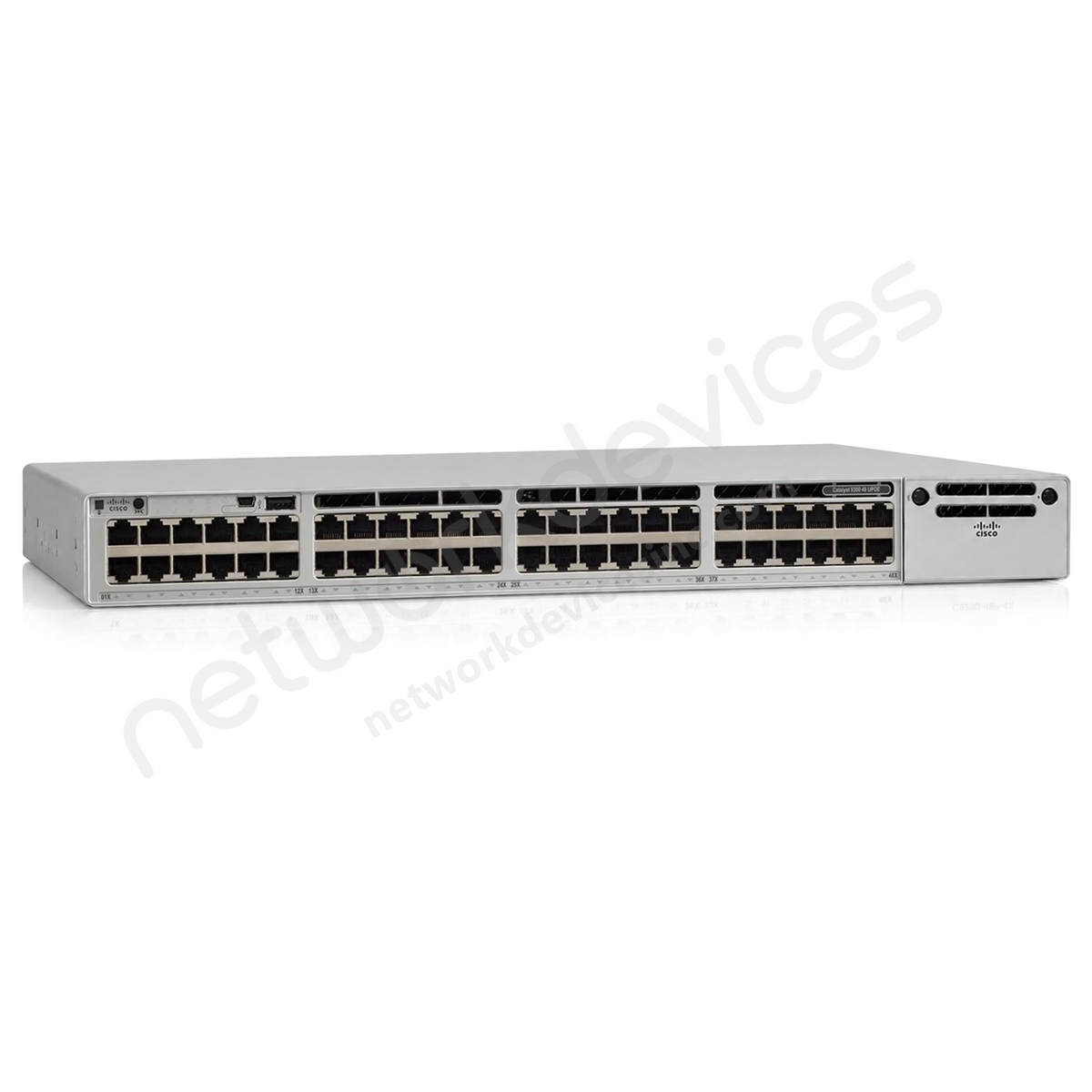

Cisco Catalyst C9300-48U-A Switch
The Cisco Catalyst C9300-48U-A Switch is a powerful enterprise-class solution designed for organizations that require robust networking, enhanced security, and superior power delivery. Equipped with 48 UPOE Gigabit Ethernet ports, this switch is ideal for powering connected devices such as IP phones, cameras, and access points, providing reliable connectivity across your network. Its modular uplink options and advanced Layer 3 routing capabilities make it a flexible and scalable choice for modern network infrastructures.
Key Features:
- 48 x Gigabit Ethernet Ports with UPOE: Supports up to 60W per port, delivering efficient power and high-speed data transmission to connected devices.
- Modular Uplinks: Includes flexible uplink options supporting 1G, 10G, and 40G, providing scalability for future network growth.
- Advanced Layer 3 Routing: Features protocols like OSPF, EIGRP, and BGP for dynamic routing and optimized network management.
- StackWise-480 Technology: Offers up to 480 Gbps of stacking bandwidth, ensuring high availability and simplified management across multiple switches.
- Energy-Efficient Design: Compliant with IEEE 802.3az standards, reducing power consumption while maintaining excellent performance.
- Enhanced Security: Integrates MACsec encryption, ACLs, and advanced security protocols to safeguard your network from unauthorized access.
Technical Overview:
- Recommended for: Enterprise environments, large campuses, and data-intensive operations.
- Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet ports with UPOE (up to 60W per port).
- Uplink Modules: Modular uplinks supporting 1G, 10G, and 40G for flexible network expansion.
- Switching Capacity: 208 Gbps.
- Forwarding Rate: 154.76 Mpps.
- Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
- Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
- Licensing: Network Advantage.
- Security: MACsec encryption and advanced access control features.
- Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.
You can check the related tab for the C9300-48U-A datasheet.
Accessories
| Stacking Support | Stackwise-480‚ |
| Stacking bandwidth support | 480 Gbps‚ |
| Stacking hardware‚ | StackWise Cable‚ |
| Number of members |
8 |
| Supported stack members | Other C9300 SKUs with same license level C9300 higher scale SKUs only stack with other like higher scale models |
| Stacking accessories | |
| STACK-T1-50CM | Data stack 50 cm (cable option with C9300 and C9300X SKUs) |
| STACK-T1-1M | Data stack 1m (cable option with C9300 and C9300X SKUs) |
| STACK-T1-3M | Data stack 3m (cable option with C9300 and C9300X SKUs) |
Specifications
| Specifications | C9300-48U-A |
| Console Ports | RJ-45-to-DB9 cable for PC connections‚ |
| DRAM | 8 GB‚ |
| Flash Memory | 16 GB‚ |
| Switching capacity | 256 Gbps |
| Forwarding rate‚ | 190.48 Mpps‚ |
| MAC addresses | 32000 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic compatibility certifications |
47 CFR Part 15 EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386 EN 55035 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 |
| EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
Properties
| Properties | C9300-48U-A |
| Description | Catalyst 9300 48-port 1G copper with modular uplinks, UPOE, Network Advantage‚ |
| Product Family | Catalyst 9300 |
| Product Type | Ethernet Switch |
| Number of Ports | 48 |
| Downlinks total 10/100/1000 or PoE+ copper ports |
48 port Cisco UPOE |
| Uplink configuration | Modular uplink options |
| Cisco IOS Software | Network Advantage |
| Default primary AC power supply |
PWR-C1-1100WAC-P |
| Available PoE power with additional secondary power supply |
1800W** (With 1100W Secondary PS) |
| Fans | Three field-replaceable fans |
| Chassis + FEP + ‚ Fan Dimensions (HxWxD) Inches |
1.73 x 17.5 x 19.2 |
