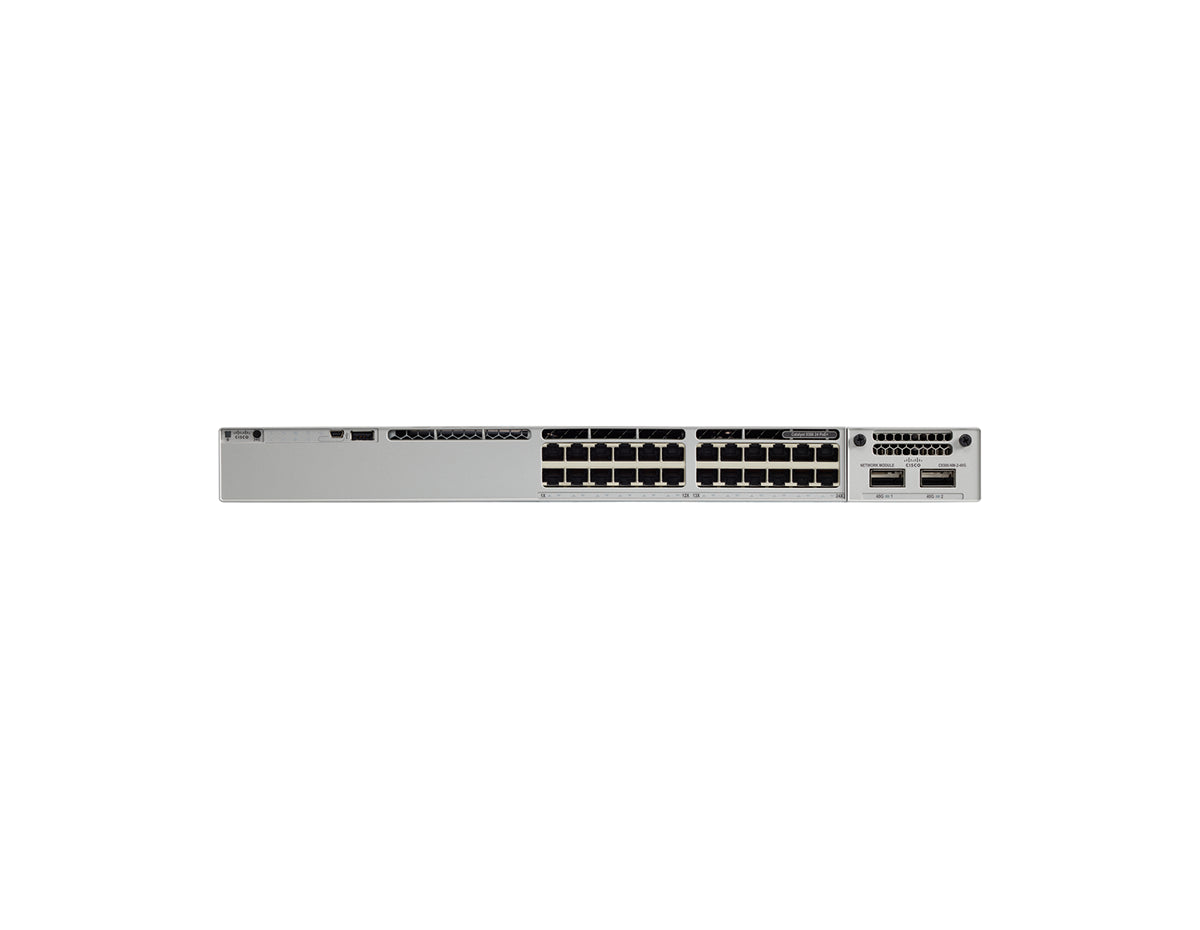

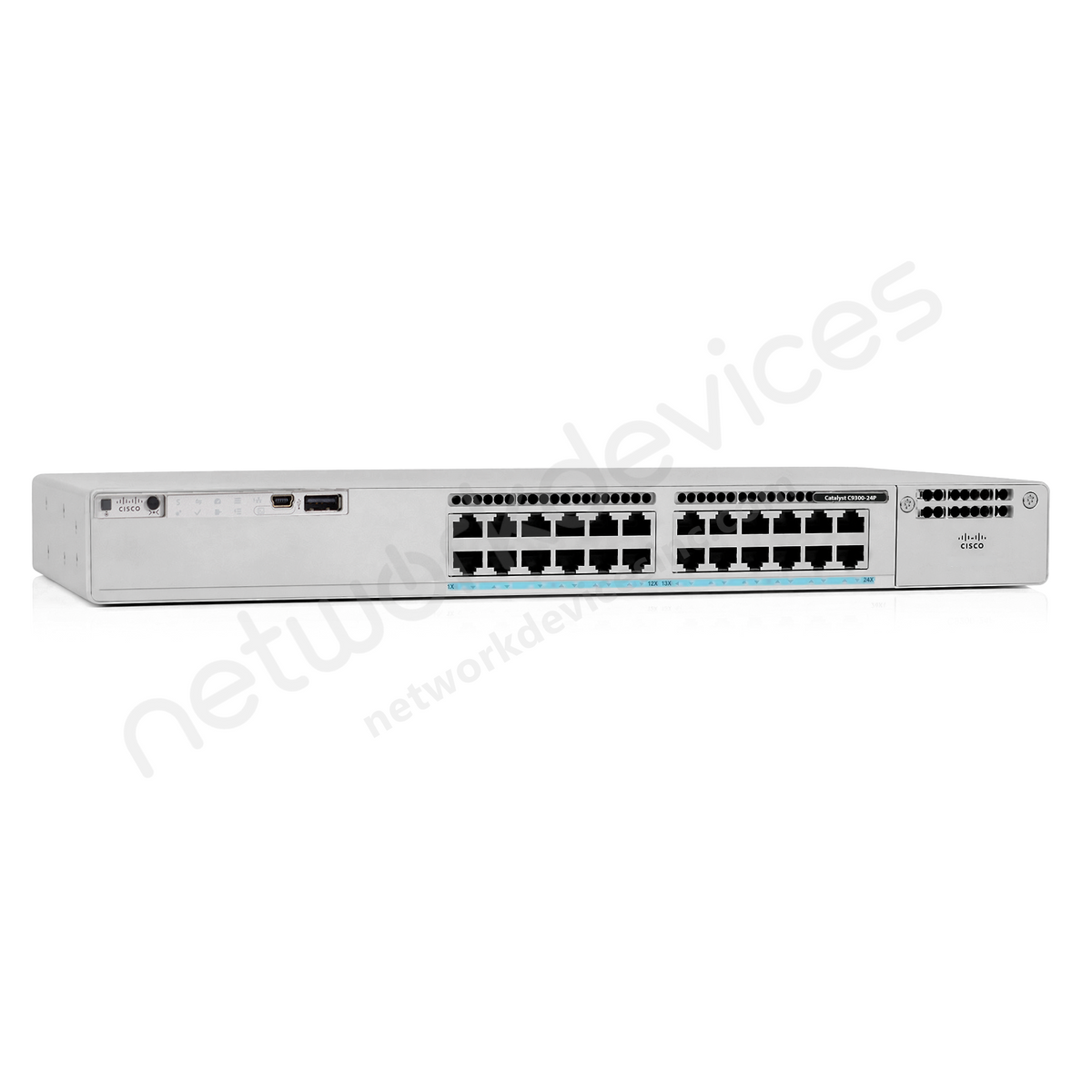

Cisco C9300-24P-E Switch

The Cisco Catalyst C9300-24P-E delivers PoE+ at up to 30 W per port on all 24 Gigabit Ethernet access ports. With the default 715 W power supply the PoE budget is 445 W, and a 1100 W power supply raises it to 720 W, which is enough for all 24 ports to draw the full 30 W at once (24 x 30 W = 720 W). The budget, together with the installed power supply, determines how many devices draw full power simultaneously.

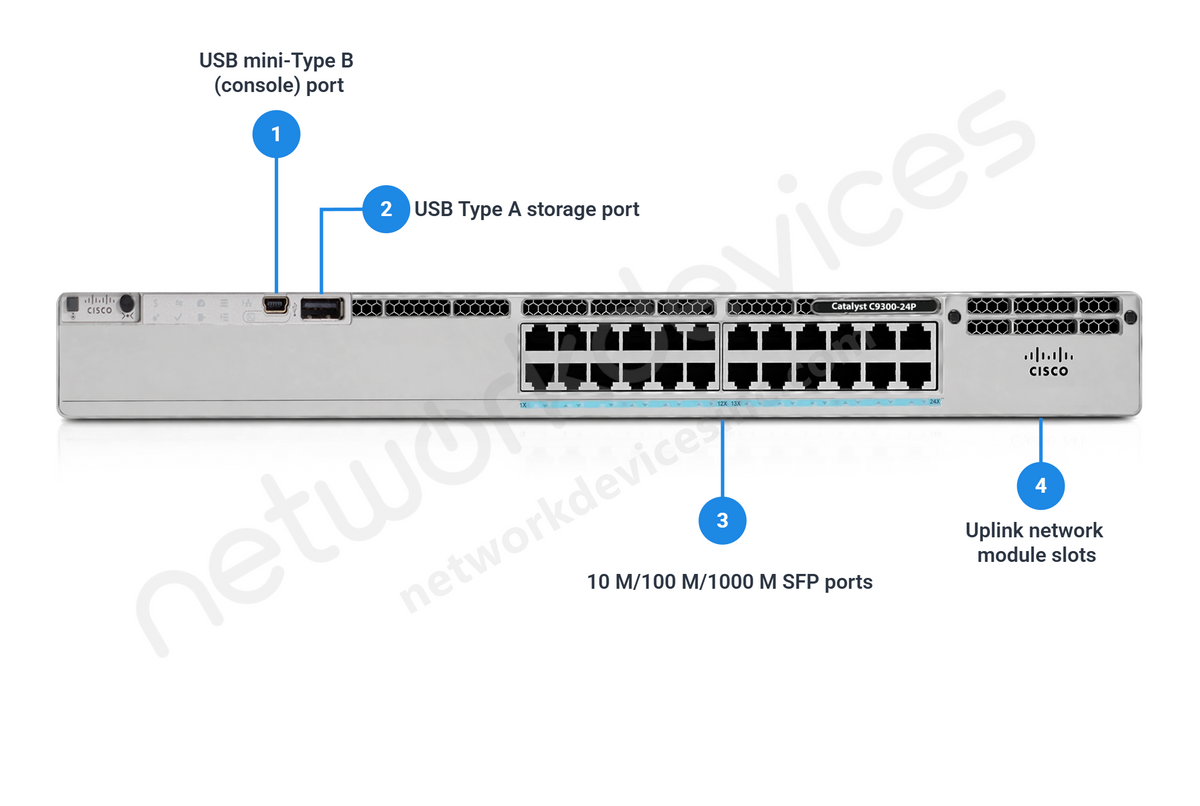

The C9300-24P-E has a modular uplink slot rather than fixed uplink ports. It accepts a Cisco Catalyst 9300 Series network module, with options spanning 4x 1G, 4x multigigabit, 8x 10G, 2x 25G, and 2x 40G; Catalyst 3850 network modules are also compatible. The network module is ordered separately. Specific transceiver compatibility should be verified against the manufacturer's transceiver compatibility matrix at tmgmatrix.cisco.com. Transceivers are sold separately.

The C9300-24P-E supports Cisco StackWise-480 data stacking of up to eight members at 480 Gbps of stack bandwidth, and Cisco StackPower for shared power and power redundancy across the stack. It stacks with other C9300 models, including mixed stacks with C9300X, and does not stack with C9300L, Catalyst 9200, or other series. StackWise and StackPower cables are ordered separately.

Both are 24-port modular-uplink switches at the Network Essentials tier, and they differ in PoE class. The 24P-E delivers PoE+ at up to 30 W per port, with a budget up to 720 W. The 24U-E delivers Cisco UPOE at up to 60 W per port, with a budget up to 1440 W, for higher-power endpoints such as pan-tilt-zoom cameras or multi-radio access points. Choose the 24U when endpoints need more than 30 W per port.

The two switches are identical hardware and differ only in license tier. The -E model ships with perpetual Network Essentials, which covers Layer 2 plus basic routed access such as static routing, RIP, EIGRP stub, OSPF for up to 1,000 routes, PBR, PIM stub multicast, and VRRP. The -A model ships with perpetual Network Advantage, which adds full OSPF, EIGRP, BGP, IS-IS, HSRP, VRF, VXLAN, LISP, and SGT segmentation. SD-Access is enabled by the term-based Cisco Catalyst subscription rather than the perpetual tier.

No. The switch runs on its included perpetual base license indefinitely. Under Cisco's ordering model, new switch orders include a term-based Cisco DNA or Cisco Catalyst software subscription of the same tier as the network license; that subscription unlocks Cisco Catalyst Center and cloud-managed features. When the subscription term ends, the switch continues operating on the perpetual base license capabilities after a reload.

Yes. Cisco's migration guidance positions the Catalyst 9300 as the successor to the end-of-sale Catalyst 3850. Migrating from a 3850 to the C9300-24P-E moves the access layer to Cisco IOS XE, StackWise-480 stacking, and StackPower, and existing Catalyst 3850 network modules remain compatible with the 9300.

Network Devices Inc. sells the C9300-24P-E as current, new, factory-sealed stock. Cisco publishes End-of-Sale and End-of-Life status for every Catalyst 9300 Series part number on its official End-of-Life and End-of-Sale Notices page for the series, which is the authoritative source for a specific SKU. Buyers standardizing on a platform for a multi-year refresh should confirm the current status there before ordering.

The C9300-24P-E is sold new and factory-sealed. It is covered by a Network Devices Inc. one-year warranty and a 30-day return policy.
