CISCO C9300-24P-A SWITCH
| Model: | C9300-24P-A |
| Detail: |
|
| List Price: | |
| Price: | $2,370.00 |
| You Save: | $4,701.41 (66% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

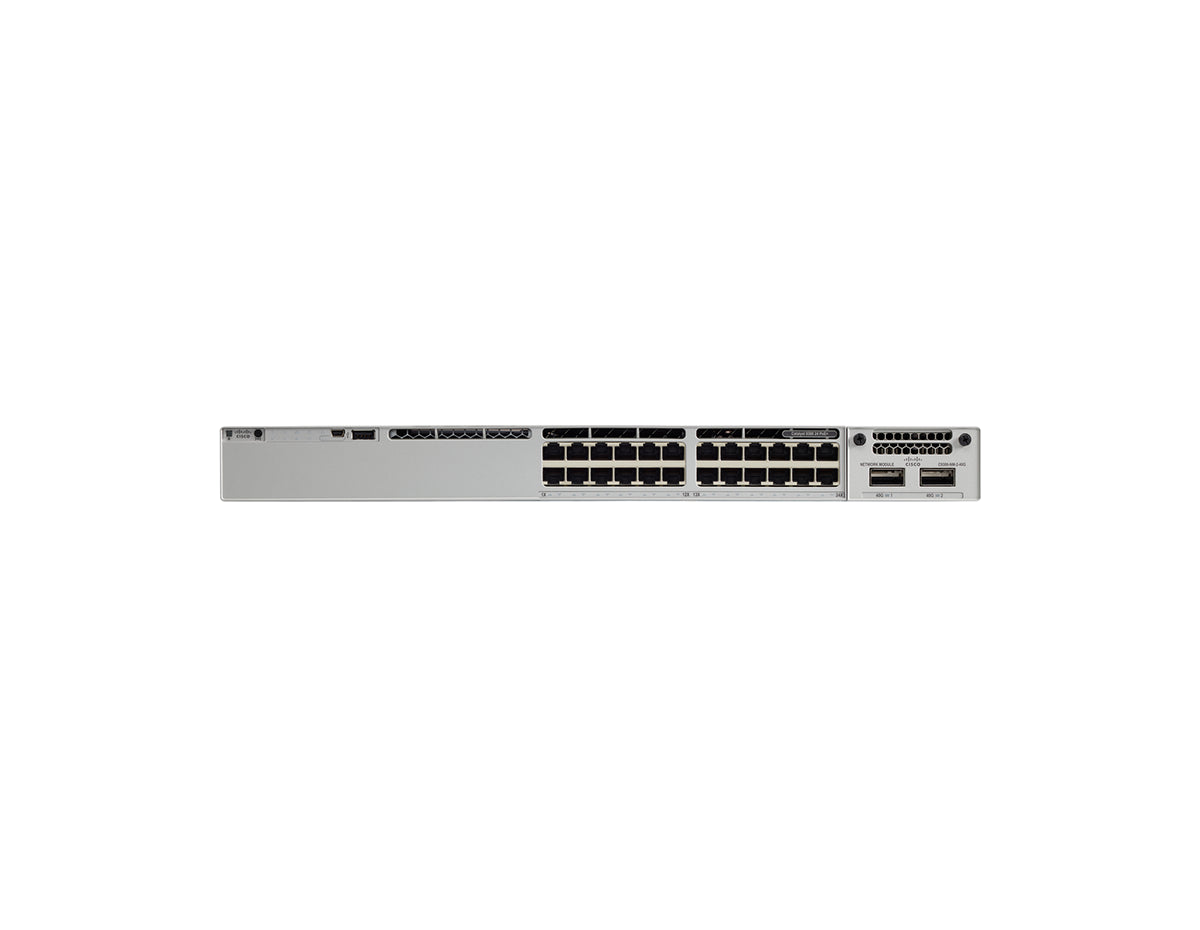

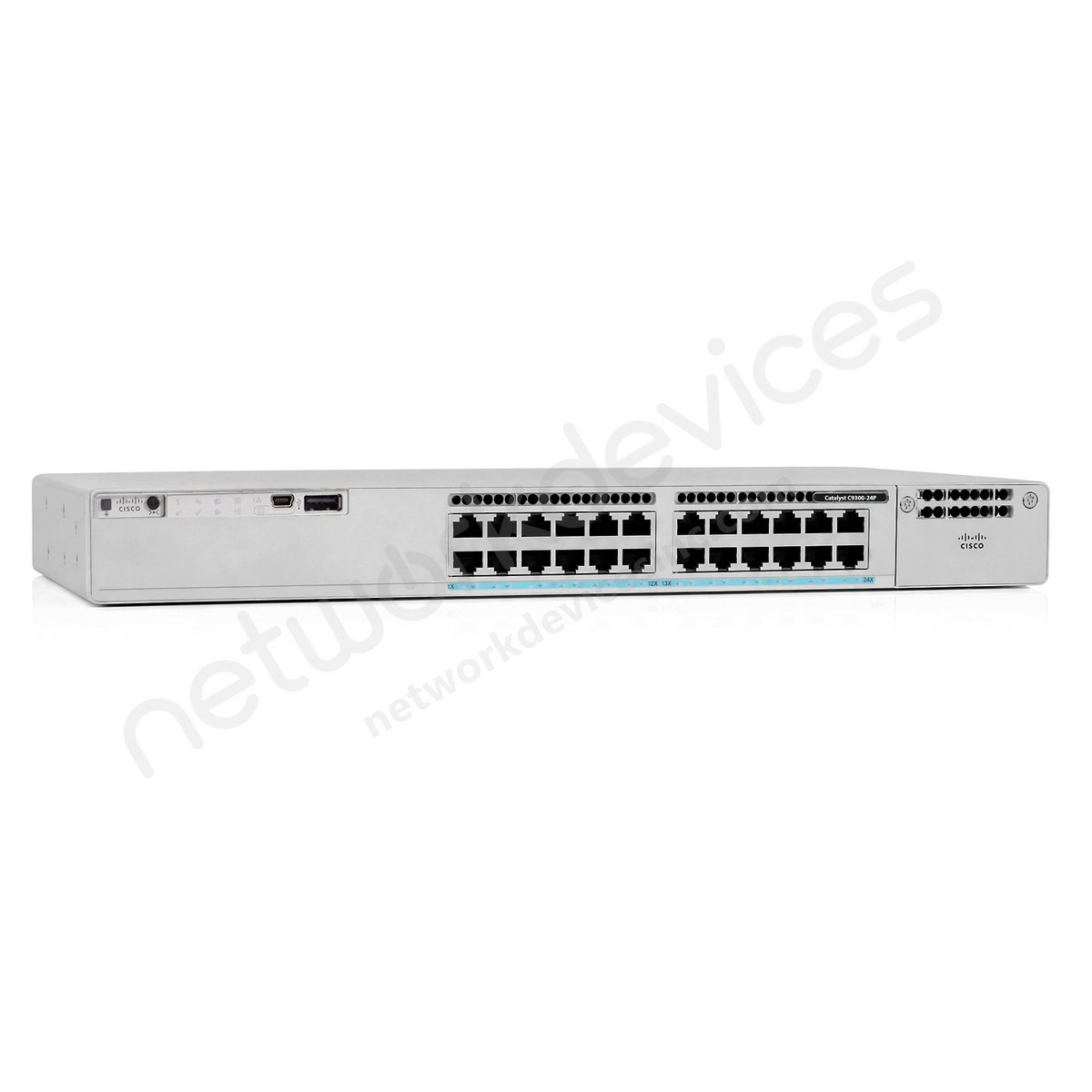

Cisco Catalyst C9300-24P-A Switch
The Cisco Catalyst C9300-24P-A Switch is an enterprise-class solution designed for organizations that need high-performance networking, advanced security, and reliable power delivery. Equipped with 24 Gigabit Ethernet ports with PoE+ support, this Layer 3 switch is perfect for powering devices like IP phones, cameras, and access points, ensuring seamless connectivity across your network. Its modular uplink options and advanced routing capabilities make it an ideal choice for scalable and flexible network architectures.
Key Features:
- 24 x Gigabit Ethernet Ports with PoE+: Delivers up to 30W per port, allowing efficient power delivery and high-speed data transmission to connected devices.
- Modular Uplinks: Supports a range of uplink options including 1G, 10G, and 40G, ensuring the switch can adapt to future network demands.
- Advanced Layer 3 Routing: Features protocols like OSPF, EIGRP, and BGP for dynamic routing and optimized network traffic management.
- StackWise-480 Technology: Provides up to 480 Gbps of stacking bandwidth, facilitating simplified management and high availability across stackable switches.
- Energy-Efficient Design: Complies with IEEE 802.3az standards, reducing power consumption while maintaining superior performance.
- Robust Security: Integrates MACsec encryption, access control lists (ACLs), and advanced security protocols to protect your network from unauthorized access.
Technical Overview:
- Recommended for: Enterprise environments, data centers, and large branch offices.

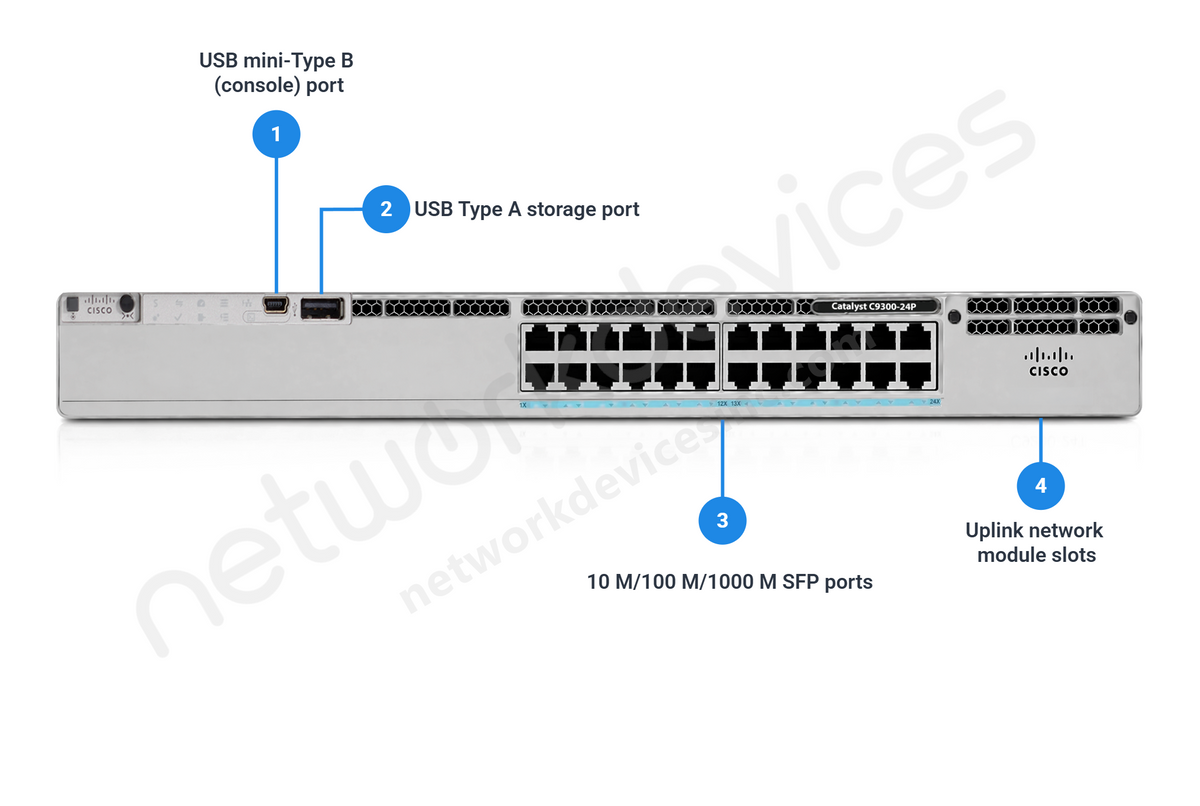

- Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet ports with PoE+ (up to 30W per port).
- Uplink Modules: Modular uplinks supporting 1G, 10G, and 40G for flexible network growth.
- Switching Capacity: 208 Gbps.
- Forwarding Rate: 154.76 Mpps.
- Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
- Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
- Licensing: Network Advantage.
- Security: MACsec encryption and advanced access control features.
- Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.
You can check the related tab for the C9300-24P-A datasheet.
Accessories
| Stacking Support | StackWise-480 |
| Stacking bandwidth support | 480 Gbps |
| Optional Stacking hardware‚ | StackWise Cable |
| Number of members |
8 |
| Supported stack members | Other C9300 SKUs with same license level C9300 higher scale SKUs only stack with other like higher scale models |
| Stacking accessories | |
| STACK-T1-50CM | Data stack 50 cm (cable option with C9300 and C9300X SKUs) |
| STACK-T1-1M | Data stack 1m (cable option with C9300 and C9300X SKUs) |
| STACK-T1-3M | Data stack 3m (cable option with C9300 and C9300X SKUs) |
Specifications
| Specifications | C9300-24P-A |
| DRAM | 8 GB |
| Flash Memory | 16 GB |
| Switching capacity | 208 Gbps |
| Forwarding rate‚ | 154.76 Mpps |
| MAC addresses | 32000 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic compatibility certifications |
47 CFR Part 15 EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386 EN 55035 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 |
| EMC ‚ compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A ‚ EN 55032 Class A ‚ CISPR 32 Class A ‚ AS/NZS 3548 Class A ‚ BSMI Class A ‚ (AC input models only) ‚ VCCI Class A ‚ EN 55024, EN300386, ‚ EN 61000-3-2, EN 61000-3-3 ‚ EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
Properties
| Properties | C9300-24P-A |
| Description | Catalyst 9300 24-port 1G copper with modular uplinks, PoE+, Network Advantage |
| Product Family | Catalyst 9300 |
| Product Type | Ethernet Switch |
| Number of Ports | 24 |
| Total 10/100/1000, Multigigabit copper or SFP Fiber | 24 port PoE+ |
| Uplink configuration | Modular Uplinks |
| Cisco IOS Software | Network Advantage |
| Default primary AC power supply |
715W AC |
| Available PoE power with additional secondary power supply |
720W |
| Fans | Three field-replaceable fans |
| Dimensions W/ Default Power Supply | 1.73 x 17.5 x 17.7 |
