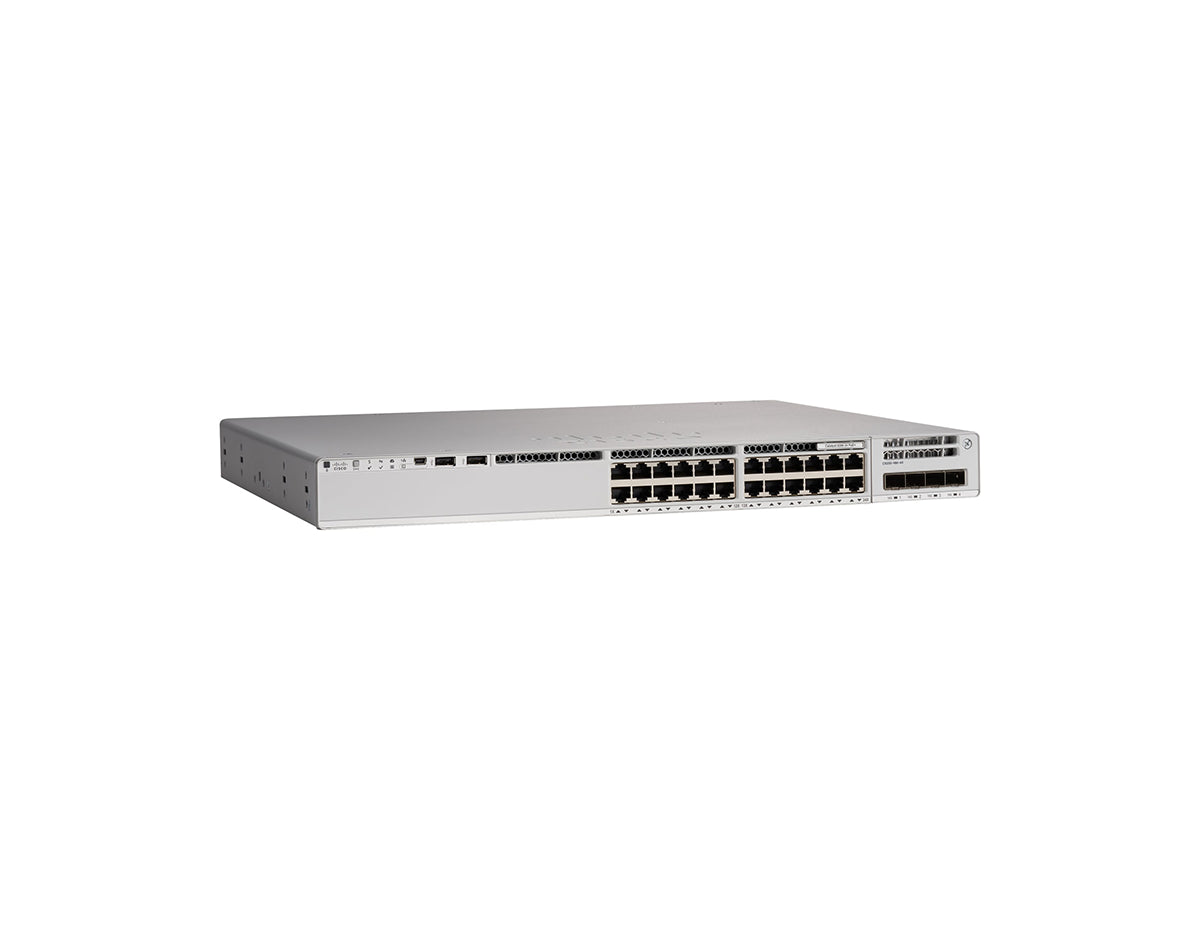

High-angle three-quarter view of the Cisco C9200L-24P-4G-A switch, showing the top of the chassis and the front panel with 24 PoE+ ports.

Cisco C9200L-24P-4G-A Switch – 24-Port PoE+, StackWise-80, Network Advantage

Name: Cisco C9200L-24P-4G-A Switch – 24-Port PoE+, StackWise-80, Network Advantage
Brand: Cisco
SKU: C9200L-24P-4G-A-NEW
Price: 1905.0 USD
Availability: InStock

Part Number: C9200L-24P-4G-A

Technical Details

Network Advantage switch L3 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) rack-mountable PoE+ (370 W)

$3,690.00

$1,905.00

48% OFF

You Save: $1,785.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

At a Glance

Ports: 24 × 10/100/1000 PoE+ Ethernet ports
Uplinks: 4 × 1G SFP fixed uplinks
Stacking: StackWise-80 with 80 Gbps bandwidth
PoE Budget: Up to 370W

Product Overview

The Cisco C9200L-24P-4G-A is a fixed-uplink, stackable Layer 3 switch built for enterprise-grade access deployments. Designed to simplify branch and campus access networks, it offers 24 full PoE+ ports and 4 fixed 1G SFP uplinks—ideal for connecting phones, access points, and IP cameras.

Running Cisco IOS XE with the Network Advantage license tier, it delivers advanced routing, secure segmentation, and automation via Cisco Catalyst Center. Built on the UADP 2.0 Mini ASIC, the switch ensures efficient wired and wireless convergence. The C9200L-24P-4G-A supports StackWise-80, enabling up to 8-member stacking for redundancy and management simplicity.

Technical Specifications

Hardware

Model: C9200L-24P-4G-A
Ports: 24 × 10/100/1000 PoE+ Ethernet ports
Uplinks: 4 × 1G SFP fixed uplink ports
Stacking Support: StackWise-80
Stacking Bandwidth: 80 Gbps
Power Supply: 1 × PWR-C5-600WAC (supports dual redundant PSUs)
PoE Budget: Up to 370W
Fan Modules: Fixed
Physical Dimensions: 1.73 × 17.5 × 12.9 in (4.4 × 44.5 × 32.9 cm)
Weight: 10.38 lbs (4.71 kg)

Performance

Switching Capacity: 56 Gbps
Forwarding Rate: 41.67 Mpps
DRAM: 2 GB
Flash Memory: 4 GB
VLAN Support: 4096 VLANs
MAC Address Table Size: 16,000 entries
Jumbo Frame Support: Up to 9198 bytes

Software & Features

Operating System: Cisco IOS XE
License Tier: Network Advantage
Routing Protocols: OSPF, EIGRP, RIP, IS-IS, VRF
Security Features: 802.1X, SGT, TrustSec, MACsec (128-bit), ACLs

Frequently Asked Questions

What uplinks are included on the C9200L-24P-4G-A?

It comes with 4 fixed 1G SFP uplink ports.

Is the power supply replaceable?

Yes, the C9200L series uses field-replaceable power supplies and supports dual redundant PSUs for high availability.

Can this switch be stacked with other Cisco switches?

Yes. It supports StackWise-80 and can stack with other C9200L models (up to 8 switches).

What is the total PoE budget available?

With the default 600W PSU, the switch provides up to 370W. A second 600W PSU can be added to increase the total PoE budget to 740W.

Properties

Properties	C9200L-24P-4G-A
Description	Catalyst 9200L 24-port PoE+ 4x1G uplink Switch, Network Advantage
Product Family	Catalyst 9200L
Product Type	Ethernet Switch
Number of Ports	24
Downlinks total 10/100/1000 or PoE+ copper ports	24 ports full PoE+
Uplink configuration	4x 1G fixed uplinks
Cisco IOS Software	Network Advantage
Default primary AC power supply	PWR-C5-600WAC
Available PoE power with additional secondary power supply	740W
Fans	Fixed redundant
Chassis + FEP + Fan Dimensions (HxWxD) Inches	1.73 x 17.5 x 12.9

Specifications

Specifications	C9200L-24P-4G-A
Console Ports	RJ45 or mini USB connectors
DRAM	2 GB
Flash Memory	4 GB
Switching capacity	56 Gbps
Forwarding rate	41.67 Mpps
MAC addresses	16,000
VLAN IDs	4096
Operating Temperature Up to 5,000 ft (1500 m)	-5°C to +45°C
Operating Temperature Up to 10,000 ft (3000 m)	-5°C to +40°C
Safety Certifications	IEC 60950-1/62368-1, UL 60950-1/62368-1, CAN/CSA C22.2 No. 60950-1/62368-1, EN 60950-1/62368-1, AS/NZS 60950.1, AS/NZS 62368.1, Class I Equipment
Environmental	Reduction of Hazardous Substances (ROHS) 5

Accessories

Stacking Support	StackWise-80
Stacking bandwidth support	80 Gbps
Stacking hardware	C9200L-STACK-KIT
Number of members	8
Supported stack members	Other C9200L models with the same license level

Stacking accessories
C9200L-STACK-KIT	Stack kit for C9200L SKUs only: Two data stack adapters and one data stack cable
STACK-T4-50CM	Data stack 50 cm cable (default cable with Stack Kit)
STACK-T4-1M	Data stack 1 m cable
STACK T4-3M	Data stack 3 m cable
