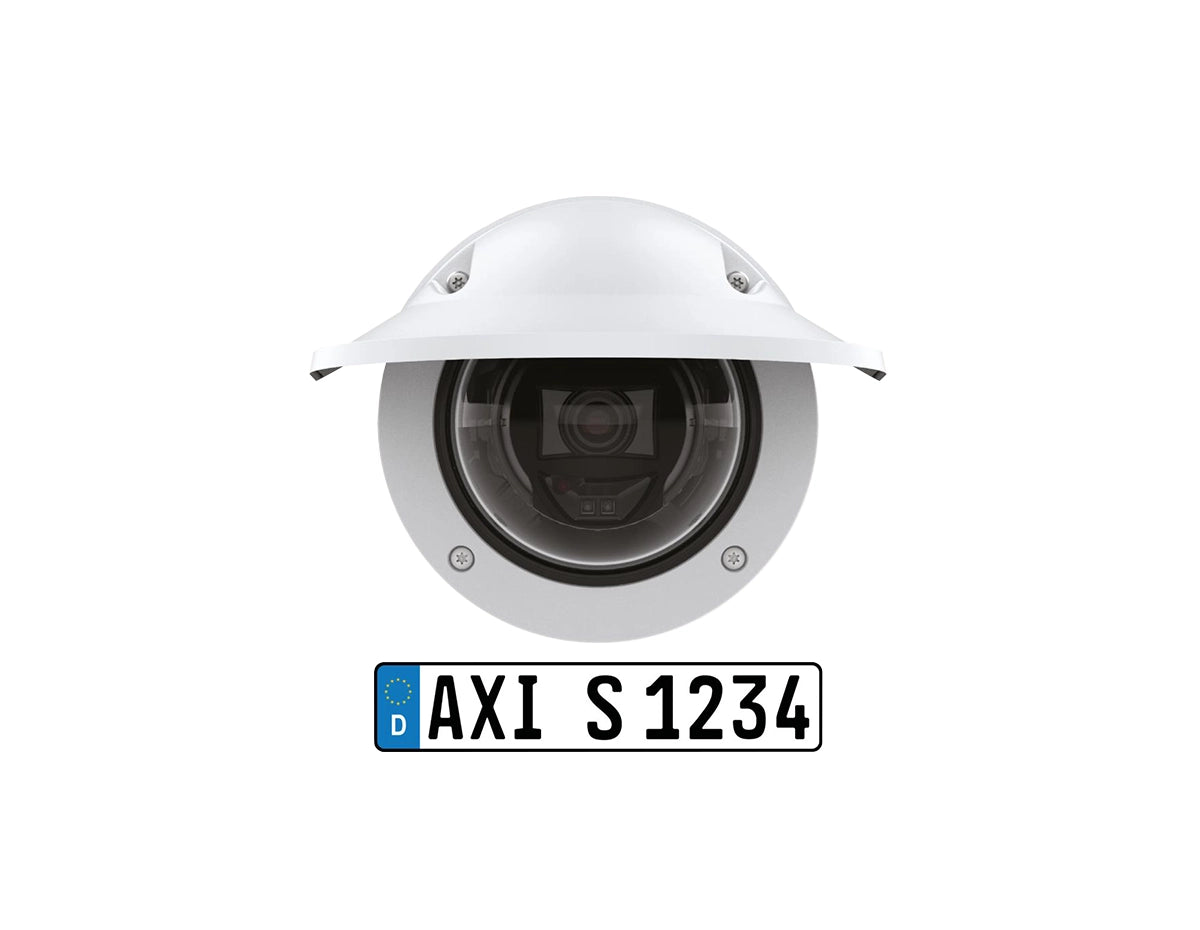

AXIS P3265-LVE-3 LICENSE PLATE VERIFIER KIT
| Model: | 02812-001 |
| Detail: |
|
| List Price: | |
| Price: | $1,175.00 |
| You Save: | $114.00 (9% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
Please check the supported countries Visit www.axis.com for supported products and application download. Discreet outdoor, HDTV / 1080p, day/night, dust- and IK10 vandal-resistant fixed dome camera with built-in AXIS License Plate Verifier application. Detect and verify vehicles in single lanes with speed up to 30 km/h (19 mph) in 2 to 7 meter distance (7 to 23 feet) to allow vehicle entry/exit into a controlled area. I/O port for direct control, built-in block and allow lists of up to 1000 license plates. License plate reading time less than 1 second. OptimizedIR, Forensic WDR, Lightfinder, shock detection, IK10, IP66/67. Operation temperature -40 degreeC to +50 degreeC (-40 degreeF to 122 degreeF). Includes mounting bracket for wall/ceiling or junction boxes. License plate verification day and night. Powered by IEEE 802.3af Type 1 Class 3 midspan (PoE). Midspan not included.
| Feature | AXIS P3265-LV | AXIS P3265-LVE | AXIS P3265-LVE-3 | AXIS P3265-V | AXIS P3267-LV | AXIS P3267-LVE | AXIS P3268-LV | AXIS P3268-LVE |
|---|---|---|---|---|---|---|---|---|
| Max video resolution | 1920x1080 | 1920x1080 | 1920x1080 | 1920x1080 | 2592x1944 | 2592x1944 | 3840x2160 | 3840x2160 |
| Horizontal field of view | 100-36 | 100-36 / 35-15 | 100-36 | 100-36 | 104 - 40 | 104 - 40 | 100 - 53 | 100 - 53 |
| OptimizedIR | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Day and Night functionality | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Remote zoom | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Remote focus | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Audio Support | ✓ | ✓ | ✓ | ✓ | ✓ | |||
| Alarm inputs/outputs | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 |
| Lightfinder | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR |
| Zipstream | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Vandal rating | IK10 | IK10 | IK10 | IK10 | IK10 | IK10 | IK10 | IK11 |
| Analytics compute capability | DLPU | DLPU | DLPU | DLPU | DLPU | DLPU | DLPU | DLPU |
| Axis Edge Vault | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Accessories
| Optional accessories | • AXIS TP3201-E Recessed Mount • AXIS TP3103–E Pendant Kit • AXIS T94K01D Pendant Kit • AXIS T8355 Digital Microphone 3.5 mm • AXIS Surveillance Cards |
Specifications
| Specifications | AXIS P3265-LVE-3 License Plate Verifier Kit |
| Camera | |
| Image sensor | 1/2.8” progressive scan RGB CMOS |
| Lens | Varifocal, 3.4–8.9 mm, F1.8 |
| Horizontal field of view: 100°–36° | |
| Vertical field of view: 53°–20° | |
| Minimum focus distance: 0.5 m (1.6 ft) | |
| IR corrected, remote zoom and focus, P-Iris control | |
| Day and night | Automatic IR-cut filter |
| Hybrid IR filter | |
| Minimum illumination | With Lightfinder 2.0: |
| Color: 0.1 lux at 50 IRE, F1.8/1.6 | |
| B/W: 0.02 lux at 50 IRE, F1.8/1.6 | |
| 0 lux with IR illumination on | |
| Shutter speed | 1/66500 s to 2 s |
| Camera angle adjustment | Pan ±180°, tilt +75°, rotation ±175° |
| System on chip (SoC) | |
| Model | ARTPEC-8 |
| Memory | 1024 MB RAM, 8192 MB Flash |
| Compute capabilities | Deep learning processing unit (DLPU) |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Resolution | 16:9: 1920x1080 to 160x90 |
| 16:10: 1440x900 to 160x100 | |
| 4:3: 1440x1080 to 160x120 | |
| Frame rate | With WDR: Up to 25/30 fps (60/50 Hz) in all resolutions |
| Without WDR: Up to 50/60 fps (60/50 Hz) in all resolutions | |
| Video streaming | Up to 20 unique and configurable video streams* Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode Video streaming indicator |
| *: We recommend a maximum of 3 unique video streams per camera or channel, for optimized user experience, network bandwidth, and storage utilization. A unique video stream can be served to many video clients in the network using multicast or unicast transport method via built-in stream reuse functionality. | |
| Signal-to-noise ratio | >55 dB |
| WDR | Forensic WDR: Up to 120 dB depending on scene |
| WDR – forensic capture | |
| Multi-view streaming | 2 individually cropped out view areas |
| Noise reduction | Spatial filter (2D noise reduction) |
| Temporal filter (3D noise reduction) | |
| Image settings | Saturation, contrast, brightness, sharpness, white balance, |
| day/night threshold, local contrast, tone mapping, exposure | |
| mode, exposure zones, defogging, compression, rotation: 0°, | |
| 180° including mirroring, text and image overlay, dynamic text | |
| and image overlay, privacy masks, polygon privacy mask, target | |
| aperture | |
| Image processing | Axis Zipstream, Lightfinder 2.0, OptimizedIR |
| Pan/Tilt/Zoom | Digital PTZ, preset positions |
| Audio | |
| Audio features | AGC automatic gain control |
| Network speaker pairing | |
| Audio streaming | Configurable duplex: Two-way (half duplex, full duplex) |
| Audio input | 10-band graphic equalizer |
| Input for external unbalanced microphone, optional 5 V | |
| microphone power | |
| Digital input, optional 12 V ring power | |
| Unbalanced line input | |
| Audio output | Output via network speaker pairing |
| Line output | |
| Audio encoding | 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 |
| ADPCM 8 kHz, Opus 8/16/48 kHz | |
| Configurable bit rate | |
| Network | |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS*, HTTP/2, TLS*, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX®, metadata, |
| and AXIS Camera Application Platform (ACAP); specifications at | |
| axis.com/developer-community. ACAP includes Native SDK and | |
| Computer Vision SDK. | |
| One-click cloud connection | |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and | |
| ONVIF® Profile T, specifications at onvif.org | |
| Support for Session Initiation Protocol (SIP) for integration with | |
| Voice over IP (VoIP) systems, peer to peer or integrated with | |
| SIP/PBX. | |
| Video management systems | Compatible with AXIS Companion, AXIS Camera Station, video |
| management software from Axis’ Application Development | |
| Partners available at axis.com/vms | |
| Onscreen controls | Day/night shift |
| Defogging | |
| Wide dynamic range | |
| Video streaming indicator | |
| IR illumination | |
| Heater | |
| Event conditions | Application |
| Audio: audio clip playing | |
| Device status: above operating temperature, above or below | |
| operating temperature, below operating temperature, within | |
| operating temperature, IP address removed, new IP address, | |
| network lost, system ready, ring power overcurrent protection, | |
| live stream active | |
| Digital audio input status | |
| Edge storage: recording ongoing, storage disruption, storage | |
| health issues detected | |
| I/O: digital input, manual trigger, virtual input, digital output | |
| MQTT: stateless | |
| Scheduled and recurring: schedule | |
| Video: average bitrate degradation, day-night mode, tampering | |
| Event actions | Audio clips: play, stop |
| Day-night mode | |
| Defog | |
| I/O: toggle I/O once, toggle I/O while the rule is active | |
| Illumination: use lights, use lights while the rule is active | |
| MQTT: publish | |
| Notification: HTTP, HTTPS, TCP and email | |
| Overlay text | |
| Recordings: SD card and network share | |
| SNMP traps: send, send while the rule is active | |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network | |
| share and email | |
| WDR mode | |
| Built-in installation aids | Pixel counter, remote zoom and focus, straighten image, level |
| grid | |
| Analytics | |
| Metadata | Object data: Classes: humans, faces, vehicles (types: cars, buses, |
| trucks, bikes), license plates | |
| Confidence, position | |
| Attributes: Vehicle color, upper/lower clothing color, confidence, | |
| position | |
| Event data: Producer reference, scenarios, trigger conditions | |
| Applications | Included |
| AXIS License Plate Verifier | |
| AXIS Video Motion Detection, active tampering alarm, audio | |
| detection | |
| Supported | |
| Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap | |
| Approvals | |
| Product markings | CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM |
| Supply chain | TAA compliant |
| EMC | CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, |
| EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, | |
| EN 61000-6-2 | |
| Australia/New Zealand: RCM AS/NZS CISPR 32 Class A | |
| Canada: ICES-3(A)/NMB-3(A) | |
| Japan: VCCI Class A | |
| Korea: KS C 9835, KS C 9832 Class A | |
| USA: FCC Part 15 Subpart B Class A | |
| Railway: IEC 62236-4 | |
| Safety | CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, |
| IEC/EN 62471 risk group exempt, IS 13252 | |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, |
| IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, | |
| IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) | |
| Network | NIST SP500-267 |
| Cybersecurity | |
| Edge security | Software: Signed firmware, brute force delay protection, digest |
| authentication, password protection, AES-XTS-Plain64 256bit | |
| SD card encryption | |
| Software: Signed firmware, brute force delay protection, digest | |
| authentication and OAuth 2.0 RFC6749 OpenID Authorization | |
| Code Flow for centralized ADFS account management, password | |
| protection, AES-XTS-Plain64 256bit SD card encryption | |
| Hardware: Secure boot, Axis Edge Vault with Axis device ID, | |
| signed video, secure keystore (CC EAL4+ certified hardware | |
| protection of cryptographic operations and keys) | |
| Secure element (CC EAL 6+), secure keystore, secure bootSecure | |
| boot, Axis Edge Vault with Axis device ID, signed video, | |
| secure keystore (CC EAL4+ certified hardware protection of | |
| cryptographic operations and keys) | |
| Secure element (CC EAL 6+), system-on-chip security (TEE), Axis | |
| device ID, secure keystore, signed video, secure boot, encrypted | |
| filesystem (AES-XTS-Plain64 256bit)Secure boot, Axis Edge Vault | |
| with Axis device ID, signed video, secure keystore (CC EAL4+ | |
| certified hardware protection of cryptographic operations and | |
| keys) | |
| Hardware: , Axis Edge Vault with Axis device ID, signed video, | |
| secure keystore (CC EAL4+ certified hardware protection of | |
| cryptographic operations and keys) | |
| Secure element (CC EAL 6+), secure keystore, secure boot, Axis | |
| Edge Vault with Axis device ID, signed video, secure keystore (CC | |
| EAL4+ certified hardware protection of cryptographic operations | |
| and keys) | |
| Secure element (CC EAL 6+), system-on-chip security (TEE), Axis | |
| device ID, secure keystore, signed video, secure boot, encrypted | |
| filesystem (AES-XTS-Plain64 256bit), Axis Edge Vault with Axis | |
| device ID, signed video, secure keystore (CC EAL4+ certified | |
| hardware protection of cryptographic operations and keys) | |
| Hardware: , signed video, secure keystore (CC EAL4+ certified | |
| hardware protection of cryptographic operations and keys) | |
| Secure element (CC EAL 6+), secure keystore, secure boot, signed | |
| video, secure keystore (CC EAL4+ certified hardware protection | |
| of cryptographic operations and keys) | |
| Hardware: Axis Edge Vault cybersecurity platform | |
| Secure element (CC EAL 6+), secure keystore, secure bootAxis | |
| Edge Vault cybersecurity platform | |
| Secure element (CC EAL 6+), system-on-chip security (TEE), | |
| Axis device ID, secure keystore, signed video, secure boot, | |
| encrypted filesystem (AES-XTS-Plain64 256bit), signed video, | |
| secure keystore (CC EAL4+ certified hardware protection of | |
| cryptographic operations and keys) | |
| Network security | IEEE 802.1X (EAP-TLS)b , IEEE 802.1AR, HTTPS/HSTSb , TLS v1.2/v1.3b , Network Time Security (NTS), X.509 Certificate PKI, IP address filtering IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)b , IEEE 802.1AR, HTTPS/HSTSb , TLS v1.2/v1.3b , Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| Documentation | AXIS Hardening Guide |
| AXIS Vulnerability Management Policy | |
| AXIS Security Development Model | |
| AXIS OS Software Bill of Material (SBOM) | |
| To download documents, go to axis.com/support/cybersecurity/resources | |
| To read more about Axis cybersecurity support, go to axis.com/cybersecurity | |
| General | |
| Casing | IP66-, NEMA 4X- and IK10-rated |
| Polycarbonate hard-coated dome | |
| Polycarbonate (PC) casing and weathershield | |
| Color: white NCS S 1002-B | |
| For repainting instructions, go to the product’s support | |
| page. For information about the impact on warranty, go to | |
| axis.com/warranty-implication-when-repainting. | |
| Mounting | Mounting bracket with junction box holes (double-gang, |
| single-gang, 4” square, and 4” octagon) | |
| ¼”-20 UNC tripod screw thread | |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Typical 4.8 W, max 10.7 W | |
| Connectors | Network: RJ45 10BASE-T/100BASE-TX PoE |
| I/O: 4-pin 2.5 mm terminal block for 1 digital input and 1 output | |
| (12 V DC output, max. load 25 mA) | |
| Audio: 4-pin 2.5 mm terminal block for audio in and out | |
| IR illumination | OptimizedIR with power-efficient, long-life 850 nm IR LEDs |
| Range of reach 40 m (130 ft) or more depending on the scene | |
| Storage | Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) | |
| Recording to network-attached storage (NAS) | |
| For SD card and NAS recommendations see axis.com | |
| Operating conditions | (-40°C to 50 °C) (-40 °F to 122 °F) |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C | |
| (165 °F) | |
| Start-up temperature: -30 °C to 50 °C (-22 °F to 122 °F) | |
| Humidity 10–100% RH (non-condensing) | |
| Storage conditions | (-40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) | |
| Dimensions | Without weathershield: |
| Height: 104 mm (4.09 in) | |
| ø 149 mm (5.87 in) | |
| Weight | With weathershield: |
| 800 g (1.8 lb) | |
| System tools | AXIS Site Designer, AXIS Device Manager, product selector, |
| accessory selector, lens calculator | |
| Available at axis.com | |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese | |
| English, German, French, Spanish, Italian, Russian, Simplified | |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional | |
| Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, | |
| Vietnamese | |
| Sustainability | |
| Substance control | PVC free in accordance with JEDEC/ECA Standard JS709 |
| RoHS in accordance with EU RoHS Directive 2011/65/EU/ and | |
| EN 63000:2018 | |
| REACH in accordance with (EC) No 1907/2006. For SCIP UUID, | |
| see echa.europa.eu | |
| Materials | Screened for conflict minerals in accordance with OECD |
| guidelines | |
| To read more about sustainability at Axis, go to | |
| axis.com/about-axis/sustainability | |
Properties
| Properties | AXIS P3265-LVE-3 License Plate Verifier Kit |
| Description |
The AXIS M3057-PLR Mk II Dome Camera is a rugged 6 MP panoramic onboard surveillance camera designed for the transportation industry. With a complete 180° or 360° overview, advanced features like Forensic WDR and OptimizedIR, and built-in cybersecurity, it ensures high-quality, secure monitoring in challenging environments. |
| Product Family | AXIS P3265-LVE-3 License Plate Verifier Kit |
| Product Type | Camera |
| AXIS License Plate Verifier - Features | |
| Application | |
| Compute platform | Edge |
| Licenses | Configuration |
| Settings | Define area of interest in scene. Allow- and blocklist logic. Barrier mode: Open to all, open to allowlisted, open to all but blocklisted. Minimum width: 130 pixels for one-row license plates; 70 pixels for two-row license plates. FIFO event log entries including thumbnail image of license plate. Up to 1000 entries on camera storage. Up to 100 000 entries on AXIS Surveillance Cards. Configurable retention time of stored events |
| Detection range | 2.0 to 7.0 m (6.6 to 23 ft) |
| Vehicle speed | Up to 30 km/h (19 mph) |
| Detection time | Less than 1 second. |
| Scenarios | |
| Typical applications | Vehicle access control In Access control, the application monitors entrances and exits of gated areas such as parking areas. The application verifies detected license plates against an allowlist or a blocklist for granting or denying access to an area. Maximum 10,000 license plates in each list. For a scenario where greater functionality and flexibility are required, use AXIS A1001 Network Door Controller. AXIS A1001 with AXIS Entry Manager software supports access rules including schedules and a more detailed event log. Multiple partner software that support a great number of credentials and features are available. License plate recognition in slow speed traffic In Freeflow, the application can detect and read license plates in slow speed traffic on larger access roads, city centers and enclosed areas like campuses, ports or airports. This allows for LPR-forensic search and LPR triggered events in a VMS such as AXIS Camera Station. |
| System integration | |
| Application Programming Interface | Open API for software integration. |
| Event streaming | Integrates with camera event management system to enable event streaming to management software and camera actions such as I/O control, notification, and edge storage. |
| Supported devices | Direct integration with AXIS A1001 Network Door Controller, AXIS A91 Network I/O Relay Modules, AXIS A1601 Network Door Controller, and 2N IP Device |
| Languages | English |
INTERNATIONAL -
International buyers must acknowledge that all duties and taxes are their sole responsibility and Network Devices Inc is not held responsible for possible additional charges.
DOMESTIC -
Products are shipped Monday through Friday via UPS/FedEx/USPS. The estimated delivery time is 1-6 business days depending on location. If “Free Shipping” is offered, it will be by Ground only and within USA Continental States Only (48 States). There will be a surcharge on shipments to Hawaii, Alaska, Puerto Rico and APO/FPO addresses. After you have made a purchase, the surcharge will be calculated using the parcel’s weight and size. Network Devices Inc ships the product the same day of receiving an order. Otherwise you will a receive notification of delay or cancellation of said order.
International buyers must acknowledge that all duties and taxes are their sole responsibility and Network Devices Inc is not held responsible for possible additional charges.
DOMESTIC -
Products are shipped Monday through Friday via UPS/FedEx/USPS. The estimated delivery time is 1-6 business days depending on location. If “Free Shipping” is offered, it will be by Ground only and within USA Continental States Only (48 States). There will be a surcharge on shipments to Hawaii, Alaska, Puerto Rico and APO/FPO addresses. After you have made a purchase, the surcharge will be calculated using the parcel’s weight and size. Network Devices Inc ships the product the same day of receiving an order. Otherwise you will a receive notification of delay or cancellation of said order.
