| Specifications |

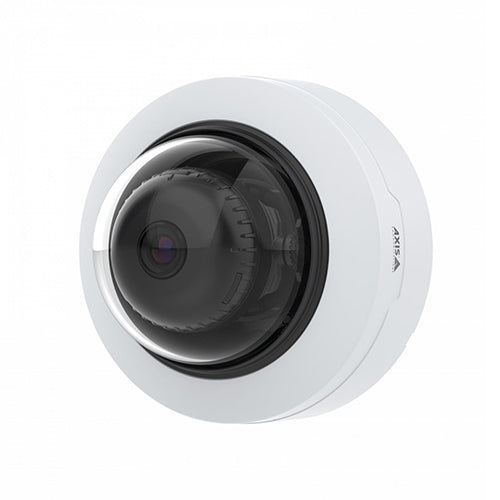

AXIS P3265-V Dome Camera |
| Camera |
| Image sensor |
1/2.8” progressive scan RGB CMOS |
| Lens |
Varifocal, 3.4–8.9 mm, F1.8 |
| Horizontal field of view: 100°-36° |
| Vertical field of view: 53°-20° |
| Minimum focus distance: 50 cm (20 in) |
| IR corrected, remote zoom and focus, P-Iris control |
| Day and night |
Automatically removable infrared-cut filter |
| Minimum illumination |
With Forensic WDR and Lightfinder 2.0: |
| Color: 0.1 lux at 50 IRE, F1.8 |
| B/W: 0.02 lux at 50 IRE, F1.8 |
| Shutter speed |
1/66500 s to 2 s |
| Camera angle adjustment |
Pan ±180° |
| Tilt ±75° |
| Rotation ±175° |
| System on chip (SoC) |
| Model |
ARTPEC-8 |
| Memory |
1024 MB RAM, 8192 MB Flash |
| Compute capabilities |
Deep learning processing unit (DLPU) |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Motion JPEG |
| Resolution |
1920x1080 to 160x90 |
| Frame rate |
With WDR: 25/30 fps with power line frequency 50/60 Hz |
| Without WDR: 50/60 fps with power line frequency 50/60 Hz |
| Video streaming |
Multiple, individually configurable streams in H.264, H.265, and |
| Motion JPEG |
| Axis Zipstream technology in H.264 and H.265 |
| Controllable frame rate and bandwidth |
| VBR/ABR/MBR H.264/H.265 |
| Video streaming indicator |
| Multi-view streaming |
Up to 2 individually cropped out view areas in full frame rate |
| Image settings |
Saturation, contrast, brightness, sharpness, Forensic WDR: up to 120 dB depending on scene, white balance, day/night threshold, local contrast, tone mapping , exposure mode, exposure zones, defogging, barrel distortion correction, compression, rotation: 0°, 90°, 180°, 270° including Corridor Format, mirroring, dynamic text and image overlay, privacy masks, polygon privacy mask |
| Pan/Tilt/Zoom |
Digital PTZ, preset positions |
| Audio |
| Audio streaming |
Two-way, full duplex |
| Audio encoding |
24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, |
| G.726 ADPCM 8 kHz, Opus 8/16/48 kHz |
| Configurable bit rate |
| Audio output/output |
External microphone input, line input, digital input with ring |
| power, line output, automatic gain control |
| Network |
| Security |
Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot signed video, Axis Edge Vault, Axis device ID |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Supported protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS*, HTTP/2, TLS*, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com |
| One-click cloud connection |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and |
| ONVIF® Profile T, specification at onvif.org |
| Support for Session Initiation Protocol (SIP) for integration with |
| Voice over IP (VoIP) systems, peer to peer or integrated with |
| SIP/PBX. |
| Onscreen controls |
Day/night shift |
| Defogging |
| Wide dynamic range |
| Video streaming indicator |
| Event conditions |
Analytics, external input, supervised external input, virtual inputs through API |
| Audio: audio clip playing, audio clip currently playing |
| Call: state, state change |
| Device status: above operating temperature, above or below |
| operating temperature, below operating temperature, within |
| operating temperature, IP address removed, new IP address, |
| network lost, system ready, ring power overcurrent protection, |
| live stream active |
| Digital audio: digital signal contains Axis metadata, digital signal |
| has invalid sample rate, digital signal missing, digital signal okay |
| Edge storage: recording ongoing, storage disruption, storage |
| health issues detected |
| I/O: digital input, manual trigger, virtual input |
| MQTT: subcribe |
| Scheduled and recurring: schedule |
| Video: average bitrate degradation, day-night mode, live stream |
| open, tampering |
| Event actions |
Overlay text, external output activation, play audio clip, zoom |
| preset, day/night mode, flash status LED, use lights, set defog |
| mode, set WDR mode |
| Calls: end SIP call, make SIP call, answer call |
| I/O: toggle I/O once, toggle I/O while the rule is active |
| MQTT: publish |
| Notification: email, HTTP, HTTPS, TCP, and SNMP trap |
| Pre- and post-alarm video or image buffering for recording or upload |
| Record video: SD card and network share |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share, and email |
| Data streaming |
Event data |
| Built-in installation aids |
Remote zoom and focus, straighten image, pixel counter, level grid |
| Analytics |
| AXIS Object Analytics |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
| Trigger conditions: line crossing, object in area |
| Up to 10 scenarios |
| Metadata visualized with color-coded bounding boxes |
| Polygon include/exclude areas |
| Perspective configuration |
| ONVIF Motion Alarm event |
| Applications |
Included |
| AXIS Object Analytics |
| AXIS Video Motion Detection, active tampering alarm, audio |
| detection |
| Support for AXIS Camera Application Platform enabling |
| installation of third-party applications, see axis.com/acap |
| General |
| Casing |
IP52- and IK10-rated |
| Polycarbonate hard coated dome |
| Polycarbonate casing |
| Color: white NCS S 1002-B |
| For repainting instructions, go to the product’s support |
| page. For information go to |
| axis.com |
| Mounting |
Mounting bracket with junction box holes (double-gang, |
| single-gang, and 4” octagon) and for wall or ceiling mount |
| ¼”-20 UNC tripod screw thread |
| Sustainability |
PVC and BFR/CFR free, 26.6% recycled plastics |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 |
| Typical 3 W, max 5.1 W |
| Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
| I/O: 4-pin 2.5 mm (0.098 in) terminal block for 1 supervised |
| digital input and 1 digital output (12 V DC output, max. load 25 mA) |
| Audio: 4-pin 2.5 mm (0.098 in) terminal block for audio in and out |
| Storage |
Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) |
| Recording to network-attached storage (NAS) |
| For SD card and NAS recommendations see axis.com |
| Operating conditions |
(0 °C to 50 °C) (32 °F to 122 °F) |
| Humidity 10–85% RH (non-condensing) |
| Storage conditions |
(-40 °C to 65 °C) (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) |
| Approvals |
EMC |
| EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, |
| EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, |
| FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, |
| KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, |
| VCCI Class A |
| Safety |
| CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 |
| Environment |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, |
| IEC 60068-2-27, IEC 60068-2-78 |
| IEC/EN 60529 IP52, IEC/EN 62262 IK10 |
| Network |
| NIST SP500-267 |
| Dimensions |
Height: 103 mm (4.06 in) |
| ø 149 mm (5.87 in) |
| Weight |
650 g (1.4 lb) |
| Included accessories |
Installation guide, Windows® decoder 1-user license, drill template, RESISTORX® T20 L-key, terminal block connectors, cable gaskets, connector guard |
| Video management software |
AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available |
| at axis.com/vms |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese |
