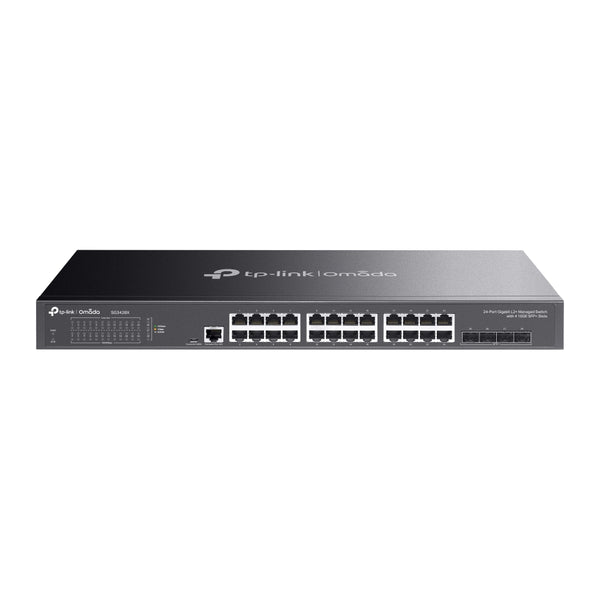

TP-Link Omada SG3428X 24-Port Gigabit L2+ Managed Switch

High-Bandwidth Switching with Silent Operation

The TP-Link Omada SG3428X is a 24-port Gigabit L2+ managed switch with 4 high-speed 10G SFP+ slots, built for modern enterprise networks that need performance, scalability, and quiet efficiency. With centralized Omada SDN cloud management and a fanless metal chassis, it delivers robust networking power without noise.

Key Benefits & Features

• 10G Uplink Performance: Four SFP+ slots enable lightning-fast fiber or copper uplinks for seamless aggregation.
• Silent, Reliable Design: Fanless architecture ensures noise-free operation ideal for office or branch deployments.
• Advanced Layer 2+ Routing: Static routing optimizes internal traffic flow and reduces reliance on core routers.
• Cloud & Local Management: Manage via Omada SDN Controller, Omada app, or traditional CLI/SNMP for flexible administration.
• Enterprise-Grade Security: VLAN, ACL, QoS, IGMP Snooping, and DoS defense provide safe and optimized data handling.

Ideal Use Cases

• Medium-to-large offices seeking high-density Gigabit access with 10G uplinks
• Branch networks requiring silent, rackmountable switches for workspace environments
• Managed service providers delivering SDN-enabled deployments with remote control
• Campus or hospitality networks needing VLAN, QoS, and multicast support

Technical Specifications

• Ports: 24× 10/100/1000 Mbps RJ45, 4× 10G SFP+
• Console: 1× RJ45, 1× Micro-USB
• Switching Capacity: 128 Gbps
• Forwarding Rate: 95.23 Mpps
• MAC Address Table: 16K entries
• Buffer Memory: 12 Mbit
• Jumbo Frame: 9 KB
• Power Consumption: Max 23.6 W
• Dimensions: 440 × 180 × 44 mm (1U rackmount)
• Design: Fanless, durable metal casing

Upgrade Your Network with SG3428X

Boost your infrastructure with the TP-Link Omada SG3428X. Powerful, quiet, and cloud-ready. Order today to transform your enterprise network.

Model	TP-Link SG3428X
Product Type	L2+ Managed Gigabit Switch
Ports	24× 10/100/1000 Mbps RJ45 Ports; 4× 10G SFP+ Slots
Console Ports	1× RJ45 Console Port; 1× Micro-USB Console Port
Switching Capacity	128 Gbps
Forwarding Rate	95.23 Mpps
MAC Address Table	16K
Packet Buffer	12 MB
Jumbo Frame	9 KB
Design	Fanless, Rackmountable Metal Casing
Dimensions (W × D × H)	440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in)
Weight	5.5 lb
Power Supply	100-240 V AC, 50/60 Hz
Max Power Consumption	23.6 W (110 V/60 Hz)
Heat Dissipation	80.52 BTU/h (110 V/60 Hz)
Operating Temperature	0-45 °C (32-113 °F)
Storage Temperature	-40-70 °C (-40-158 °F)
Operating Humidity	10-90% RH non-condensing
Storage Humidity	5-90% RH non-condensing
Certifications	CE, FCC, RoHS

Quality of Service (QoS)	8 priority queues; 802.1p CoS/DSCP; SP, WRR, SP+WRR scheduling; Port/Flow-based rate limiting; QoS remark (802.1p, DSCP)
L2 / L2+ Features	128 IPv4/IPv6 interfaces; 48 IPv4/IPv6 static routes; ARP (512 dynamic, 128 static), Proxy ARP, Gratuitous ARP; DHCP Server, DHCP Relay (Interface/VLAN) and L2 Relay; Link Aggregation; STP; Loopback Detection; 802.3x Flow Control; Mirroring
Multicast	Supports 1000 IGMP groups (IPv4/IPv6); IGMP Snooping & Authentication; MVR; MLD Snooping; Multicast Filtering (256 profiles, 16 entries/profile)
VLAN	Max 4K VLANs; 802.1Q; MAC VLAN (30 entries); Protocol VLAN (Template 16, VLAN 16); Private VLAN; Voice VLAN; VLAN Mapping/Replace (VLAN VPN); GVRP
Security	IP-MAC-Port Binding (512 entries); DHCP Snooping; ARP Inspection; DoS Defend; Port Security (up to 64 MAC/port); IPv4 Source Guard (100 entries) & IPv6 Source Guard (100 entries); IPv6 ND Snooping/Detection
Access Control	Time-based ACL; MAC, IP, IPv6, Combined & Packet Content ACLs; Policies for Mirroring, Redirect, QoS Remark, Rate Limit; ACL apply to Port/VLAN
Management	Web GUI; CLI (console/telnet); SNMP v1/v2c/v3 with RMON; Omada App; Omada Cloud/Hardware/Software Controller; Zero-Touch Provisioning; LLDP/LLDP-MED; DHCP AutoInstall; Dual Image & Dual Configuration; CPU Monitoring; EEE; Cable Diagnostics; Password Recovery; SNTP; System Log
Advanced Features	ERPS; 802.3ah OAM; DDM; sFlow; DLDP; L2PT; PPPoE ID Insertion
IPv6 Support	Dual Stack; ICMPv6; IPv6 ACL; Static IPv6 Routing; IPv6 ND; DHCPv6 Client; Ping6/Traceroute6; IPv6 SNMP/SSH/SSL
MIBs	RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925; TP-Link private MIB

Included in the Box	SG3428X Switch; Power Cord; Quick Installation Guide; Rackmount Kit; Rubber Feet
Recommended Module	Use only one TL-SM5310-T module on this model (per vendor guidance)
