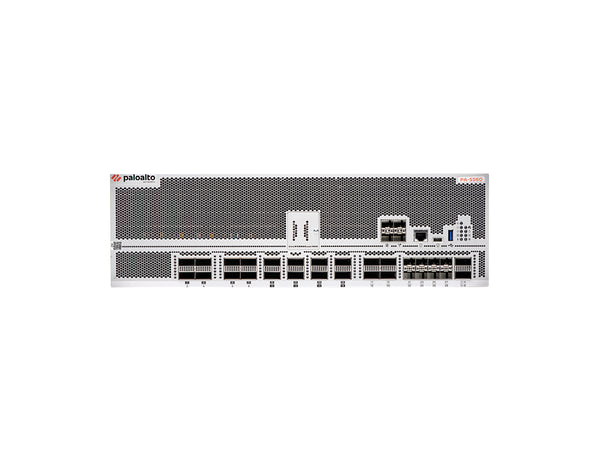

Palo Alto Networks PA-5560-AC Next-Gen Firewall 240 Gbps, Quantum-Optimized

Stop Advanced Threats at Data Center Scale

Large campuses and internet edge gateways need high throughput without giving up deep security. The Palo Alto Networks PA-5560 delivers precisely that: a quantum-optimized next-generation firewall built on single-pass architecture and Precision AI to inspect, prevent, and enforce at wire speed—so security never becomes the bottleneck.

Key Benefits & Features

The PA-5560 brings enterprise-grade protections with predictable performance, simple operations, and hardware headroom for future cryptography and clustering.

High Performance You Can Count On

Designed for data center and internet edge use, the PA-5560 provides 240 Gbps firewall (AppMix), 180 Gbps Threat Prevention, 125 Gbps IPsec VPN, and scales to 74 million sessions with 2.5 million new sessions per second—performance that holds with security services enabled.

Precision AI with Single-Pass Architecture

Inline machine learning and a single-pass pipeline analyze applications, content, and users once, enabling signatureless prevention of zero-day phishing and malware while minimizing latency and maximizing consistency under load.

Quantum-Ready and Encrypted Traffic Visibility

Be ready for PQC transitions with support for NIST algorithms (ML-KEM, ML-DSA, SLH-DSA) and options for PQC VPN and SSL/TLS controls. Gain policy and decryption visibility across TLS 1.3 and legacy protocols to safely manage encrypted traffic at scale.

Clustering & Unified Cloud Management

Build resilient, horizontally scalable security using NGFW clustering and HA. Operate at scale with Strata Cloud Manager and Copilot for unified policy, best-practice checks, and AI-assisted troubleshooting across your estate.

Ideal Use Cases

• High-speed internet gateways requiring full NGFW + Threat Prevention
• Data centers consolidating security with predictable performance
• Large campuses and service providers needing HA/clustering and 100/400G IO
• Organizations preparing for post-quantum cryptography

Technical Specifications

• Firewall Throughput (AppMix): 240 Gbps
• Threat Prevention Throughput: 180 Gbps
• IPsec VPN Throughput: 125 Gbps
• Max Concurrent Sessions: 74 million
• New Sessions per Second: 2.5 million
• Virtual Systems (Base/Max): 25/225
• Interfaces: 8× 10/25G SFP28, 12× 40/100G QSFP28, 8× 100/400G QSFP-DD
• Form Factor & Power: 3U rack, front-to-back airflow; AC model with redundant PSUs

Ready to Secure at 240 Gbps?

Equip your edge with quantum-ready, AI-powered protection. Request a quote for the PA-5560-AC today.

Model	PA-5560-AC
Product Type	Quantum Optimized Next-Generation Firewall (NGFW)
Firewall Throughput (appmix)	240 Gbps
Threat Prevention Throughput (appmix)	180 Gbps
IPsec VPN Throughput	125 Gbps
Max Concurrent Sessions	74M
New Sessions Per Second	2.5M
Rack Mount Dimensions	3U, 19" standard rack (5.2"H × 29.8"D × 17.3"W) with power supply inserted
Weight (Standalone Device)	70 lbs
Operating Temperature	32°F to 122°F, 0°C to 50°C
Nonoperating Temperature	-4°F to 158°F, -20°C to 70°C
Humidity Tolerance	10%-90%
Maximum Altitude	10,000 ft/3,048 m
Airflow	Front to back (port side to power supply side)
MTBF (Mean Time Between Failure)	6.3 years

Max Virtual Systems (Base/Max)	25/225
I/O Ports	10G/25G SFP28 (8), 40G/100G QSFP28 (12), and 100G/400G QSFP-DD (8)
Management I/O	Out-of-band management: 1G/10G SFP+ (2); Console: RJ-45 console port (1); Console: USB-C; Bootstrap: USB 3.2 Gen1 Type A
HSCI Ports	100G/400G QSFP-DD (2)
Log Ports	10G SFP+ (2)
Optional Storage Capacity	3.84 TB RAID1 SSD pair for system and log storage supported as cold swap
Power Supply (AC)	2+2 redundant for 220 V; 3+1 redundant for 110 V
Power Supply Output (AC)	2,700 W/power supply with 220 V or 1,200 W/power supply with 110 V
Input Voltage (AC)	100-240 VAC (50-60 Hz)
Max Power Consumption (Avg/Max)	2,100 W/3,100 W
Max BTU/hr	1638
Max Current Consumption (AC)	20.3 A @ 110 VAC and 9.3 A @ 240 VAC
Max Inrush Current (AC)	50 A @ 230 VAC and 50 A @ 120 VAC
VLANS	802.1Q VLAN tags per device or per interface: 4,094/4,094

Included in PAN-PA-5560-AC SKU	4x PAN-PA-5500-PWR-2700-AC, 5x PAN-PA-FAN-2RU-A, 1x PAN-PA-5500-ACC-A accessory kit, 1x PAN-PA-3RU-RACK-A, 2x PAN-SFP-CG, 1x PAN-PA-5500-SSD-3.84TB-PAIR
PAN-PA-5500-ACC-A Accessory Kit Contents	4x PAN-PWR-C19-US-120V cable, 1x USB cable, and 1x Cat6 cable
Spare Replacement Drive	PAN-PA-5500-SSD-3.84TB-PAIR
