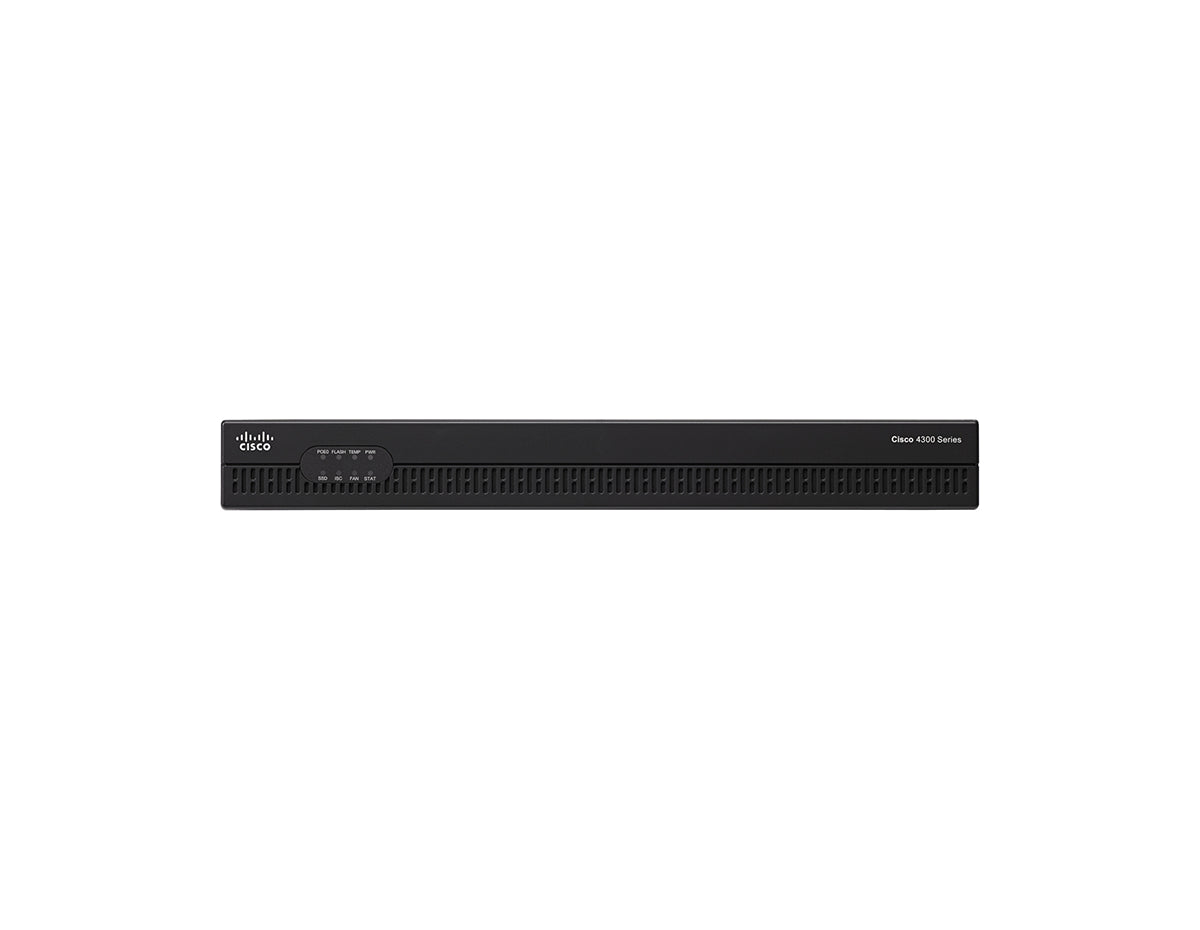

Cisco ISR4451-X-SEC/K9 Router

Name: Cisco ISR4451-X-SEC/K9 Router
Brand: Cisco
Price: 17895.0 USD
Availability: InStock

Part Number: ISR4451-X-SEC-K9

Technical Details

Router ISR 4000 Series 4 x 10/100/1000 ports 1 Gbps default throughput (upgradeable) 3 NIM slots, 1 ISC slot, 2 SM slots Security bundle (SEC)

$23,350.00

$17,895.00

23% OFF

You Save: $5,455.00

Net 30 or as low as $/month

Apply Now

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Cisco ISR4451-X-SEC/K9 Router

The Cisco 4000 Family Integrated Services Routers (ISRs) form a Software Defined WAN platform that delivers the performance, security, and convergence capabilities modern branch offices need. Designed for application-aware networking, the ISR4451-X-SEC/K9 helps connect branches to private data centers and public clouds over diverse WAN links such as MPLS, VPN, and the Internet. This model provides 4 onboard Gigabit Ethernet ports and a modular design with 3 NIM slots, 1 ISC slot, and 2 SM slots for flexible expansion. It ships with a default aggregate throughput of 1 Gbps, and supports a pay-as-you-grow performance upgrade to 2 Gbps via a Performance-on-Demand license.

Key Features:

Cisco Catalyst SD-WAN capable branch platform for reliable and secure WAN connectivity
Converged branch infrastructure to run concurrent services such as encryption, traffic management, and WAN optimization
1 Gbps default aggregate throughput; upgradeable to 2 Gbps with Performance-on-Demand licensing
Modular expansion: 3 x NIM slots, 1 x ISC slot, and 2 x SM slots
Security bundle (SEC) support: Zone-Based Firewall, IPSec VPN, EZVPN, DMVPN, and FlexVPN

For detailed specifications, refer to the ISR 4000 Family datasheet in the tabs.

Properties

Properties	ISR4451-X-SEC-K9
Description	ISR 4451 with 4 onboard GE, 3 NIM slots, 1 ISC slot, 2 SM slots, 8 GB Flash Memory default, 2 GB DRAM default (data plane), 4 GB DRAM default (control plane)
Product Family	ISR 4000 Series
Product Type	Routers
Total onboard WAN or LAN 10/100/1000 ports	4
RJ-45-based ports	4
SFP-based ports	4
Enhanced service- module slots	2
Aggregate Throughput (Default)	1 Gbps
AC input voltage	100 to 240 VAC autoranging
Power-supply options	Internal: AC, DC (roadmap) and PoE
Maximum power with AC power supply (watts)	450 (no PoE)
Maximum power with PoE power supply (platform only) (watts)	1000 with PoE redundant 1450 with PoE boost no redundancy
Unit dimensions in. (W x D x H)	3.5 x 17.25 x 18.5
Rack-mount 19in.	Included
Wall-mount	No

Specifications

Specifications	ISR4451-X-SEC-K9
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM	NA
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)	NA
Default memory DDR3 ECC DRAM (data plane)	2 GB
Maximum memory DDR3 ECC DRAM (data plane)	2 GB
Default memory DDR3 ECC DRAM (control/services plane)	4 GB
Maximum memory DDR3 ECC DRAM (control/services plane)	16 GB
Default flash memory	8 GB
Maximum Flash Memory	32 GB
Operating Temperature	32 to 104°F (0 to 40°C)
Operating humidity	5% to 85%
Safety	UL 60950-1
	CAN/CSA C22.2 No. 60950-1
	EN 60950-1
	AS/NZS 60950-1
	IEC 60950-1
EMC	47 CFR, Part 15
	ICES-003 Class A
	EN55032 Class A
	CISPR32 Class A
	AS/NZS CISPR 32 Class A
	VCCI V-3
	CNS 13438
	EN 300-386
	EN 61000 (Immunity)
	EN 55024, CISPR 24
	KN22, KN24 EN 50121-1
Protocols	IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced IGRP (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast sparse mode (PIM SM), PIM Source Specific Multicast (SSM), RSVP, CDP, ERSPAN, IPSLA, Call Home, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, OTV6, HSRP, RADIUS, AAA, AVC, Distance Vector Multicast Routing Protocol (DVMRP), IPv4-to-IPv6 Multicast, MPLS, Layer 2 and Layer 3 VPN, IP sec, Layer 2 Tunneling Protocol Version 3 (L2TPv3), Bidirectional Forwarding Detection (BFD), IEEE802.1ag, and IEEE802.3ah

Accessories

Accessories	There is no additional accessories.
Bundles	Features
Application Experience with Voice (AXV)	AX + Voice
Voice with Security (VSEC)	Voice + Security
Application Experience (AX)	IP Base + Security + advanced networking protocols: L2TPv3, BFD, MPLS, VRF, VXLAN10 (Bandwidth <100Mbps)
	Application Experience: PfRv3, WAAS with AppNav, NBAR2, AVC, IP SLA
	Hybrid Cloud Connectivity: LISP, OTV (for Bandwidth <100Mbps), VPLS, EoMPLS Intelligent Web Caching: Akamai Connect
Voice (V)	IP Base + Unified Communications: CME, SRST, CUBE
Security (SEC)	IP Base + Advanced Security: Zone Based Firewall, IPSec VPN, EZVPN, DMVPN,
