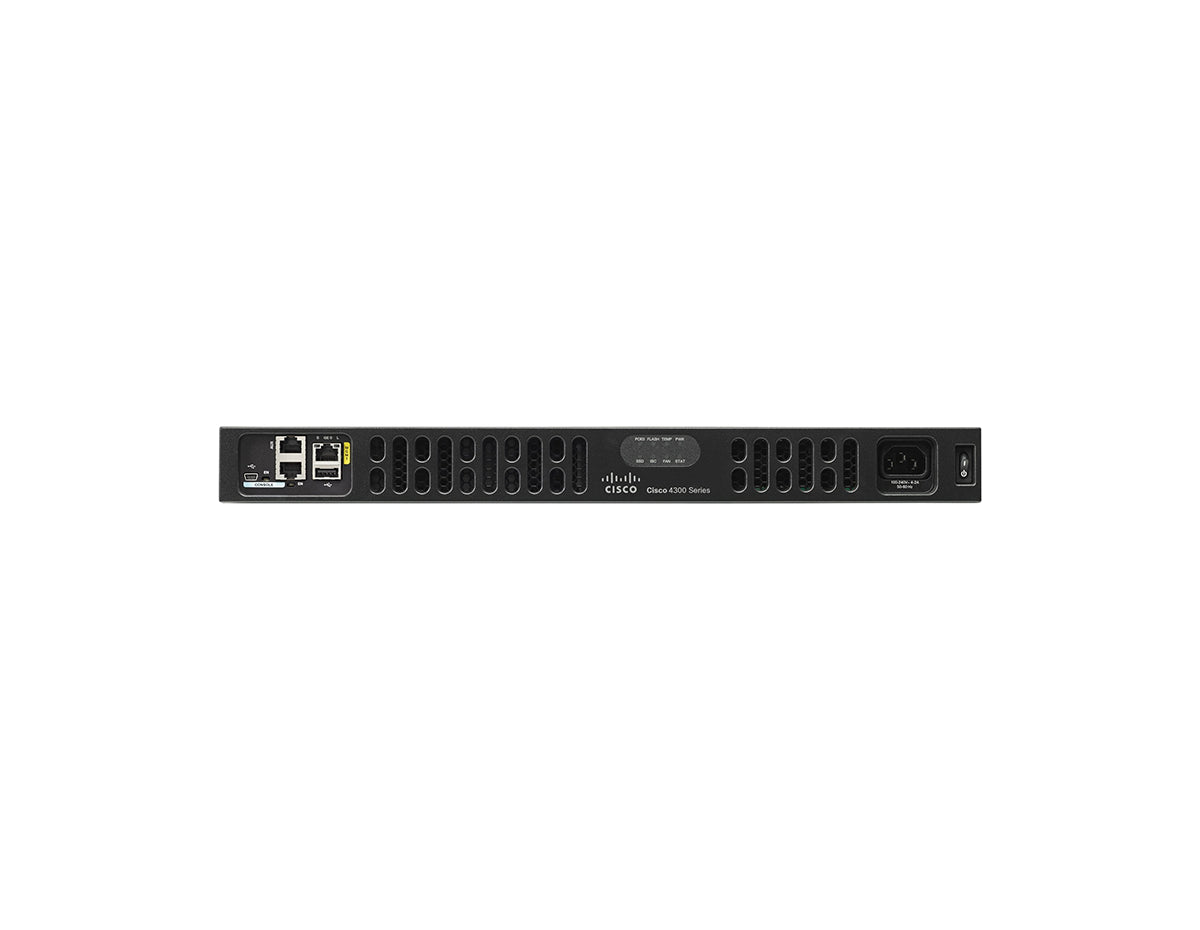

CISCO ISR4331/K9 ROUTER
| Model: | ISR4331-K9 |
| Detail: | 100Mbps-300Mbps system throughtput, 2 WAN/LAN ports, 2 SFP ports, multi-Core CPU, 1 service module slots, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC |
| List Price: | |
| Price: | $2,598.00 |
| You Save: | $1,896.96 (42% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
Cisco ISR4461/K9 Router
The Cisco 4000 Series Integrated Services Router (ISR) is designed for high-speed WAN connectivity, leveraging high-performance multicore processors that maintain efficiency as services scale. The ISR4461/K9 is the most advanced model of the series with 1.5 Gbps default aggregate Throughput. The backplane architecture supports high-bandwidth module-to-module communication at speeds up to 10 Gbps.
Key Features:
- 32 GB max memory with license
- 2 NIM slots
- Cisco® Software Defined WAN (SDWAN)
The tabs contain the ISR4461/K9 datasheet with all the specifics you need.
Accessories
| Accessories | There is no additional accessories. |
| Bundles | Features |
| Application Experience with Voice (AXV) | AX + Voice |
| Voice with Security (VSEC) | Voice + Security |
| Application Experience (AX) | IP Base + Security + advanced networking protocols: L2TPv3, BFD, MPLS, VRF, VXLAN10 (Bandwidth <100Mbps) |
| Application Experience: PfRv3, WAAS with AppNav, NBAR2, AVC, IP SLA | |
| Hybrid Cloud Connectivity: LISP, OTV (for Bandwidth <100Mbps), VPLS, EoMPLS Intelligent Web Caching: Akamai Connect | |
| Voice (V) | IP Base + Unified Communications: CME, SRST, CUBE |
| Security (SEC) | IP Base + Advanced Security: Zone Based Firewall, IPSec VPN, EZVPN, DMVPN, |
Specifications
| Specifications | ISR4331/K9 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM | 4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 16 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 4 GB |
| Maximum Flash Memory | 16 GB |
| Operating Temperature |
32 to 104°F (0 to 40°C) |
| Operating humidity | 5% to 85% |
| Safety | UL 60950-1 CAN/CSA C22.2 No. 60950-1 EN 60950-1 AS/NZS 60950-1 IEC 60950-1 |
| EMC | 47 CFR, Part 15 ICES-003 Class A EN55032 Class A CISPR32 Class A AS/NZS CISPR 32 Class A VCCI V-3 CNS 13438 EN 300-386 EN 61000 (Immunity) EN 55024, CISPR 24 KN22, KN24 EN 50121-1 EN61000-6-4 EN 50121-4 |
| Warranty | The Cisco ISR 4000 Series Integrated Services Routers have a 90-day limited liability warranty. |
| Protocols | IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced IGRP (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast sparse mode (PIM SM), PIM Source Specific Multicast (SSM), RSVP, CDP, ERSPAN, IPSLA, Call Home, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, OTV6, HSRP, RADIUS, AAA, AVC, Distance Vector Multicast Routing Protocol (DVMRP), IPv4-to-IPv6 Multicast, MPLS, Layer 2 and Layer 3 VPN, IP sec, Layer 2 Tunneling Protocol Version 3 (L2TPv3), Bidirectional Forwarding Detection (BFD), IEEE802.1ag, and IEEE802.3ah |
Properties
| Properties | ISR4331/K9 |
| Description | ISR 4331 with 3 onboard GE, 2 NIM slots, 1 ISC slot, 1 SM slots, 4 GB Flash Memory default, 4 GB DRAM default |
| Product Family | ISR 4000 Series |
| Product Type | Routers |
| Total onboard WAN or LAN 10/100/1000 ports | 3 |
| RJ-45-based ports | 2 |
| SFP-based ports | 2 |
| Enhanced service- module slots | 1 |
| Aggregate Throughput (Default) | 100 Mbps |
| AC input voltage | 100 to 240 VAC autoranging |
| Power-supply options | Internal: AC,DC and PoE |
| Maximum power with AC power supply (watts) | 250 |
| Maximum power with PoE power supply (platform only) (watts) | 530 |
| Unit dimensions in. (W x D x H) | 1.75 x 17.25 x 17.25 |
| Rack-mount 19in. | Included |
| Wall-mount | Yes |
