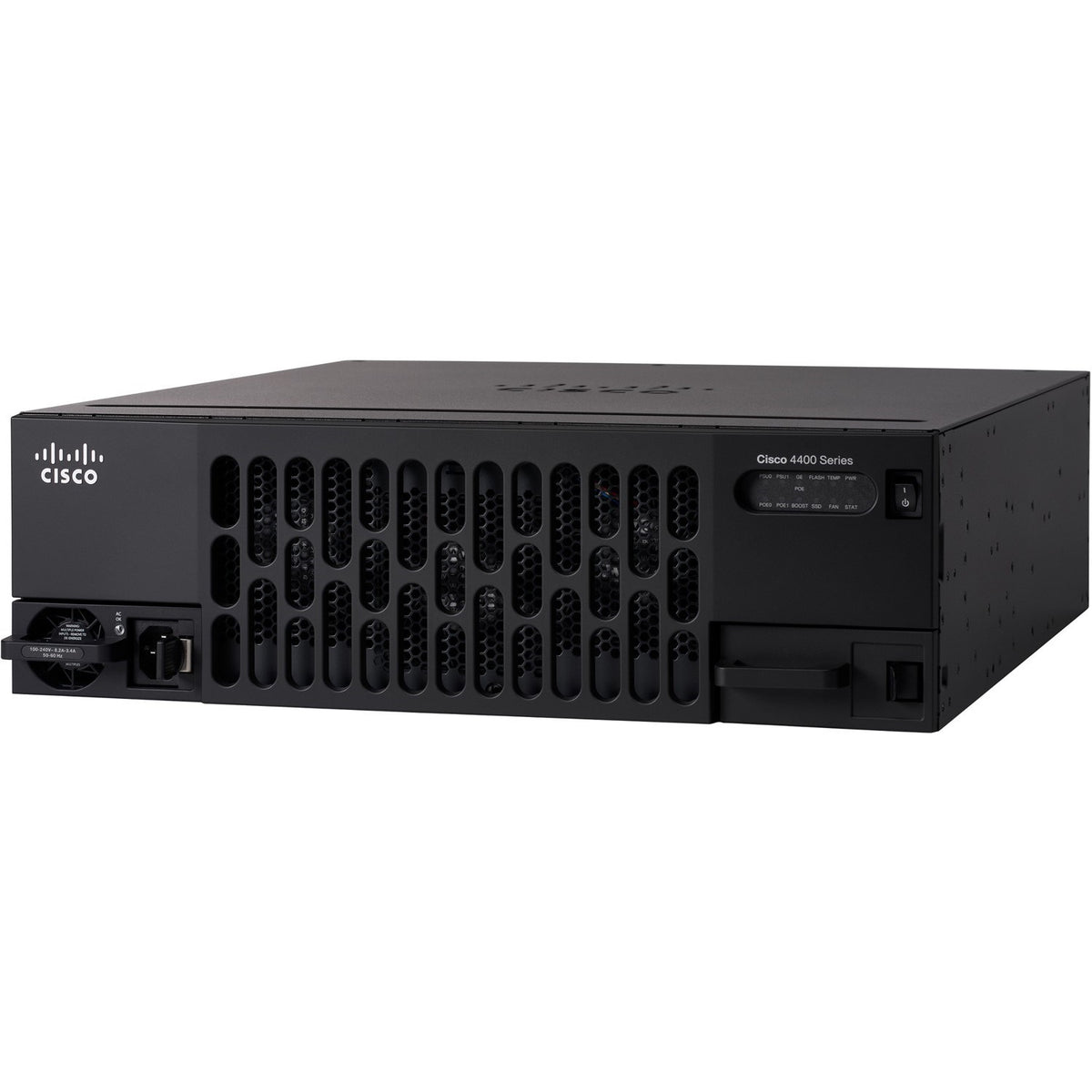

CISCO ISR4461/K9 ROUTER

Model: ISR4461-K9-NEW
Detail: Router, HDLC, PPP, 10 GigE, MLPPP, MLFR, WAN ports: 6
List Price: US$24,000.00
Price:
$10,565.00
You Save: $13,435.00 (56% OFF)
Condition: Brand New Sealed
Availability: IN STOCK
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside New Jersey
Quantity:
+
-



Cisco ISR4461/K9 Router Overview



Protect your branch site and prepare it for the future with the Cisco 4000 Series ISR digital-ready platform. Simplify day-to-day IT management. Provide a scalable, flexible foundation so you can quickly integrate leading IT initiatives like SD-WAN and edge to compute while meeting the explosive network performance need driven by cloud-based application adoption.



Aggregate Throughput 1.5Gbps
Total onboard WAN or LAN 10/100/1000 ports 4
RJ-45-based ports 4
SFP-based ports 4
Enhanced service-module slots 3
Doublewide service-module slots 2
NIM slots 3
OIR (all I/O modules) Yes
Onboard ISC slot 1
Dimensions

(H x W x D)
3.5 x 17.25 x 18.5 in

(88.9 x 438.15 x 469.9 mm)
Rack height 2 Rack Units (2RU)

Specifications

Aggregate Throughput 1.5Gbps
Total onboard WAN or LAN 10/100/1000 ports 4
RJ-45-based ports 4
SFP-based ports 4
Enhanced service-module slots 3
Doublewide service-module slots 2
NIM slots 3
OIR (all I/O modules) Yes
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC)
DRAM (Combined control/services/data planes)
NA
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) NA
Default memory DDR3 ECC DRAM (data plane) 4 GB
Maximum memory DDR3 ECC DRAM (data plane) 4 GB
Default memory DDR3 ECC DRAM (control/services plane) 8 GB
Maximum memory DDR3 ECC DRAM (control/services plane) 32 GB
Default flash memory 8 GB
Maximum flash memory 32 GB
External USB 2.0 slots (type A) 2
USB console port -type B mini (up to 115.2 kbps) 1
Serial console port - RJ45 (up to 115.2 kbps) 1
Serial auxiliary port - RJ45 (up to 115.2 kbps) 1
Power-supply options Internal: AC, DC, and PoE
Redundant power supply Internal: AC, DC, and PoE
AC input voltage 100 to 240 VAC auto-ranging
AC input frequency 47 to 63 Hz
AC input current range, AC power supply (maximum) 7.1 to 3.0A
AC input surge current 60 A peak and less than 5 Arms per half cycle
Maximum power with AC power supply (watts) 1000W (no PoE)
Maximum power with PoE power supply (platform only) (watts) 1000 with PoE redundant

1450 with PoE boost no redundancy
Maximum endpoint PoE power available from PoE power supply (watts) 500 W with optional redundancy
Maximum endpoint PoE power capacity with PoE boost (watts) 950 W no redundancy
 Dimensions
(H x W x D)
3.5 x 17.25 x 18.5 in
88.9 x 438.15 x 469.9 mm)
External Power Supply Dimensions (H x W x D) N/A
Rack height 2 Rack Units (2RU)
Rack-mount 19in. (48.3 cm) EIA Included
Rack-mount 23in. (58.4 cm) EIA Optional
Wall-mount No
Airflow I/O side to bezel side
MTBF (Hours) 480770
Temperature 32 to 104F

(0 to 40C)
Altitude

(China)
0 - 6,560 ft.

(0 - 2,000 m)
Altitude

(Rest of the world)
0 - 10,000 ft.

(0 - 3,050 m)
Relative humidity 5% to 85%
Short-term humidity 5% to 90%, not to exceed 0.024 kg water/kg of dry air
Acoustics: Sound pressure (Typical/maximum) 50.6/73.1 dBA
Acoustics: Sound power (Typical/maximum) 58.2/78.8 dBA
Temperature -40 to 158F

(-40 to 70C)
Relative humidity 5% to 95%
Altitude 15,584 ft (4750m)
Safety UL 60950-1

CAN/CSA C22.2 No. 60950-1

EN 60950-1

AS/NZS 60950-1

IEC 60950-1
EMC 47 CFR, Part 15

ICES-003 Class A

EN55032 Class A

CISPR32 Class A

AS/NZS CISPR 32 Class A

VCCI V-3

CNS 13438

EN 300-386

EN 61000 (Immunity)

EN 55024, CISPR 24

KN22, KN24
Telecom T1

IC CS-03:2004

TIA-968-B:2009

HKTA 2028:2010

HKTA 2017:2010

HKTA 2015: 2006

G.703:2001

ID0002:2007

IS6100:2004

DSPR Gray Book:2000

DSPR Technical Condition: 2004

E1

AS/ACIF S016: 2001

AS/ACIF S038: 2001

G.703:2001

TBR 4:1995

TBR 12:1993

TBR 13:1996

RRA 2009-38

(RRL 2005-96)

IDA TS DLCN:2011

IDA TS ISDN PRA:2005

IS6100: 2004

PTC 220:2008

Ethernet

IEEE 802.3

ANSA X3.263
Protocols IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast sparse mode (PIM SM), PIM Source-Specific Multicast (SSM), Resource Reservation Protocol (RSVP), Cisco Discovery Protocol, Encapsulated Remote Switched Port Analyzer (ERSPAN), Cisco IOS IP Service-Level Agreements (IPSLA), Call Home, Cisco IOS Embedded Event Manager (EEM), Internet Key Exchange (IKE), access control lists (ACL), Ethernet Virtual Connections (EVC), Dynamic Host Configuration Protocol (DHCP), Frame Relay (FR), DNS, Locator ID Separation Protocol (LISP), Overlay Transport Virtualization (OTV), Hot Standby Router Protocol (HSRP), RADIUS, authentication, authorization, and accounting (AAA), Application Visibility and Control (AVC), Distance Vector Multicast Routing Protocol (DVMRP), IPv4-to-IPv6 Multicast, MPLS, Layer 2 and Layer 3 VPN, IPsec, Layer 2 Tunneling Protocol Version 3 (L2TPv3), Bidirectional Forwarding Detection (BFD), IEEE 802.1ag, and IEEE 802.3ah
Encapsulations Generic routing encapsulation (GRE), Ethernet, 802.1q VLAN, Point-to-Point Protocol (PPP), Multilink Point-to-Point Protocol (MLPPP), Frame Relay, Multilink Frame Relay (MLFR) (FR.15 and FR.16), High-Level Data Link Control (HDLC), Serial (RS-232, RS-449, X.21, V.35, and EIA-530), and PPP over Ethernet (PPPoE)
Traffic management QoS, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Hierarchical QoS, Policy-Based Routing (PBR), Performance Routing (PfR), and Network-Based Application Recognition (NBAR)
Cryptographic algorithms Encryption: DES, 3DES, AES-128 or AES-256 (in CBC and GCM modes); Authentication: RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA-512
