Model: | ISR4321-SEC-K9 |
Detail: | 50Mbps-100Mbps system throughtput, 2 WAN/LAN ports, 1 SFP port, multi-Core CPU, 2 NIM,, Security, Voice, WAAS, Intelligent WAN, OnePK, AVC |
List Price: | |
Price: | $1,875.00 |
You Save: | $2,635.14 (58% OFF) |
Condition: | Brand New Sealed |
Availability: | IN STOCK |
Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
Tax: | $0.00 Tax Outside NJ and TX |
Quantity: |

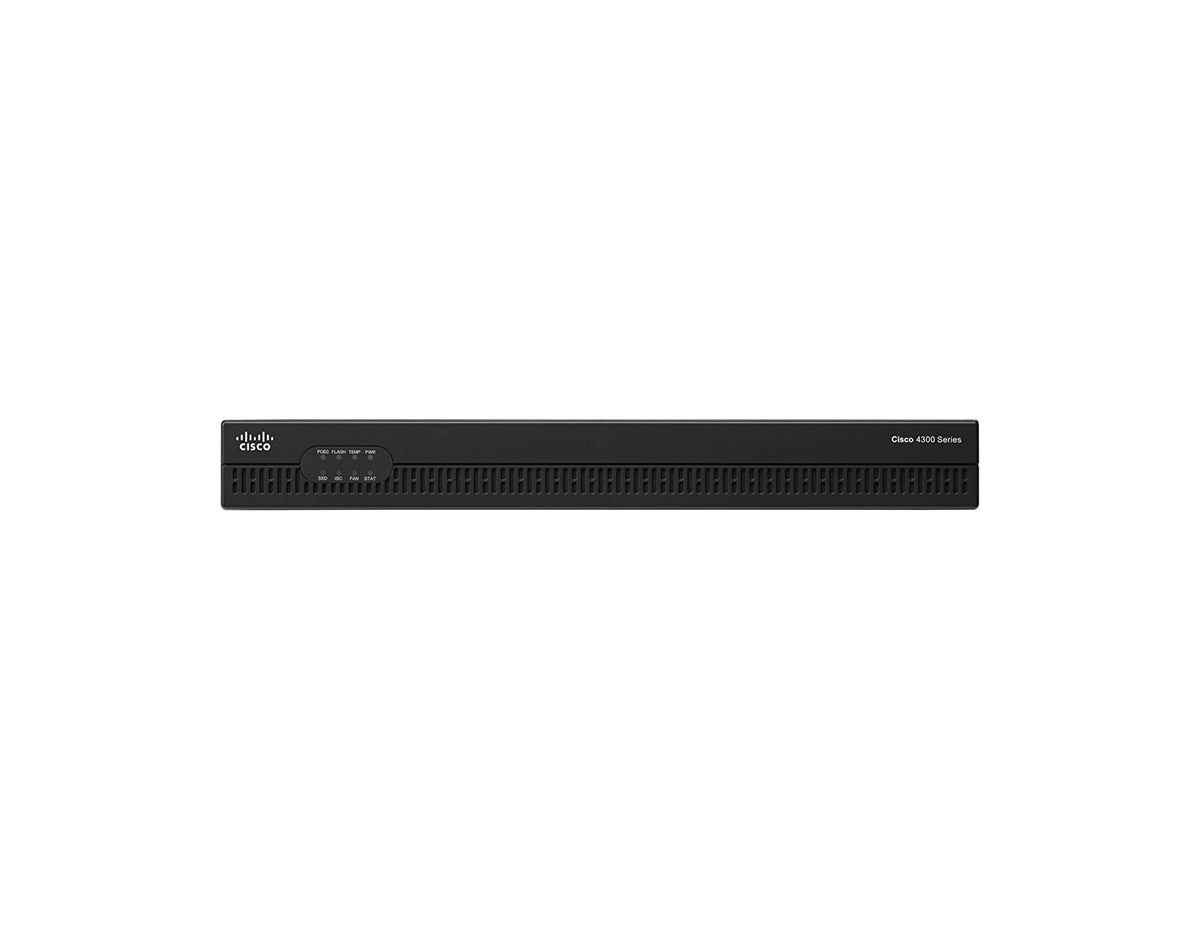

The Cisco 4000 Series Integrated Services Router (ISR) is designed for high-speed WAN connectivity, leveraging high-performance multicore processors that maintain efficiency as services scale. the ISR 4000 series is integrated with Cisco Digital Network Architecture (Cisco DNA), an open, software-driven architecture that accelerates innovation, delivers insights, and provides exceptional experiences for various applications. In the ISR4321-SEC/K9, the default control-plane memory is 4 GB, upgradable to 16 GB to provide additional scalability for control-plane features. New services can be activated on demand through simple licensing changes.
Key Features:
The tabs contain the ISR4321-SEC/K9 datasheet with all the specifics you need.
Accessories | There is no additional accessories. |
Bundles | Features |
Application Experience with Voice (AXV) | AX + Voice |
Voice with Security (VSEC) | Voice + Security |
Application Experience (AX) | IP Base + Security + advanced networking protocols: L2TPv3, BFD, MPLS, VRF, VXLAN10 (Bandwidth <100Mbps) |
Application Experience: PfRv3, WAAS with AppNav, NBAR2, AVC, IP SLA | |
Hybrid Cloud Connectivity: LISP, OTV (for Bandwidth <100Mbps), VPLS, EoMPLS Intelligent Web Caching: Akamai Connect | |
Voice (V) | IP Base + Unified Communications: CME, SRST, CUBE |
Security (SEC) | IP Base + Advanced Security: Zone Based Firewall, IPSec VPN, EZVPN, DMVPN, |
Specifications | ISR4321-SEC-K9 |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM | 4 GB |
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 8 GB |
Default memory DDR3 ECC DRAM (data plane) | NA |
Maximum memory DDR3 ECC DRAM (data plane) | NA |
Default memory DDR3 ECC DRAM (control/services plane) | NA |
Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
Default flash memory | 4 GB |
Maximum Flash Memory | 8 GB |
Operating Temperature |
32 to 104°F (0 to 40°C) |
Operating humidity | 5% to 85% |
Safety | UL 60950-1 CAN/CSA C22.2 No. 60950-1 EN 60950-1 AS/NZS 60950-1 IEC 60950-1 |
EMC | ICES-003 Class A EN55032 Class A CISPR32 Class A AS/NZS CISPR 32 Class A VCCI V-3 CNS 13438 EN 300-386 EN 61000 (Immunity) EN 55024, CISPR 24 KN22, KN24 |
Warranty | The Cisco ISR 4000 Series Integrated Services Routers have a 90-day limited liability warranty. |
Protocols | IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced IGRP (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast sparse mode (PIM SM), PIM Source Specific Multicast (SSM), RSVP, CDP, ERSPAN, IPSLA, Call Home, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, OTV6, HSRP, RADIUS, AAA, AVC, Distance Vector Multicast Routing Protocol (DVMRP), IPv4-to-IPv6 Multicast, MPLS, Layer 2 and Layer 3 VPN, IP sec, Layer 2 Tunneling Protocol Version 3 (L2TPv3), Bidirectional Forwarding Detection (BFD), IEEE802.1ag, and IEEE802.3ah |
Properties | ISR4321-SEC-K9 |
Description | ISR 4321 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 4 GB Flash Memory default, 4 GB DRAM default |
Product Family | ISR 4000 Series |
Product Type | Routers |
Total onboard WAN or LAN 10/100/1000 ports | 2 |
RJ-45-based ports | 2 |
SFP-based ports | 1 |
Enhanced service- module slots | 0 |
Aggregate Throughput (Default) | 50 Mbps to 100 Mbps |
AC input voltage | 100 to 240 VAC autoranging |
Power-supply options | External: AC and PoE |
Maximum power with AC power supply (watts) | 125 |
Maximum power with PoE power supply (platform only) (watts) | 260 |
Unit dimensions in. (W x D x H) | 1.75 x 14.55 x 11.60 |
Rack-mount 19in. | Included |
Wall-mount | Mounting holes under chassis |
