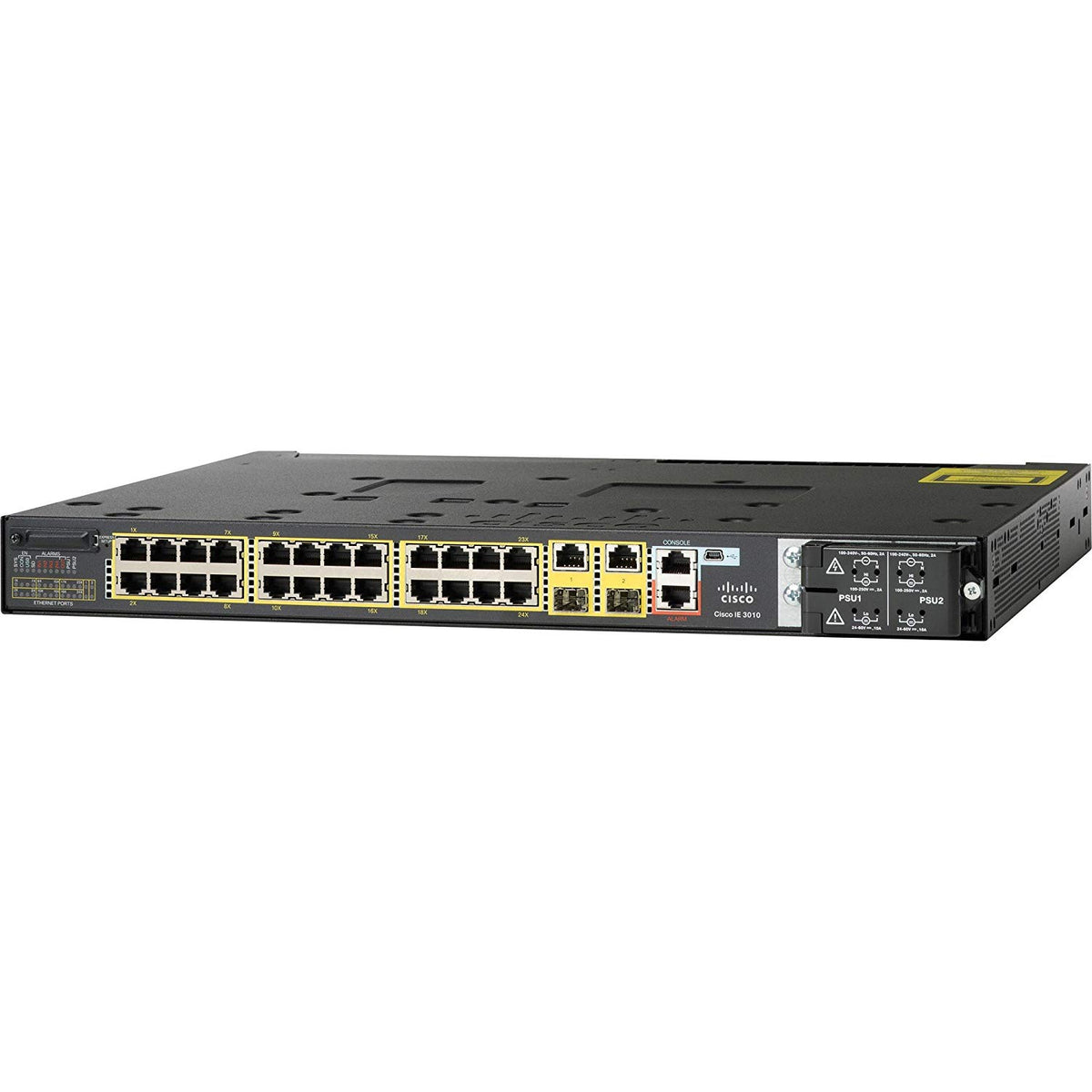

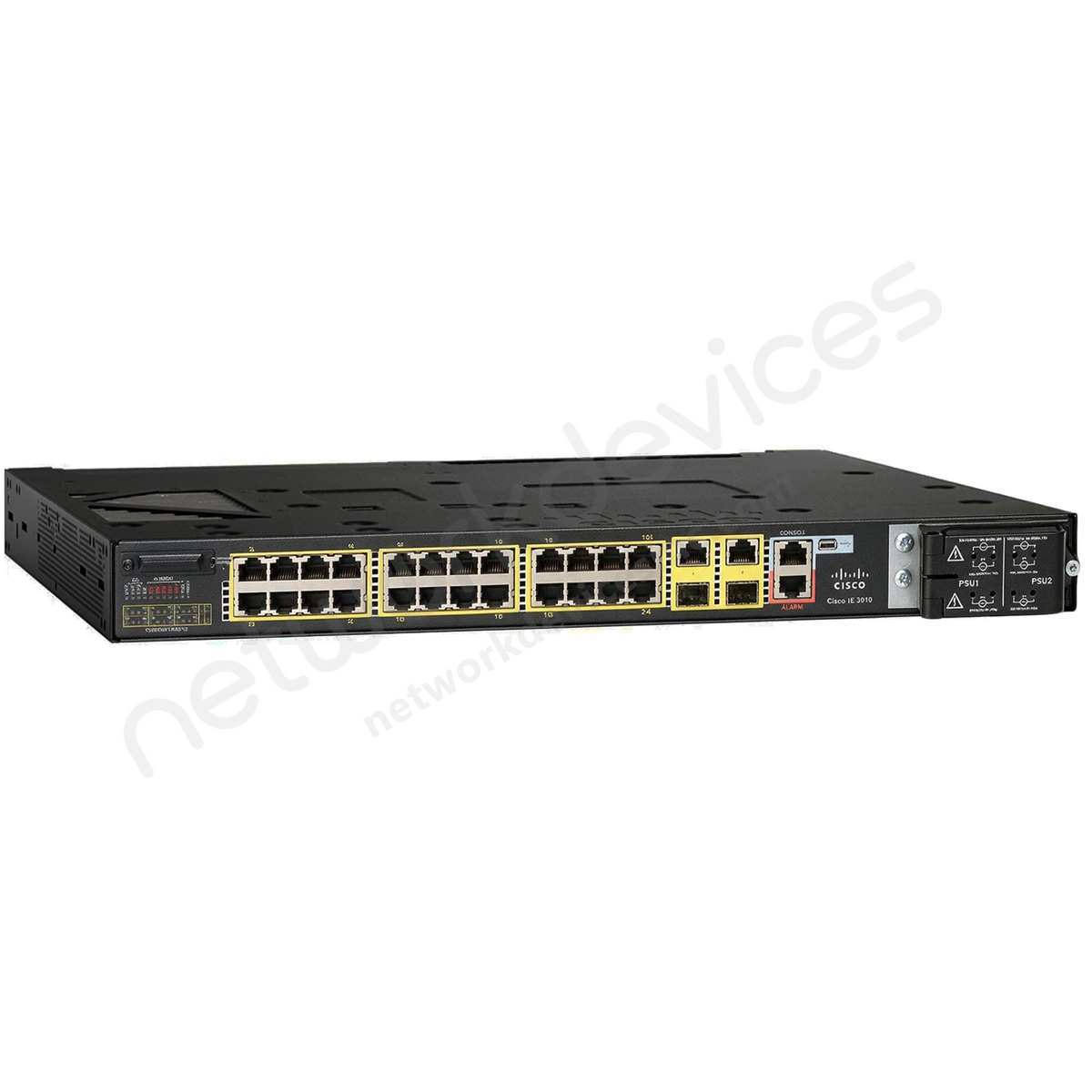

CISCO IE-3010-24TC SWITCH

Model: IE-3010-24TC
Detail: --> THIS ITEM IS A SPECIAL ORDER AND MAY TAKE ADDITIONAL SHIPPING TIME, Switch, Managed, 16 x 100 Mbit SFP + 8 x 10/100/1000 + 2 x combo Gigabit SFP, Rack-mountable, PoE, <
List Price: US$5,570.00
Price:
$2,749.00
You Save: $2,821.00 (51% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside New Jersey
Quantity:
+
-

-->



Cisco IE-3010-24TC Switch Overview



The Cisco Industrial Ethernet 3010 Series is a family of fully managed, Layer 2 rack-mountable fixed configuration switches with Small Form-Factor Pluggable (SFP) fiber aggregation and Power over Ethernet (PoE) that bring Cisco's leadership in switching to Industrial Ethernet applications with innovative features, robust security, and superior ease of use.

The Cisco IE 3010 Series is an ideal product for Industrial Ethernet applications, including factory automation, process automation and control, intelligent transportation systems (ITSs), rail transport, and mass transit.



Ports 24 10/100BASETX ports and two dual-purpose Gigabit Ethernet uplink ports. (each dual-purpose uplink port has one 10/100/1000 Ethernet port and one SFP-based Gigabit Ethernet port, one port active)
Performance and scalability  Wire-speed switching, 8 Gbps switching fabric

 Forwarding rate based on 64-byte packets: 6.5 Mpps

 256 MB DDR2 SDRAM

 1 GB SD Flash memory (128 MB enabled)

 Layer 2 LAN Base image supports 255 Vlans, 2000 MAC addresses, 256 IGMP groups.

 Layer 3 IP Services image supports 1000 Vlans, 3000 MAC addresses, 1000 IGMP groups, 3000 unicast routes

 Configurable maximum transmission unit (MTU) of up to 9000 bytes, with a maximum Ethernet frame size of 9018 bytes (jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1998 bytes for bridging on both Fast Ethernet ports
Dimensions (H x W x D) 1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1RU (rack unit) height
Weight 9.1 lb (4.1kg) (without power supply unit)

Specifications

-->

Connectors and cabling 10/100 ports:

 10/100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 unshielded twisted pair (UTP) or shielded twisted pair (STP) cabling

 100FX SFP ports (IE-3010-16S-8PC only):

 100BASE-FX, -LX, -ZX, and -BX10: Duplex LC receptacle fiber connectors (multimode and single mode)

Gigabit ports:

 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP/STP cabling

 1000BASE-SX, -LX/LH, -ZX, and -BX10: Duplex LC receptacle fiber connectors (multimode and single-mode fiber)

Console ports:

 Management console port: RJ45 connector for serial connection

 Management console port: USB mini type B connector for USB connection
Indicators  Per-port status LEDs: Link integrity, port disabled, and activity indications

 System-status LED: System activity, system integrity,

 Alarm-in status LEDs: Four alarm inputs status indicator

 Alarm-out status LED: Alarm status indicator

 Power supply unit LED: Power output integrity and power supply presence

 PoE (IE-3010-16S-8PC only): PoE activity, PoE integrity, and PoE disabled

 SD Flash LED: SD flash integrity and SD flash presence

 RS232 LED: RS232 console selection

 USB LED: USB console selection
Environmental ranges  -40 F to 140F (-40 to +60C) continuous operating temperature range

 -40 F to 185F (-40 to +85C) type test for 16 hours at 85C

 Operating altitude: 3000 m (9843 ft) at 40C (104F)

 Operating relative humidity: 5% to 95% noncondensing
Storage and transportation  Temperature: -40 F to 185F (-40 to +85 C)

 Altitude: 15,000 ft (4570 m)

 Relative humidity: 5% to 95% noncondensing
Mean time between failure (MTBF)  Cisco IE-3010-24TC: 207,731 hrs

 Cisco IE-3010-16S-8PC: 230,112 hrs
