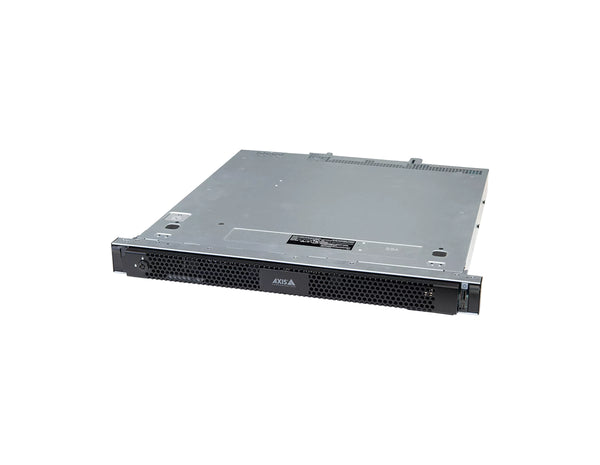

AXIS Camera Station S1224 Rack Recording Server 12 TB (03237-001)

Name: AXIS Camera Station S1224 Rack Recording Server 12 TB (03237-001)
Brand: Axis
Price: 5864.0 USD
Availability: InStock

Part Number: 03237-001

Technical Details

Scalable 1U enterprise recording server with 12 TB storage, Intel Xeon CPU, TPM 2.0, secure boot, SSD OS drive, and optimized power consumption.

$5,864.00

Net 30 or as low as $/month

Apply Now

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

The AXIS Camera Station S1224 Rack Recording Server is a high-performance platform providing secure and dependable video surveillance storage. Featuring a powerful Intel Xeon E processor and enterprise-class components, it delivers consistent recording performance for demanding applications. Its OS resides on a dedicated SSD for enhanced reliability, while the 12 TB surveillance-grade HDD provides robust recording capacity with an additional empty bay for expansion.

Its secure-by-design architecture includes TPM 2.0, Secure Boot, SBOM transparency, and encrypted drive support, ensuring protection of video data and system integrity. With iDRAC remote server management and support for up to 300 Mbit/s recording bandwidth, this server integrates seamlessly into scalable multi-site surveillance environments.

Enterprise-grade recording with strong security and expansion capacity

12 TB enterprise HDD storage with one free bay for future expansion
TPM 2.0, encrypted drive support and Secure Boot for resilient cybersecurity
Scalable system performance supporting up to 32 video streams and 64 doors
iDRAC 9 remote management for efficient maintenance and monitoring
Optimized power consumption for reduced operational cost
Supports RAID 0 and RAID 1 for data redundancy configuration

Ideal Use Cases

Corporate campuses and secure facilities
Transportation security and logistics centers
Manufacturing and industrial surveillance
Government and public infrastructure sites
Healthcare and educational institutions

Technical Specifications Summary

CPU: Intel Xeon E processor
Memory: 16 GB
OS drive: 480 GB SSD
Storage: 12 TB HDD, 7200 RPM, cold-swappable
Temperature range: 10–35 °C (50–95 °F)
Dimensions: 496.74 × 482 × 42.8 mm (19.56 × 19 × 1.68 in)
Weight: 8.5 kg (18.7 lb)
Network ports: Dual 1 Gbps RJ45
Security: TPM 2.0, Secure Boot, encrypted drive support

Upgrade Your Operations

Equip your surveillance system with reliable, protected, and scalable server-level recording performance.

Properties

Model	AXIS Camera Station S1224 Rack Recording Server 12 TB (03237-001)
Product type	Rack Recording Server
Processor	Intel Xeon E processor
Memory	16 GB (1 × 16 GB)
Operating system drive	480 GB SSD
Storage capacity (out-of-the-box)	12 TB cold-swappable enterprise SATA HDD, 7200 rpm
Total HDD slots	2 (1 free)
Supported RAID	RAID 0, RAID 1
Operating temperature	10 °C to 35 °C (50 °F to 95 °F)
Storage temperature	-40 °C to 65 °C (-40 °F to 149 °F)
Operating humidity	8–80% RH (non-condensing)
Storage humidity	5–95% RH (non-condensing)
Dimensions	496.74 × 482 × 42.8 mm (19.56 × 19 × 1.68 in), 1U chassis
Weight	8.5 kg (18.7 lb)
Power supply	450 W Platinum (100–240 V AC), 6.5–3.5 A, 50/60 Hz
Typical power consumption	55 W (307.1 BTU/h)
Max power consumption	70 W (409.5 BTU/h)
Remote management	iDRAC 9 basic license

Specifications

Licensing	24 AXIS Camera Station Pro Core Device NVR licenses and 10 AXIS Audio Manager Pro licenses included
System scalability	Qualified for 64 doors and 32 video channels; total recording up to 300 Mbit/s; supports up to 1,000 doors access control-only
Connectivity – front	1× USB 2.0, 1× iDRAC direct port
Connectivity – rear	1× USB 2.0, 1× USB 3.2, 1× VGA, 1× Serial port, 1× iDRAC Ethernet port, 2× RJ45 1 Gbps
Storage type	Cold-swappable enterprise-grade SATA HDD, 7200 rpm
Security features	Encrypted OS & recording drive support, TPM 2.0 (FIPS 140-2 level 2), SBOM, Secure Boot
Compliance & EMC	EN 55035, EN 55024, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-3(A), VCCI Class A, CNS 15936, RCM, TAA compliant
Safety	IEC/EN/UL 62368-1 ed.3, CAN/CSA C22.2 No. 62368-1 ed.3
Sustainability	65% post-consumer recycled plastics
Mounting	1U rack-mountable; includes static rails

Accessories

Included	Dell Ready Rails 1U Static Rails, C13 to C14 power cable for rack PDU
Optional accessories	Axis workstations, Enterprise hard drives
