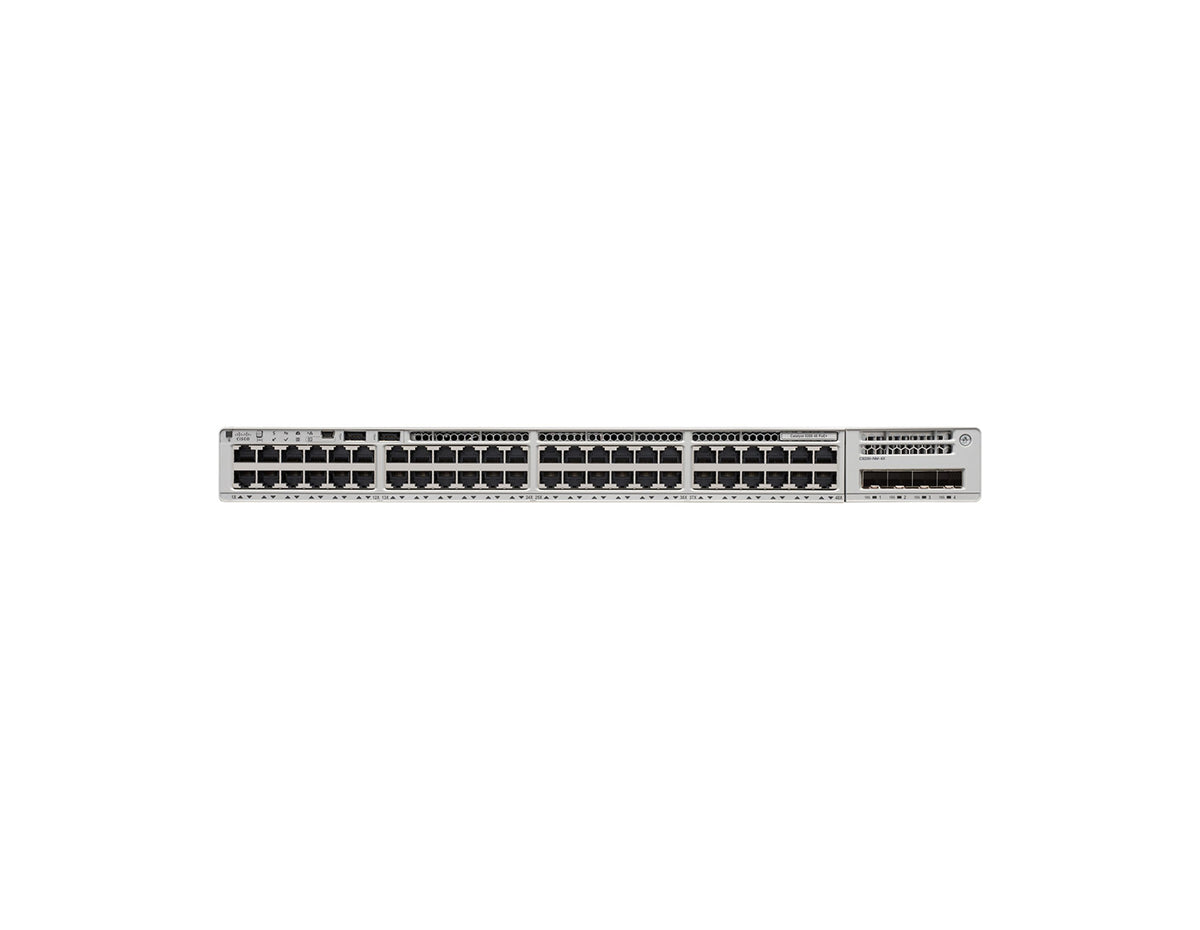

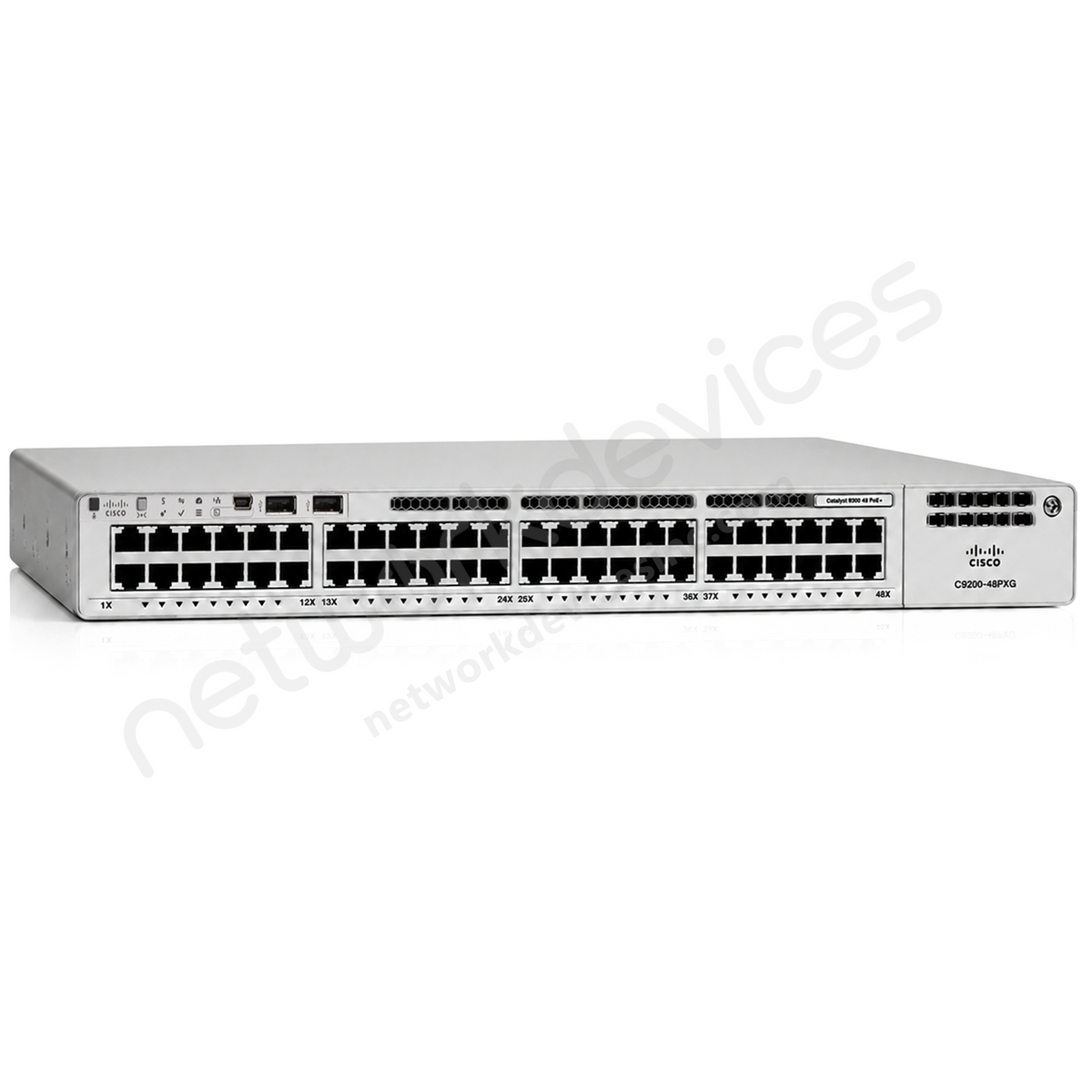

Model: C9200-48PXG-A
  • Network Advantage, L3, 40 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G/10GBase- -T, PoE+ (740 W), switch, smart, rack-mountable
List Price: US$11,264.29
You Save: $4,089.29 (36% OFF)
Condition: Brand New Sealed
Availability: IN STOCK
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside New Jersey


The Cisco Catalyst 9200 Series switch can help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation, and human expertise. This switch provides security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly.


Stacking Support StackWise-160
Stacking bandwidth support 160 Gbps
Stacking hardware  C9200-STACK-KIT
Number of
Supported stack members Other C9200 models with same license level
Stacking accessories
C9200-STACK-KIT Stack kit for C9200 SKUs only: Two data stack adapters and one data stack cable
STACK-T4-50CM Data stack 50 cm cable (default cable with Stack Kit)
STACK-T4-1M Data stack 1 m cable
STACK T4-3M Data stack 3 m cable
Mounting Accessories
ACC-KIT-T1= Accessory kit with 19 inch Type 1 rack mount
RACK-KIT-T1= 19, 23, 24 inch and ETSI Type 1 rack mount kit
4PT-KIT-T2= 4 Point rack mount kit New
C9K-MGNT-TRAY Magnet and Mounting Tray for compact switches
C9K-CMPCT-DIN-MNT DIN Rail Mount for compact switches
RACKMNT-19-CMPACT 19-Inch Rack Mounting Brackets for compact switches
C9K-CMPCT-CBLE-GRD Cable guard for compact switches (for C9K-WALL-TRAY)
C9K-WALL-TRAY Wall mount bracket for compact switches
C9K-CMPCT-DESK-MNT Under desk mount for compact switches


Specifications C9200-48PXG-A
Console Ports RJ-45-to-DB9 cable for PC connections, USB-C adaptor, USB adaptor
Flash Memory 4 GB
Switching capacity 400 Gbps
Forwarding rate  297.61 Mpps
MAC addresses 32000
Operating Temperature
Up to 5,000 ft (1500 m)
-5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)
-5°C to +40°C
Safety IEC 60950-1
UL 60950-1
CAN/CSA C22.2 No. 60950-1
EN 60950-1
AS/NZS 60950.1
Class I Equipment
Electromagnetic compatibility
47 CFR Part 15
CISPR 32 Class A
CNS 13438
EN 300 386*
EN 55032 Class A
ICES-003 Class A
KN 32
TCVN 7189 Class A
V-3 Class A
EN 300 386*
EN 55035
KN 35
TCVN 7317
FCC Part 15 (CFR 47) Class A
ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
VCCI Class A
EN 55035, EN300 386*
EN 61000-3-2, EN 61000-3-3
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking
Environmental Reduction of Hazardous Substances (ROHS) 5


Properties C9200-48PXG-A
Description Catalyst 9200 48-port 8xmGig, 40x1G, PoE+, Network Advantage
Product Family Catalyst 9200
Product Type Ethernet Switch
Number of Ports 48
Downlinks total 10/100/1000
or PoE+ copper ports
48 ports full PoE+ (8 mGig ports
up to 10G, 40 ports up to 1G)
Uplink configuration Modular uplink options
Cisco IOS Software Network Advantage
Default primary AC
power supply
Available PoE power with
additional secondary
power supply
Fans FRU redundant
Chassis + FEP +
 Fan Dimensions (HxWxD) Inches
