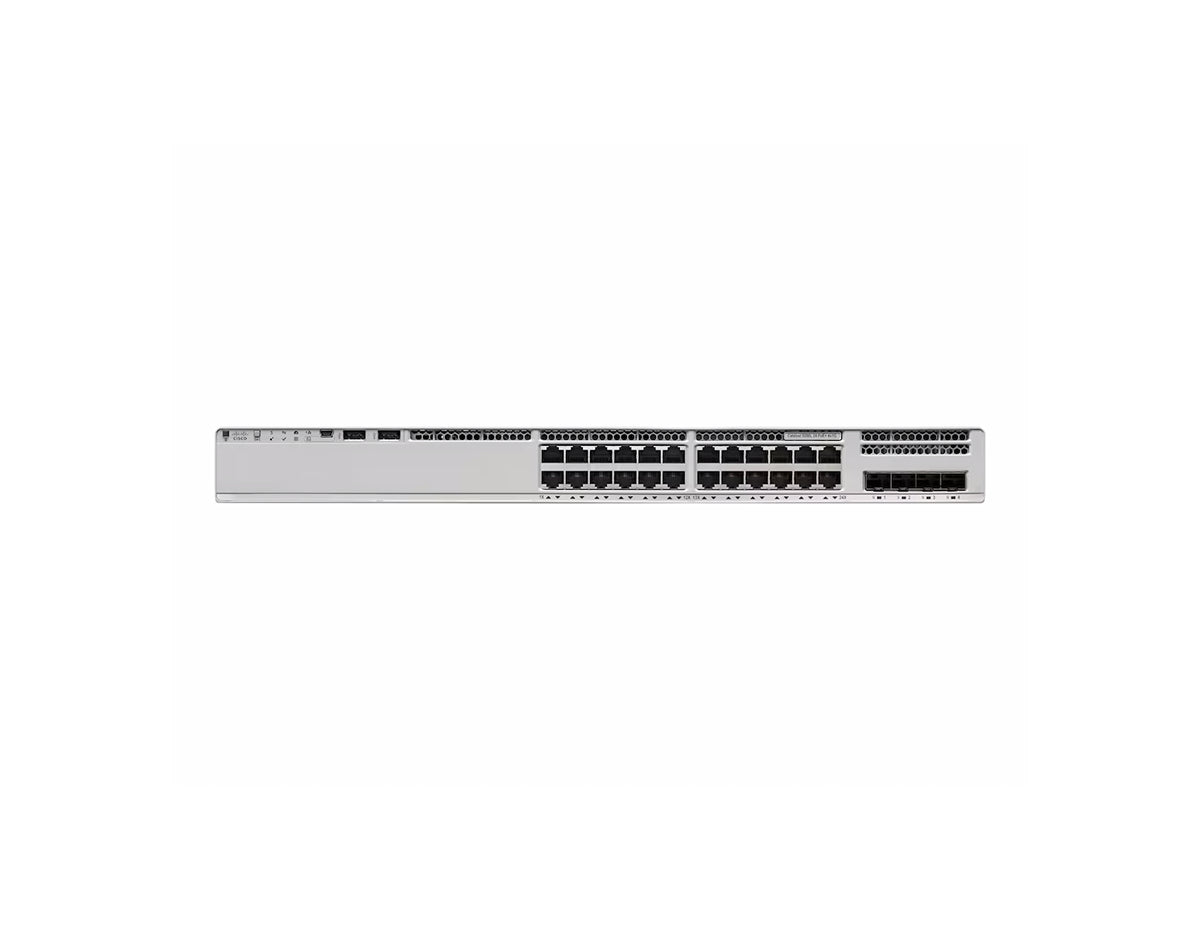

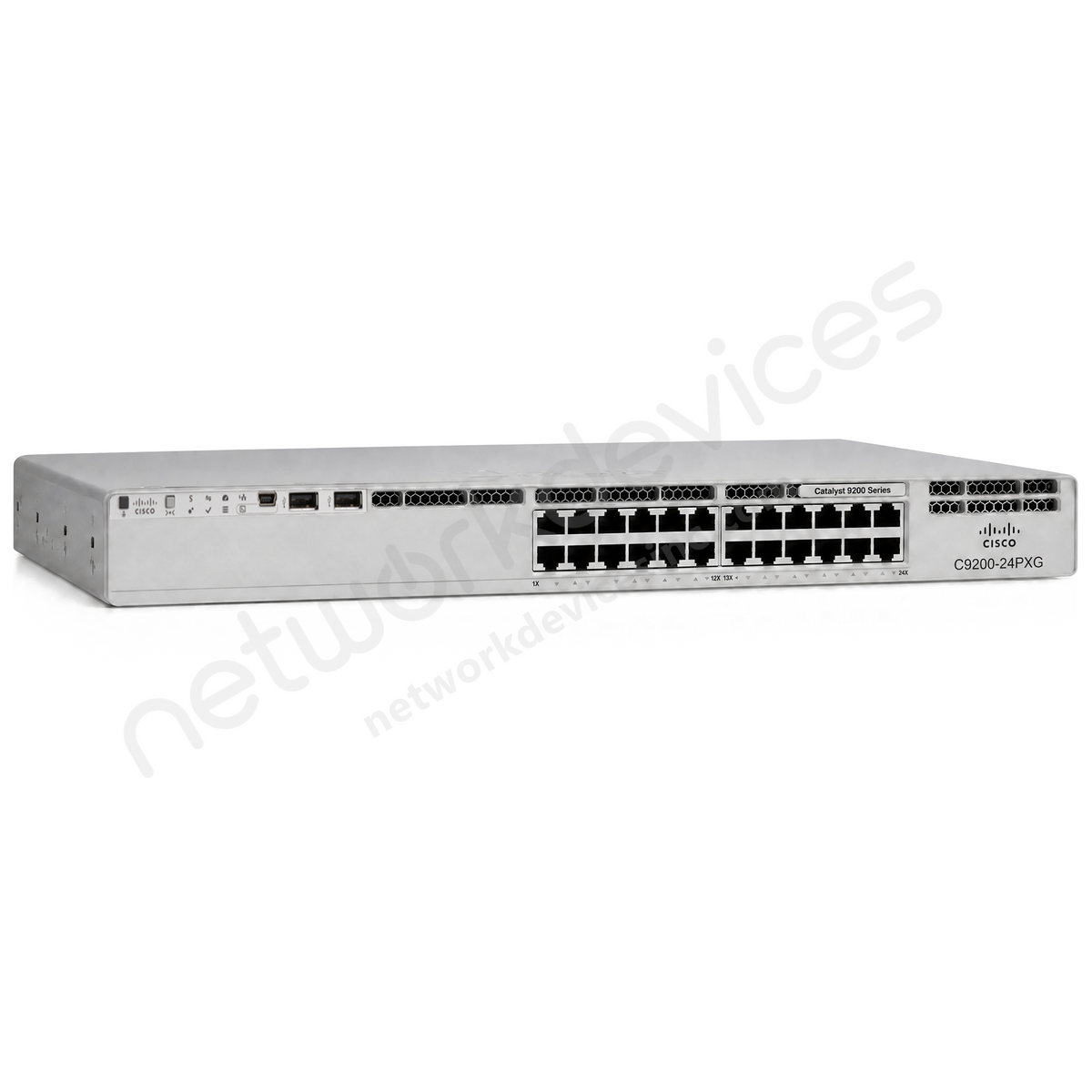

Cisco Catalyst C9200-24PXG-A 24-Port mGig PoE+ Switch, Modular Uplinks, Network Advantage

The Cisco Catalyst C9200-24PXG-A has 8 multigigabit access ports that run at up to 10G and 16 standard Gigabit Ethernet ports, for 24 access ports in total. Not all ports are multigigabit; the eight mGig ports are intended for high-throughput endpoints such as multigigabit wireless access points, while the remaining sixteen serve Gigabit endpoints. All 24 ports are PoE+ capable at up to 30 W.

The C9200-24PXG-A supports PoE+ at up to 30 W per port on all 24 access ports. A single power supply provides a 370 W PoE budget, and a second PWR-C6-600WAC raises it to 740 W, which is enough for all 24 ports to draw the full 30 W at once. The budget, not the port count, is what limits how many devices draw full power simultaneously.

The C9200-24PXG-A has a modular uplink slot rather than fixed uplink ports. As a multigigabit PXG model it accepts the 4x 1G/10G module (C9200-NM-4X), the 2x 25G module (C9200-NM-2Y), and the 2x 40G module (C9200-NM-2Q); the 4x 1G module is supported only on the standard C9200 models, not on the PXG. The network module is ordered separately. Specific transceiver compatibility should be verified against the manufacturer's transceiver compatibility matrix at tmgmatrix.cisco.com. Transceivers are sold separately.

The C9200-24PXG-A supports Cisco StackWise-160 stacking of up to eight members at 160 Gbps of stack bandwidth, using the C9200-STACK-KIT stacking adapters and cable, which are ordered separately. It stacks only with other C9200 modular-uplink switches running the same Network Advantage license level, and it does not stack with C9200L fixed-uplink switches, C9200CX compact switches, or any other Catalyst series.

Both are PoE+ multigigabit modular-uplink switches at the Network Advantage tier with 8 mGig ports each, and they differ in total port count, PoE budget, and throughput. The 24PXG-A has 24 access ports (8 mGig plus 16 Gigabit), a 370 W PoE budget, 352 Gbps of switching capacity, and a 261.90 Mpps forwarding rate. The 48PXG-A has 48 access ports (8 mGig plus 40 Gigabit), a 740 W PoE budget, 400 Gbps of switching capacity, and a 297.61 Mpps forwarding rate. Choose the 48-port model for a denser closet.

The two switches are identical hardware and differ only in license tier. The -E model ships with perpetual Network Essentials, which covers Layer 2 plus basic routed access such as static routing, RIP, EIGRP stub, OSPF for up to 1,000 routes, PBR, PIM stub multicast, and VRRP. The -A model ships with perpetual Network Advantage, which adds full OSPF, EIGRP, IS-IS, HSRP, VRF, VXLAN, LISP, and SGT segmentation. BGP is not included on a C9200 at either tier.

No. The switch runs on its included perpetual base license indefinitely. Under Cisco's ordering model, new switch orders include a term-based Cisco DNA or Cisco Catalyst software subscription of the same tier as the network license; that subscription unlocks Cisco Catalyst Center and cloud-managed features. When the subscription term ends, the switch continues operating on the perpetual base license capabilities after a reload.

Network Devices Inc. sells the C9200-24PXG-A as current, new, factory-sealed stock. Cisco publishes End-of-Sale and End-of-Life status for every Catalyst 9200 Series part number on its official End-of-Life and End-of-Sale Notices page for the series, which is the authoritative source for a specific SKU. Buyers standardizing on a platform for a multi-year refresh should confirm the current status there before ordering.

The C9200-24PXG-A is sold new and factory-sealed. It is covered by a Network Devices Inc. one-year warranty and a 30-day return policy.
