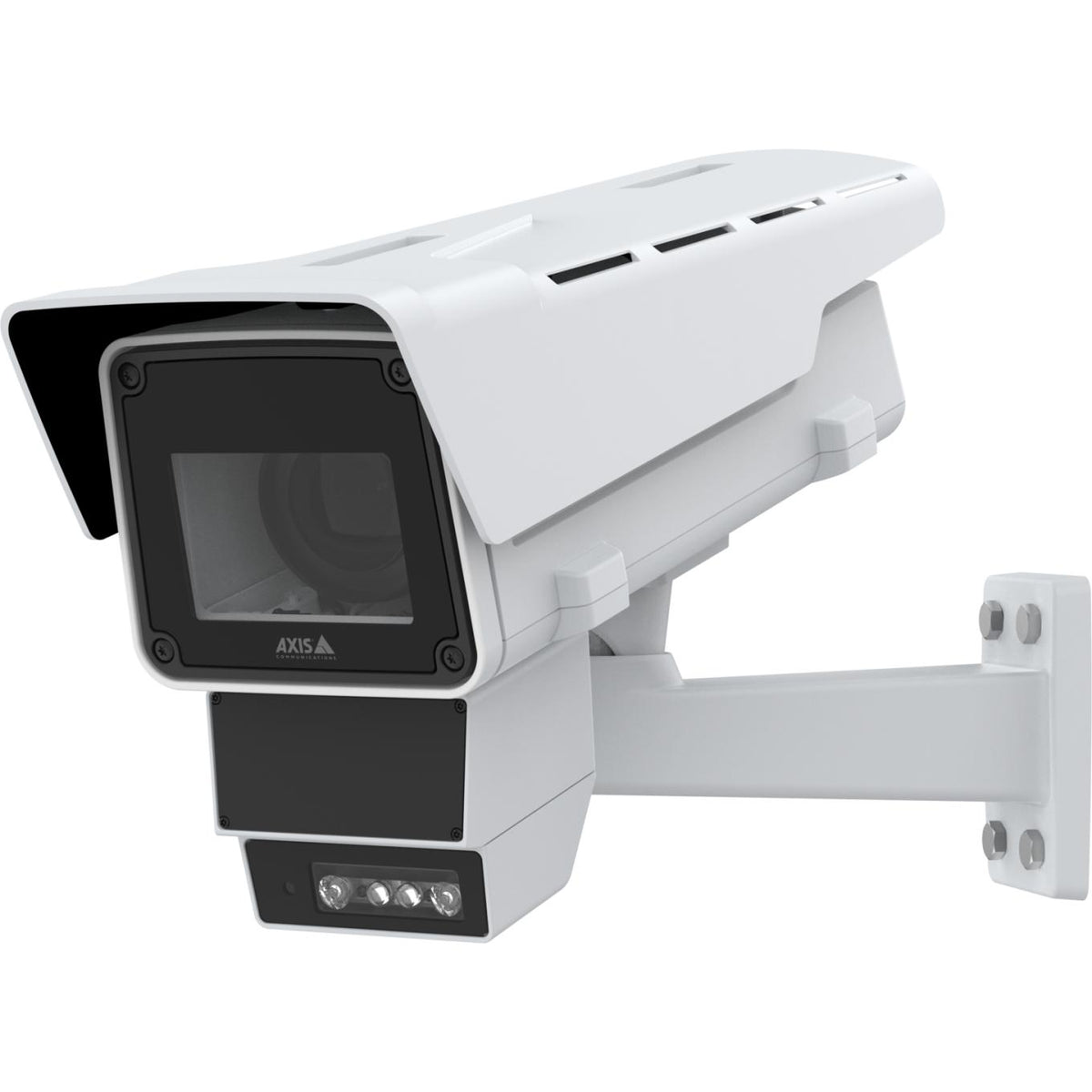

AXIS Q1686-DLE Radar-Video Fusion Camera

The AXIS Q1686-DLE Radar-Video Fusion Camera is a state-of-the-art surveillance solution that combines radar and video technologies to provide accurate detection and monitoring of vehicles. With a 60 GHz radar for tracking vehicle speed up to 200 km/h (125 mph) and a 4 MP camera with Forensic WDR and Lightfinder 2.0, this camera is perfect for 24/7 traffic monitoring, even in challenging conditions. The camera can identify offending vehicles with license plate recognition software, making it ideal for traffic enforcement and security applications.

Key Features:

• 60 GHz Radar: Tracks vehicle speeds up to 200 km/h (125 mph) with accurate speed and direction data.
• 4 MP Camera: Provides high-quality video with Forensic WDR and Lightfinder 2.0, ensuring excellent performance in various lighting conditions.
• License Plate Recognition: Connects vehicle speed and direction data with license plate identification for reliable vehicle detection and tracking.
• OptimizedIR Illumination: Features a long-range IR LED with adjustable illumination, providing clear images up to 50 m (164 ft) in darkness.
• Weatherproof and Durable: IP66-, IK10-, and NEMA 4X-rated for impact, dust, and water resistance, ensuring reliable performance in harsh environments.

Technical Specifications:

• Image Sensor: 1/1.8” progressive scan RGB CMOS
• Lens: 9–50 mm, F1.5, horizontal field of view: 46°–9°
• Resolution: 2688x1512 (4 MP) to 160x90
• Radar Range: Up to 150 m (492 ft) for vehicles, 60 m (200 ft) for persons
• Vehicle Speed Detection: Up to 200 km/h (125 mph)
• Power: Power over Ethernet (PoE) IEEE 802.3at, typical 10 W, max 25.5 W
• Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Dimensions: 5100 g (11.2 lb)
