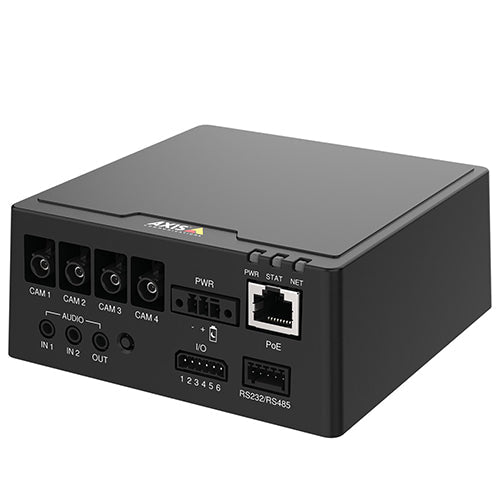

AXIS F9114 Main Unit (01991-001)

Name: AXIS F9114 Main Unit (01991-001)
Brand: Axis
SKU: 01991-001-NEW
Price: 649.0 USD
Availability: InStock

Part Number: 01991-001

Technical Details

2nd generation: 4-channel main unit with audio and I/O, Only compatible with 2nd generation sensors and cables, 1080p at 30 fps on all 4-channels, Rugged design and connectors, Multiple sensor and cable options, Zipstream, Lightfinder, Forensic WDR, 2nd gen cable is required

$649.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

AXIS F9114 Main Unit (01991-001)

The Axis F9114 4-channel central unit is precisely engineered to be compatible with 2nd generation sensors and cables from the Axis F series. Equipped with SMA-FAKRA connectors, this product is designed to withstand vibrations and facilitate a robust installation. The F9114 can accommodate four HDTV 1080p video streams at 30fps or 720p video streams at up to 60fps. Additionally, the device is equipped with Axis Zipstream technology, which supports H.264 and H.265, efficiently reducing storage and bandwidth requirements while maintaining high image quality.

Quick Specs:

Only compatible with 2^nd generation sensors and cables
1080p at 30fps on all 4-channels
Multiple sensor and cable options
Zipstream, Lightfinder, Forensic WDR

Please see the related tabs for the 01991-001 datasheet and compatible accessories.

Feature	AXIS F9104-B Main Unit	AXIS F9111 Main Unit	AXIS F9114 Main Unit	AXIS F9114-B Main Unit
Max video resolution	1920x1080	1920x1080	1920x1080	1920x1080
Zipstream	✔	✔	✔	✔
Ruggedized	–	–	–	–
Two-way audio	–	✔	✔	–
Alarm inputs/outputs	4	4	4	4

This product has been discontinued.

Properties

Properties	AXIS F9114
Description	AXIS F9114 Main Unit is designed for use with 2nd generation sensors and cables from AXIS F Series. With SMA-FAKRA connectors it withstands vibrations and ensures a ruggedized installation. It supports 1080p at 30 fps or 720p at 60 fps.
Product Family	Axis Cameras
Product Type	Main Unit
Image sensor	–
Wide dynamic range	Forensic WDR
PoE Class	IEEE 802.3at Type 2 Class 4
Connectors	RJ45 for 10BASE-T/100BASE-TX/1000BASE-T PoE
	4x FAKRA for sensor units
	6-pin terminal block for 4x configurable I/Os (12 V DC output), max load 50 mA
	3.5 mm mic/line in, 3.5 mm line out
	5-pin terminal block RS232/RS485
	3-pin terminal block for 10-48 V DC input
HTTPS encryption	Yes
IEEE 802.1X	Yes
Built-in IR	–
Local storage (memory card slot)	Yes
Outdoor Ready	–
Vandal rating	–
IP rating	IP3X
Dimensions	51 x 120 x 120 mm (2 x 4.7 x 4.7 in)
Weight	675 g (1.5 lb)
Operating Temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Sustainability	PVC free

Specifications

Specifications	AXIS F9114
System on chip (SoC) Model	ARTPEC-7
Memory	2x 1024 MB RAM, 512 MB Flash
Min illumination/ light sensitivity (Color)	-
Max video resolution	1920x1080
Max frames per second	60
Day and Night functionality	–
Electronic image stabilization	–
Zipstream	Yes
H.264	Baseline, High, Main
H.265	Yes
Motion JPEG	Yes
Audio streaming	Two-way, full-duplex
Audio input/output	2x external microphone input or line input, 1x line output, ring power, digital audio input
Event actions	Play audio clip, toggle I/O, send images, MQTT publish, send notifications, overlay text, power saving mode, recordings, SNMP trap messages, status LED, video clips
Applications	AXIS Video Motion Guard, audio detection
Supported	Tampering alarm Support for AXIS Camera Application Platform enabling installation of third-party applications
Cybersecurity	Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform Secure element (CC EAL 6+), Axis device ID, secure keystore, signed video, secure boot Network security: IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTSa, TLS v1.2/v1.3a, Network Time Security (NTS), X.509, Certificate PKI, IP address filtering

Accessories

Optional accessories
AXIS TU6001	Connector 3-Pin 3.81
AXIS TU6004-E	2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras
AXIS TU6005	2nd generation Plenum Cable
AXIS TU6007	2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras
AXIS TU6008 Conn 5-PIN	Extended connector for RS232 / RS485
AXIS TU6009 Conn 6-PIN	Extended I/O connector
AXIS TF9902	Surface Mount
AXIS TF9903	DIN Rail Clip
AXIS 30 W Midspan	For indoor use, 240 V AC
AXIS T8007 PS24	Versatile 24 V DC power supply
AXIS T8415	Wireless Installation Tool
