AXIS F9104-B MAIN UNIT
| Model: | 02192-031 |
| Detail: |
|
| List Price: | |
| Price: | $480.00 |
| You Save: | $19.00 (4% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

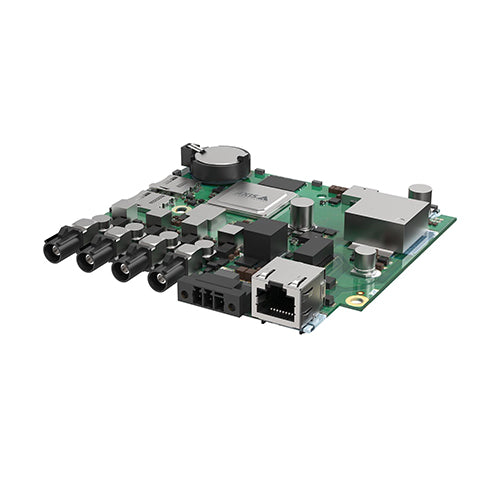

AXIS F9104-B is a 4-channel Barebone main unit part of the 2nd generation F-series. AXIS F9104-B has no casing. It is UL recognised and is meant to be integrated into a something else (ex: machine...). The final product has to be UL certified. Up to 4x F21, F7225-RE or F4105-LRE video sensors can be connected to it. it has a 10-48V DC and an Ethernet port. AXIS F9104-B is PoE Class 4. Max 25,5W. AXIS TU6001 Connector 3-in (for DC power) has to be purchased separately. AXIS F9104-B main unit is NOT compatible with the 1st generation of F-series sensors (F1005-E, F1015-E, F1025-E, F1025 F4005, F4005-E).
| Feature | AXIS F9104-B Main Unit | AXIS F9111 Main Unit | AXIS F9114 Main Unit | AXIS F9114-B Main Unit |
|---|---|---|---|---|
| Max video resolution | 1920x1080 | 1920x1080 | 1920x1080 | 1920x1080 |
| Zipstream | ✔ | ✔ | ✔ | ✔ |
| Ruggedized | – | – | – | – |
| Two-way audio | – | ✔ | ✔ | – |
| Alarm inputs/outputs | 4 | 4 | 4 | 4 |
Accessories
| Optional accessories | |
| AXIS TU6001 | Connector 3-Pin 3.81 |
| AXIS TU6004-E | 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras |
| AXIS TU6005 | 2nd generation Plenum Cable |
| AXIS TU6007-E | 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras |
| AXIS 30 W Midspan | For indoor use, 240 V AC |
| AXIS T8007 PS24 | Versatile 24 V DC power supply |
| AXIS T8415 | Wireless Installation Tool |
Specifications
| Properties | AXIS F9104-B |
| Description | AXIS F9104-B is compact barebone main unit.It is designed for use with 2nd generation sensors and cables from AXIS F Series. Ideal for building customized video solutions, this UL recognized component is designed for integration into a UL certified end-product. |
| Product Family | Axis Cameras |
| Product Type | Main Unit |
| Image sensor | – |
| Wide dynamic range | Forensic WDR |
| PoE Class | IEEE 802.3at Type 2 Class 4 |
| Connectors | RJ45 for 10BASE-T/100BASE-TX/1000BASE-T PoE 4x FAKRA for sensor units 6-pin terminal block for 4x configurable I/Os (12 V DC output), max load 50 mA 3.5 mm mic/line in, 3.5 mm line out 5-pin terminal block RS232/RS485 3-pin terminal block for 10-48 V DC input |
| HTTPS encryption | Yes |
| IEEE 802.1X | Yes |
| Built-in IR | – |
| Local storage (memory card slot) | Yes |
| Outdoor Ready | – |
| Vandal rating | – |
| IP rating | – |
| Power (max) | 25.5 W |
| Power (average) | 9.0 W |
| DC input voltage | 10-48 V |
| Dimensions | 21 x 107 x 110 mm (0.8 x 4.2 x 4.3 in) |
| Weight | 120 g (0.3 lb) |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Warranty | 5-year warranty |
| Sustainability | PVC free |
Properties
| Properties | AXIS F9104-B |
| Description | AXIS F9104-B is compact barebone main unit.It is designed for use with 2nd generation sensors and cables from AXIS F Series. Ideal for building customized video solutions, this UL recognized component is designed for integration into a UL certified end-product. |
| Product Family | Axis Cameras |
| Product Type | Main Unit |
| Image sensor | – |
| Wide dynamic range | Forensic WDR |
| PoE Class | IEEE 802.3at Type 2 Class 4 |
| Connectors | RJ45 for 10BASE-T/100BASE-TX/1000BASE-T PoE |
| 4x FAKRA for sensor units | |
| 6-pin terminal block for 4x configurable I/Os (12 V DC output), max load 50 mA | |
| 3.5 mm mic/line in, 3.5 mm line out | |
| 5-pin terminal block RS232/RS485 | |
| 3-pin terminal block for 10-48 V DC input | |
| HTTPS encryption | Yes |
| IEEE 802.1X | Yes |
| Built-in IR | – |
| Local storage (memory card slot) | Yes |
| Outdoor Ready | – |
| Vandal rating | – |
| IP rating | – |
| Power (max) | 25.5 W |
| Power (average) | 9.0 W |
| DC input voltage | 10-48 V |
| Dimensions | 21 x 107 x 110 mm (0.8 x 4.2 x 4.3 in) |
| Weight | 120 g (0.3 lb) |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Sustainability | PVC free |
