AXIS F9111 MAIN UNIT
| Part No: | 01990-001 |
| Detail: | 2nd generation: Single-channel modular unit with audio and I/O, Only compatible with 2nd generation sensors and cables, 1080p at 60 fps or 720p at 180 fps, Rugged design and connectors, Multiple sensor and cable options, Zipstream, Lightfinder, Forensic WDR, 2nd gen cable is required |
| Price: |
$549.00
|
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description

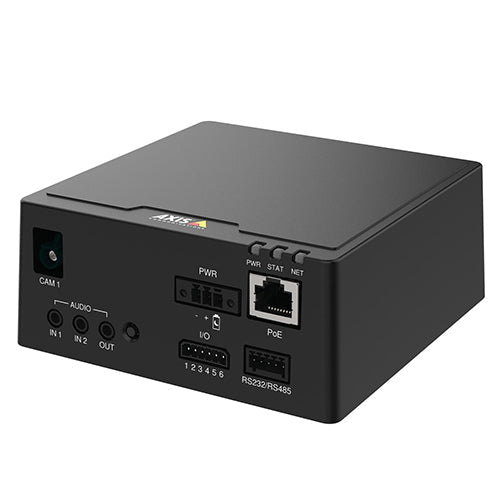

AXIS F9111 Main Unit (01990-001)
The AXIS F9111 Main Unit is designed for use with 2nd generation sensors and cables from the AXIS F series. It has SMA-FAKRA connectors, supports 1080p at 60 fps or 720p at 180 fps, and delivers high-quality video even in low-light conditions. The Forensic WDR feature ensures clarity in scenes with both dark and light areas.
Quick Specs:
- Only compatible with 2nd generation sensors and cables
- 1080p at 60fps or 720p at 180fps
- Rugged design and connectors
- Multiple sensor and cable options
Please see the related tabs for the 01990-001 datasheet and compatible accessories.
| Feature | AXIS F9104-B Main Unit | AXIS F9111 Main Unit | AXIS F9114 Main Unit | AXIS F9114-B Main Unit |
|---|---|---|---|---|
| Max video resolution | 1920x1080 | 1920x1080 | 1920x1080 | 1920x1080 |
| Zipstream | ✔ | ✔ | ✔ | ✔ |
| Ruggedized | – | – | – | – |
| Two-way audio | – | ✔ | ✔ | – |
| Alarm inputs/outputs | 4 | 4 | 4 | 4 |
This product has been discontinued.
Accessories
| Optional accessories | |
| AXIS TU6001 | Connector 3-Pin 3.81 |
| AXIS TU6004-E | 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras |
| AXIS TU6005 | 2nd generation Plenum Cable |
| AXIS TU6007-E | 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras |
| AXIS TU6008 Conn 5-PIN | Extended connector for RS232 / RS485 |
| AXIS TU6009 Conn 6-PIN | Extended I/O connector |
| AXIS TF9902 | Surface Mount |
| AXIS TF9903 | DIN Rail Clip |
| AXIS 30 W Midspan | For indoor use, 240 V AC |
| AXIS T8007 PS24 | Versatile 24 V DC power supply |
| AXIS T8415 | Wireless Installation Tool |
Specifications
| Specifications | AXIS F9111 |
| System on chip (SoC) Model | ARTPEC-7 |
| Memory | 1024 MB RAM, 512 MB Flash |
| Min illumination/ light sensitivity (Color) | - |
| Max video resolution | 1920x1080 |
| Max frames per second | 180 |
| Day and Night functionality | – |
| Electronic image stabilization | – |
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | Yes |
| Motion JPEG | Yes |
| Audio streaming | Two-way, full-duplex |
| Audio input/output | 2x external microphone input or line input, 1x line output, ring power, digital audio input |
| Event actions | Play audio clip, toggle I/O, send images, MQTT publish, send notifications, overlay text, power saving mode, recordings, SNMP trap messages, status LED, video clips |
| Applications | AXIS Object Analytics, AXIS Video Motion Detection, audio detection |
| Supported | Tampering alarm Support for AXIS Camera Application Platform enabling installation of third-party applications |
| Cybersecurity | Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform Secure element (CC EAL 6+), Axis device ID, secure keystore, signed video, secure boot Network security: IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTSa, TLS v1.2/v1.3a, Network Time Security (NTS), X.509, Certificate PKI, IP address filtering |
Properties
| Properties | AXIS F9111 |
| Description | AXIS F9111 Main Unit is a single-channel modular unit with audio and I/O. It is designed for use with 2nd generation sensors and cables from AXIS F Series. With SMA-FAKRA connectors it withstands vibrations and ensures a ruggedized installation. |
| Product Family | Axis Cameras |
| Product Type | Main Unit |
| Image sensor | – |
| Wide dynamic range | Forensic WDR |
| PoE Class | IEEE 802.3at Type 2 Class 4 |
| Connectors | RJ45 for 10BASE-T/100BASE-TX/1000BASE-T PoE |
| FAKRA for sensor units | |
| 6-pin terminal block for 4x configurable I/Os (12 V DC output), max load 50 mA | |
| 3.5 mm mic/line in, 3.5 mm line out | |
| 5-pin terminal block RS232/RS485 | |
| 3-pin terminal block for 10-48 V DC input | |
| HTTPS encryption | Yes |
| IEEE 802.1X | Yes |
| Built-in IR | – |
| Local storage (memory card slot) | Yes |
| Outdoor Ready | – |
| Vandal rating | – |
| IP rating | IP3X |
| Power (max) | 25.5 W |
| Power (average) | 11.0 W |
| DC input voltage | 10-48 V |
| Dimensions | 51 x 120 x 120 mm (2 x 4.7 x 4.7 in) |
| Weight | 650 g (1.4 lb) |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Sustainability | PVC free |
