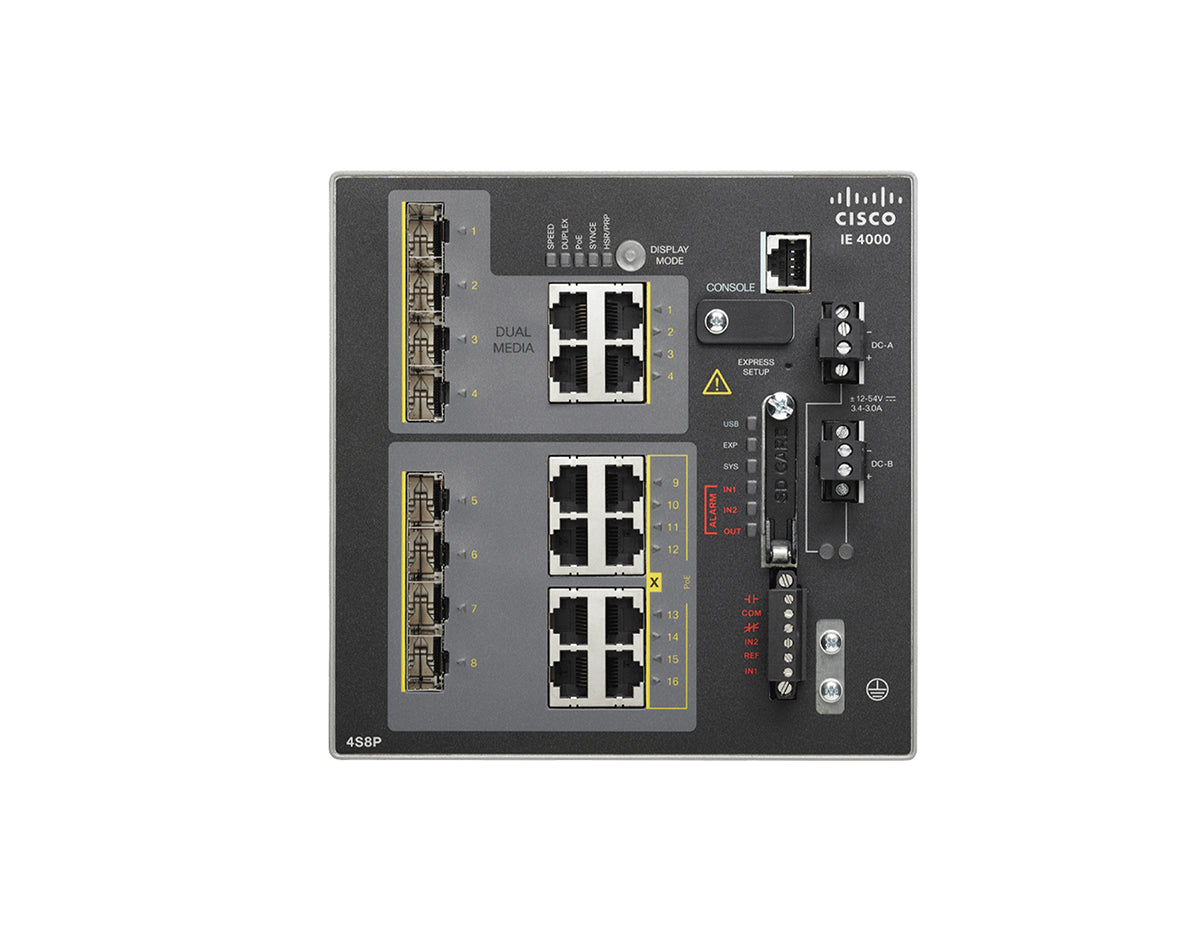

CISCO IE-4000-4S8P4G-E SWITCH
| Model: | IE-4000-4S8P4G-E-NEW |
| Detail: |
THIS ITEM IS A SPECIAL ORDER AND MAY TAKE ADDITIONAL SHIPPING TIME , Switch, managed, 4 x SFP + 8 x 10/100 (PoE+) + 4 x combo Gigabit SFP, DIN rail mountable, PoE+, DC power |
| List Price: | |
| Price: | $3,185.00 |
| You Save: | $2,702.07 (46% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside New Jersey |
| Quantity: |
The Cisco Industrial Ethernet (IE) 4000 Series provides superior high-bandwidth switching and proven Cisco IOS Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.
The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.
The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.
The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.
The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.
Specifications
| Total Ports | 16 |
| GE combo uplinks (4G) | 4 GE combo uplink ports (Combo ports provide one copper and one fiber physical port and only one can be activated at a time.) |
| SFP fiber ports (S) | 4 FE |
| PoE/PoE+ ports (P, GP), Maximum PoE power budget | 8 (FE), 125W |
| Default software | LAN Base feature set (Can be upgraded to IP Services at a fee.) |
| Hardware | 1GB DRAM 128-MB onboard flash memory 1-GB removable SD flash memory card Mini-USB connector RJ-45 connector |
| Alarm | Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay |
| Power Input | Redundant DC input voltage with operating range: nominal 9.6 to 60VDC Maximum DC input current: 4.3A |
| Power consumption | 40W |
| Dimensions (H x W x D) | 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm) |
| Weight | 6.35 pounds (2.88 kg) |
| Forwarding rate | Line rate for all ports and all packet sizes |
| Number of queues | 4 egress |
| Unicast MAC addresses | 16,000 |
| IGMP multicast groups | 1,000 |
| Number of VLANs | 1,000 |
| IPv4 MAC security ACEs | 1,000 with default TCAM Template |
| NAT translation | Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
