CISCO IE-4000-8S4G-E SWITCH
| Part No: | IE-4000-8S4G-E |
| Detail: | Switch, Managed, 8 x SFP + 4 x combo Gigabit SFP, DIN rail mountable, DC power |
| List Price: |
|
| Price: |
$1,750.00
|
| You Save: | $3,606.39 (67% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Ask For ETA |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description

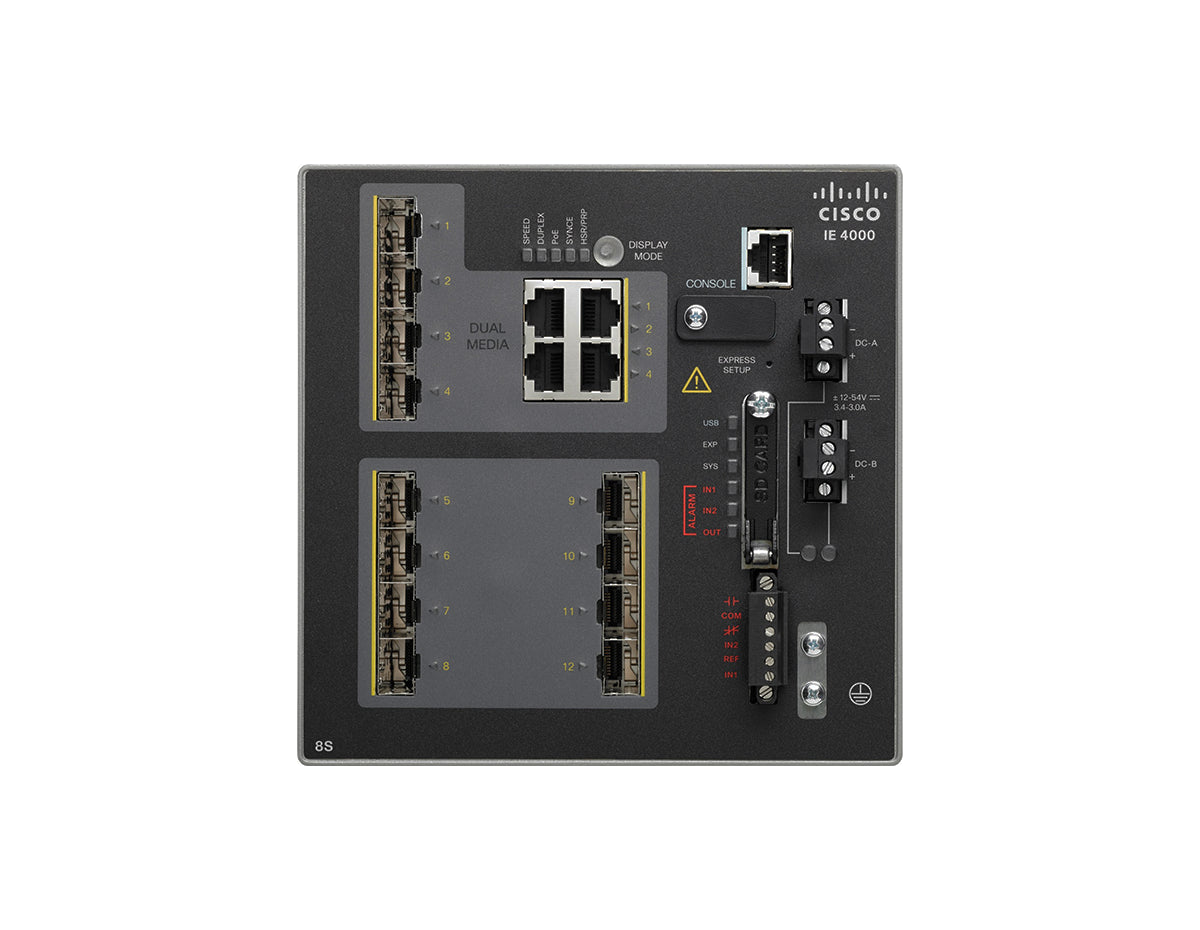

Cisco IE-4000-8S4G-E Industrial Ethernet Switch
The Cisco IE-4000-8S4G-E is a high-performance industrial Ethernet switch designed to provide reliable and secure network connectivity in harsh and demanding environments. This switch features 8 SFP ports and 4 additional Gigabit SFP uplinks, making it an ideal solution for connecting critical industrial devices such as IP cameras, sensors, and controllers. The IE-4000-8S4G-E is engineered to operate under extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control.
Key Features:
- 8 x SFP Ports: Provides flexible and high-speed fiber connectivity for various industrial applications, ensuring stable network communication.
- 4 x Gigabit SFP Uplinks: Offers additional uplink options for network scalability and redundancy.
- Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for challenging industrial environments.
- Advanced Layer 2 and Layer 3 Features: Supports VLANs, QoS, and routing protocols to enhance network control, security, and traffic management.
- High Availability: Offers redundancy features to ensure continuous network operation in mission-critical applications.
Technical Overview:
- Recommended for: Industrial environments requiring reliable fiber-based Ethernet connectivity with advanced management and high availability.
- Ports: 8 x SFP ports, 4 x Gigabit SFP uplinks.
- Operating Temperature: Designed to operate in a wide temperature range, suitable for extreme industrial applications.
- Management: Managed through a web interface, CLI, SNMP, and Cisco DNA Center for comprehensive network setup and monitoring.
- Form Factor: Rugged, compact design suitable for space-constrained industrial environments.
You can check the related tab for the Cisco IE-4000-8S4G-E datasheet.
Accessories
| Accessories and License Upgrade PIDs | |
| SD-IE-1GB | IE 1GB SD Memory Card - Spare |
| STK-RACK-DINRAIL | 19 in. DIN Rail mount kit |
| IE-LICENSE-SPARE | Spare license for software upgrade (L2 to L3 features or MRP protocols) |
| L-IE4000-RTU= | IE4000 Electronic software license upgrade from LAN base L2 to IP Services L3 features |
| LIC-MRP-MANAGER | MRP Ring Manager license |
| LIC-MRP-Client | MRP Ring Client license |
| Cisco ONE„ Licenses | |
| C1F1PIE4K5K1K9 | Cisco ONE Foundation Lite Perpetual Includes Prime Infrastructure (LF and AS), Identity Services Engine - Base |
| C1F1PIE40001K9 | Cisco ONE Foundation Perpetual Includes Full flexible Netflow, Stealthwatch, Prime Infrastructure, and Identity Services Engineer - Base |
| C1A1PIE40001K9 | Cisco ONE Advanced Perpetual Includes IP Services |
| C1-FLOW-IE4K | Cisco ONE Netflow IE4000 |
| C1A1AIE40001K9 | Cisco ONE Advanced Perpetual - IE 4000 |
| C1F1AIE40001K9 | Cisco ONE Foundation Perpetual - IE 4000, BROWNFIELD |
| C1F1AIE4K5K1K9 | Cisco ONE Foundation Lite Perpetual - IE 4000/5000 |
| C1F1PIE40001K9 | Cisco ONE Foundation Perpetual - IE 4000 |
| Cisco IE 4000 DNA licenses | |
| IE4000-DNA-E-L | Cisco DNA Essentials license (up to 12 ports) |
| IE4000-DNA-E-L-3Y | Cisco DNA Essentials 3 year term license (up to 12 ports) option |
| IE4000-DNA-E-L-5Y | Cisco DNA Essentials 5 year term license (up to 12 ports) option |
| IE4000-DNA-A-L | Cisco DNA Advantage license (up to 12 ports) |
| IE4000-DNA-A-L-3Y | Cisco DNA Advantage 3 year term license (up to 12 ports) option |
| IE4000-DNA-A-L-5Y | Cisco DNA Advantage 5 year term license (up to 12 ports) option |
| IE4000-DNA-E-L-7Y | Cisco DNA Essentials 7 year term license (up to 12 ports) option |
| IE4000-DNA-A-L-7Y | Cisco DNA Advantage 7 year term license (up to 12 ports) option |
| IE 4000 Series Power Supplies | |
| PWR-IE50W-AC= | 50W AC Power Supply |
| PWR-IE50W-AC-L= | 50W AC-L Power Supply |
| PWR-IE65W-PC-AC= | 65W PC-AC Power Supply |
| PWR-IE65W-PC-DC= | 65W PC-DC Power Supply |
| PWR-IE170W-PC- AC= | 170W PC-AC Power Supply |
| PWR-IE170W-PC- DC | 170W PC-DC Power Supply |
| PWR-IE240W-PCAC-L | 240W PCAC-L Power Supply |
| PWR-IE480W-PCAC-L | 480W PCAC-L Power Supply |
| SFPs | |
| GLC-FE-100FX-RGD= | 100BASE-FX Rugged SFP for Fast Ethernet SFP Ports |
| GLC-FE-100LX-RGD | 100BASE-LX10 Rugged SFP for Fast Ethernet SFP Ports |
| GLC-FE-100FX= | 100BASE-FX SFP for Fast Ethernet SFP Ports |
| GLC-FE-100LX= | 100BASE-LX10 SFP for Fast Ethernet SFP Ports |
| GLC-FE-100EX= | 100BASE-EX for Fast Ethernet SFP Ports |
| GLC-FE-100ZX= | 100BASE-ZX for Fast Ethernet SFP Ports |
| GLC-FE-100BX-D= | 100BASE-BX10-D SFP for Fast Ethernet SFP Ports |
| GLC-FE-100BX-U= | 100BASE-BX10-U SFP for Fast Ethernet SFP Ports |
| GLC-SX-MM-RGD= | 1000BASE-SX short wavelength; rugged |
| GLC-LX-SM-RGD= | 1000BASE-LX/LH long wavelength; rugged |
| GLC-ZX-SM-RGD= | 1000BASE-ZX extended distance; rugged |
| GLC-BX40-U-I= | 1000BASE-BX40-U for 40km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX40-D-I= | 1000BASE-BX40-D for 40km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX40-DA-I= | 1000BASE-BX40-D (Alternative) for 40km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX80-U-I= | 1000BASE-BX80-U for 80km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX80-D-I= | 1000BASE-BX80-D for 80km Single-Fiber Bidirectional Applications; with DOM |
| GLC-SX-MMD= | 1000BASE-SX short wavelength; with DOM |
| GLC-LH-SMD= | 1000BASE-LX/LH long-wavelength; with DOM |
| GLC-EX-SMD= | 1000BASE-EX long-wavelength; with DOM |
| GLC-ZX-SMD= | 1000BASE-ZX extended distance; with DOM |
| GLC-BX-D= | 1000BASE-BX10-D downstream bidirectional single fiber; with DOM |
| GLC-BX-U= | 1000BASE-BX10-U upstream bidirectional single fiber; with DOM |
| GLC-BX-D-I= | 1000BASE-BX10-D downstream bidirectional single fiber, (IND) rated, with DOM |
| GLC-BX-U-I= | 1000BASE-BX10-U upstream bidirectional single fiber, (IND) rated, with DOM |
| CWDM-SFP-xxxx= (8 freq) | Longwave xxxx-nm laser, single mode |
| DWDM-SFP-xxxx= (40 freq) | 1000BASE-DWDM SFP |
| SFP-GE-S= | Cisco SFP-GE-S Duplex SFP 1Gbps 500m MMF DDM 850nm |
| SFP-GE-L= | 1000BASE-LX/LH SFP (DOM) |
| SFP-GE-Z= | Cisco 1000BASE-ZX SFP transceiver module for SMF |
| GLC-SX-MM= | Cisco GLCSXMM SFP, Duplex, 1Gbps, 500m, 7.5dB, MMF, 850nm |
| GLC-LH-SM= | Cisco Glc Lh Sm 1000Base Lh Sm Sfp Transceiver Module |
| GLC-ZX-SM= | Cisco 1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, commercial operating temperature range. |
| GLC-TE= | 1000BASE-T standard |
| GLC-T-RGD= | 1000BASE-T standard |
Specifications
| Specifications | IE-4000-8S4G-E |
| DRAM | 1 GB |
| Flash Memory | 128 MB |
| Hardware | |
| PoE power budget | Not applicable |
| Removable storage | 1-GB removable SD flash memory card (Included) Mini-USB connector |
| Alarms | Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay |
| Console ports | RJ-45 connector |
| Power inputs | Dual DC power inputs |
| Number of Queues | 4 egress |
| Forwarding Rate | Line rate for all ports and all packet sizes |
| Unicast MAC addresses | 16,000 |
| Jumbo Frames | 8996 bytes |
| No. of VLANs | 1,000 |
| Internet Group Managament Protocol (IGMP) Multicast Groups | 1000 |
| IPv4 MAC security ACEs | 1,000 with default TCAM Template |
| NAT translation | Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
| Input Voltage Range | Redundant DC input voltage: nominal 9.6 to 60VDC |
| Maximum Input Current | 5.0A |
| Power Consumption | 42W |
| Operating Temperature | Operating Temperature: -40C to +75C -40C to +70C (Vented Enclosure Operating) -40C to +60C (Sealed Enclosure Operating) -34C to +75C (Fan or Blower equipped Enclosure Operating) EN 60068-2-1 EN 60068-2-2 EN 61163 |
| Storage Temperature | -40 C to +85 C |
| Operating Altitude | Up to 15,000 feet |
| Storage Altitude | 15,000 feet |
| Mean Time Between Failures (MTBF) | 583, 700 Hours |
| Industrial Automation Control System |
IEC 62443-4-1 IEC 62443-4-2 |
| Electromagnetic emissions | FCC 47 CFR Part 15 Class A EN 55022A Class A EN 300 386 VCCI Class A AS/NZS CISPR 22 Class A CISPR 11 Class A CISPR 22 Class A ICES 003 Class A CNS13438 Class A KN22 |
| Electromagnetic immunity | EN55024 CISPR 24 AS/NZS CISPR 24 KN24 EN 61000-4-2 Electro Static Discharge EN 61000-4-3 Radiated RF EN 61000-4-4 Electromagnetic Fast Transients EN 61000-4-5 Surge EN 61000-4-6 Conducted RF EN 61000-4-8 Power Frequency Magnetic Field EN 61000-4-9 Pulse Magnetic Field EN 61000-4-10 Damped Oscillatory Magnetic Field (100 A/m) EN 61000-4-11 AC Power Voltage EN 61000-4-18 Damped Oscillatory Wave EN-61000-4-29 DC Voltage Dips |
| Industry standards | EN 61000-6-1 Light Industrial EN 61000-6-2 Industrial EN 61000-6-4 Industrial EN 61326 Industrial Control EN 61131-2 Programmable Controllers Substation KEMA (IEEE 1613, IEC 61850-3) Marine DNV GL (Ships; High speed and light craft)* NEMA TS-2 (EMC, environmental, mechanical) IEEE 1613 Electric Power Stations Communications Networking IEC 61850-3 Electric Substations Communications Networking EN50155 Railway - Electronic Equipment on Rolling Stock (EMC, ENV, Mech) EN50121-4 Railway - Signaling and Telecommunications Apparatus EN50121-3-2 Railway - Apparatus for Rolling Stock ODVA Industrial EtherNet/IP PROFINET conformance B IP30 (per EN60529) |
| Safety standards and certifications |
Information Technology Equipment: UL/CSA 60950-1 EN 60950-1 CB to IEC 60950-1 with all country deviations NOM to NOM-019-SCFI (through partners and distributor) Industrial Floor (Control Equipment): UL 508 CSA C22.2, No 142 Hazardous Locations: ANSI/ISA 12.12.01 CSA C22.2 No 213 IEC 60079-0, -15 IECEx test report EN 60079-0, -15 ATEX certification (Class I Zone 2) Cabinet enclosure required |
| Humidity | Relative humidity of 5% to 95% non-condensing IEC 60068-2-3 IEC 60068-2-30 |
| Shock and vibration | IEC 60068-2-27 (operational shock, 50G, 11ms, Half Sine) IEC 60068-2-27 (Non-Operational Shock, 65-80G, 9ms, Trapezoidal) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Non-operational Vibration) |
| Corrosion | ISO 9223: Corrosion class C3-Medium class C4-High EN 60068-2-52 (Salt Fog) EN 60068-2-60 (Flowing Mixed Gas) |
Properties
| Properties | Cisco IE-4000-8S4G-E |
| Description | IE4000 switch with 8 FE SFP and 4 GE combo uplink ports |
| Product Family | Industrial Ethernet 4000 |
| Product Type | Ethernet Switch |
| Switches | |
| Total Ports | 12 |
| GE combo (SFP or RJ45) uplinks (4G) | All models have 4 GE combo uplink ports |
| Additional combo (SFP or RJ45) ports | - |
| RJ45 copper ports (T) | - |
| SFP fiber ports (S) | 8 FE |
| PoE/PoE+ ports (P, GP), Maximum PoE power budget | - |
| Default software License | All models ship with LAN Base feature set |
| Software Features | |
| LAN Base License (Default) | Features |
| Layer 2 Switching | IEEE 802.1, 802.3, 802.3at, 802.3af standard, VTPv2, NTP, UDLD, CDP, LLDP, Unicast Mac filter, Flexlink, Resilient Ethernet Protocol (REP), VTPv3, EtherChannel, Voice VLAN, QinQ tunneling, Industrial macro configuration |
| Layer 2 multicast | IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier |
| Managament | Fast Boot, Express setup, Web Device Manager, Industrial Network Director (IND), MIB, Smartport, SNMP, syslog, storm control, unicast, multicast, broadcast, SPAN sessions, RSPAN, DHCP server, customized DOM (digital optical management), Embedded Event Manager (EEM), Plug-n-Play Agent, Port-based DHCP |
| Security | SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, Port-Security, Private VLAN, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, FIPS 140-2, ACT2, Secure boot, Full flexible Netflow |
| Quality of Service (QoS) | Ingress Policing, Rate-Limit, Egress Queueing/shaping, AutoQoS, QoS, PROFINET QoS |
| Layer 2 IPv6 | IPv6 Host support, HTTP over IPv6, SNMP over IPv6 |
| Layer 3 Routing | IPv4 Static Routing |
| Utility |
Power Profile 2011 and 2017, dying gasp, GOOSE messaging, SCADA protocol classification, MODBUS TCP/IP, utility SmartPort macro, BFD, Ethernet OAM, IEEE 802.3ah, CFM (IEEE 802.1ag) |
| Industrial Ethernet | CIP Ethernet/IP, Profinet v2, IEEE 1588 PTP v2, NTP to PTP translation, CIP Time Sync |
| Redundancy |
Redundancy Ethernet Protocol ring (REP) Parallel Redundancy Protocol (PRP) Media Redundancy Protocol (MRP) ring, MRP Auto Manager (MAM) High Availability Seamless Redundancy (HSR), PTP over HSR HSR-PRP (Dual RedBox mode) HSR-HSR (Quadbox) |
| Industrial Management | Layer 2 switching with 1:1 static Network Address Translation (NAT) |
| Dimensions (HxWxD) Inches | 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm) |
| Weight | 6.35 pounds (2.88 kg) |
